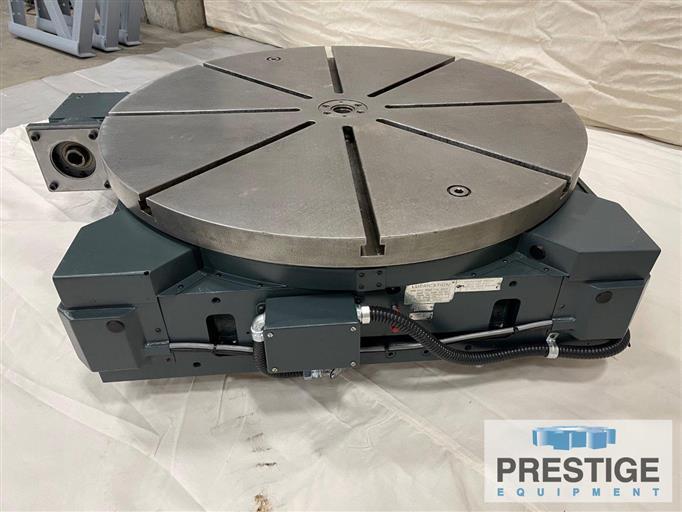

42" Producto Rotary Table
Brand
Category
Type
Model
0140
Stock #
32077
Year
2013
Condition
Not specified
Location
Not specified
|
CATALOG SPECS:
Table Diameter 42" Table Height 13" Parallelism (top to bottom) .0004" Table Top Flatness .0005" Table Top Axial Runout .0004" Angular Resolution .001 Degrees Drive Ratio 534: 1 Cont. drive torque 15 ft lbs. Cont. torque 2,400 ft lbs. Table Load Rating, Axial 32,000 lbs. Table Load Rating, Moment 19,800 ft lbs. Table Speed 2.3 RPM Table Weight 3,700 lbs. Equipped With: Table Only - no Motor or Controls Available Options at Additional Cost: Available with Fixed RPM Drive, On & Off Pendant Available with Variable Speed Drive, Adjustable Speeds Pendant Note: Does not include a brake to stop at a specific location |
