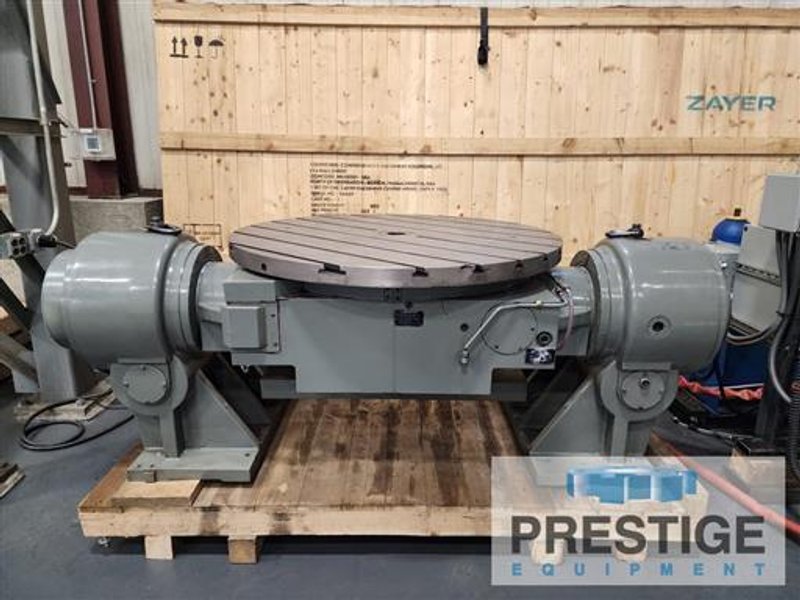

Producto 48" CNC Trunnion Table w/ Fanuc 35i CNC Control

Brand
PRODUCTO
Category
Tables
Type
Tables, Rotary
Model
4014 2-Axis
Stock #
43157
Year
1987
Condition
Not specified

Location

Not specified
REQUEST FINANCING
SPECIFICATIONS:
Table Size (T-Slotted) 48" Dia.
Base Size 94" x 41"
B-Axis (Rotary) .001 Positions

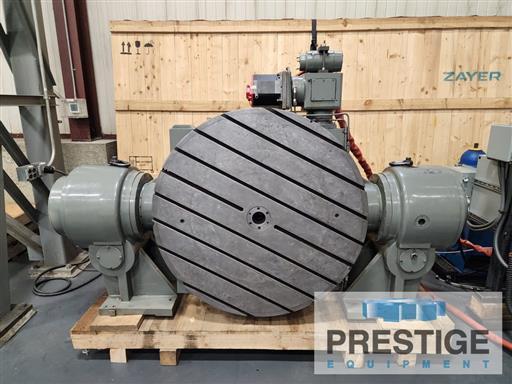

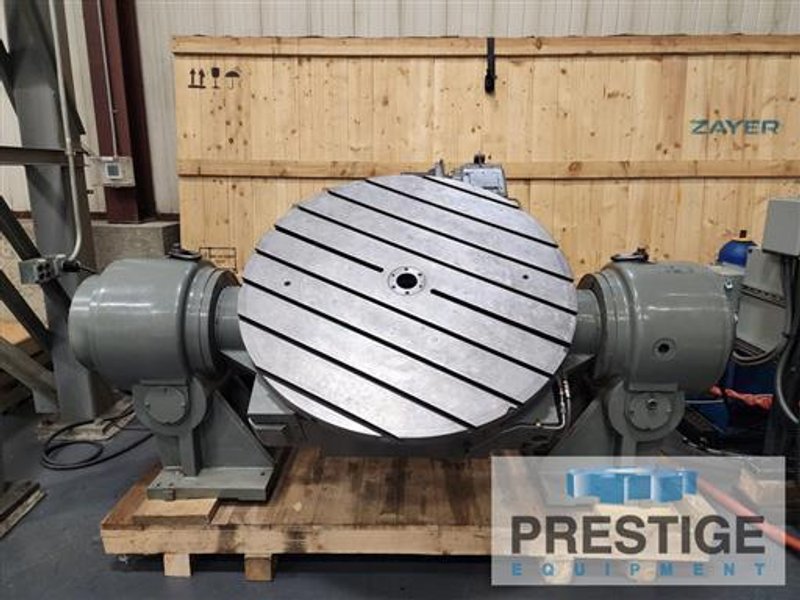

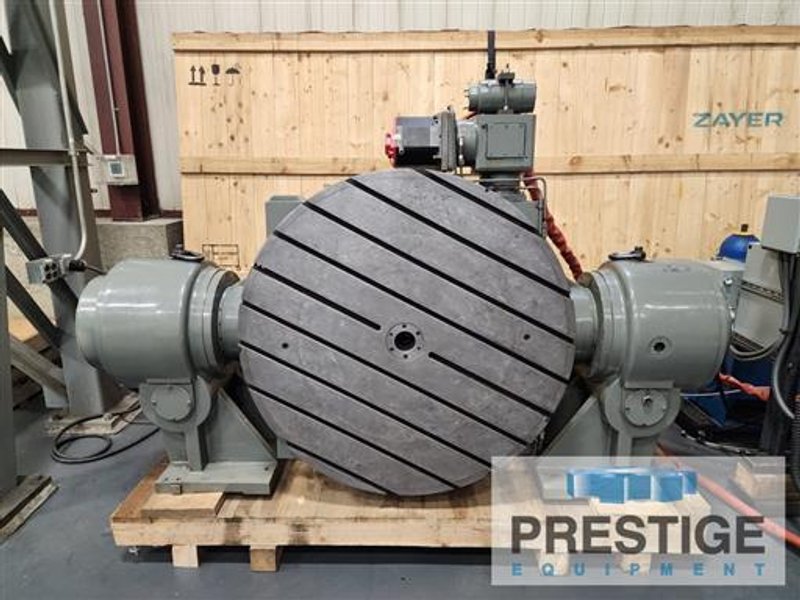

A-Axis (Tilt) 0-90 Degrees
Table Height (Horizontal) 37.5"
Maximum Rotation Speed 2.8 RPM
Maximum Load Capacity - Vertical 32,000 Lbs
Maximum Load Capacity - Horizontal 19,800 Lbs
Footprint 96" x 60"

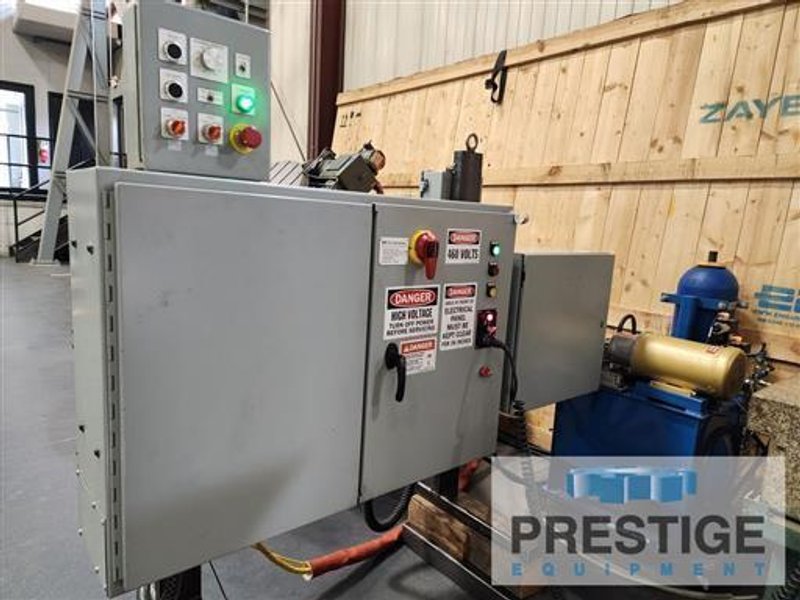

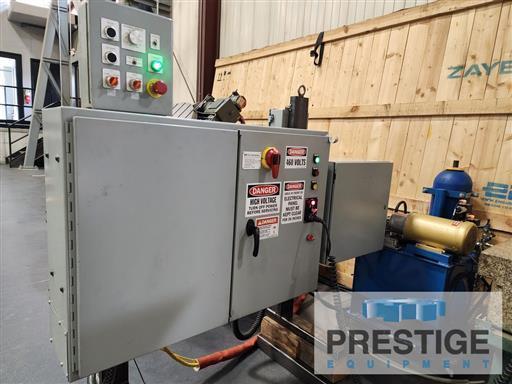

Electrics 460V/3PH/60Hz



Equipped With:

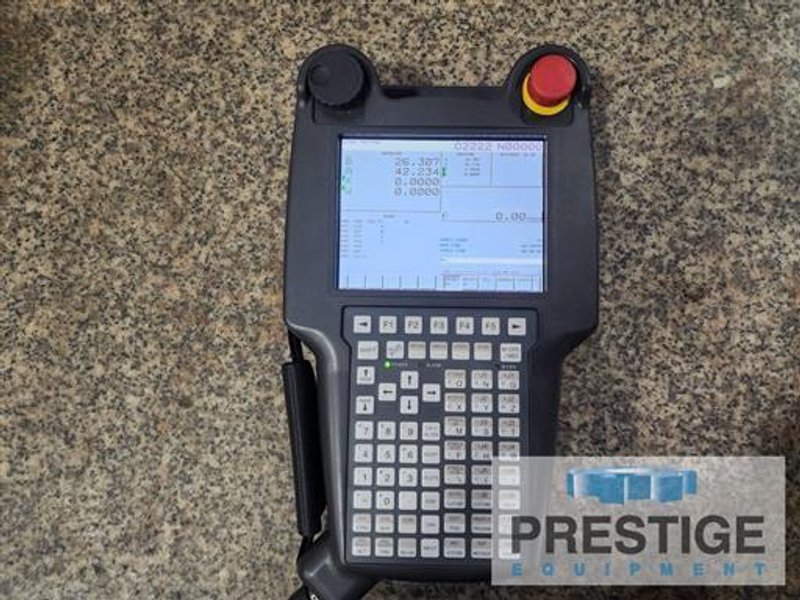

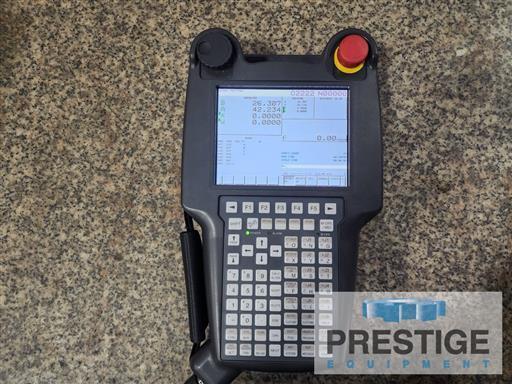

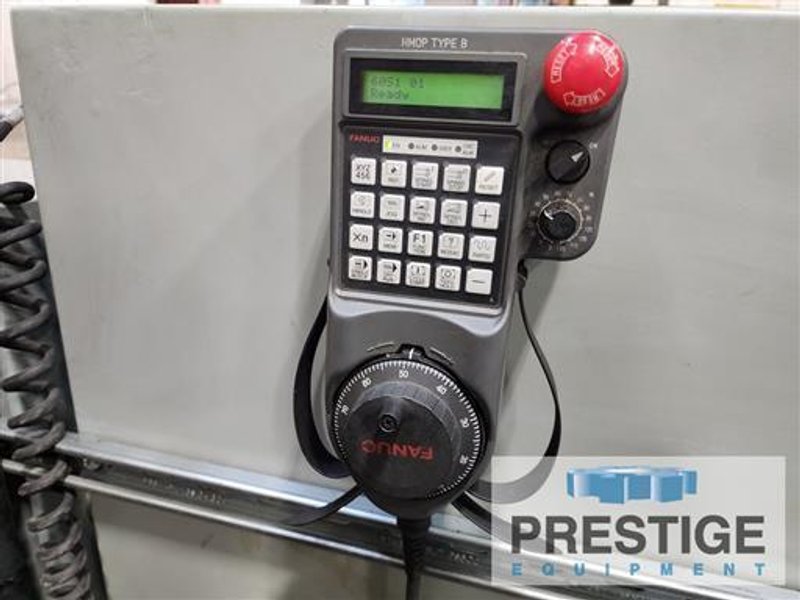

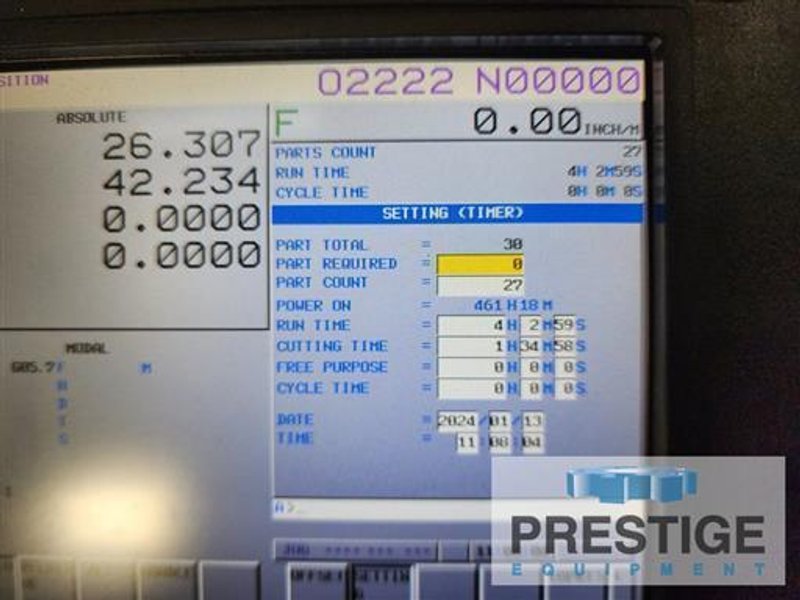

Fanuc 35i CNC Control with I-Pendant (Retrofit 2018)
Full A & B Axes CNC
360,000 Position
90 Degree Tilt
Manual and CNC Imput with 2-Axis Position Input
Hydraulic Clamping


NOTE: Fully Self Contained, Independent Unit
