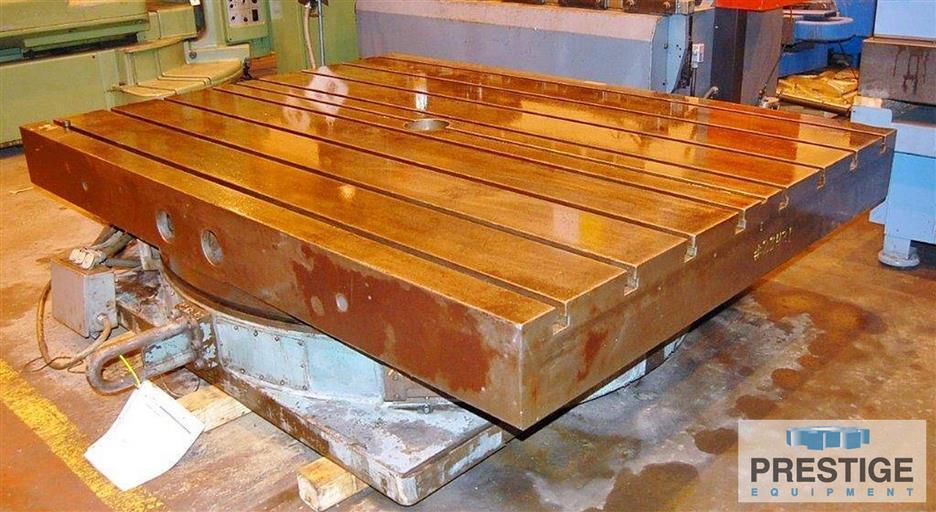

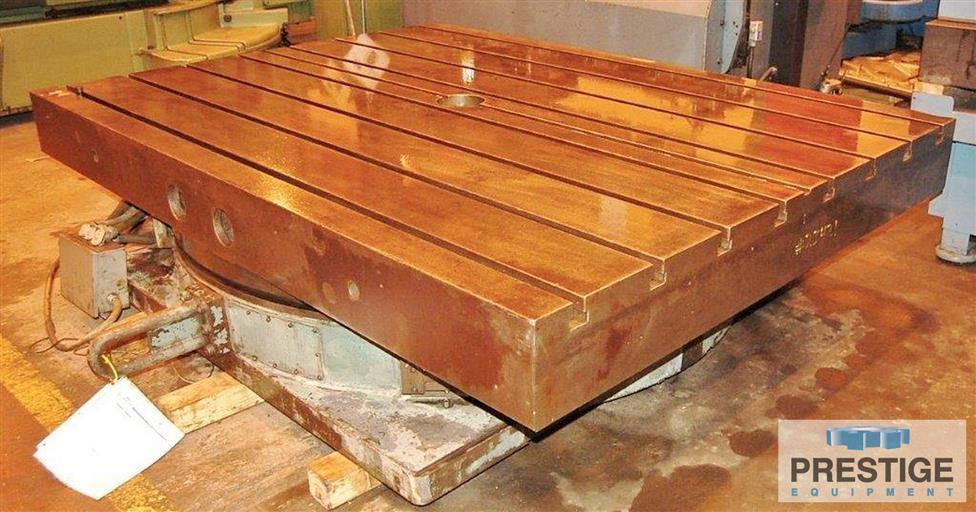

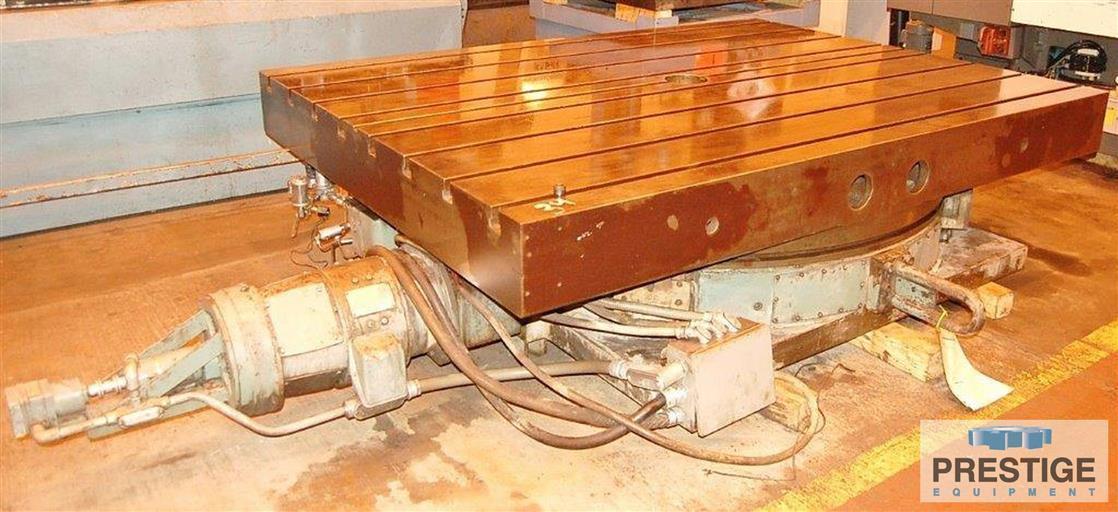

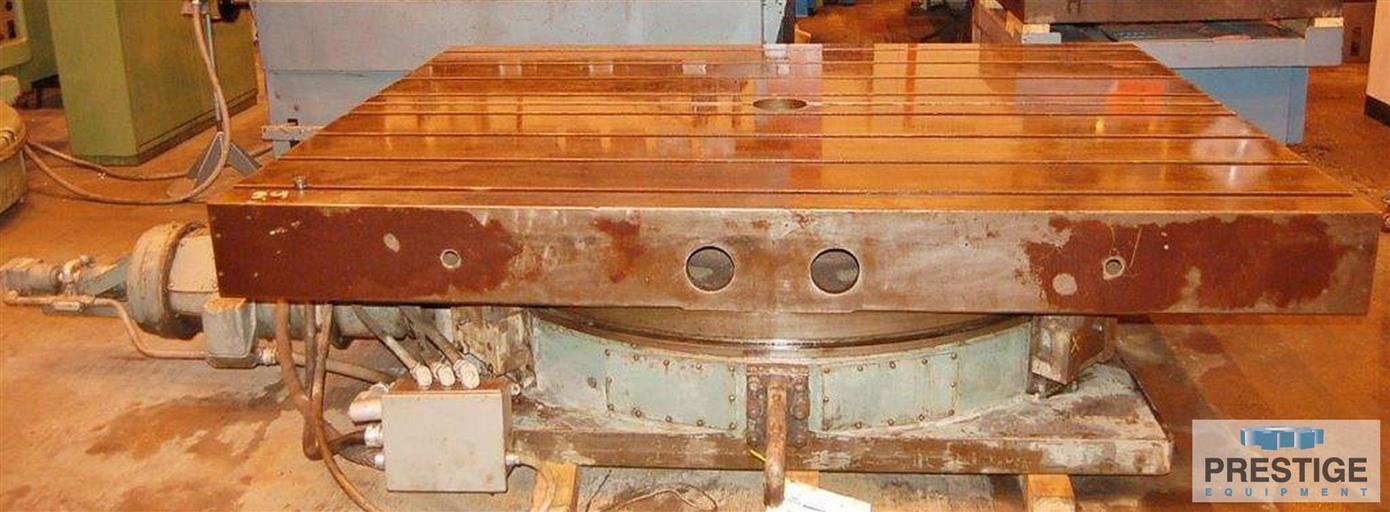

Giddings & Lewis 360P 72" x 96" CNC Rotary Table
Brand
Category
Type
Model
360 N/C
Stock #
23421
Year
1969
Condition
Not specified
Location
Not specified
|
SPECIFICATIONS:

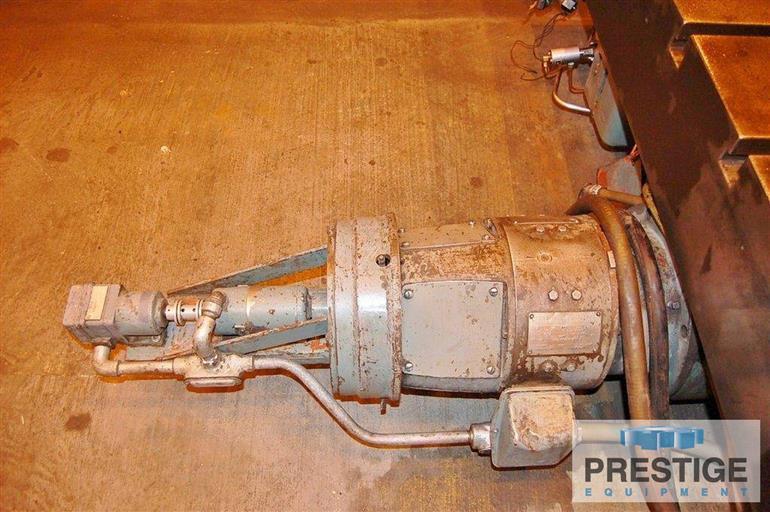

Table Size 72" x 96" Work Height 22.5" Number Of T-Slots 8 Width Of T-Slots, Top 1" Width Of T-Slots, Bottom 1-3/4" Depth Of T-Slots, Overall 2" Distance Between T-Slot Centers 9" Center Keyway Width 1" Center Bore Diameter 6" Approx. Maximum Load Capacity 35,000 Lbs Table Base Dimensions 72" x 96" Approximate Shipping Weight 13,500 Lbs Equipped With: 360 Degree Scale With 1/2 Degree Increments Hydraulic Clamping 2 HP Main Motor (180 Volt DC) |
