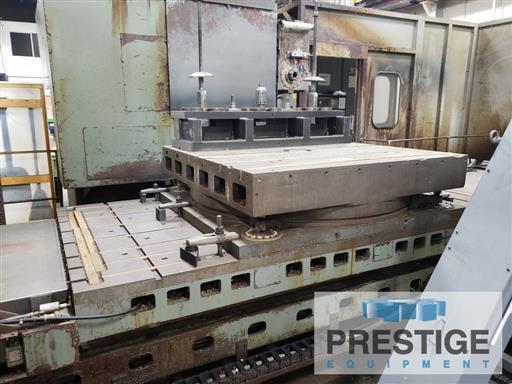

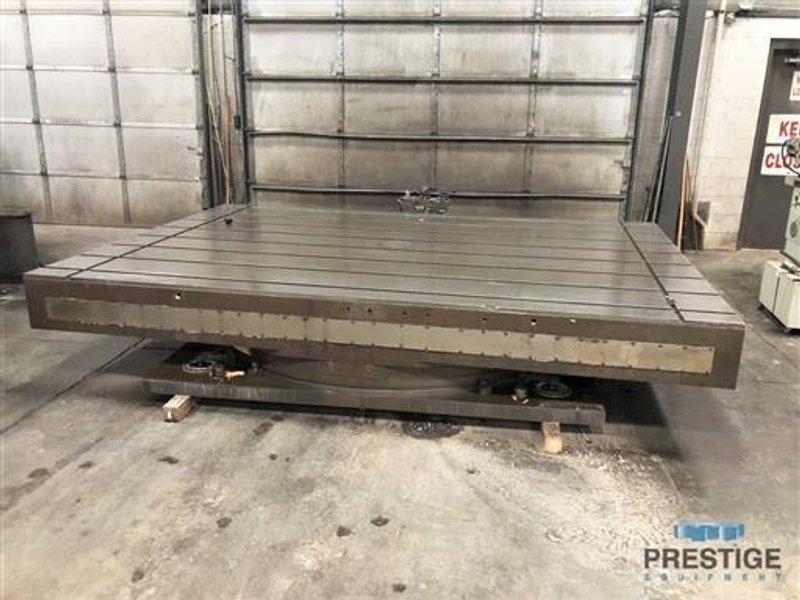

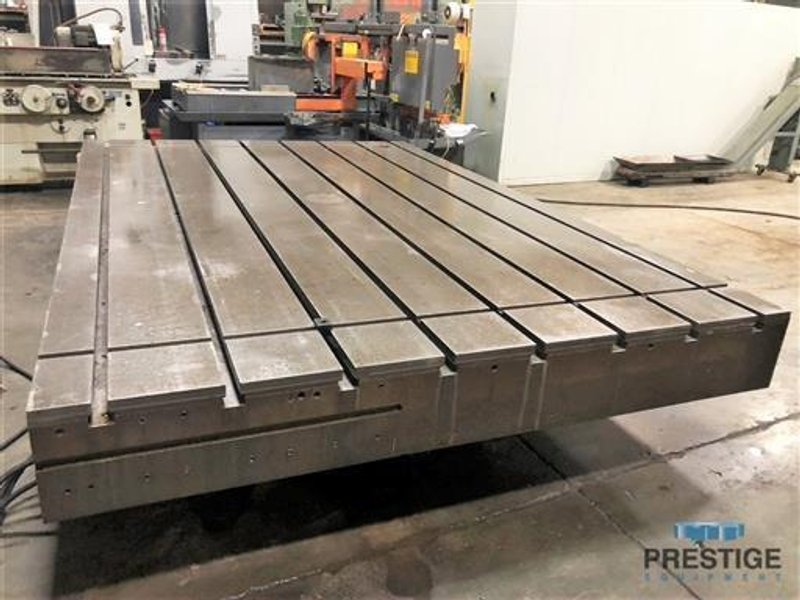

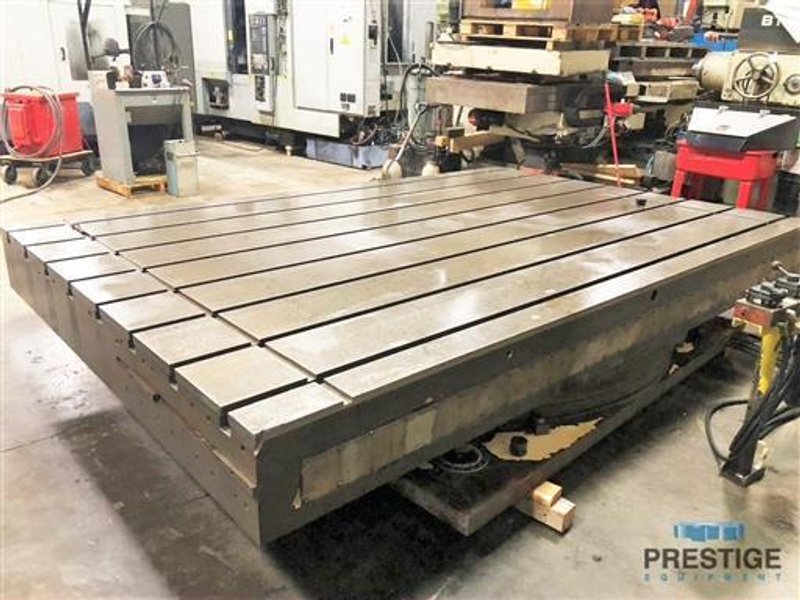

Giddings & Lewis 96" x 144" Airlift Rotary Table
Brand
Category
Type
Model
Air Lift
Stock #
31357
Year
Not specified
Condition
Not specified
Location
Not specified
|
SPECIFICATIONS:

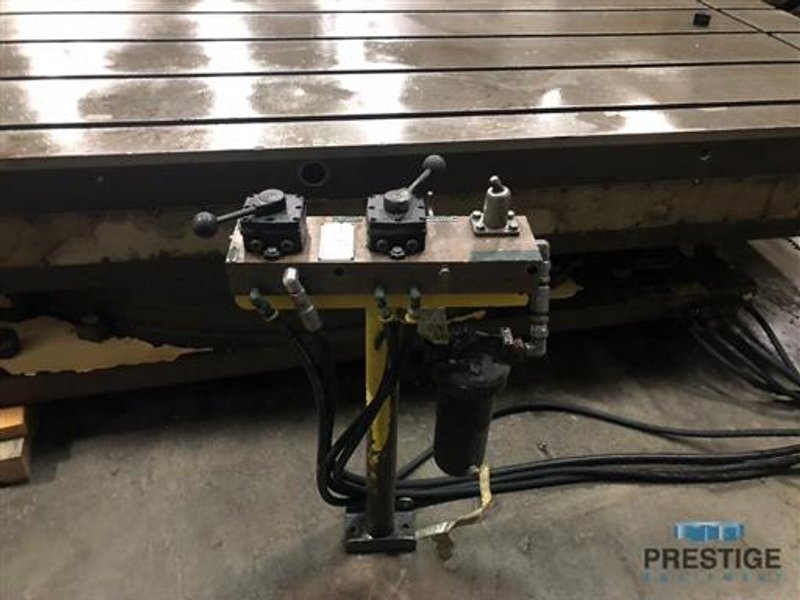

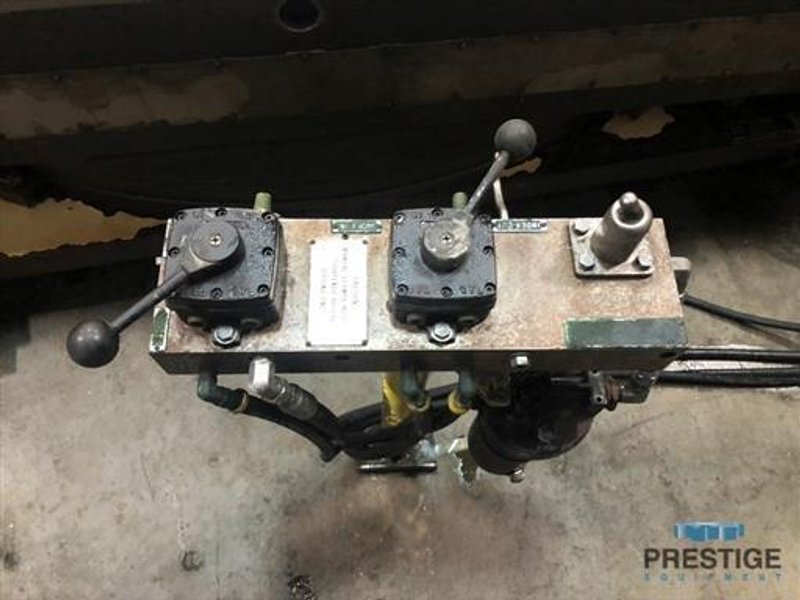

Table Size 96" X 144" Table Height Overall 28" Number Of T-Slots 8 Width Of T-Slots, Top 1.25" Width Of T-Slots, Bottom 2.25" Depth Of T-Slots, Overall 2.5" Distance Between T-Slot Centers 12" Center Keyway Width 1 1/4" Cross Key Slots 5 Center Bore Diameter 8" Weight Capacity 75,000 LBS Shot Pin Locations (degrees) 90,180,270,360 Table Base Dimensions 84" x 84" Table Weight 39,000 lbs Equipped With: Remote Pendant Air Clamp 4-Positive Stop, Shot Pins 360 Degree Scale with 1/2 Degree Increments Fixture Locating Keyway Center Bore In Table Platen |
