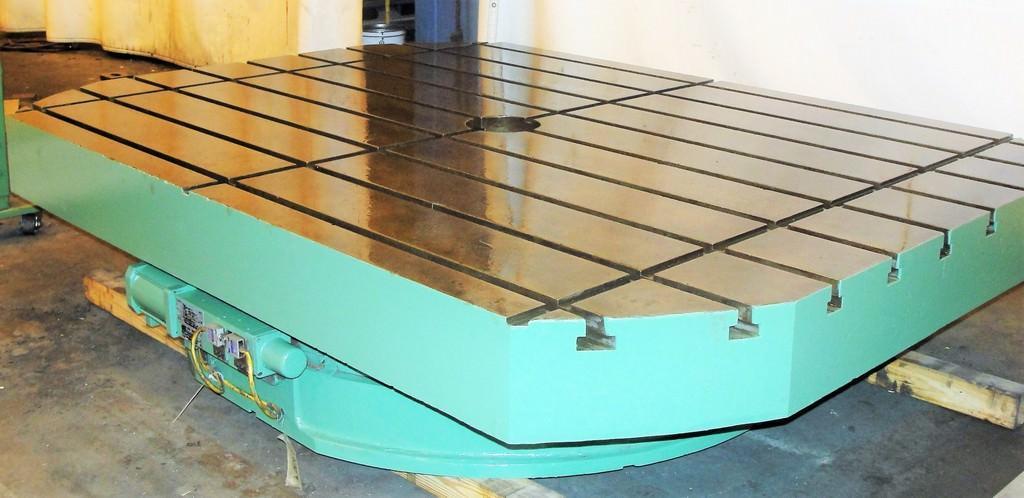

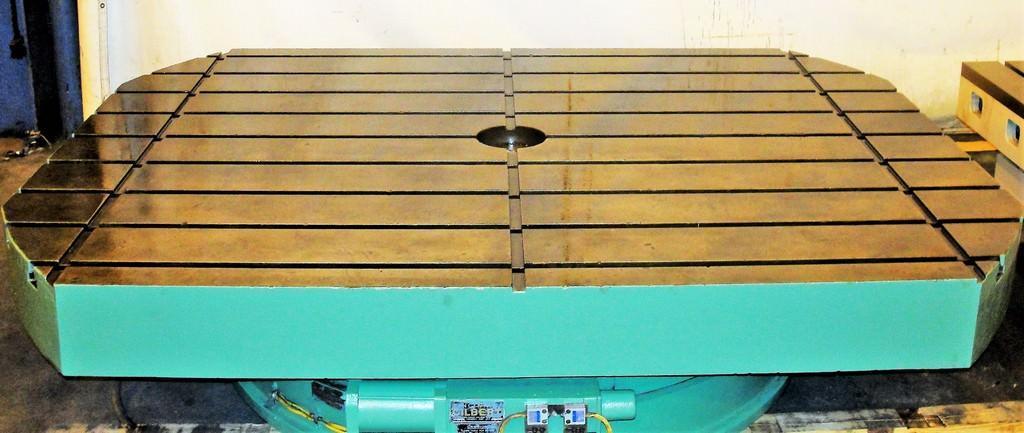

Cincinnati Gilbert 72" X 96" Air Lift Index Tables
Brand
Category
Type
Model
Airlift
Stock #
23430
Year
Not specified
Condition
Not specified
Location
Not specified
|
SPECIFICATIONS:
Table Size 72" x 96" Work Height 25" Table Weight Capacity On Center 20,000 LBS Table Weight Capacity Off Center 15,000 Lbs Number Of T-Slots 9 Width Of T-Slots, Top 1" Width Of T-Slots, Bottom 1.875" Distance Between T-Slot Centers 8" Center Keyway Width 1" Shot Pin Locations (Degrees) 90, 180, 270, 360 Table Base Dimensions 96" x 72" Approximate Shipping Weight 13,600 Lbs Equipped With: 90 Degree, 4-Position, Positive Stop Shot Pin 360 Degree Scale with 1/2 Degree Increments Fixture Locating Keyway Degree Increments Fixture Locating Keyway Center Bore In Table Platen |
