CAPACITY:

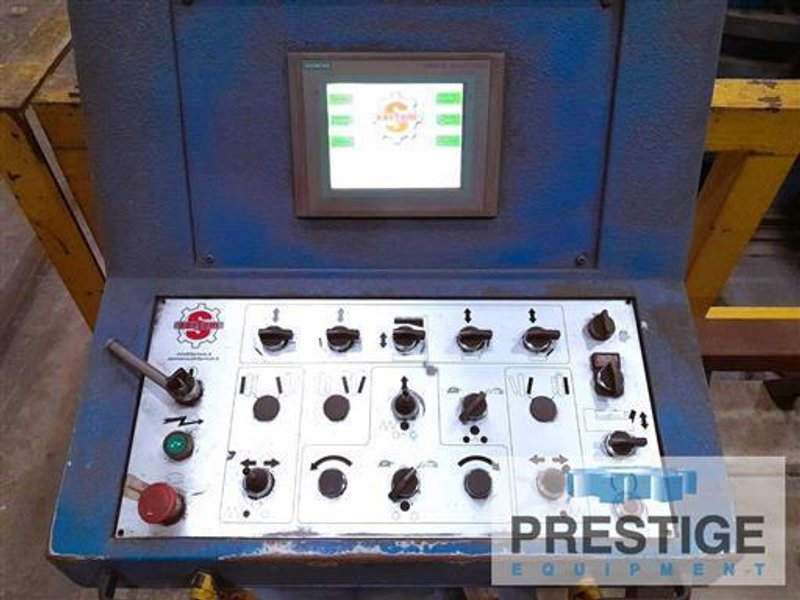

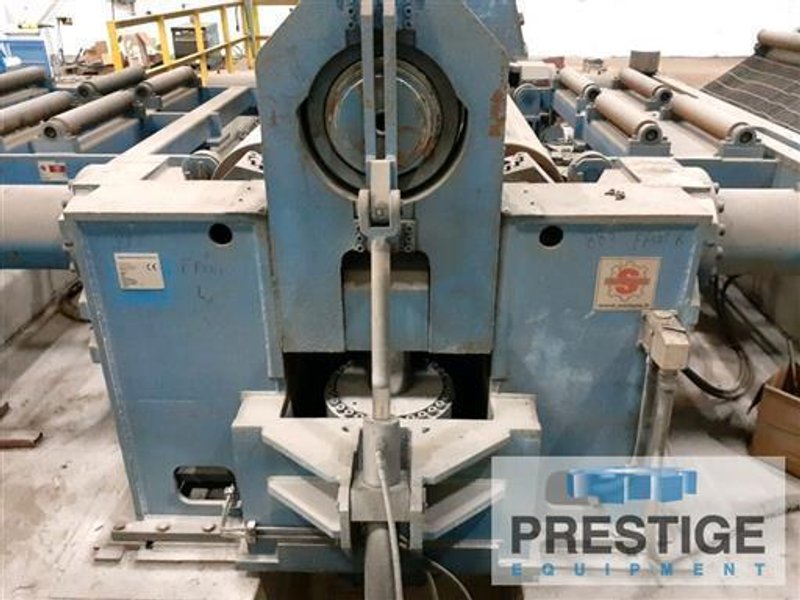

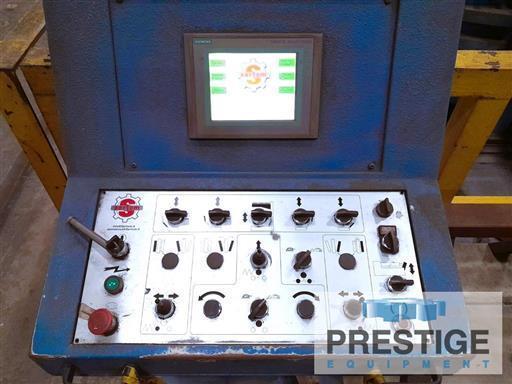

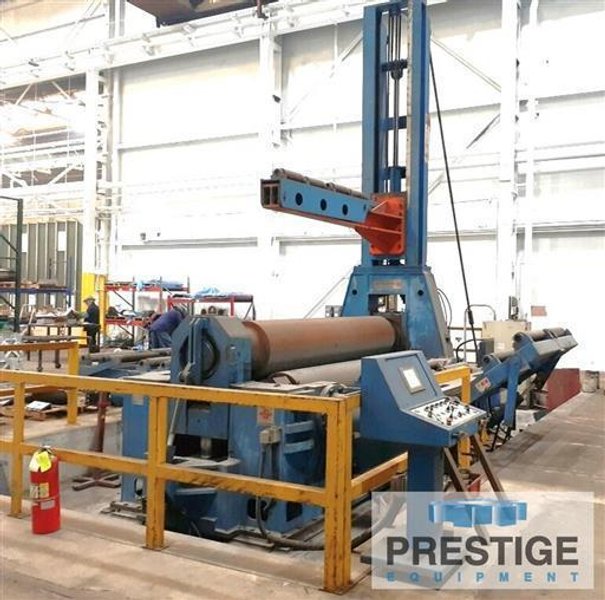

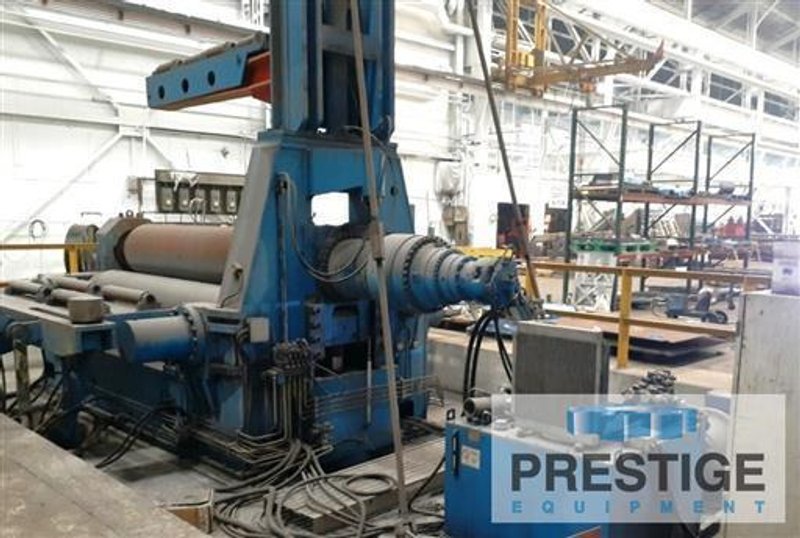

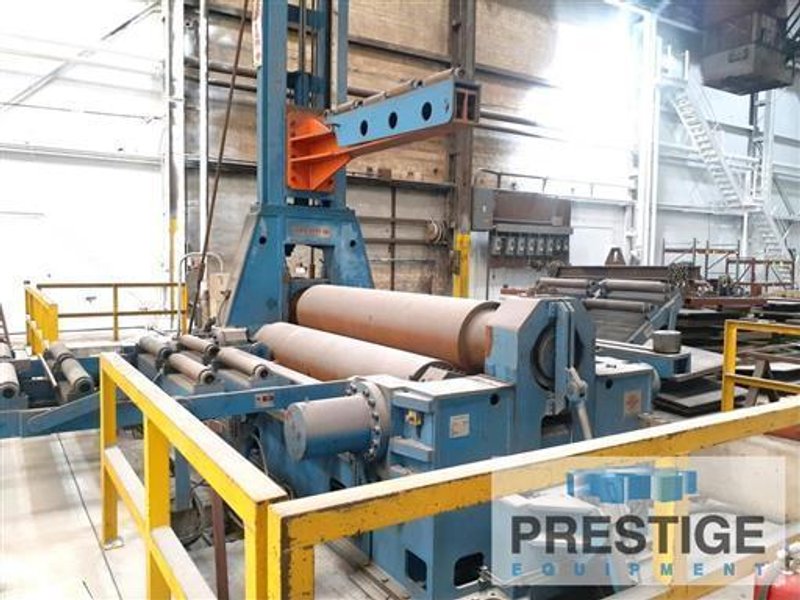

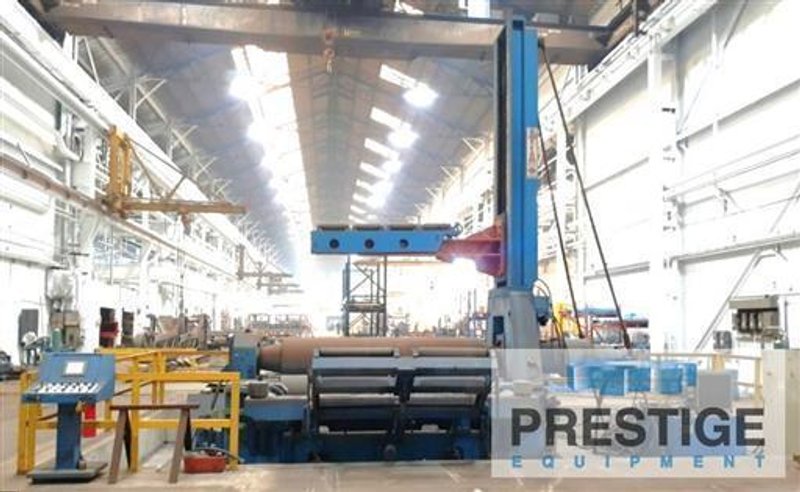

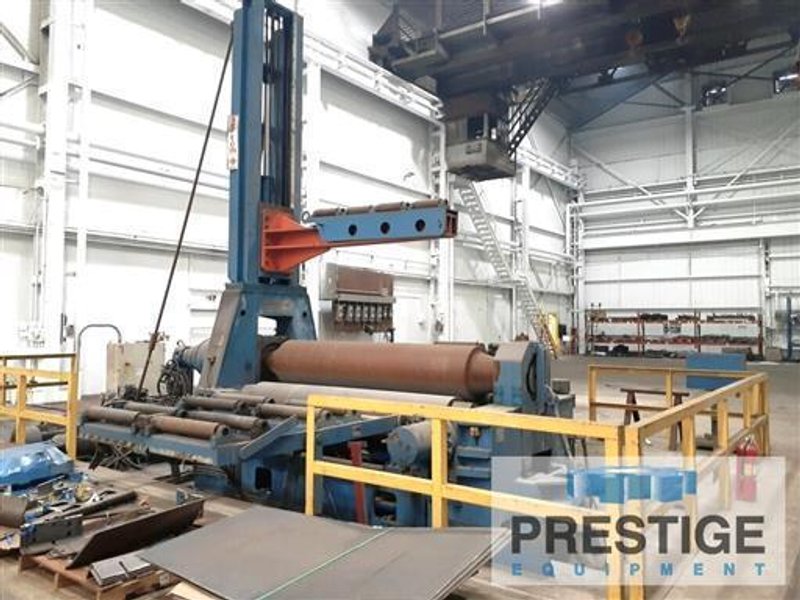

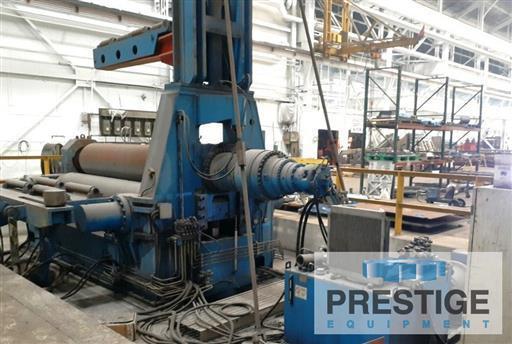

Length Of Rolls 122" Max. Cap Bending @ 1.5 x Roll Dia. 2.75" x 10' Max. Cap Pre-Bend @ 1.5 x Roll Dia. 2.36" x 10' Top Roll Diameter 25.59" Bottom Rolls Diameter 22.04" Roll Rotation Speed 8.2 - 16.4 FPM Max. Distance Between Rolls 6.10" Main Drive Motor 109 HP Approximate Shipping Weight 121,035 Lbs Equipped With: Siemens Simatic Multi Panel PLC Control Console 3-Roll Variable Axis Design Horizontal Adjusting Bottom Rolls Move Independently With variable Steps Vertical Adjusting Top Roll Hydraulic Drop End Overhead Plate Support Feed Table & Side Plate Support Notes: Inspect in Plant Under power |
