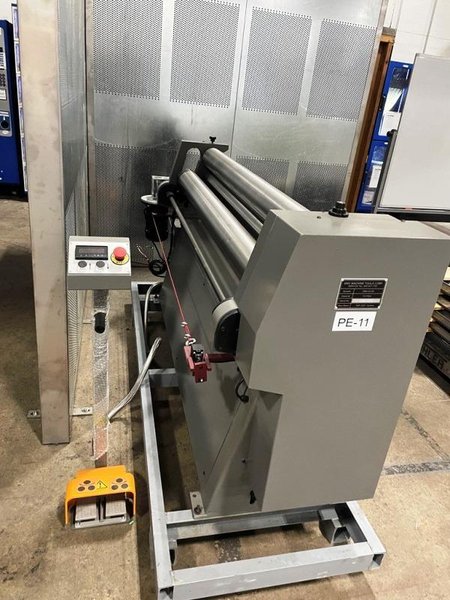

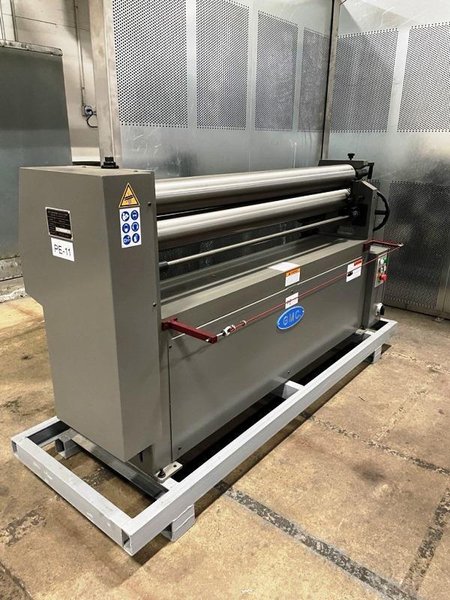

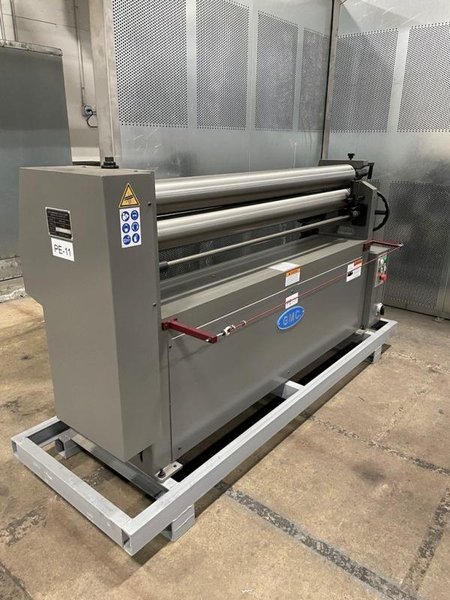

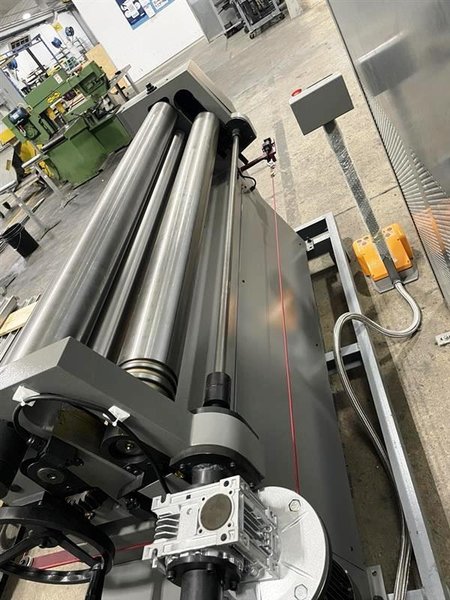

5' X 10 GA. GMC MODEL PBR-0510E POWER BENDING ROLL

5' X 10 GA. GMC MODEL PBR-0510E POWER BENDING ROLL

New 2025

This machine was purchased new in October of 2025. It has never been put into use. It is new condition

• SO 9001 certified
• Taiwan machines

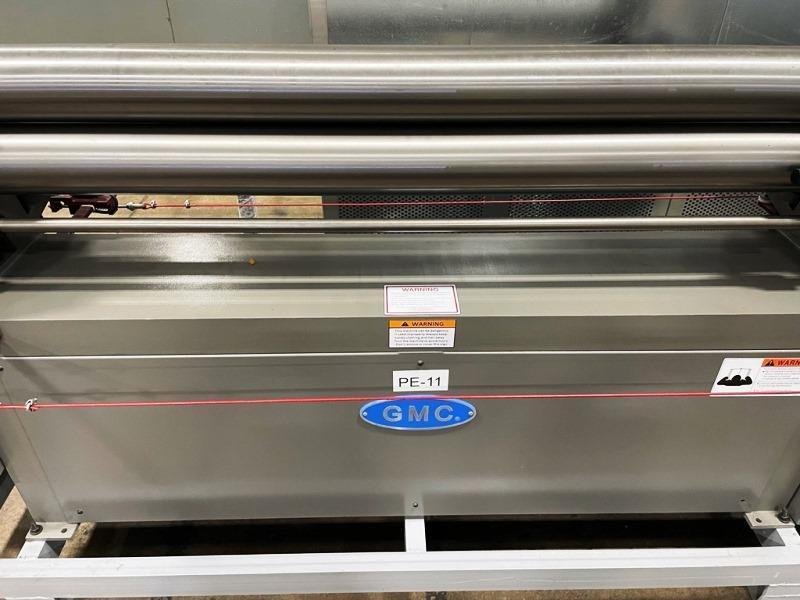

• All (3) rolls are hardened rolls, up to 50-52 HRC
• 3-rollers are driven to perform high accuracy
• Adjustable cone attachment included
• 3/8”, ½” and 5/8” grooves on rollers

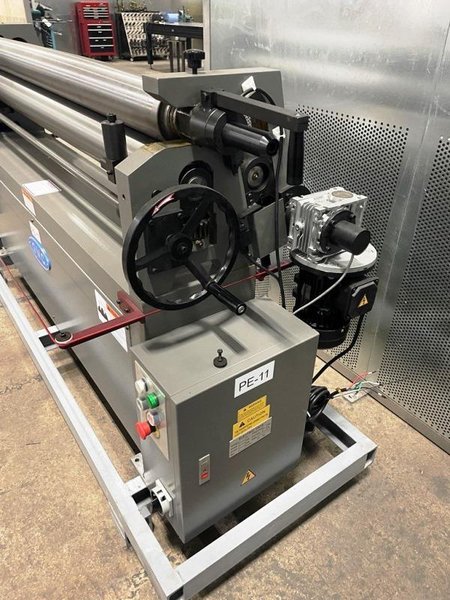

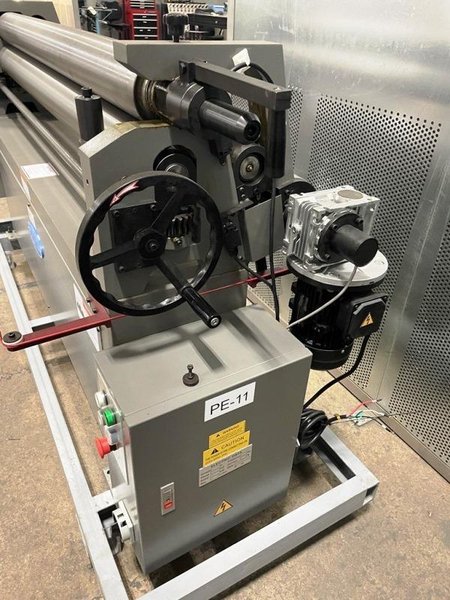

• One wheel one-side operated for bending roll
• One wheel one-site operated for pinch roll (E model is powered)
• Heavy duty casting frame
• Heavy duty all steel welded construction
• 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
• Quiet running operation
• Easy swing-out top roller
• Safety line all around the machine for emergency stop
• All rolls run forward and reverse

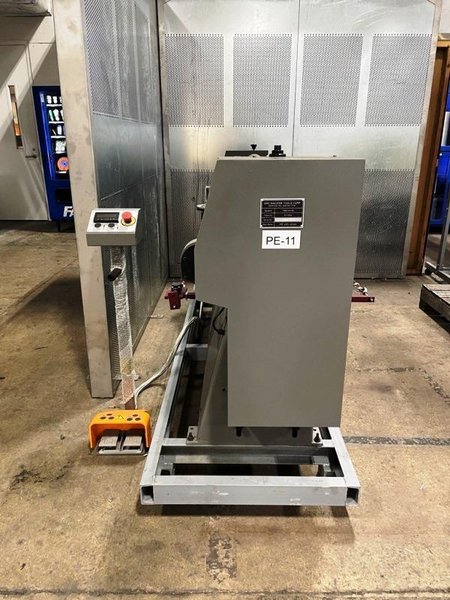

• Safety type forward/reverse foot pedal
•

STANDARD EQUIPMENT

• Adjustable cone attachment
• 3/8”, ½” and 5/8” grooves on rollers
• All (3) hardened rolls
• Removable safety foot pedal
• Operation & parts manual
• Orange color front cover is optional.
• E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs

STANDARD EQUIPMENT

• Adjustable cone attachment
• 3/8”, ½” and 5/8” grooves on rollers
• All (3) hardened rolls
• Removable safety foot pedal
• Operation & parts manual
• Orange color front cover is optional.
• E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs

SPECIFICATIONS:
Capacity Mild Steel                                         5'1" x 10 Ga.
Capacity Stainless Steel                                   5'1' x 12 Ga.
Roll Diameter                                                  4-3/4"
Min. Bending Diameter Inch                           6"
Pre-Bend Inch                                                 .012"
Rolls Opening                                                 1/2"

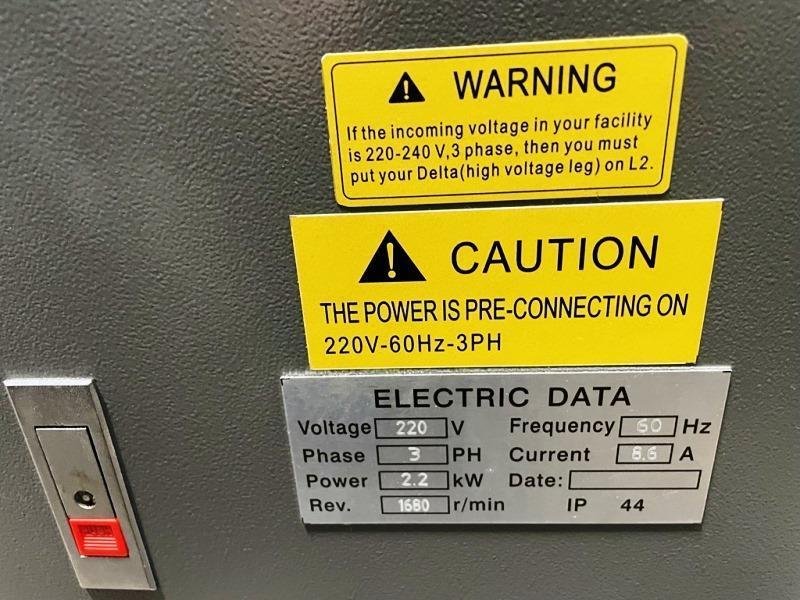

Main Motor                                                     3 HP  3 Phase
Approximate Weight                                       3,050 Lbs.
Approximate Dimensions                                96" x 32" x 52" H
