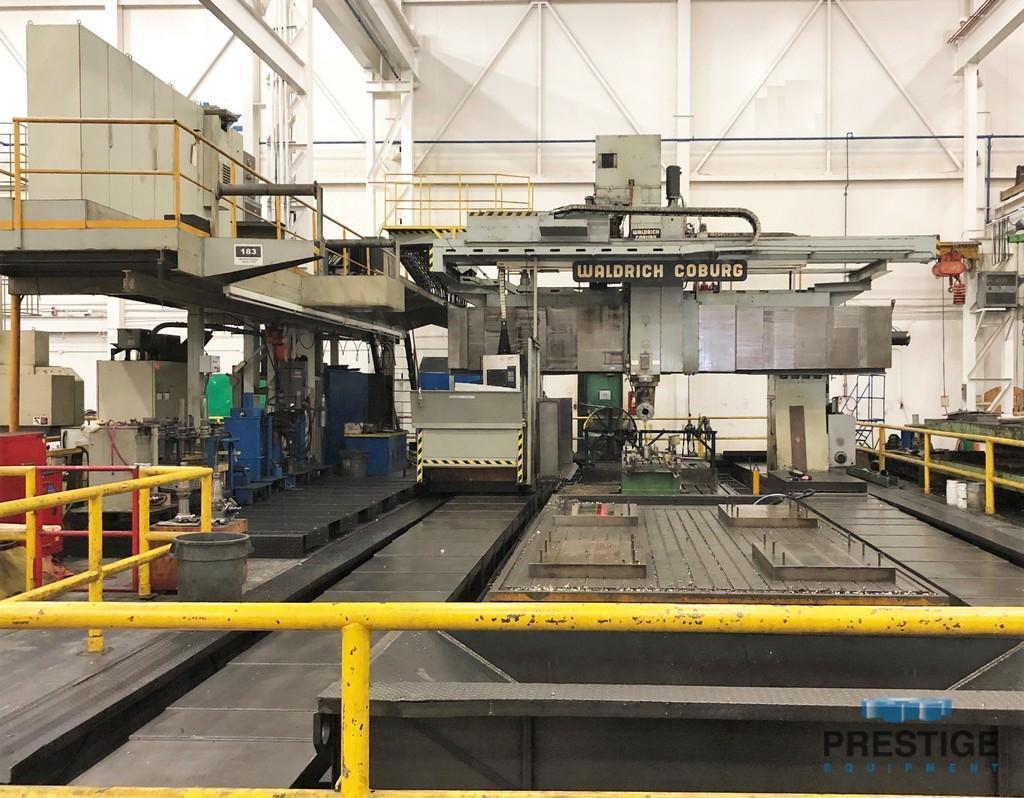

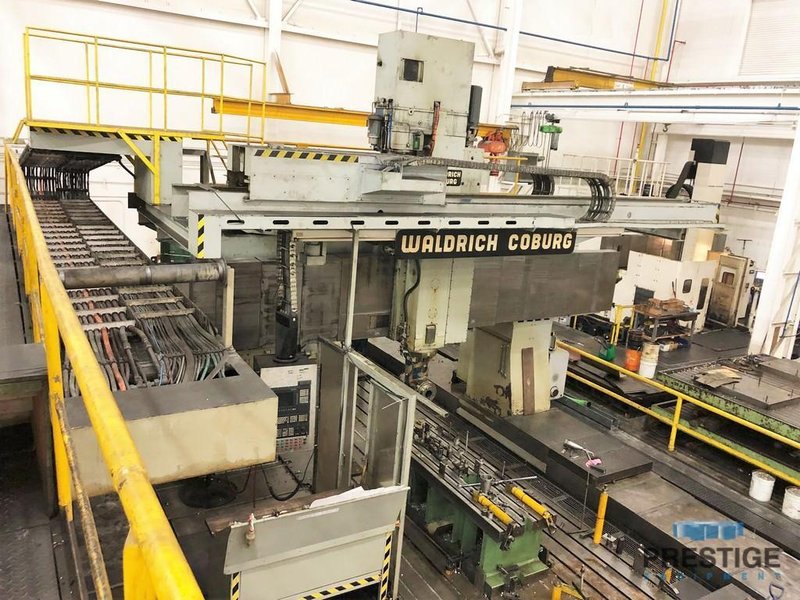

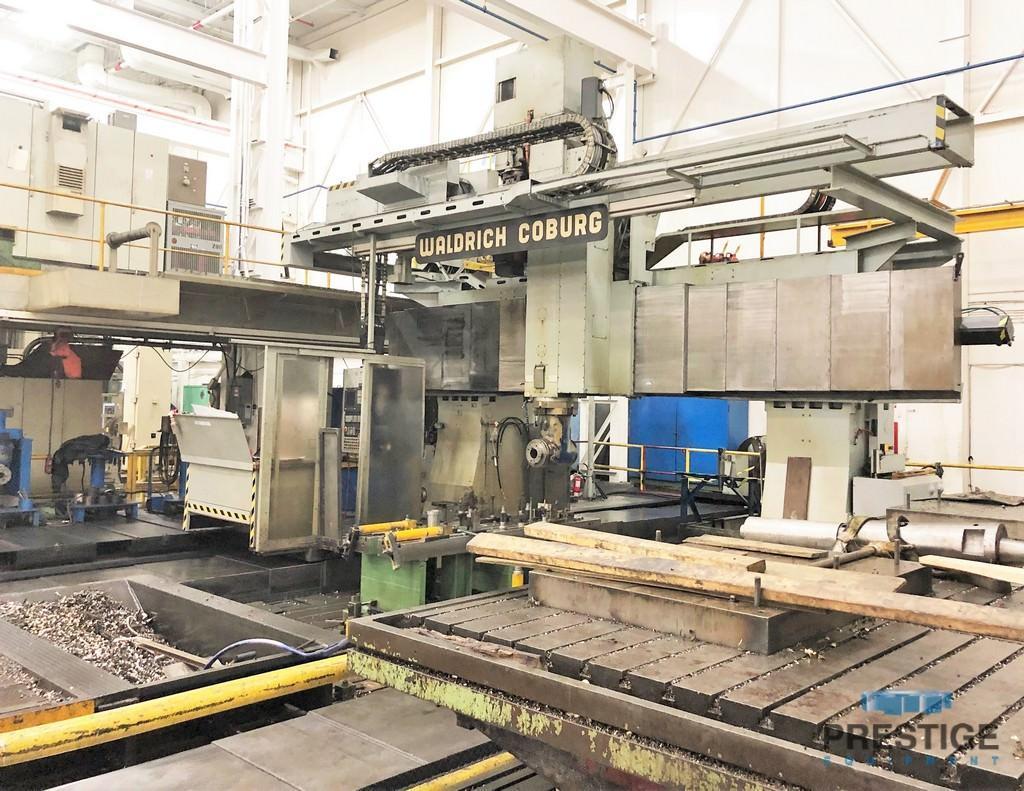

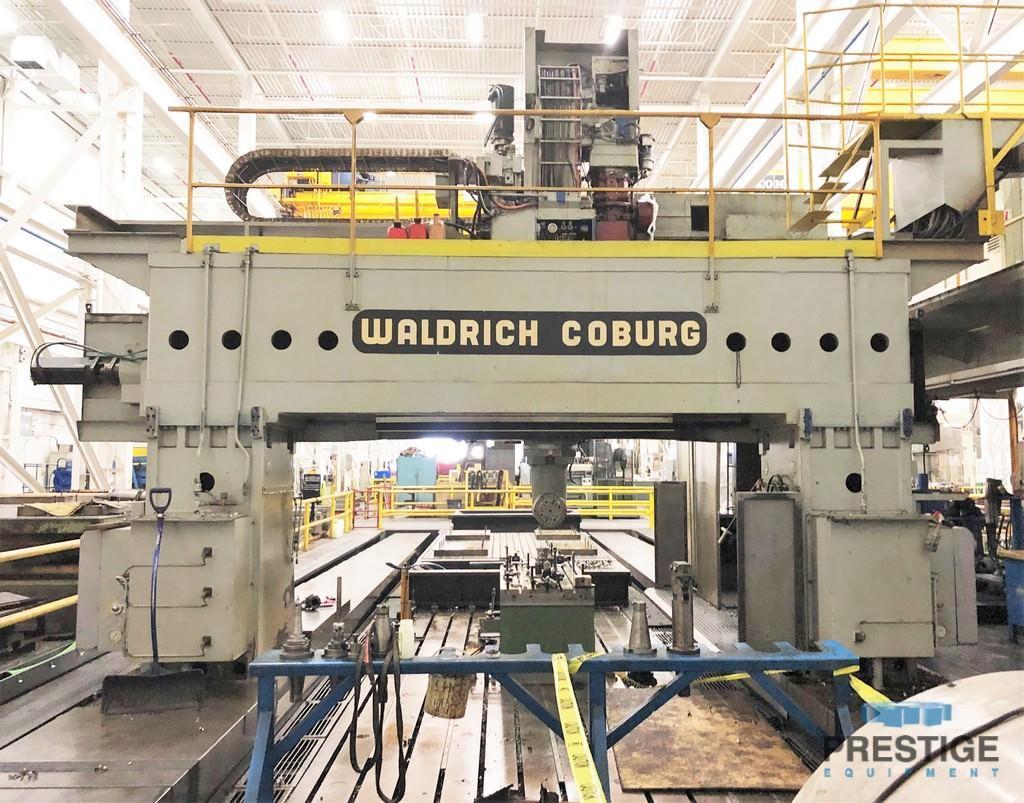

Waldrich Coburg CNC Gantry Mill

Brand

WALDRICH

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

CAPACITY:
Gantry Travel, X-Axis 669"
Head Travel, Y-Axis, 189"
Ram Stroke, Z-Axis 59.05"
Distance Between Columns 149.6"
Distance Table To Ram Face 90.55"
Table Size 118" x 630"
Spindle Taper #50 & #60 ISO
Spindle Speeds, 2-Ranges .04 - 3000 RPM
Spindle Motor, Siemens 80 HP
EQUIPPED WITH;

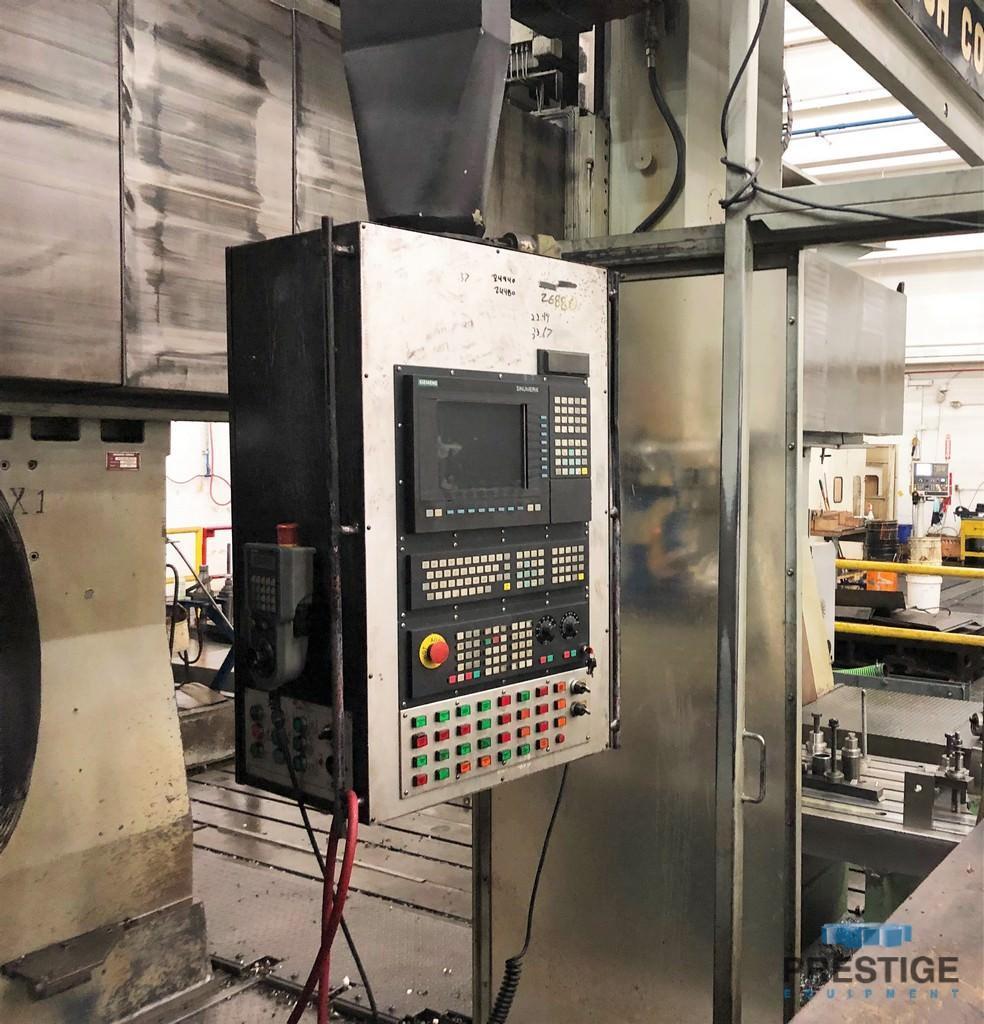

Siemens 840D CNC Control (Retrofit 2013)
(1) Right Angle Head, Model WFU 250 w/ ISO 50 taper & Auto Indexing
(1) Right Angle Head, Model WFU 500 w/ ISO 60 Taper & Auto Indexing
Heidenhain Glass Scales on All Axis
Rigid Tapping
Trolley with Tool Holders
Steel Sliding Way Covers on X & Y Axis
(2) Chip Conveyors
NOTE:
New Control, All New Wiring, New Electrical Cabinets
All New Siemens AC Motors and Drives
