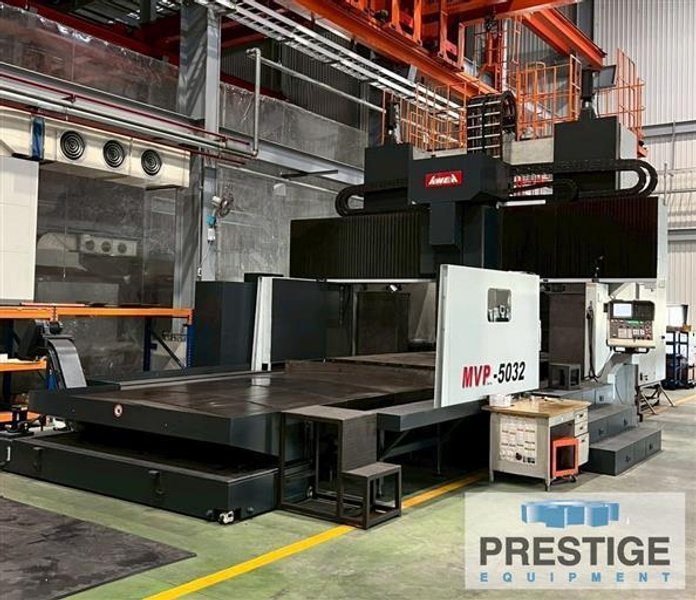

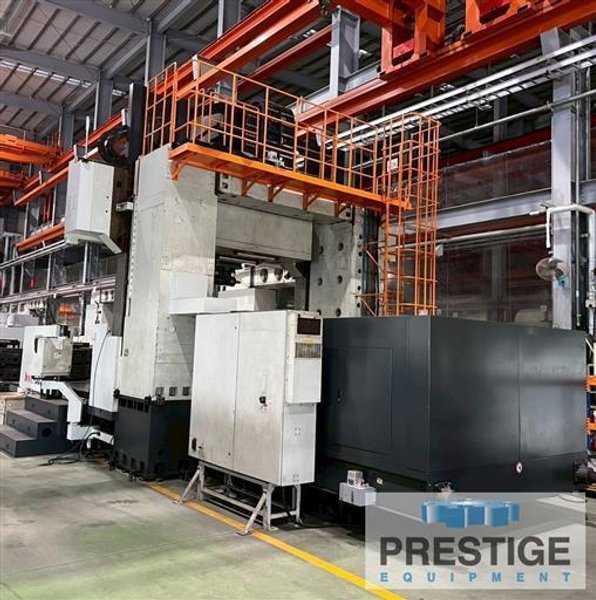

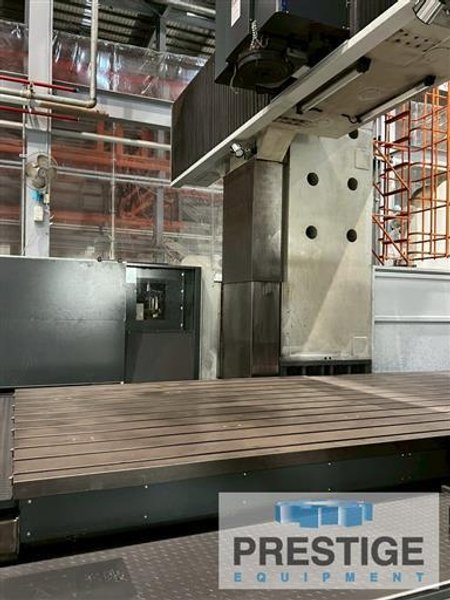

AWEA BRIDGE TYPE MOVING CROSS RAIL 5-FACE MACHINING CENTER

Specifications:
Table Travel, X-Axis 196.85"
Head Travel L-R, Y-Axis 125.98"

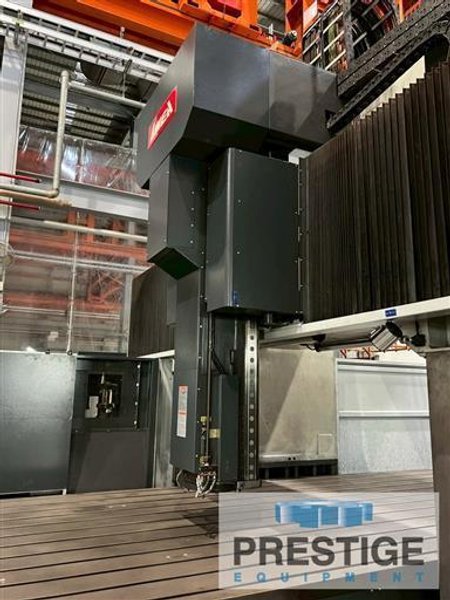

Ram Strove, Z-Axis 39.37"
Rail Travel, U-Axis 49.2"
Dist. Between Columns 105.51"
Spindle Nose to Table 7.87" - 96.45"

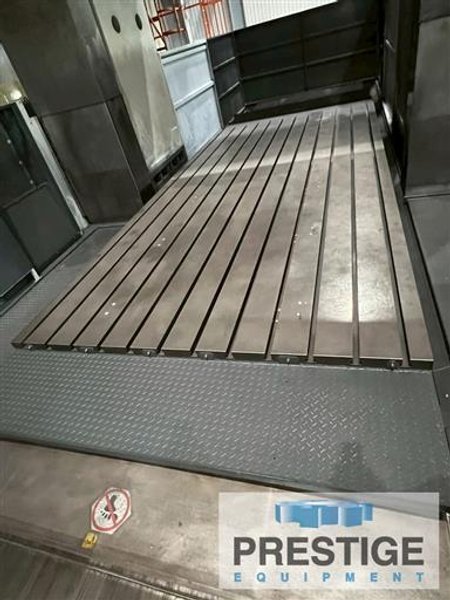

Table Size 197.6" x 94.48"
Table Load Capacity 18,000kgs
Max. Spindle Speed, Geared Head 4,000 RPM
Spindle Motor 22/26kW
Spindle Taper BT50
Machine Footprint 511" x 336"
Machine Height 265"
Machine Weight 121,000 lbs



Equipped With:
Fanuc 31iMB CNC Controls
60-Station Automatic Tool Changer

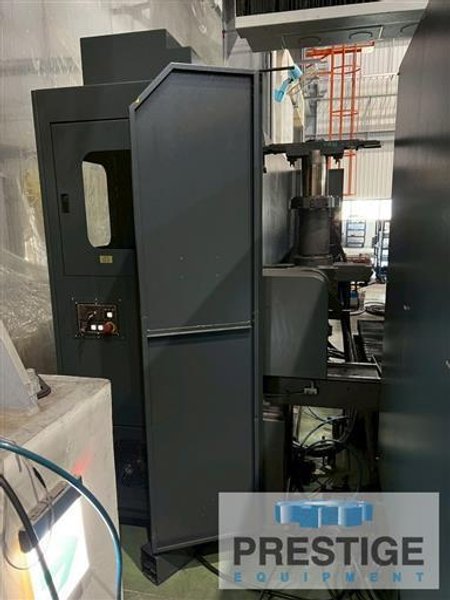

Automatic Head Changer
90 degree head

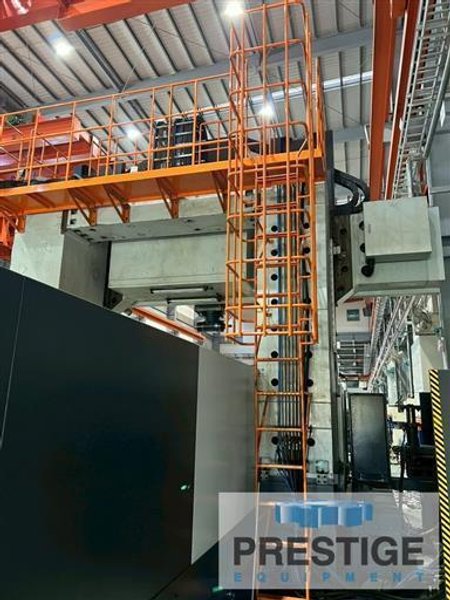

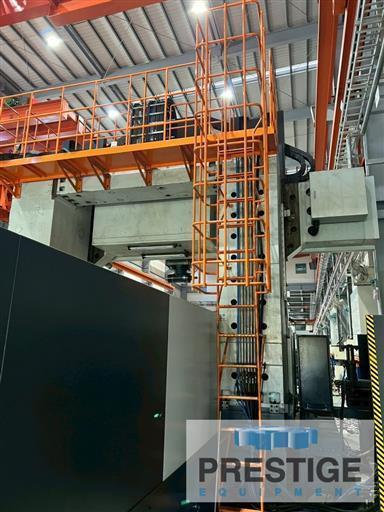

Elevating Cross-Rail
Chip conveyor


Note: Machine was Refurbished by Awea technical team

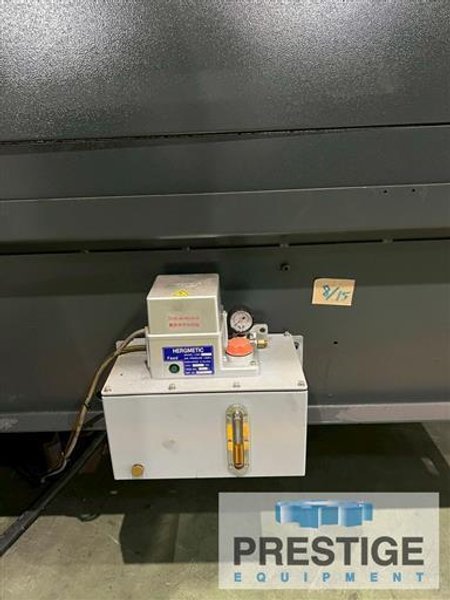

Replaced all hoses and pipes, lubricator, pump,
Renewed all linear guide ways.
