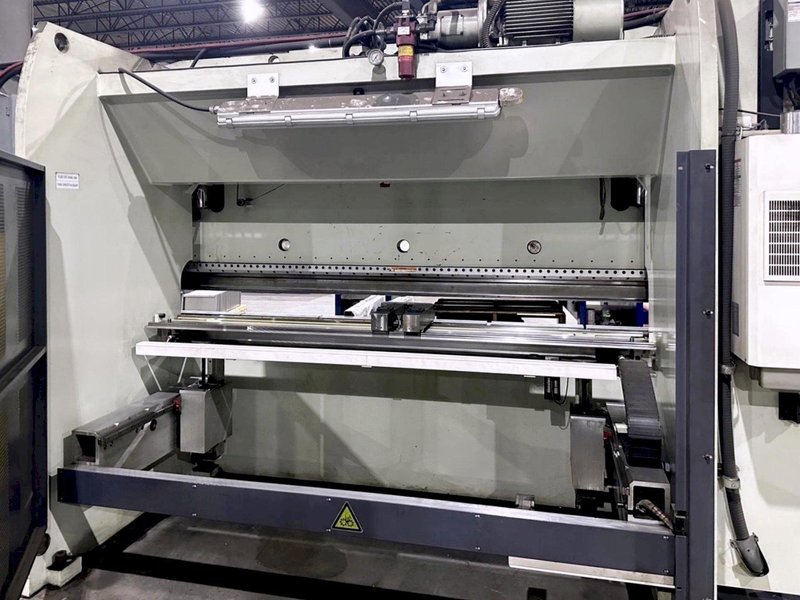

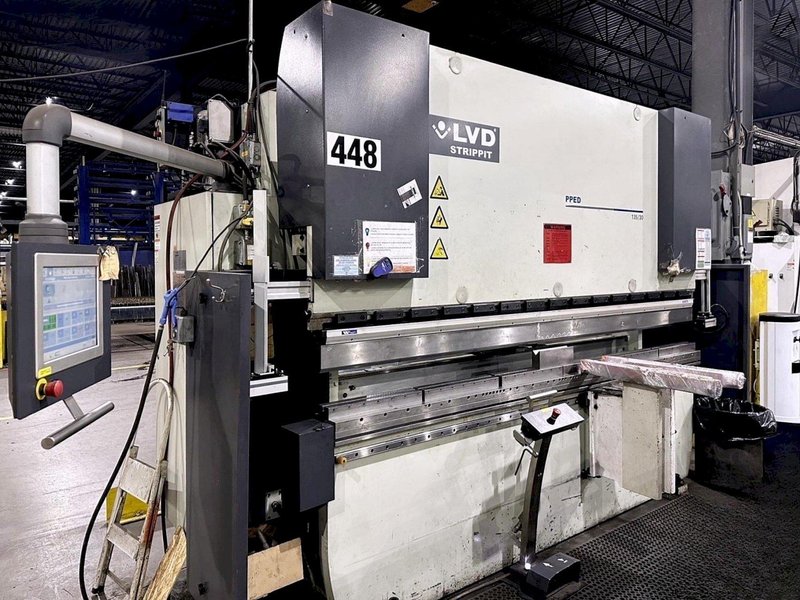

LVD Strippit PPED 135/30

Brand
LVD STRIPPIT
Category
Bending & Forming Equipment
Type
Brakes, Press
Model
PPED 135/30
Stock #
100503
Year
2019
Condition
Excellent
Location
Not specified
Control Touch-B CNC Control
Pressing Force 150 Tons
Working Length 120”
Distance Between Uprights 100”
Stroke 7.8”
Distance Between Table/Ram 19.6”
Gap 9.8”
Table Width 7.0”
Maximum Load Table 1000 Kn/M
Working Height 38.1”
Approach Speed: 212 IPM
Working Speed 24 IPM
Return Speed 224 IPM
Motor 15 kW
Oil 66 Gal.
Dimensions L 158” x W 71” x H 110”
Weight 14,330 Lbs.

Equipped With:

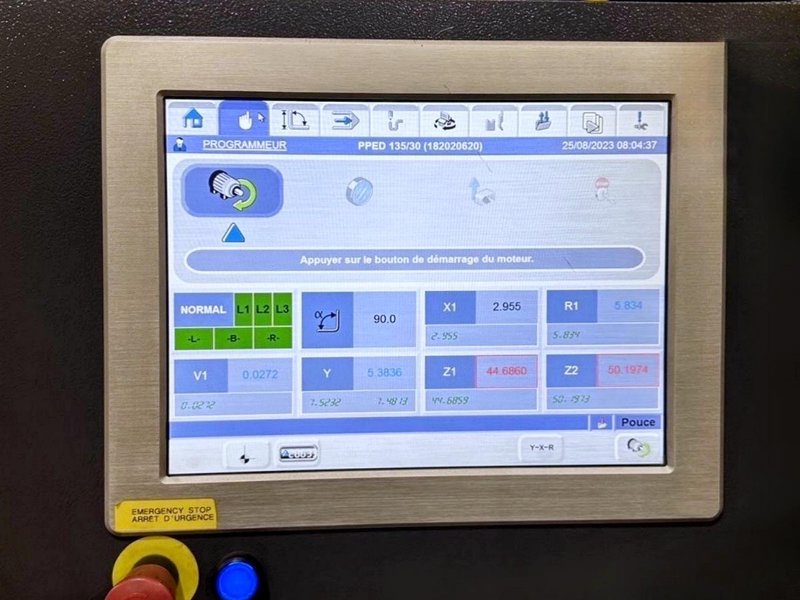

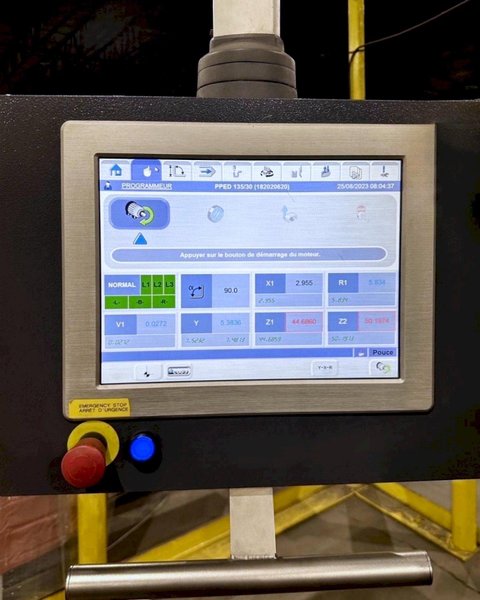

Touch-B Intuitive Control
4-Axis Backgauge (X,R, Z1 And Z2)
Servo-Controlled Hydraulic System

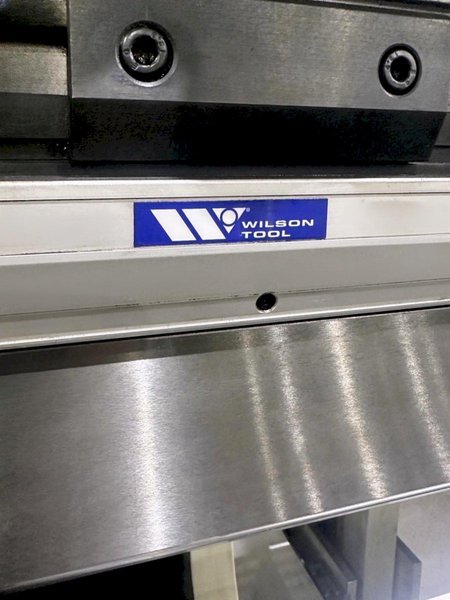

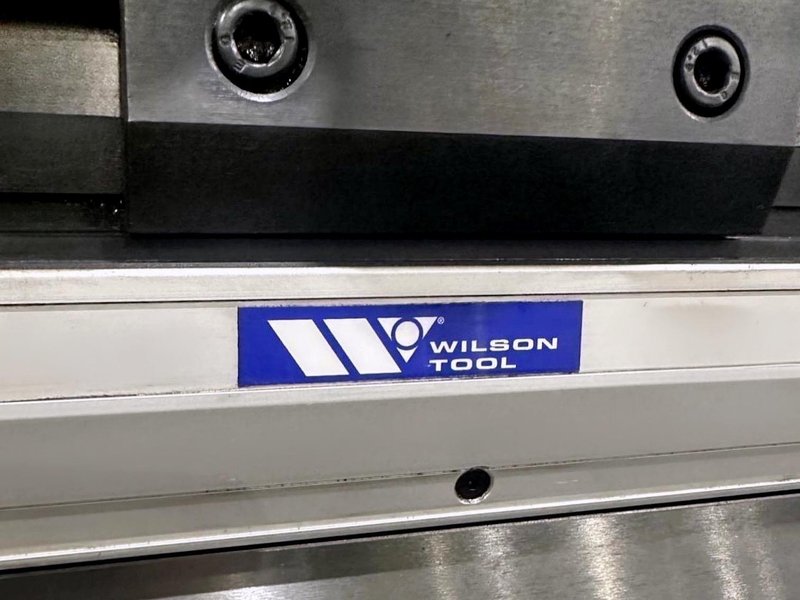

Wilson Clamping System
Linear Encoders
Light/Laser Safety System
