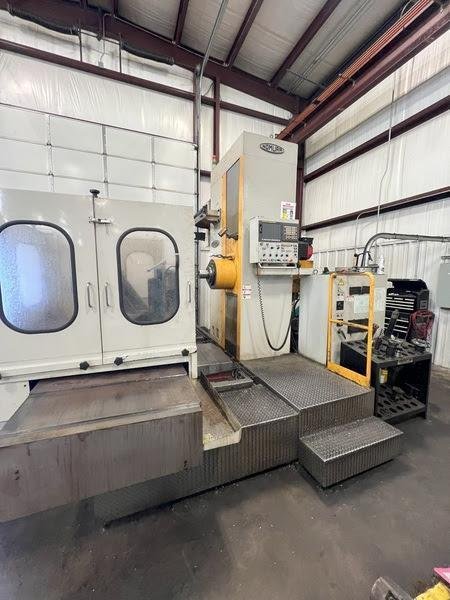

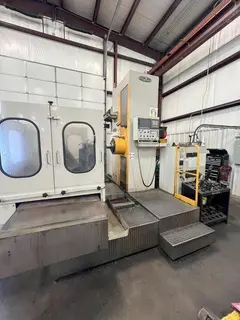

Nomura HB-110R2 4.3" Table Type CNC Horizontal Boring Mill (2014)
Brand
Category
Model
HB-110R2
Stock #
Not specified
Year
2014
Condition
Good
Location
Not specified
|
Model HBA-110T-R2

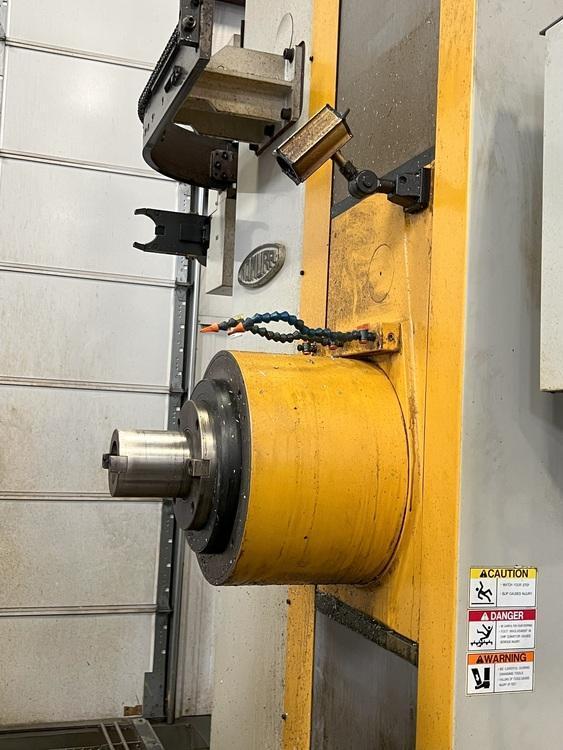

Spindle Diameter 4.33"
Spindle Speed 3,000 rpm
Spindle Taper 7/24 Taper No 50
Max. Spindle Torque 790 ft-lbs
Max. Spindle Thrust 3,305 lbs
Travels"
X Axis (table cross traverse) 51.2"
Y Axis (headstock vertical travel) 45.3"
Z Axis (column longitudinal travel) 34.4"
W. Axis (spindle travel) 15.7"

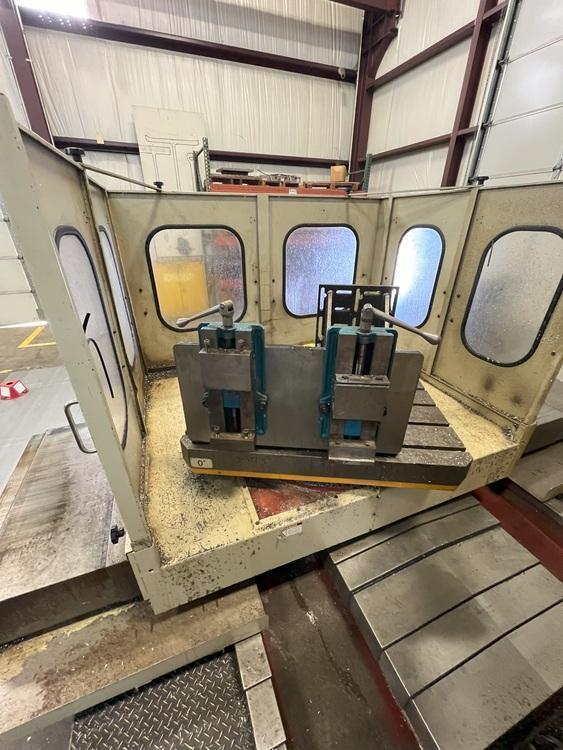

Table Size 45" x 45"
Max. Load on Table (uniformly distributed load) 6,600 lbs
Min. Command Indexing Angles on Table (B Axis) 0.001 deg. 0.001 deg.
Rapid Traverse of X,Y and Z Axes 472.4"/min
Rapid Traverse of W Axis 236.2"/min
Feed Rate 0.04"/min~236"/min 0.04"/min~275.6"/min 0.004"/min~196.8"/min 0.004"/min~196.8"/min
Table Rotation Speed 540 deg/min
Motor Spindle Drive Motor 30 HP
Machine Size Machine Height 139"
Required Floor Space 145" x 223" 211" x 174" 265" x 285" 308" x 270"
EQUIPPED WITH:

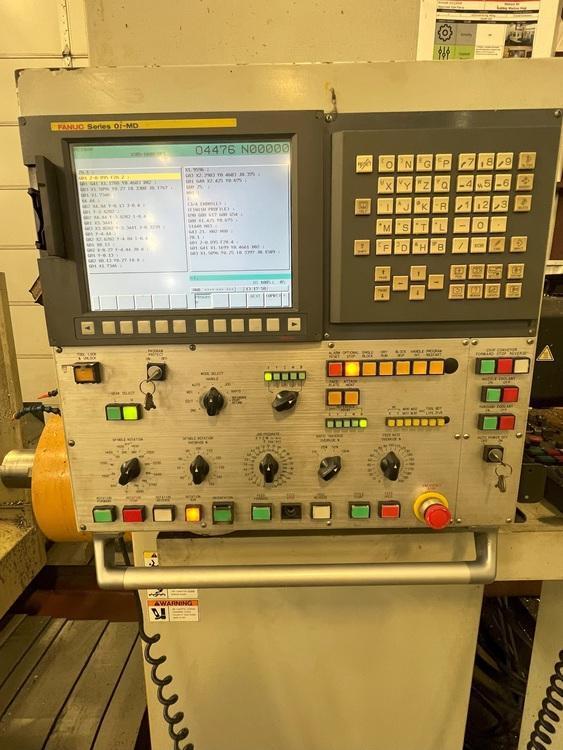

Full B Axis, Fanuc 0iMd, 40 ATC, Spindle Chiller,
Remove Jog Handwheel
Manual Pulse Generator,
1,432 Cut Hours
|
