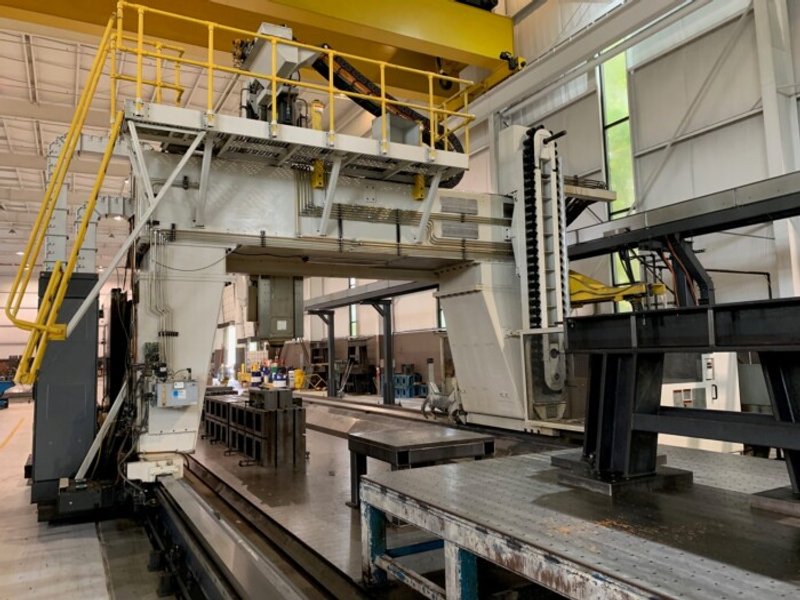

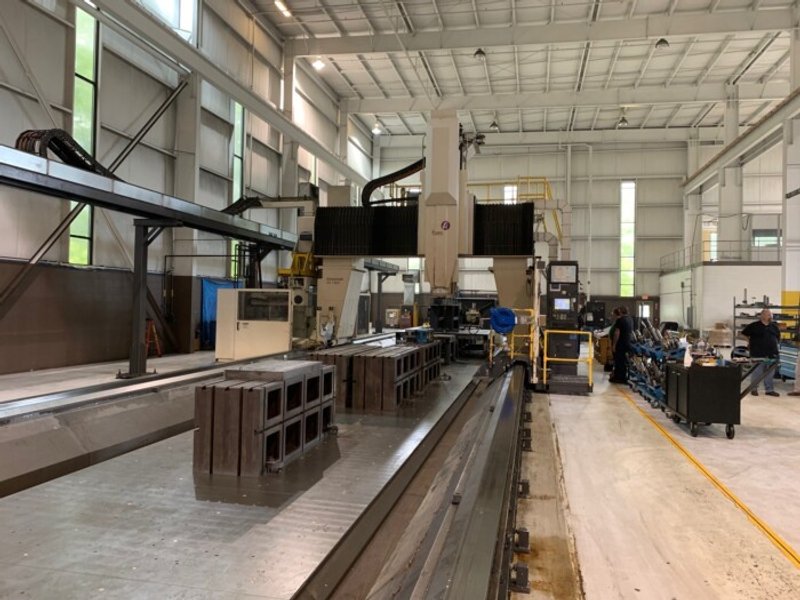

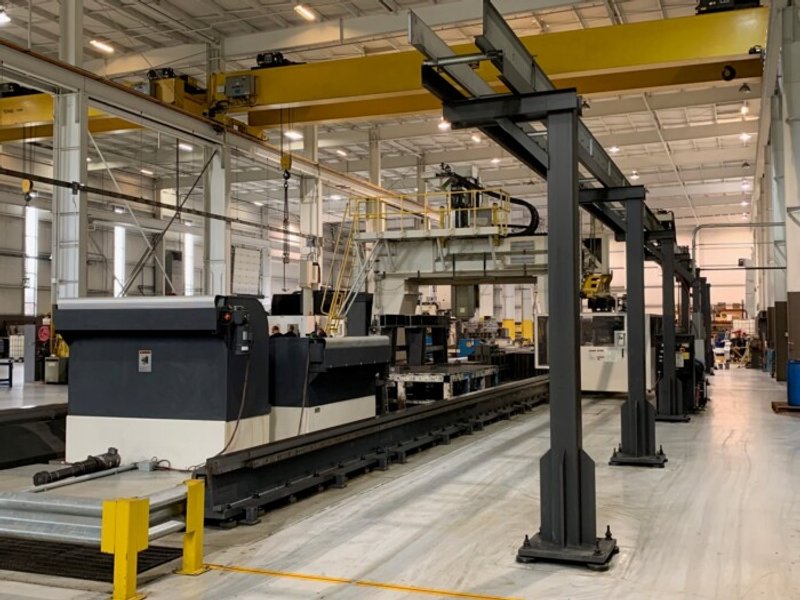

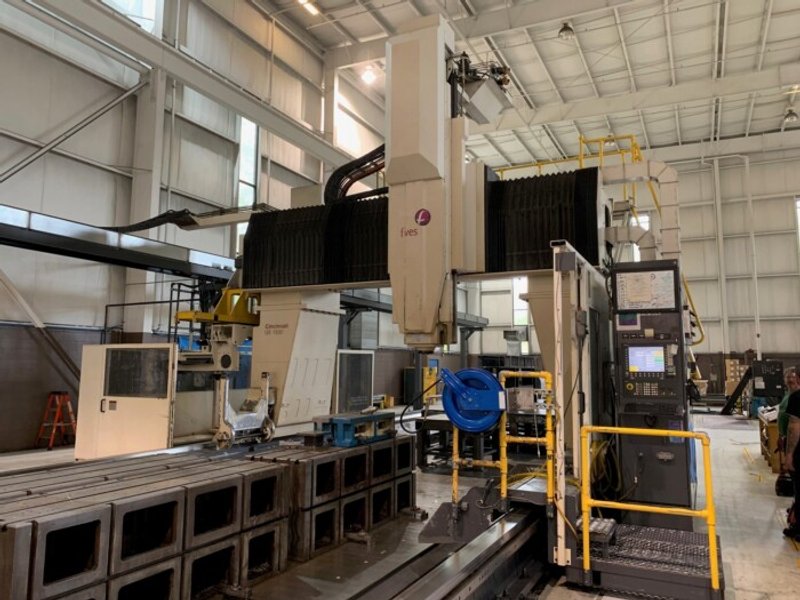

Cincinnati U5 1500 5 Axis CNC Gantry Mill

Brand
Cincinnati
Category
Machining Centers
Type
Machining Centers, Gantry (incld. Bridge & Double Column)
Model
U5 1500
Stock #
60551-SC
Year
2007
Condition
Used
Location
Not specified

Description

Product: Cincinnati U5 1500 5 Axis CNC Gantry Mill
Model: U5 1500
Stock #: 60551-SC
Serial No.: QD00C01070001
Year: 2007

Specifications:

X Axis Travel 1,178"
Y Axis Travel 144"
Z Axis Travel 60"
A Axis (Gimbal Head) +100 / -90 deg
C Axis (Gimbal Head) 360 deg (continuous)
Distance Between Columns 199"
Work Plates (Table) 120" x 1,184"
Ram Cross Section 20" x 20"
Spindle Speed Range to 6,000 RPM
Spindle Motor 40 HP (continuous)
Spindle Taper CAT 50 / BIG PLUS
Equipped With:

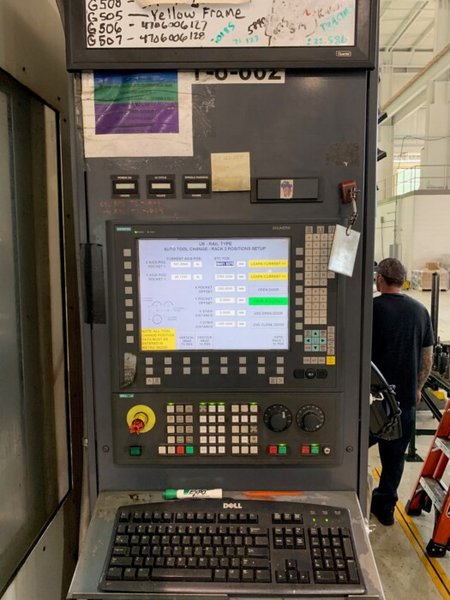

Siemens Sinumerik 840D CNC Control

63 Station Automatic Tool Changer

(3) Station Head Stand

(2) 5-Position Wine Racks For Tools

6,000 RPM Vertical Head

6,000 RPM Right Angle Head (1 degree programmable bi-directional rotation)

6,000 RPM 5-Axis Gimbal Head

Coolant & Chip Conveyor System

Thru Spindle Coolant

Flood Coolant

Spindle Probe Capable

Work Plates / Table 120″ x 1,184″ (16 pieces)
