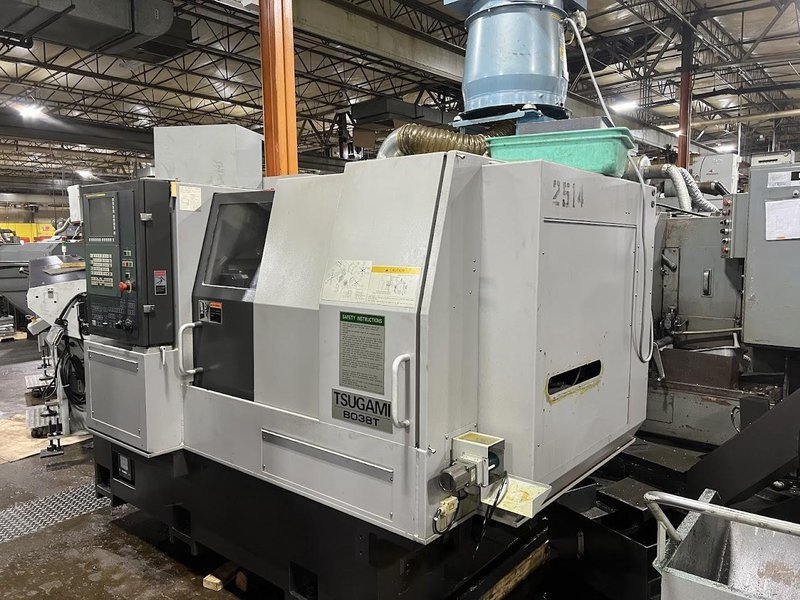

Tsugami B038T Swiss CNC Lathe, 38mm, 8-axis, Mag Barfeed, HP coolant, Fanuc31i-B, New 2016
Brand
Category
Model
B038T
Stock #
56211
Year
2016
Condition
Very Good
Location
Minnesota
| CONTROL | Fanuc 31i-b |
| Number of Axes | 8 |
| Names of Axes | X1, X2, X3, Z1, Z2, Z3, Y2, Y3 |
| Working Bar stock Diameter: | 38mm |
| Maximum Machining Length | 250mm |
| Maximum Drilling Diameter | 16mm |
| Back Spindle - turret Maximum tapping Size | M14 |
| Maximum Chucking Diameter | 38mm |
| Front tool post Max Tapping Size | M12 |
| Maximum Crossing Drilling Diameter | 10mm |
| Turret Maximum Crossing Tapping size | M6 |
| Maximum Rotary Tool Drilling Diameter | 16mm |
| Back Tool Post Max Rotary Tooling Tapping Size | M10 |
| Max Rotary Tooling Drilling Diameter | 8mm |
| Max rotary tool tapping size | M6 |
| Max fixed tool drilling diameter | 10mm |
| Max fixed tool tapping size | M10 |
| Main Spindle Speed | 200 - 5000 min |
| Back spindle speed | 200 - 7000 min |
| Cross drill speed on front tool post | 200 - 5,000 min (optional) |
| Rotary tool speed on turret | 200 - 8,000 min |
| Dimensions | 3427 x 1875 x 1840 |
| Weight | 13640 pounds |
|
Control: Fanuc 31i-B

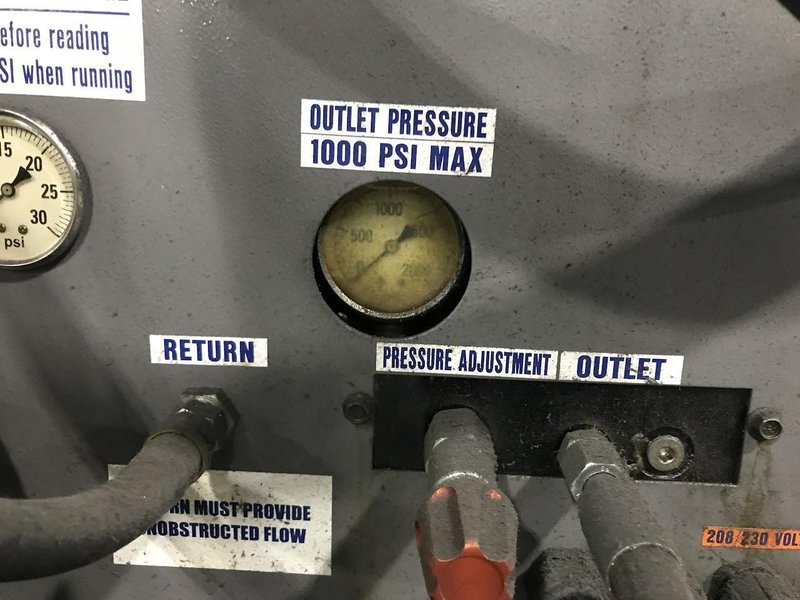

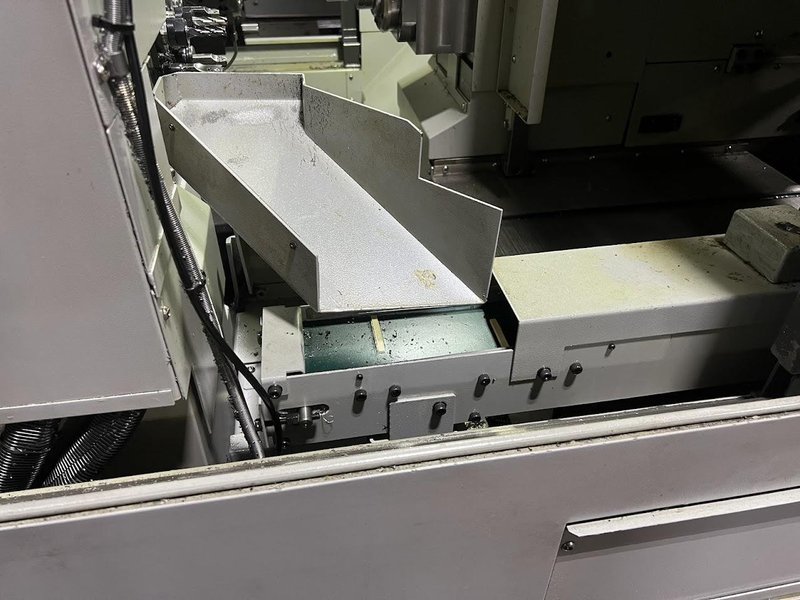

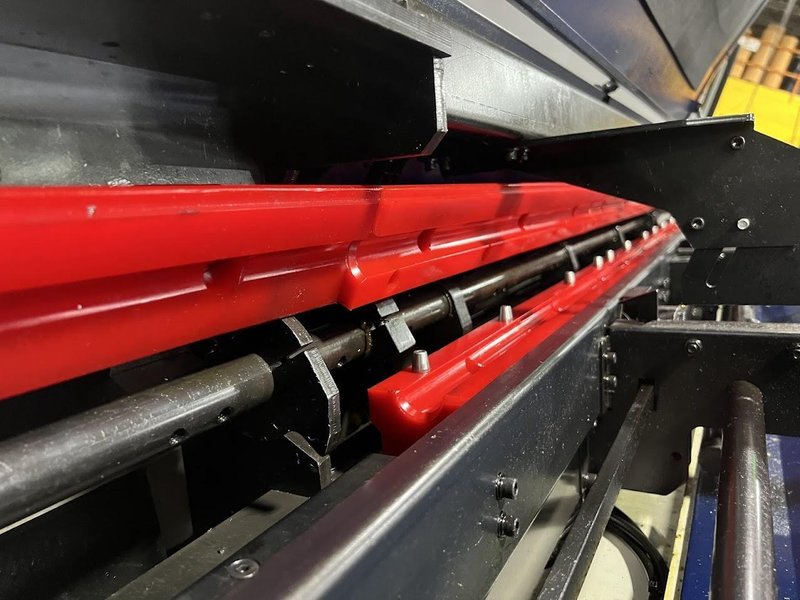

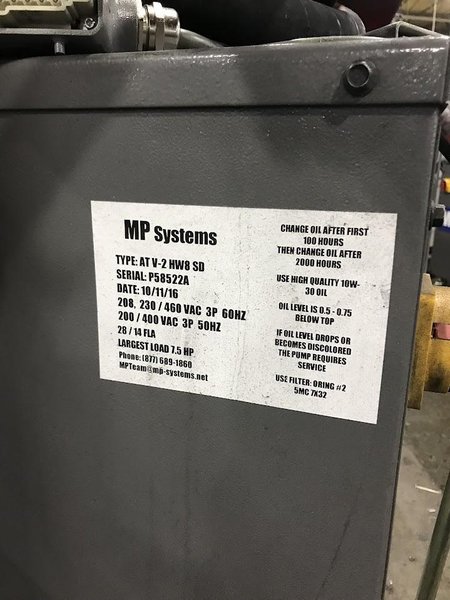

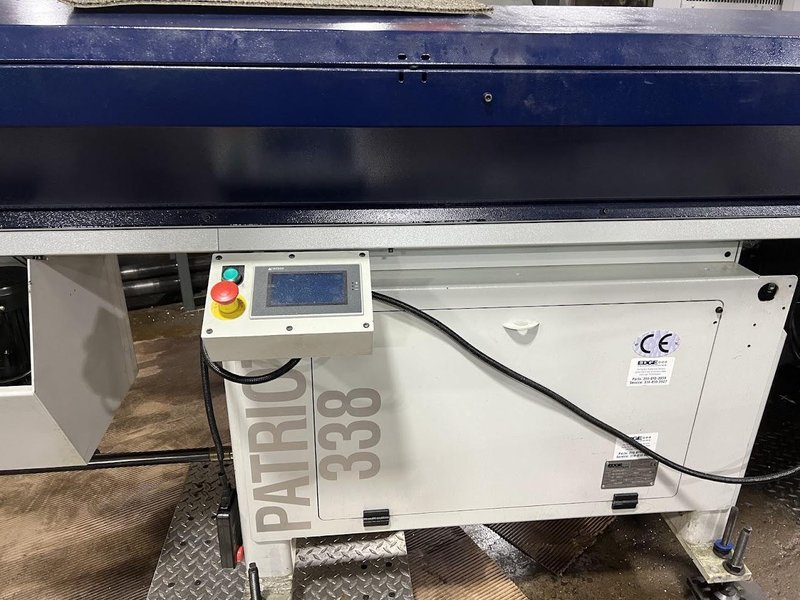

12' Patriot 338 Magazine Bar Feed Part Conveyor Hi Pressure Coolant Mist Collector Manuals |
|
