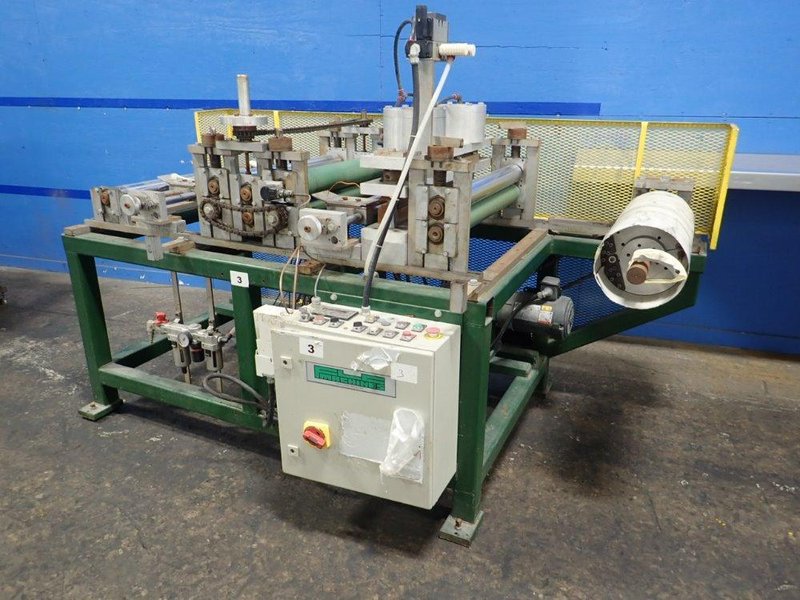

MFG: FLC Machines, Leesburg, FL (352)728-2303
MATERIAL WIDTH: 24" Max.
MATERIAL GAUGE: .017" Min.- .032" Max. Aluminum
PASS ROLL- 3" dia. x 30" face, Chrome
EDGE GUIDES- open to accommodate nominal 24" max. material width

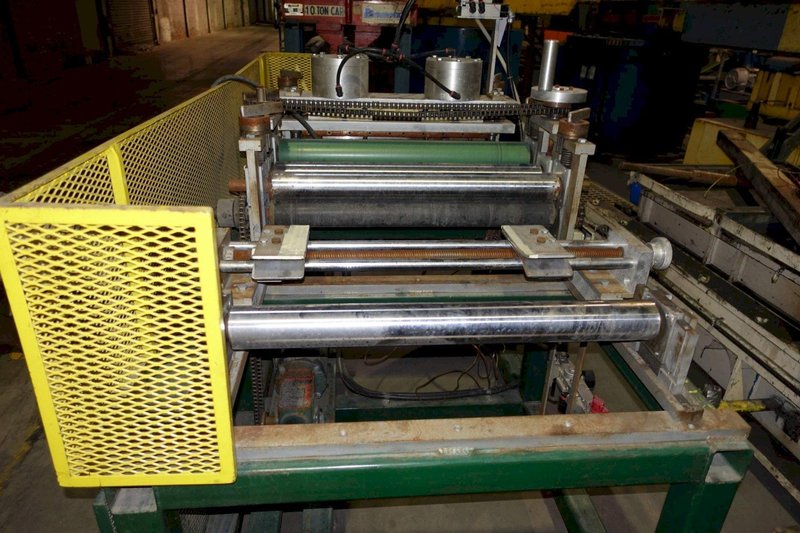

PINCH ROLLS-3 Sets
1st Set Upper 3" dia. x 30" face Roll is Chrome, Lower 3" dia. x 30"
face. Roll is Coated
2nd Set both 3" dia. x 30" face Rolls are Chrome
3rd Set- Upper 4" dia. x 30" face Roll is Coated, Lower 3" dia. x 30"
face Roll is Coated
Driven by a US Motor, Model F1016B, Frame 56C
1HP AC, 208-230/460V., 1750 RPM, 3Ph, 60hz(50hz capable)
EDGE GUIDES- open to accommodate nominal 24" max. material width
SHEAR- Pneumatic, Two cylinders- 8" dia. x 5"(ext. dimensions)
Upper blade is a bow tie design and has a 27" total width
PINCH ROLLS- Upper 3" dia. x 30" face Roll is Chrome, Lower 3" dia. x
30" face Roll is Coated
REWIND
Recoiler Hubs appear to be set up at 16" width & are 10" dia.
US Motor, Model S426, Frame 145T
2HP AC, 208-230/460V., 1730 RPM, 3ph, 60hz(50hz capable)
with RELIALUBE 200TiGEAR
CONTROLER
Omeron SYSMAC CPM1
2100 lbs ship weight
8' long x 4'6" wide x 64" high- shipping dimensions |
