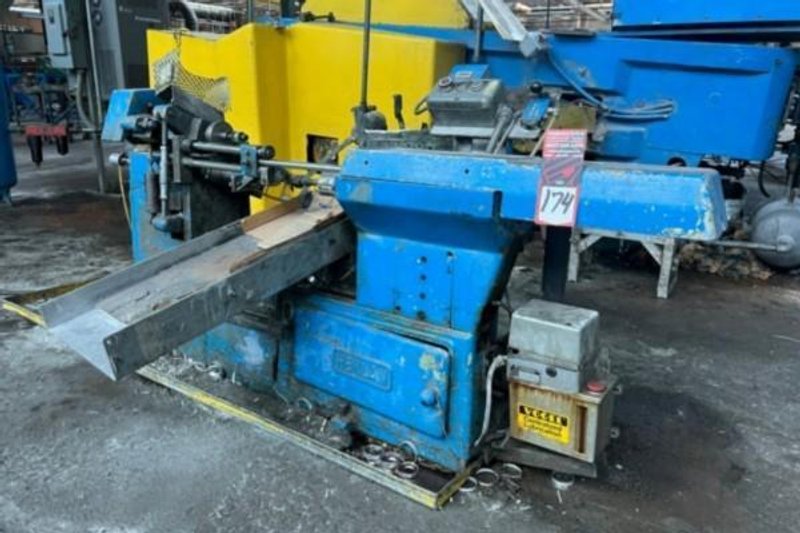

HERLAN MDL. BST/S AUTOMATIC TRIMMING MACHINE
Brand
Category
Type
Model
BST/S
Stock #
115490
Year
Not specified
Condition
Used
Location
Ohio
|
MANUFACTURER – HERLAN
MODEL – BST/S
CAPABILITIES – AUTOMATIC TRIMMING, THREADROLLING, BEADING AND KNURLING
PRODUCTION SPEED –
UP TO 65MM DIAMETER X 200MM LONG – 70 PPM
UP TO 125MM DIAMETER X 310MM LONG – 45 PPM
THICKNESS RANGE
SHEET IRON – 2.5MM TRIMMING, 1.5MM BEADING & THREADROLLING
COPPER & BRASS – 3MM TRIMMING. 1.8MM BEADING & THREADROLLING
ALUMINUM – 3.5MM TRIMMING, 2.5MM BEADING & THREADROLLING
CENTER DISTANCE TOF TOOL SPINDLES – 95MM MIN. – 180MM MAX.
MOTOR – 4 KW, APPROXIMATELY 960 RPM***
HEIGHT OF LOWER TOOL SPINDLE TO FLOOR – 1040MM
MACHINE OVERALL DIMENSIONS (APPROXIMATE) – 2920MM L X 1175MM W X 1485MM H
APPROXIMATE WEIGHT – 2,500 KILOGRAMS
*** FACTORY MOTOR SPECIFICATIONS, CUSTOMER SHOULD VERIFY CURRENT MOTOR PRIOR TO PURCHASE
CATALOG SPECIFICATIONS – ALL INFORMATION MUST BE CONFIRMED BY SELLER PRIOR TO PURCHASE.
|
