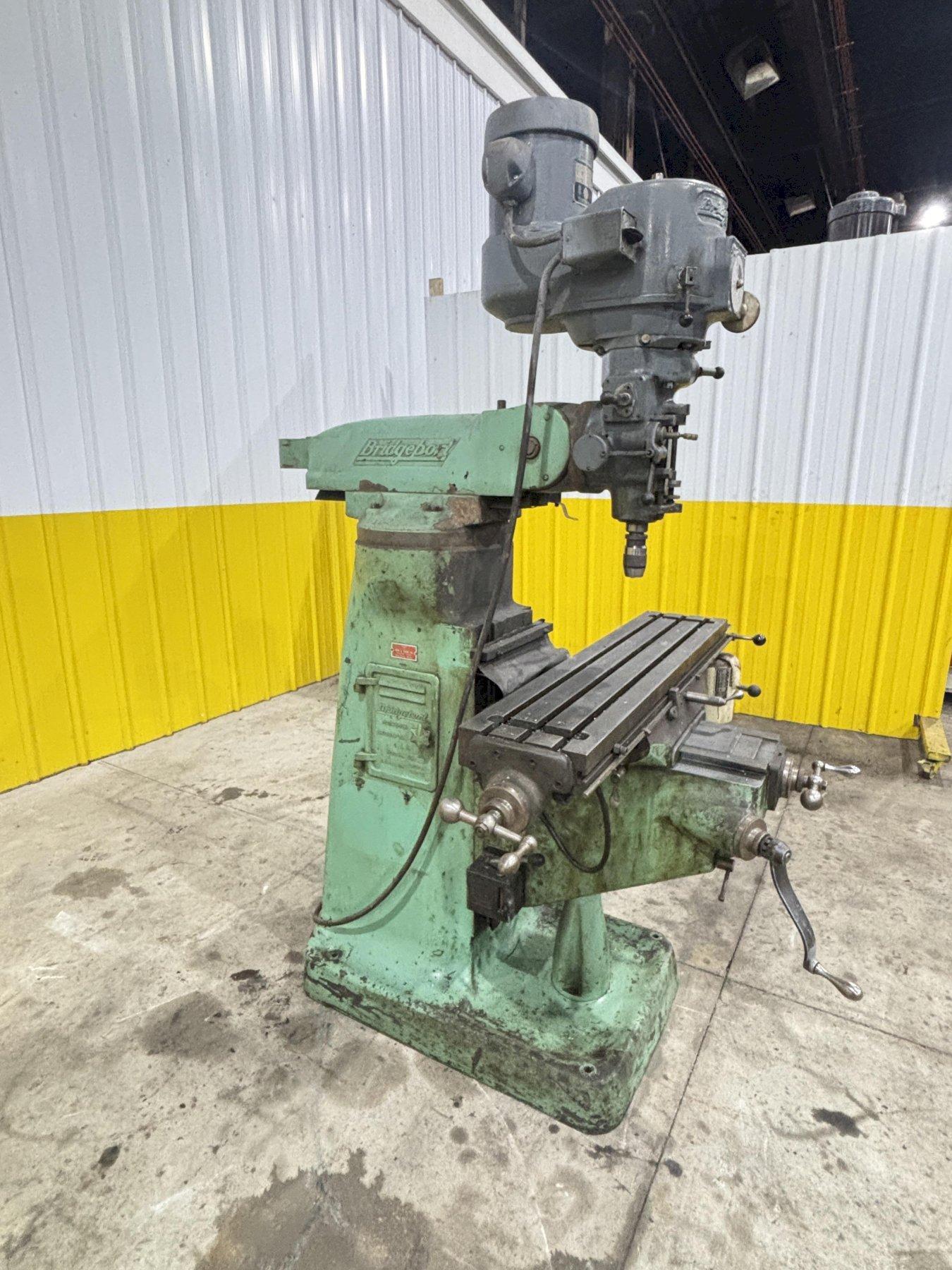

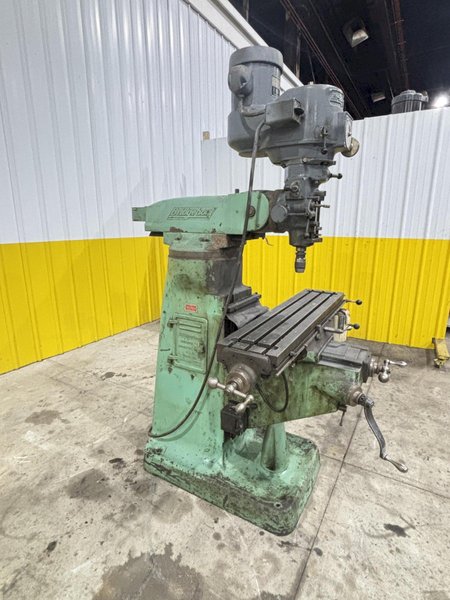

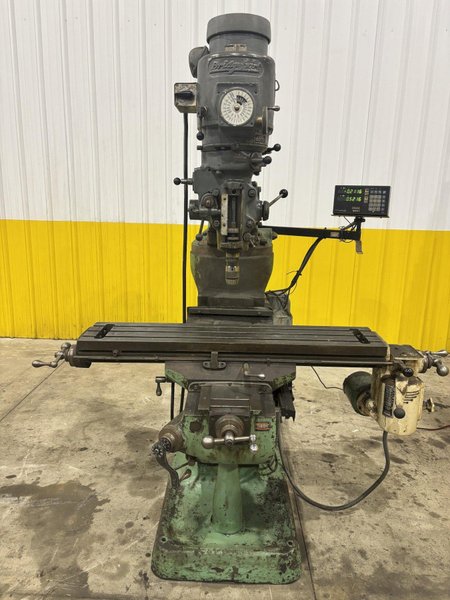

1.5 HP BRIDGEPORT SERIES I VERTICAL MILL / MILLING MACHINE: STOCK #20705
Brand
Category
Type
Model
1.5 HP
Stock #
20705
Year
Not specified
Condition
Not specified
Location
Ohio
|
J HEAD SERIAL ............... 2J-7097

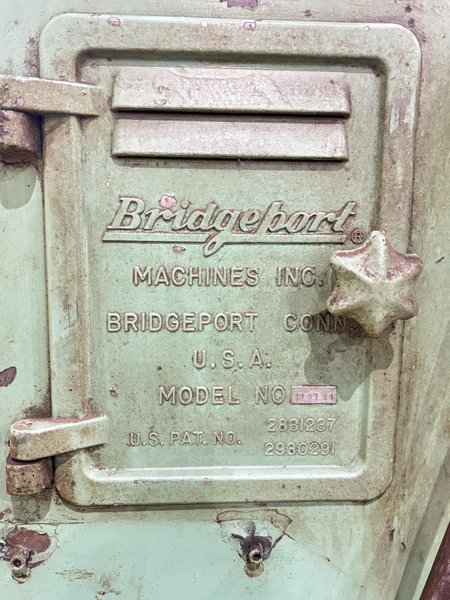

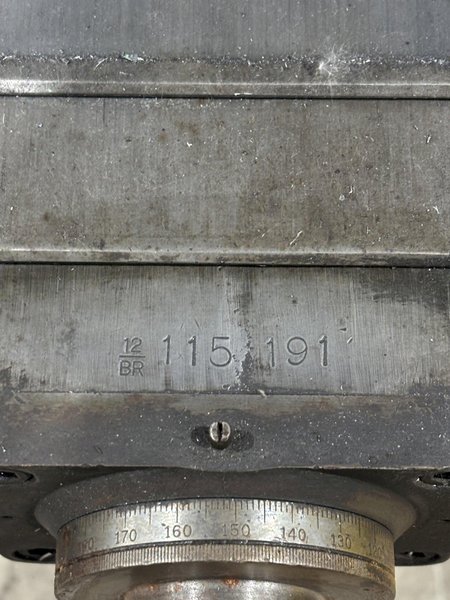

BODY SERIAL ................. BR115191 AREA OF TABLE ............... 42" X 9"

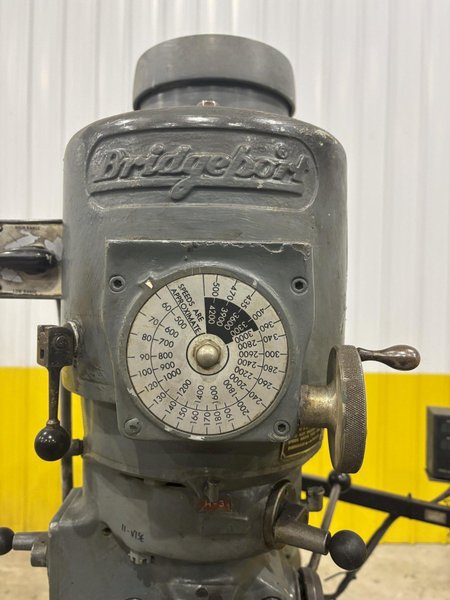

SPINDLE SPEEDS, VARIABLE .... 60 TO 4200 RPM
SPINDLE FEEDS ............... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ... 30"
CROSS TRAVEL ................ 12"
VERTICAL KNEE TRAVEL ........ 16"

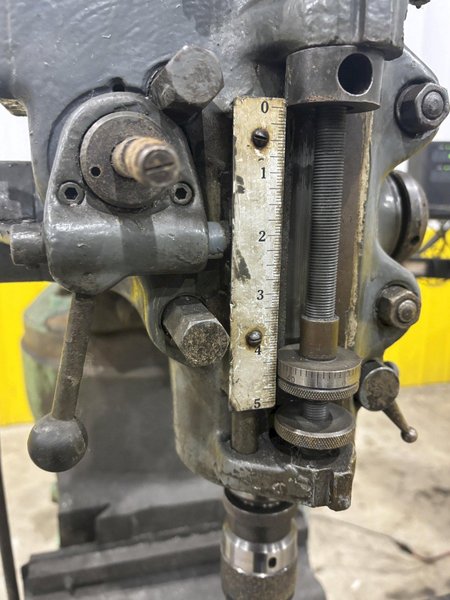

QUILL TRAVEL ................ 5"
RAM TRAVEL .................. 12"
DEPTH OF THROAT ............. 6-3/4" TO 18-3/4"
TAPER IN SPINDLE ............ R8

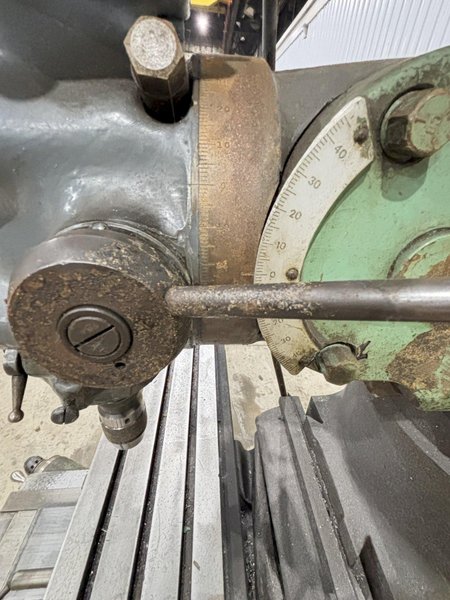

HEAD TILTS, FRONT/BACK ...... 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT .... 90 DEGREE EITHER WAY

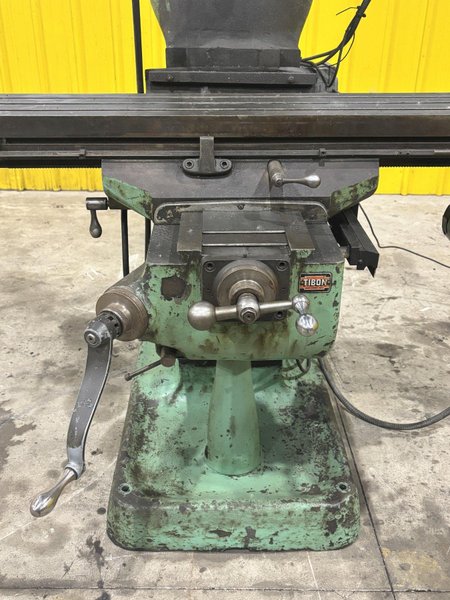

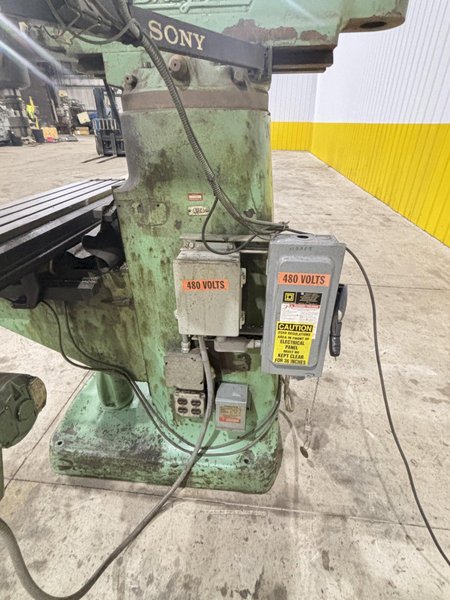

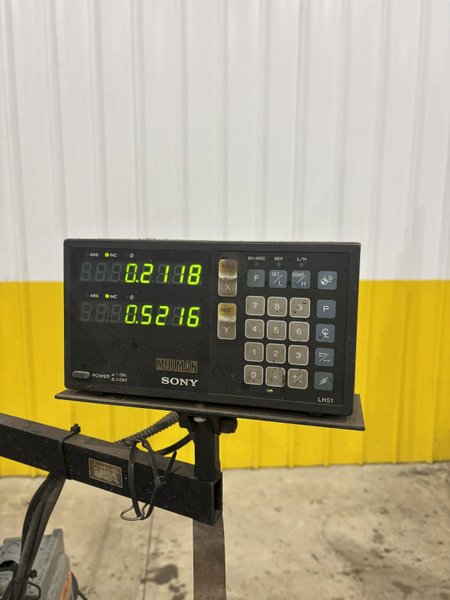

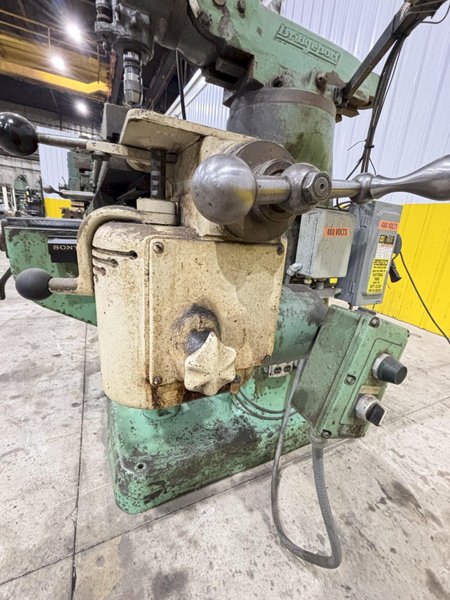

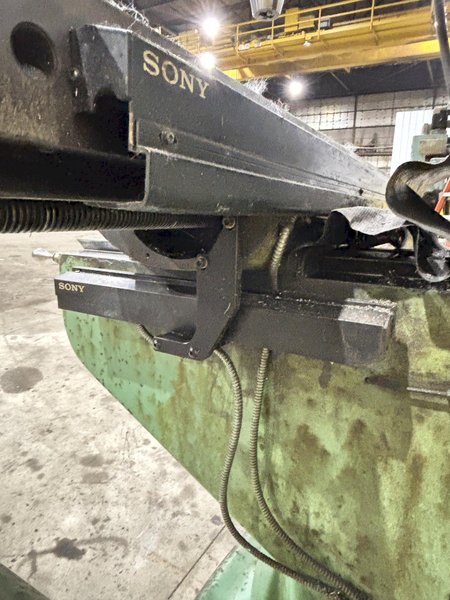

DIGITAL READ OUT ............ 2 AXIS SONY TABLE POWER FEED ............ YES CHROME WAYS ................. YES

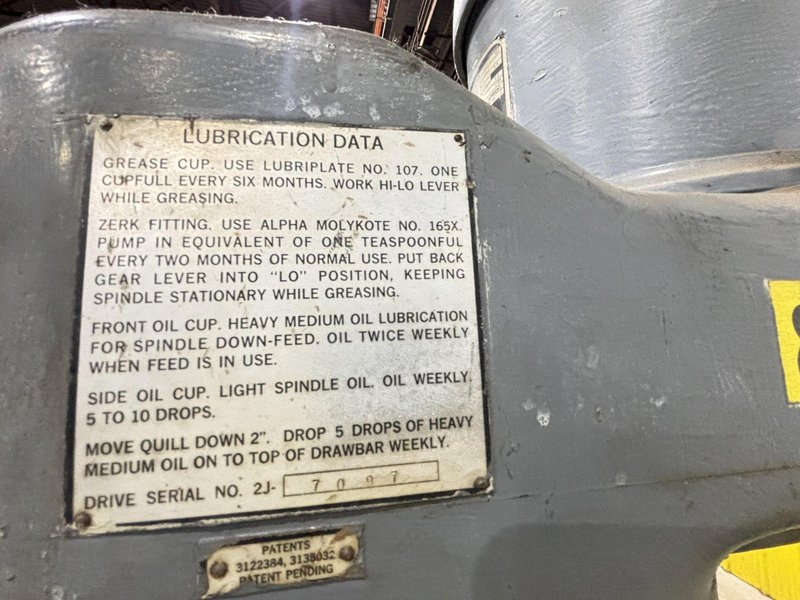

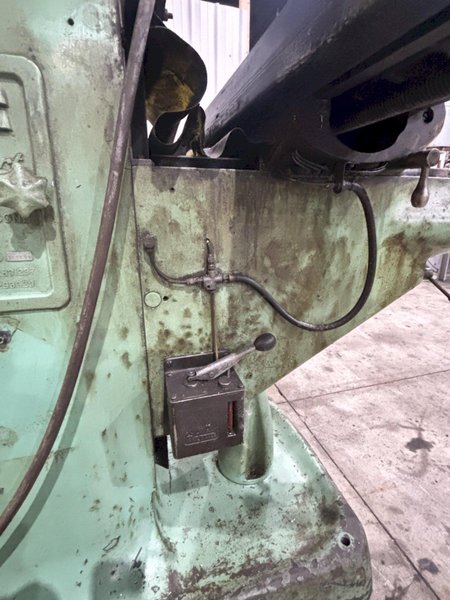

1 SHOT LUBE ................. YES

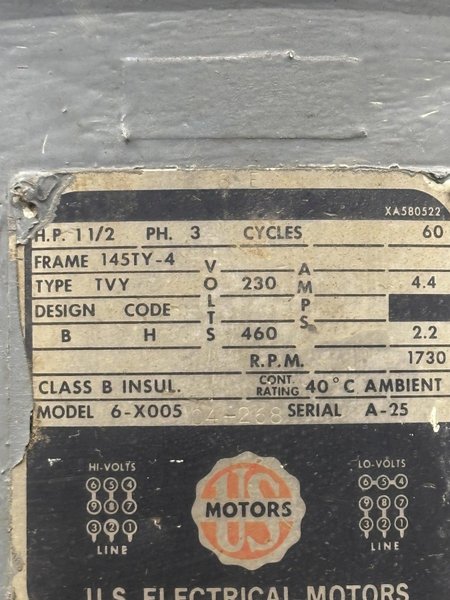

MOTOR ....................... 1-1/2 HORSEPOWER |
