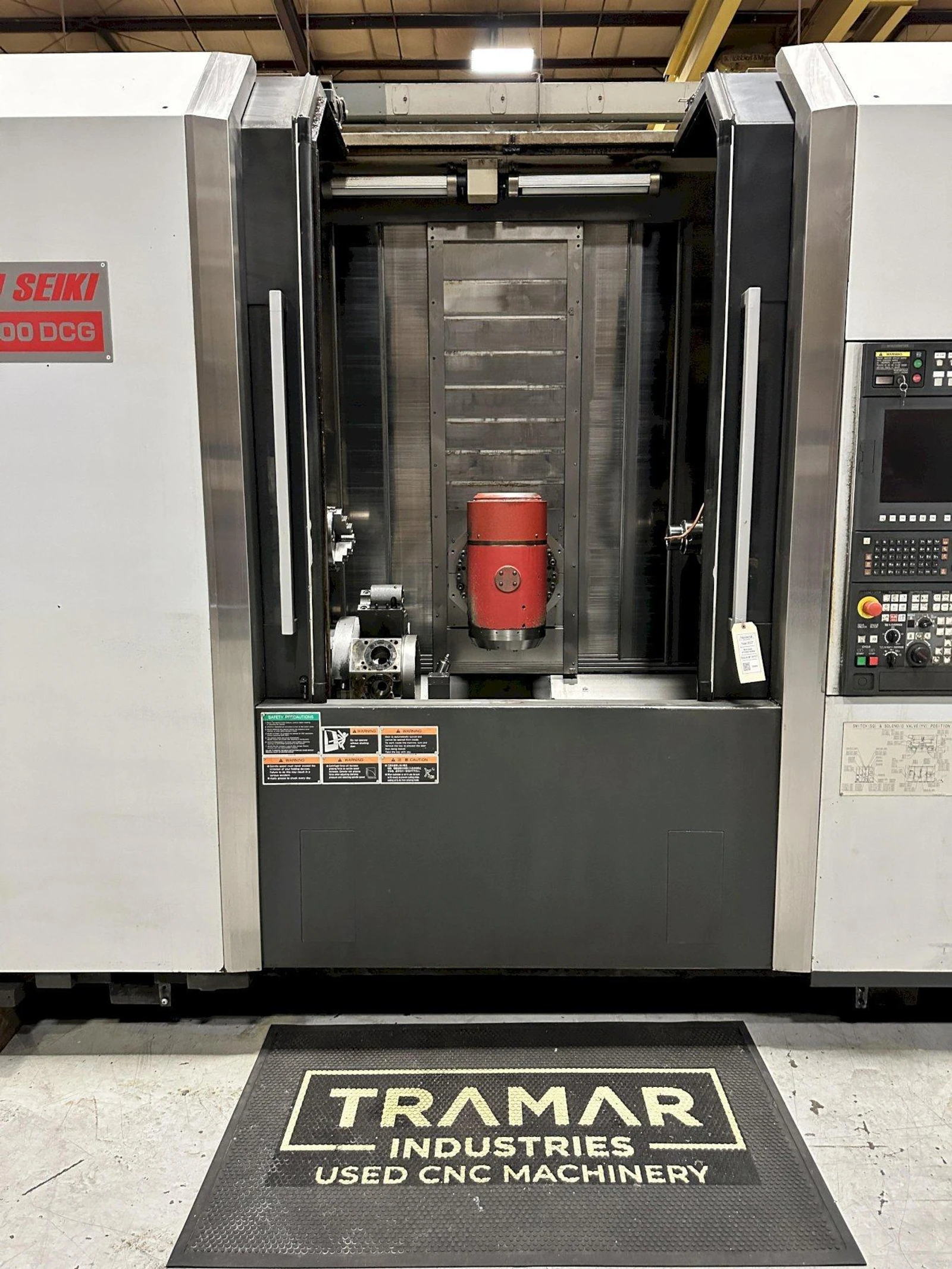

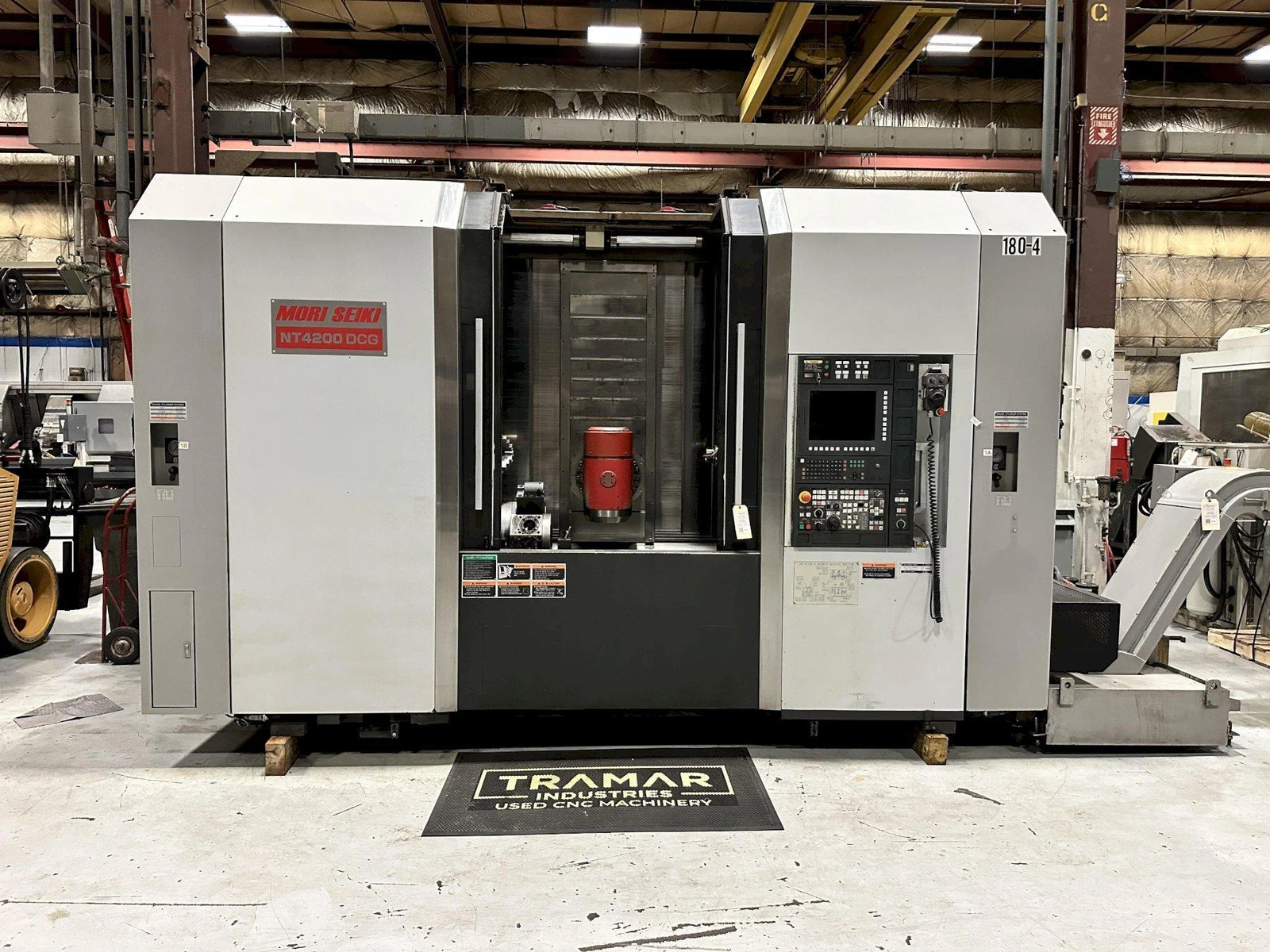

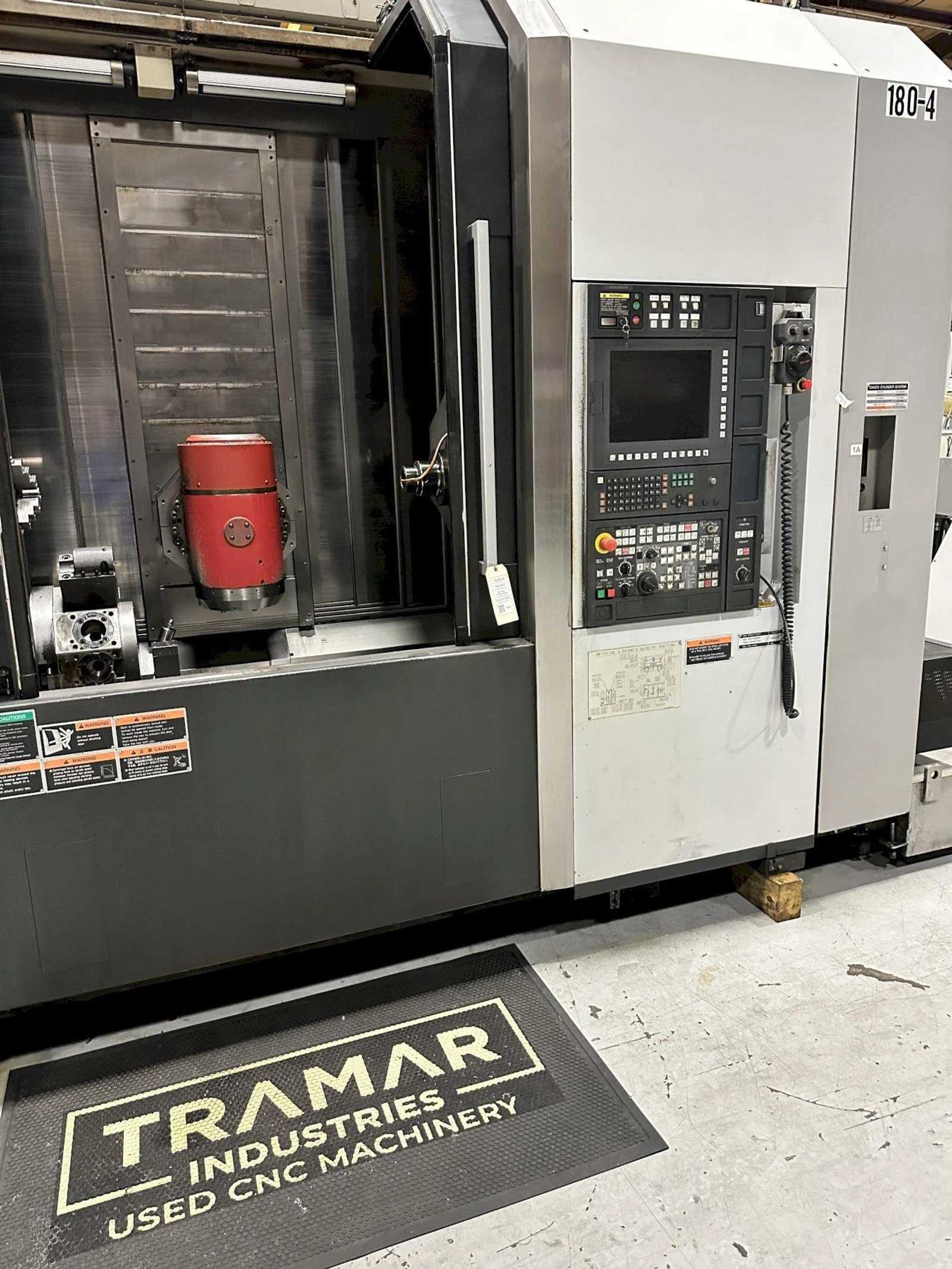

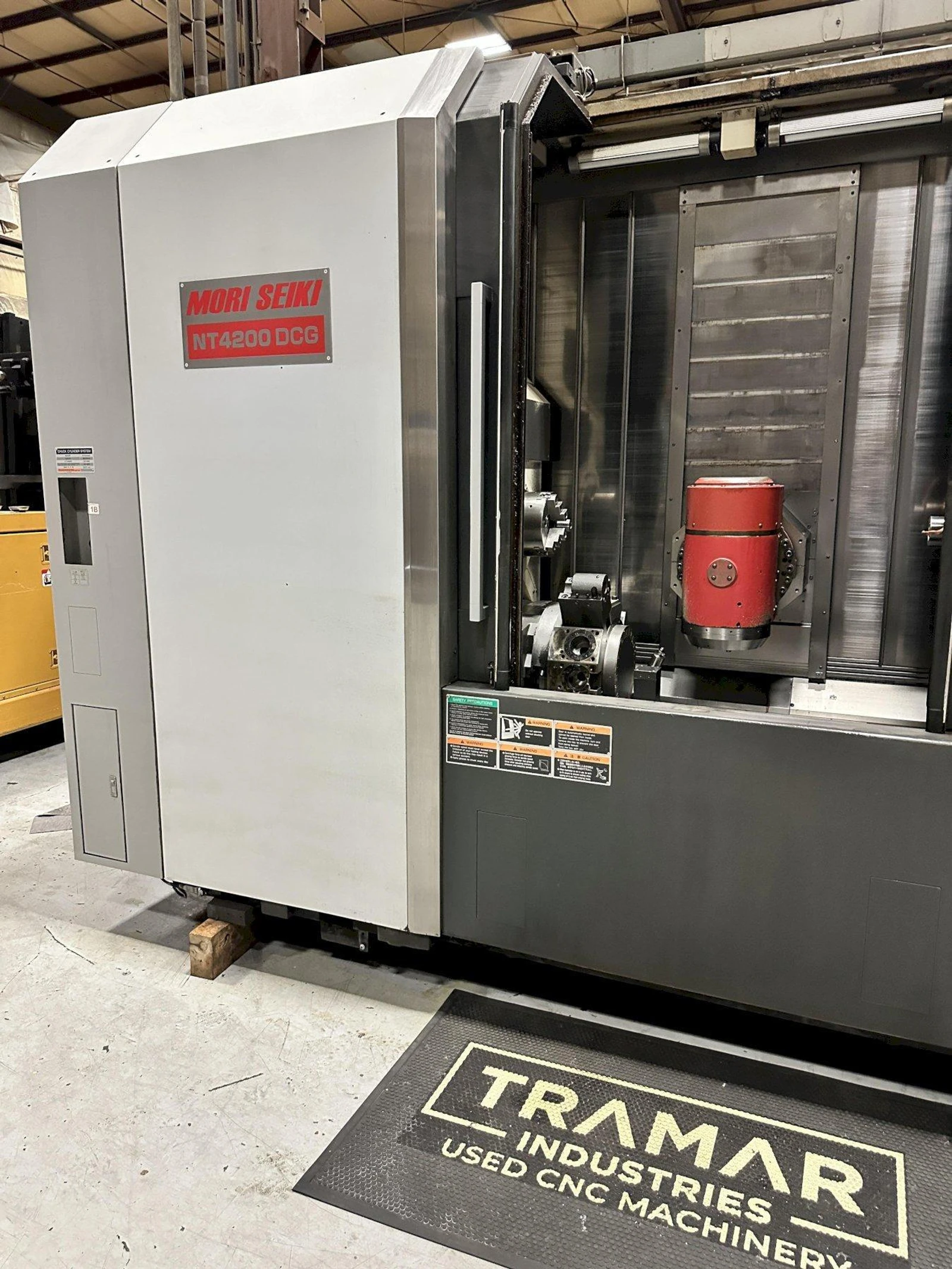

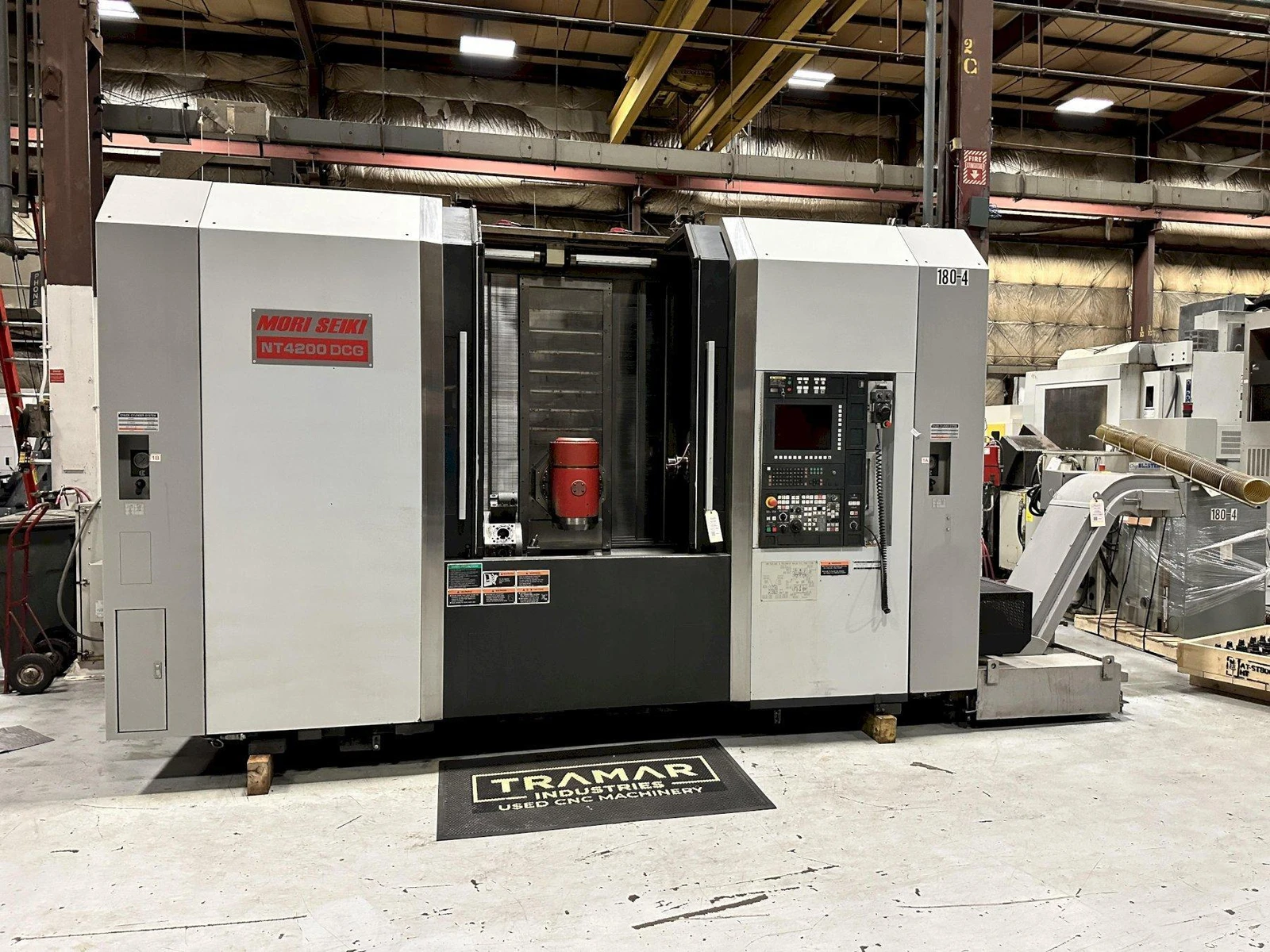

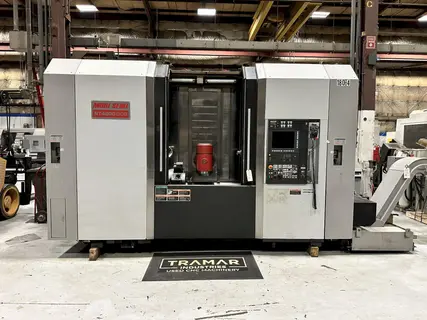

Mori Seiki NT4200/1000SZ CNC Multi-tasking Lathe For Sale - 2006

Model
NT4200/1000SZ
Stock #
14491
Year
2006
Condition
Used
Location
Not specified
CNC Control yes
Type of CNC Control Fanuc

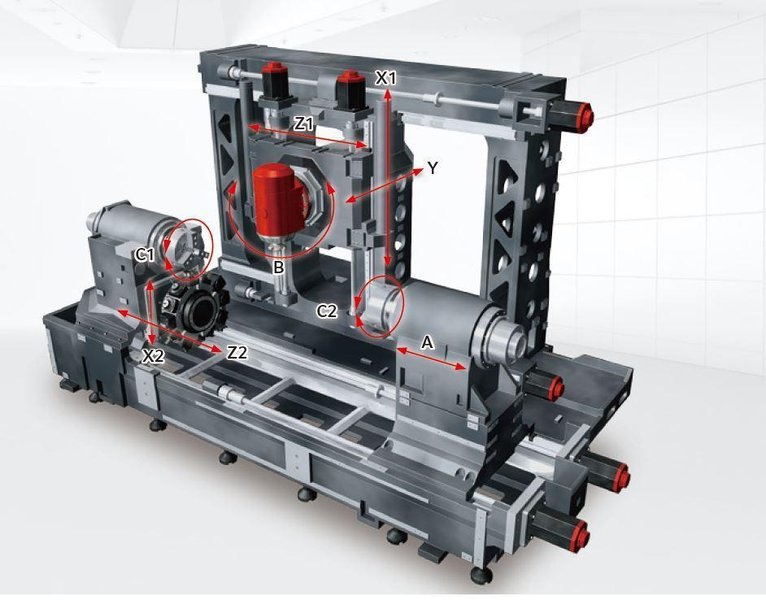

# Axis 9
Swing 28.7 inches
Turning Diameter 25.9 inches
Turning Diameter Lower Turret 13.7"
Center Distance 42.5 inches
Bar Capacity 2.5 inches
X Axis Travel 29.5 inches
X2 Axis Travel 7.7"
Y Axis Travel 8.3 inches
Z Axis Travel 44.1 inches
Z2 Axis Travel 39.8"
B Axis Indexing +/- 120°
C1/C2 Axis Index 0.0001°
Spindle Nose A2-6
Spindle Speed 5,000 rpm
Main Motor 30 hp
Tailstock no
Y Axis yes
Live Tooling yes
Milling Spindle Taper Capto C6
Live Tooling Speed 12,000 rpm - Milling Spindle
Live Tooling Motor 25 hp
Sub Spindle yes
Sub Spindle Bar Capacity 2.5 inches
Sub Spindle Nose A2-6
Sub Spindle Speed 5,000 rpm
Sub Spindle Motor (HP) 30 hp
Turret Capacity 12 Stations Lower Turret
ATC Capacity 100 Stations
Machine Weight 49700 pounds

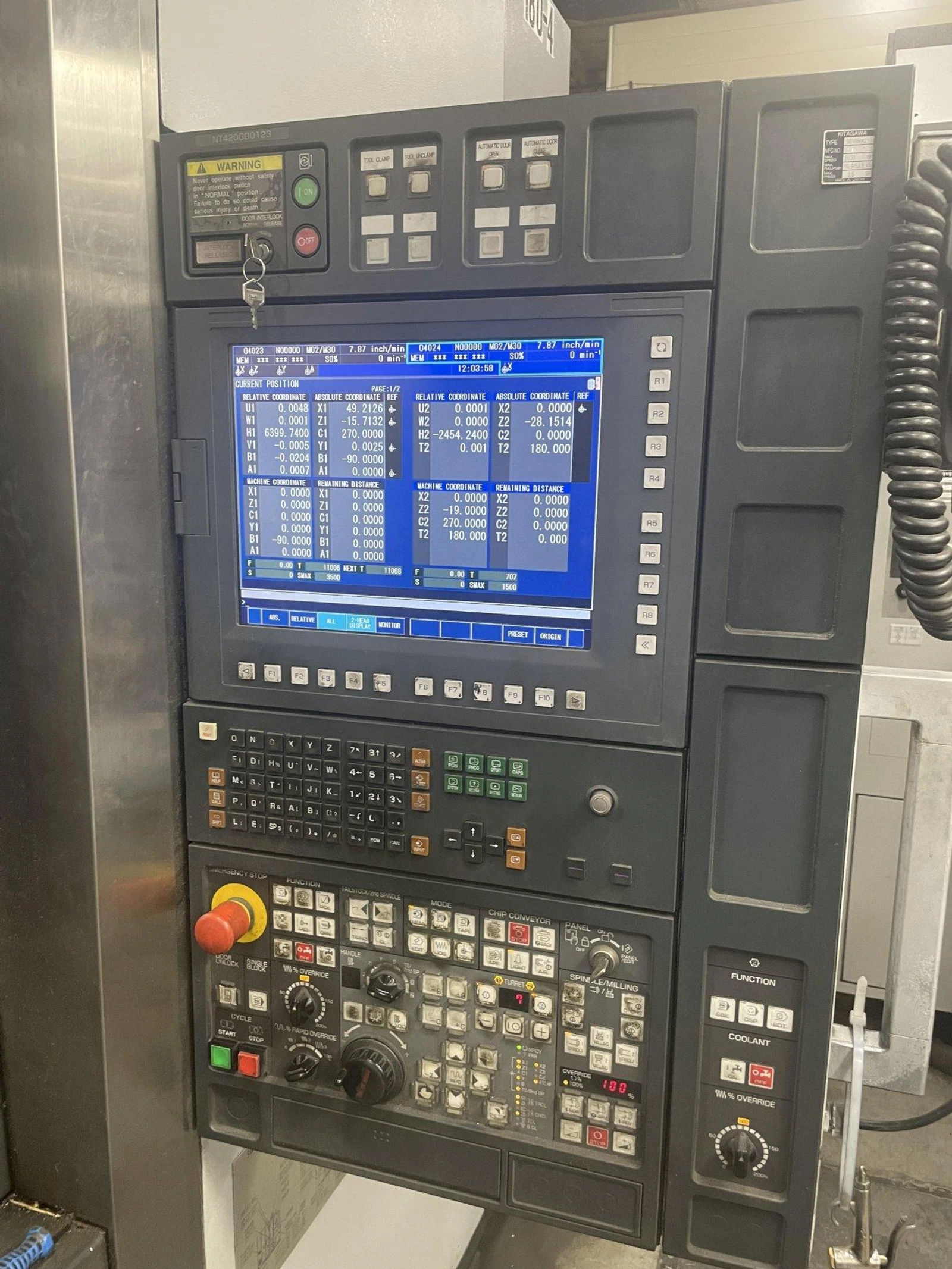

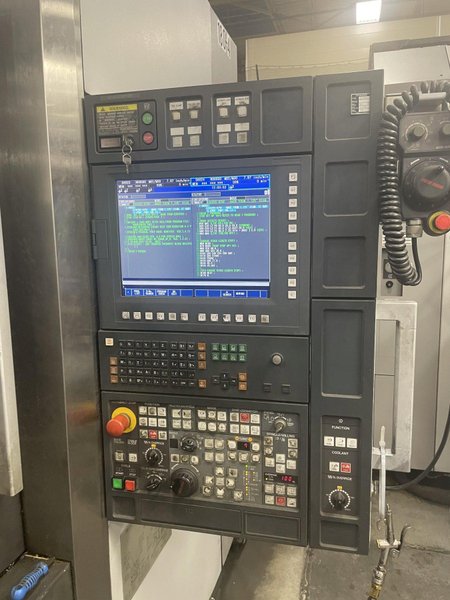

- Fanuc CNC Control

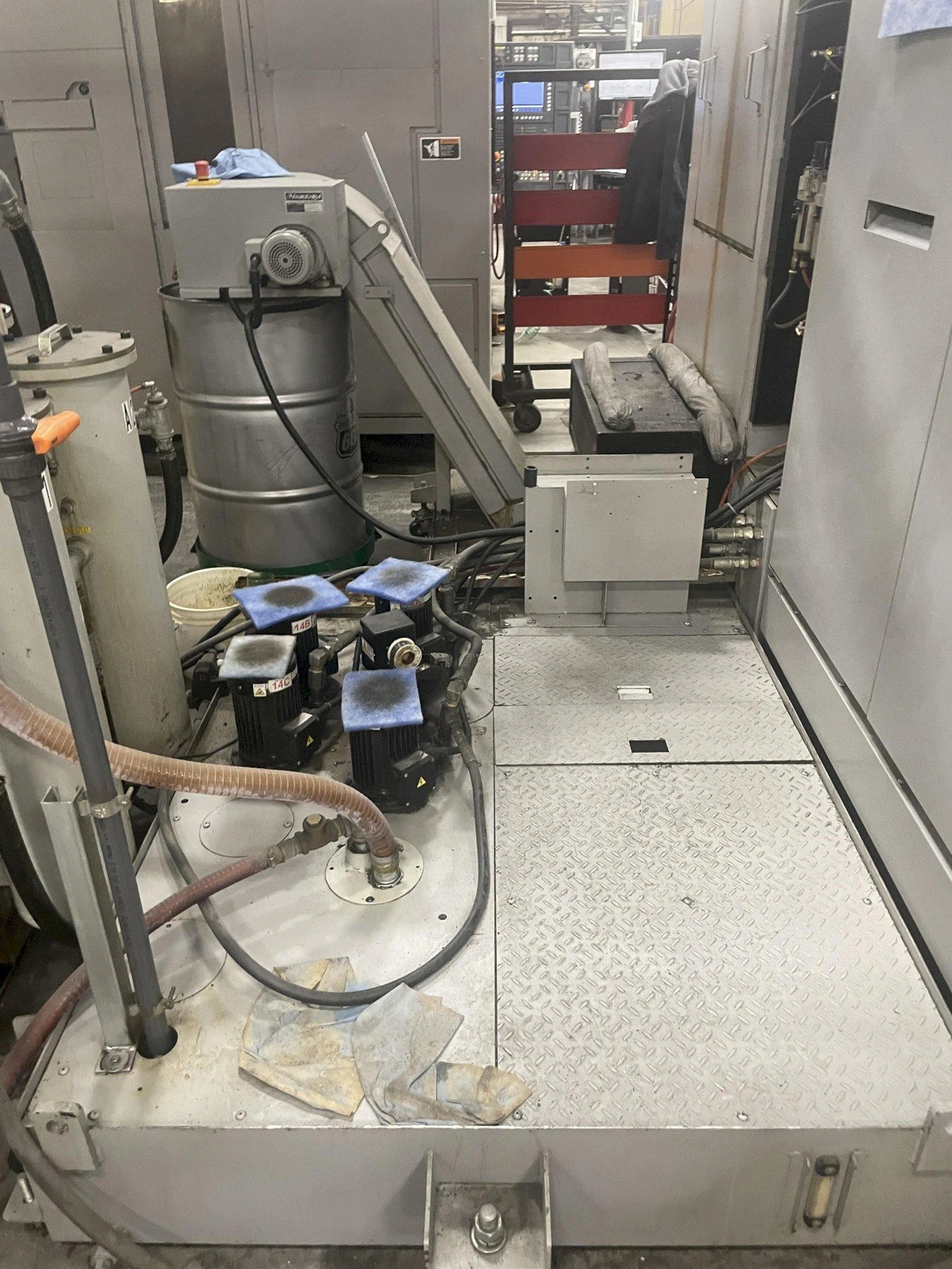

- Chip Conveyor
- Coolant Tank & Pump

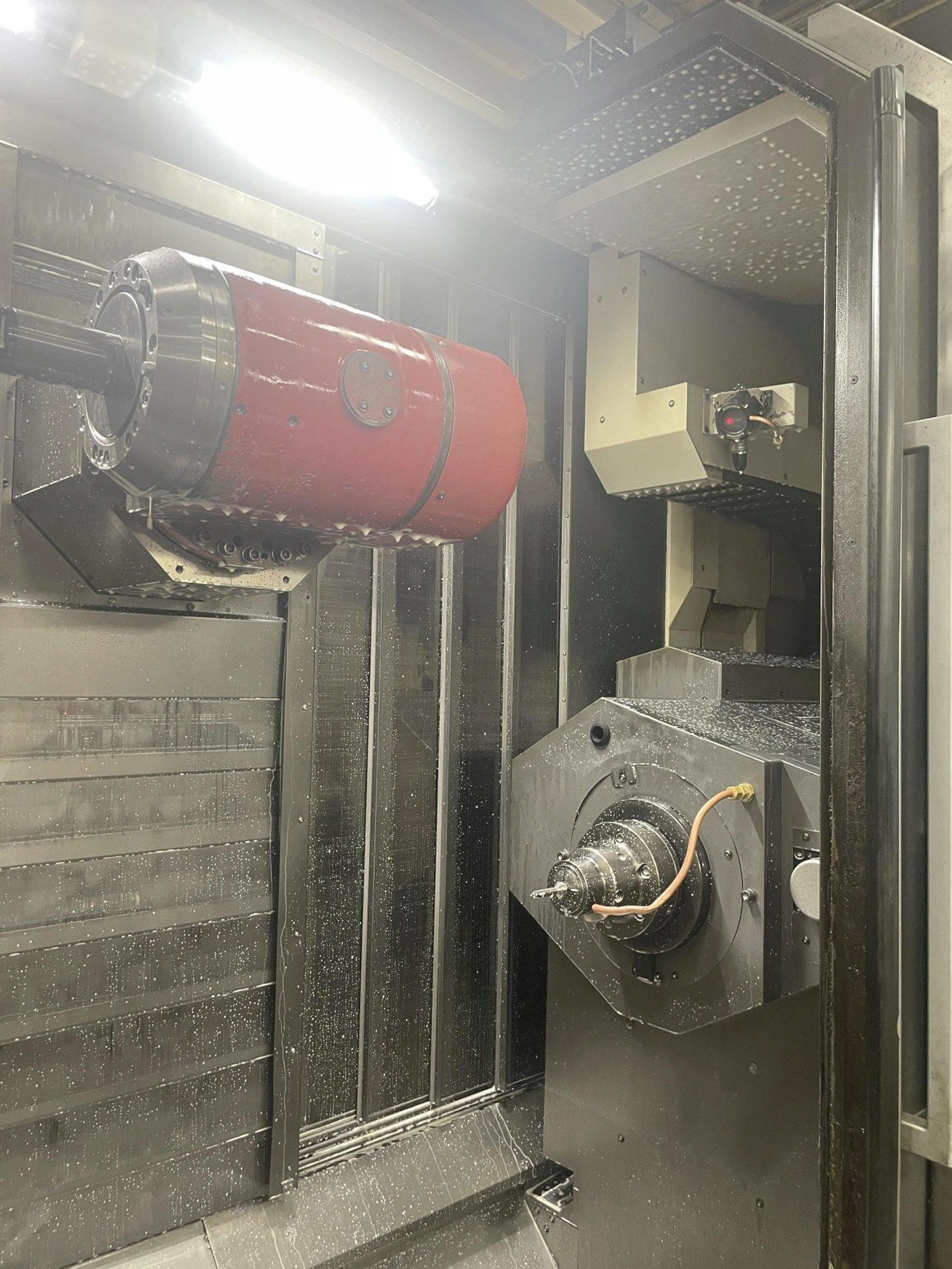

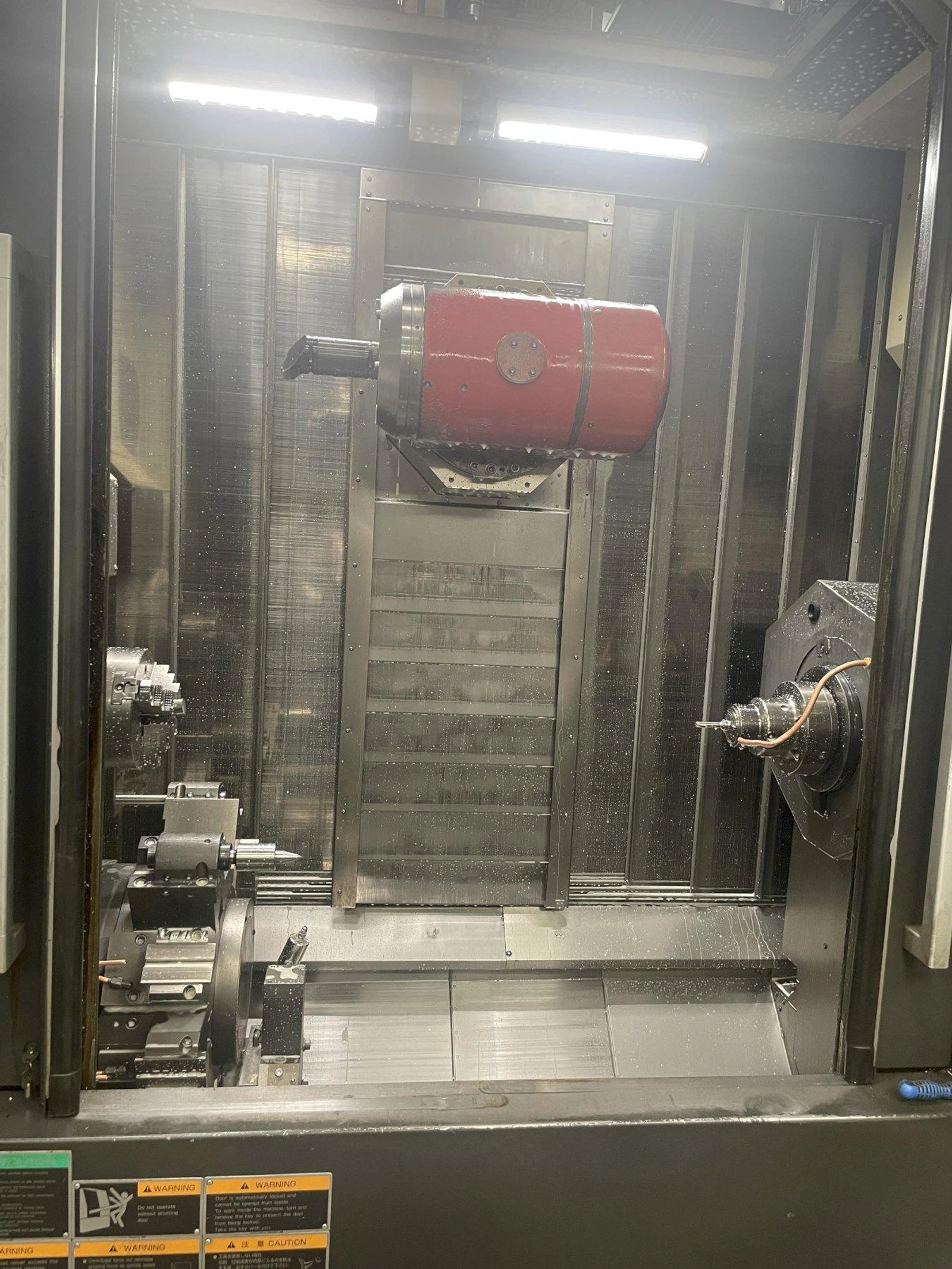

- Live Milling Spindle

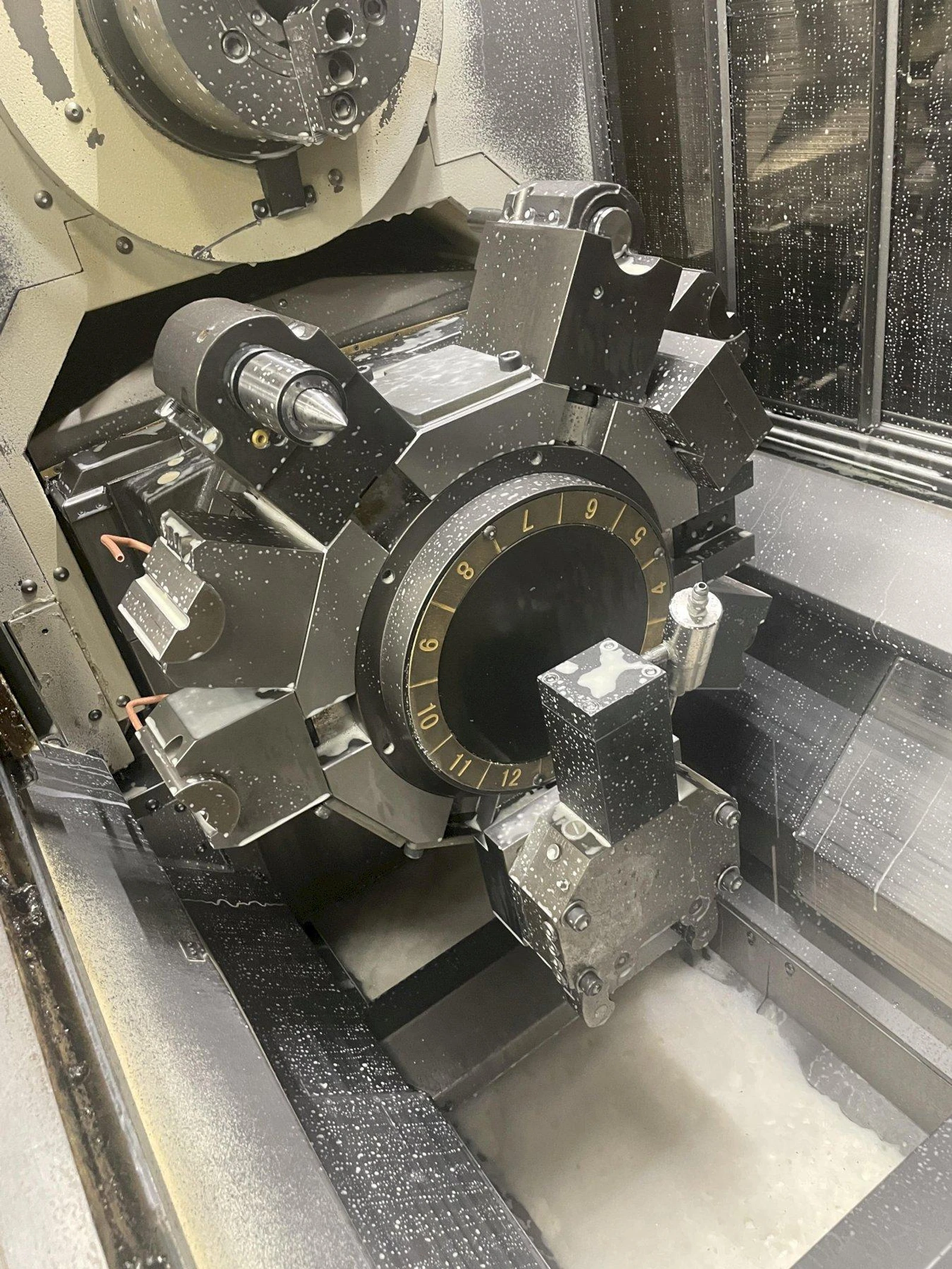

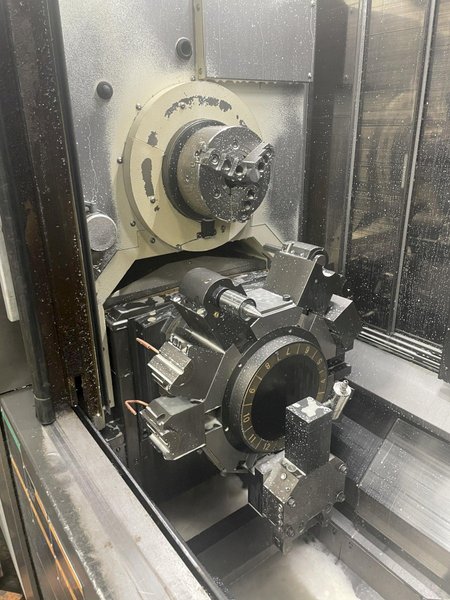

- Lower Turret with Live Tooling Capability
- Sub Spindle
- Y Axis
- Hyd. Steady Rest on Lower Turret

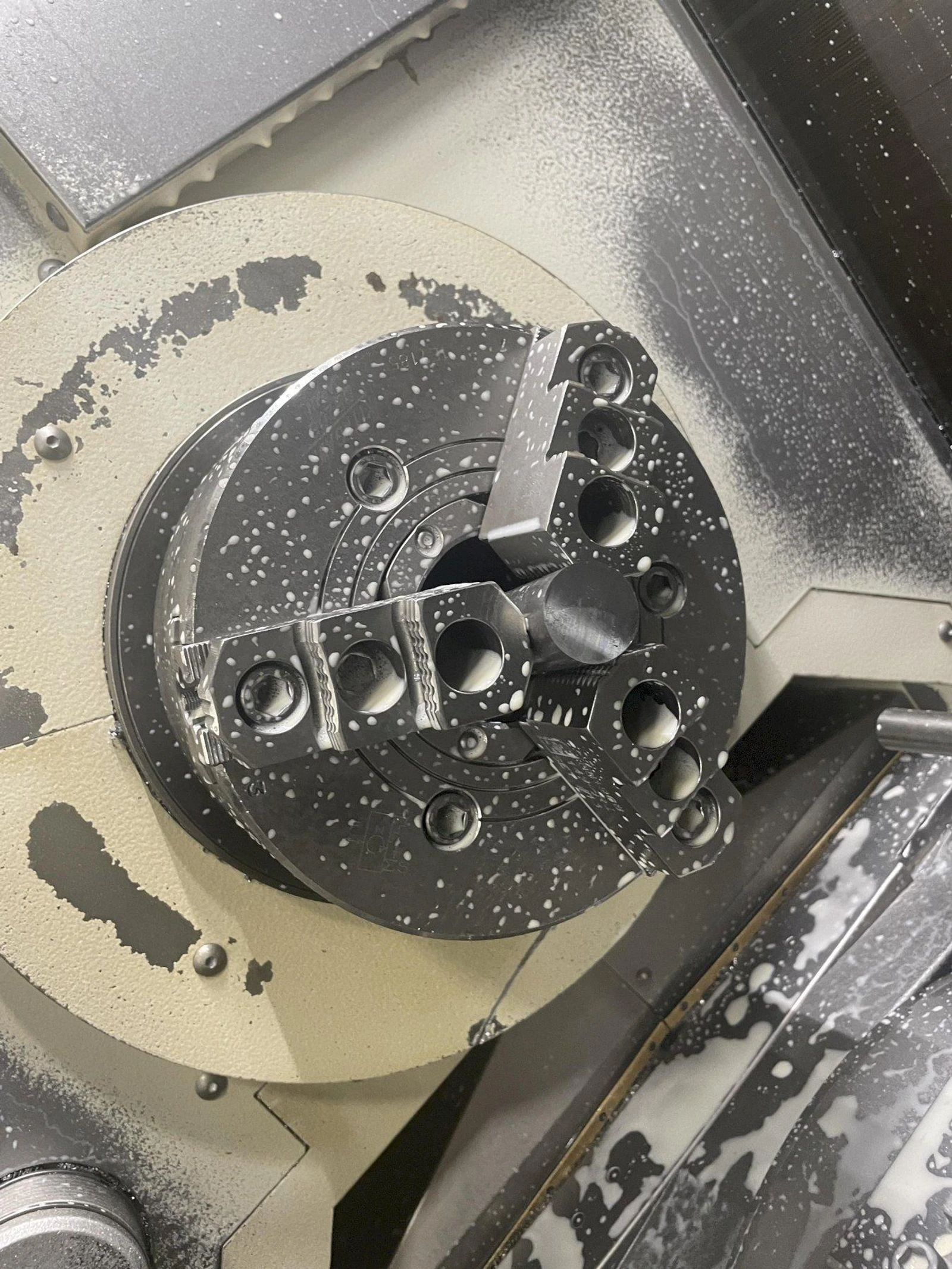

- 8" Chuck on Main Spindle

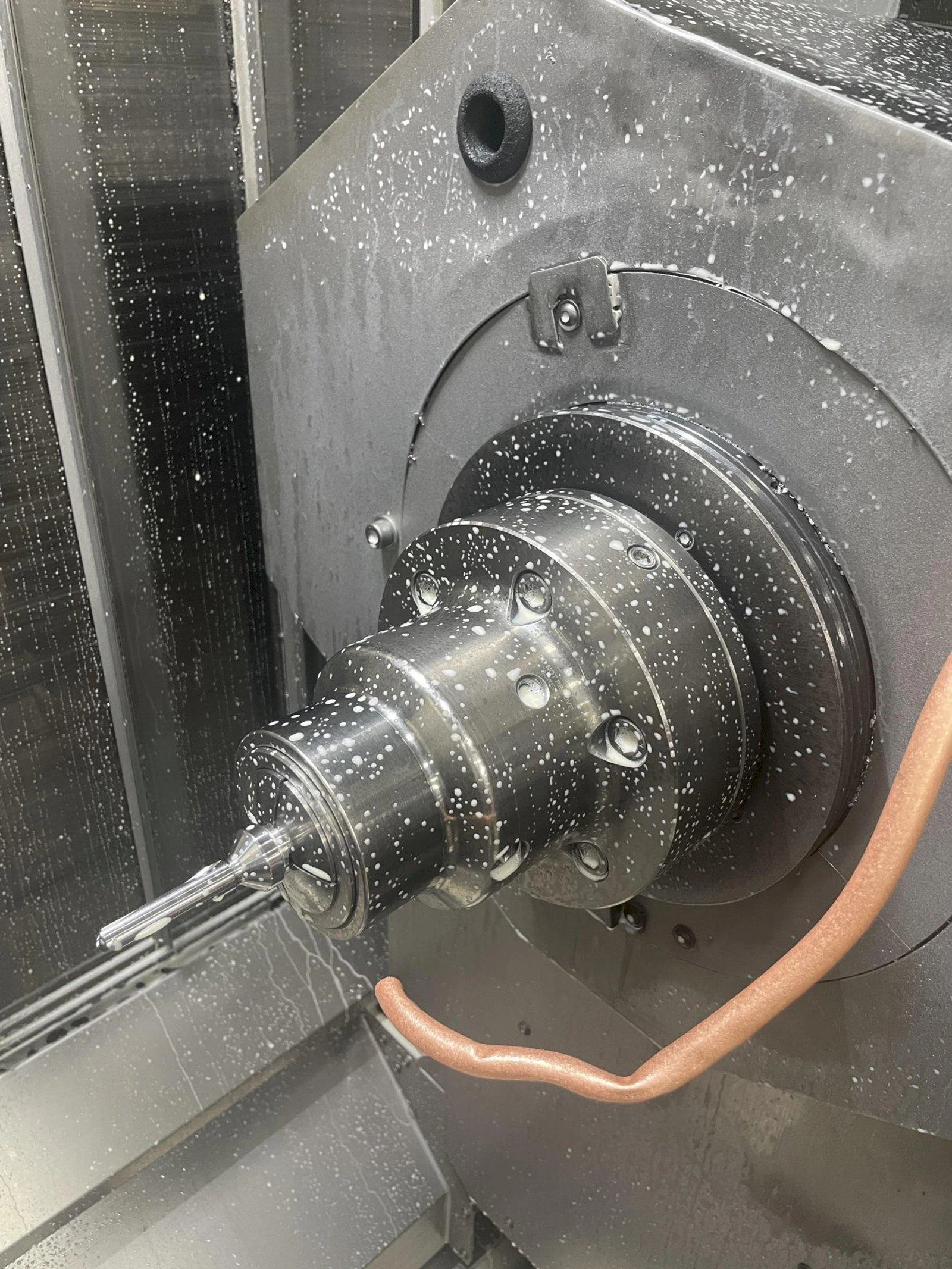

- Collet Chuck on Sub Spindle
- Probing
- Coolant Thru Spindle - High Pressure

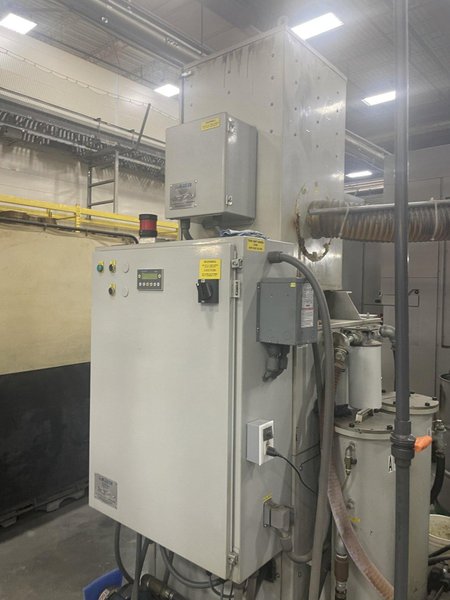

- Chip Blaster Unit
No files or videos to display

Want to request a quote from the owner of this listing?

Similar Listings to - Mori Seiki NT4200/1000SZ CNC Multi-tasking Lathe For Sale - 2006

Mori Seiki NT4200/1000SZ CNC Multi-tasking Lathe For Sale - 2006
MORI SEIKI

Lathes, CNC (3-Axis or More)

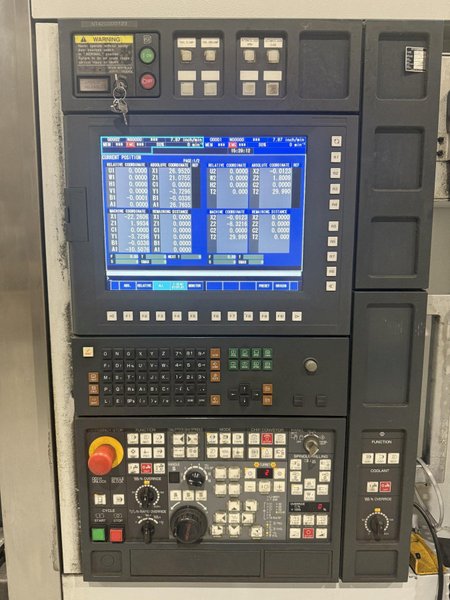

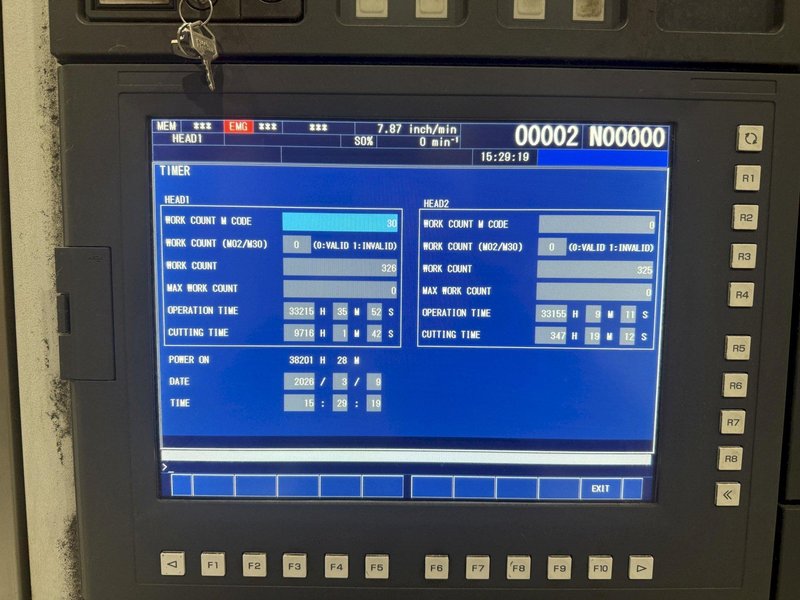

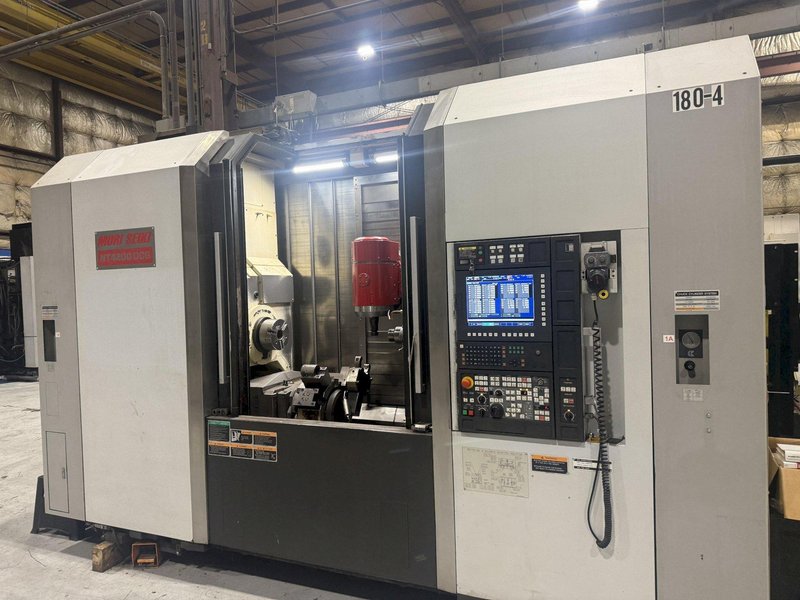

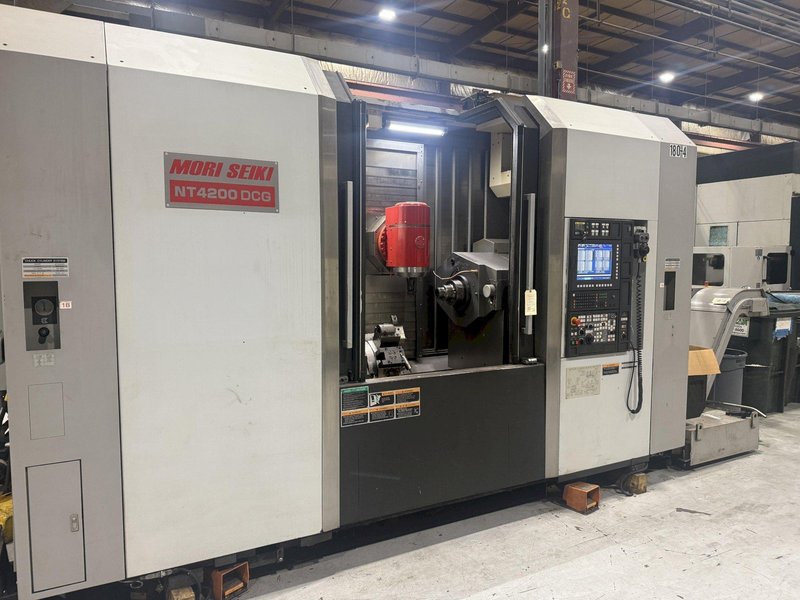

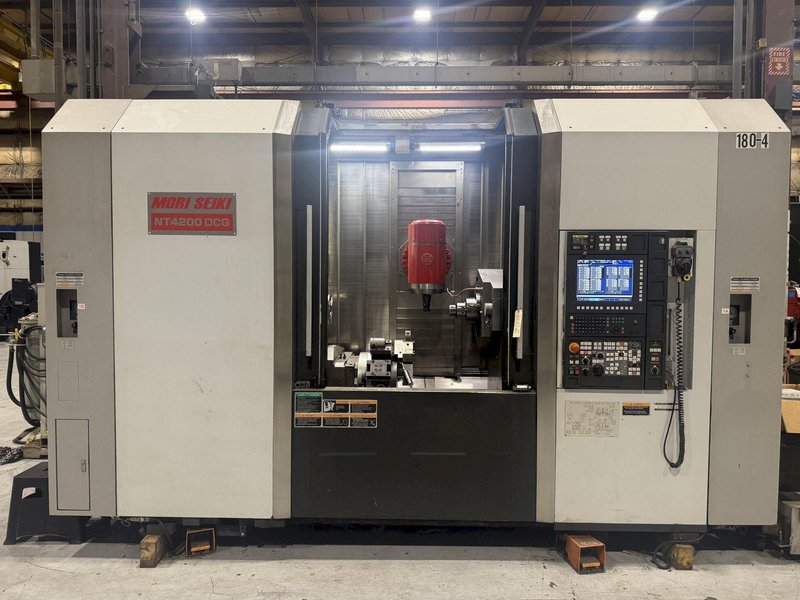

Mori Seiki NT4200/1000SZ CNC Multi-tasking Lathe For Sale - 2007
