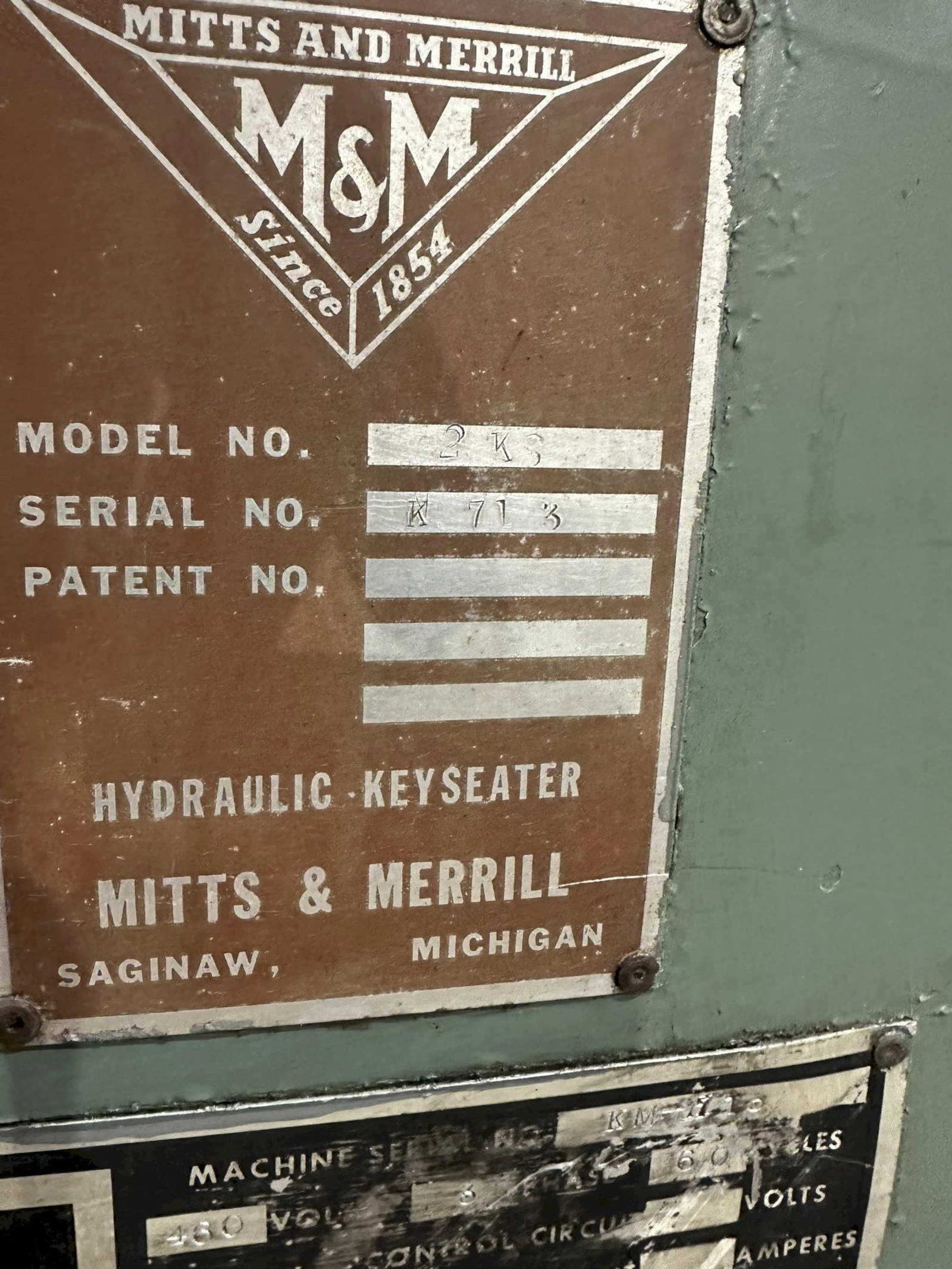

SERIAL ................................ KM713

MODEL ................................. 2KS

YEAR NEW .............................. 1971

MAXIMUM KEYWAY LENGTH ................. 12"

MAXIMUM KEYWAY WIDTH .................. 1-1/4"

LARGEST STANDARD POST ................. 2-3/8"

LARGEST BORE POSSIBLE TO KEYWAY ....... 6-1/2"

TABLE TOP SIZE ........................ 30" x 30"

FLOOR TO TABLE ........................ 40-5/8"

CUTTING SPEED VARIABLE ................ 8.5 -20.6 FPM

RETURN SPEED .......................... 37.2 FPM

CROSSHEAD PULL ........................ 7,000 Lbs.

FEED RATE ............................. .001 - .010/Stroke

MAXIMUM PART WEIGHT ON TABLE .......... 2500 Lbs.

CHIP DISCHARGE CHUTE .................. YES

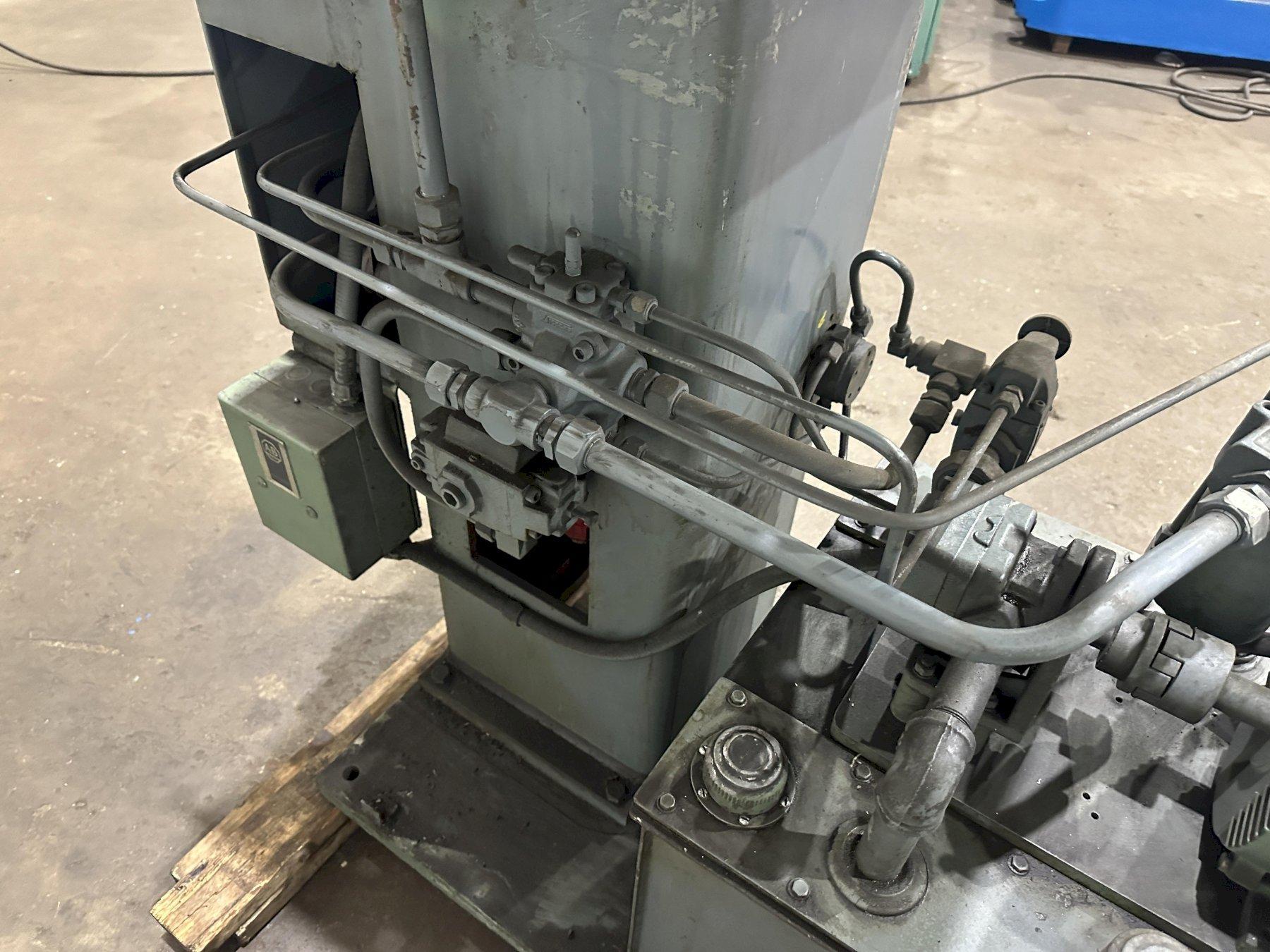

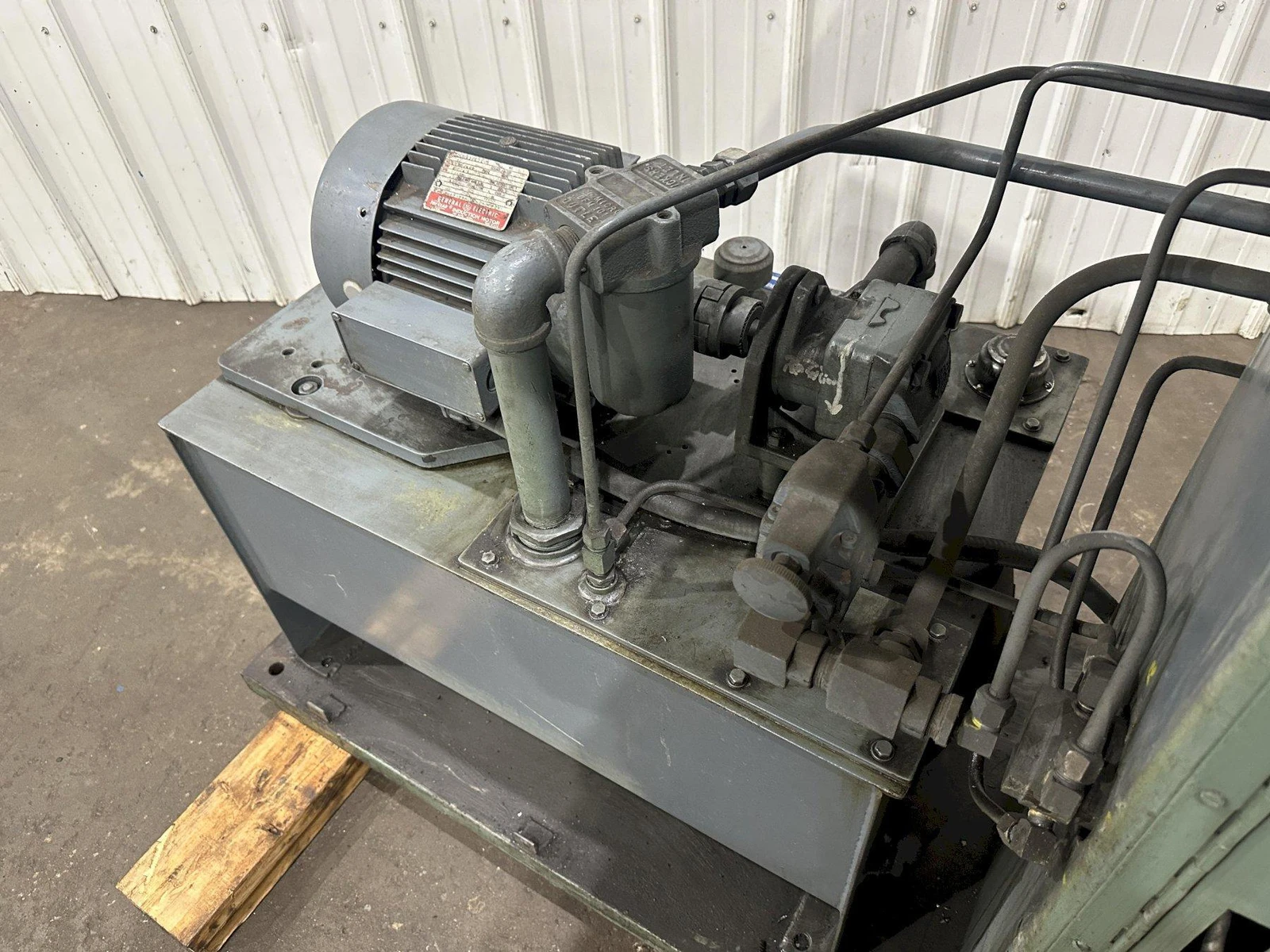

AUTOMATIC HYDRAULIC INFEED ............ YES

AUTOMATIC TOOL RELIEF ................. YES

DEPTH CONTROL ......................... YES

FLUSH FLOOR (NOT PIT REQUIRED) ........ YES

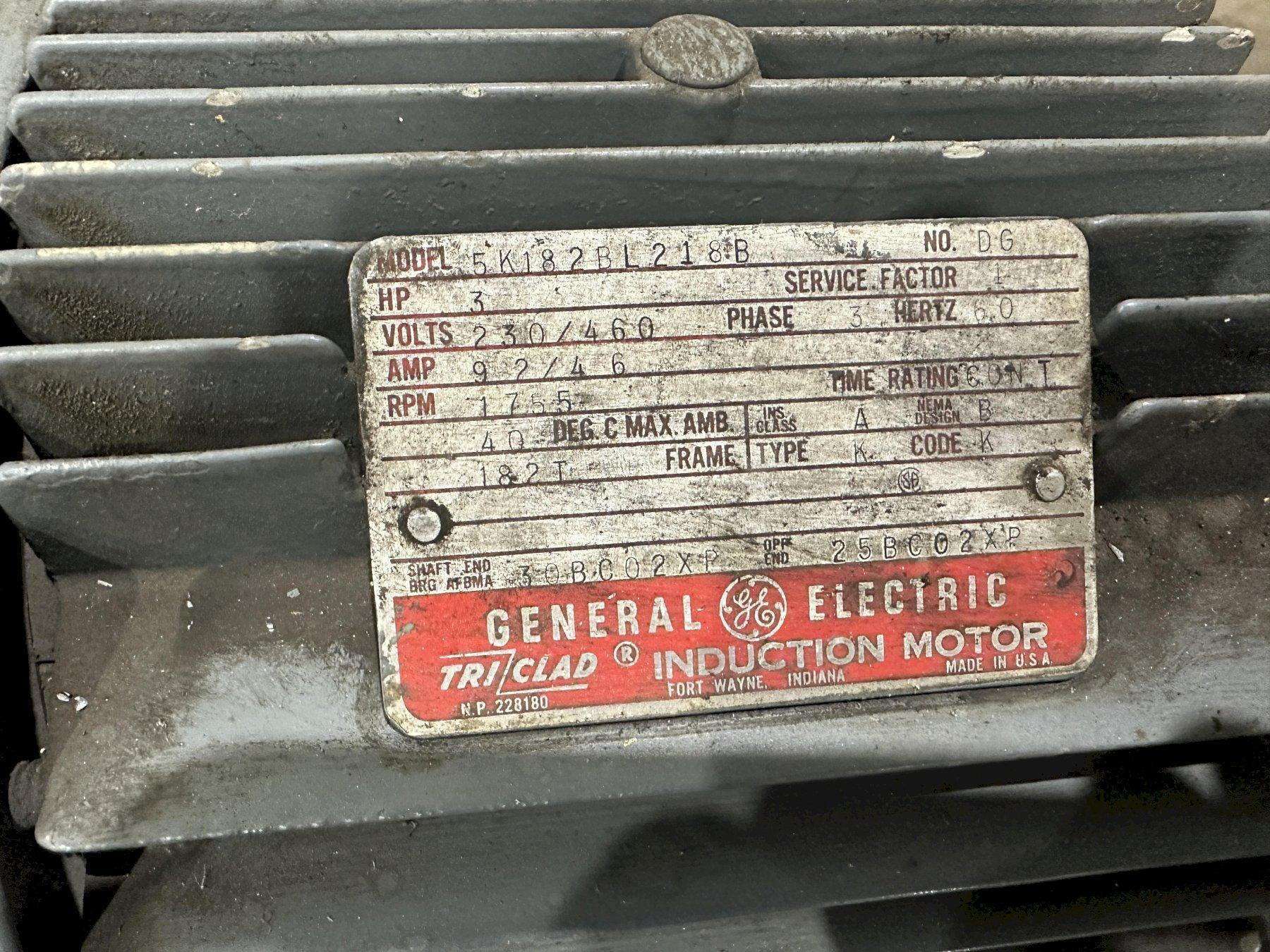

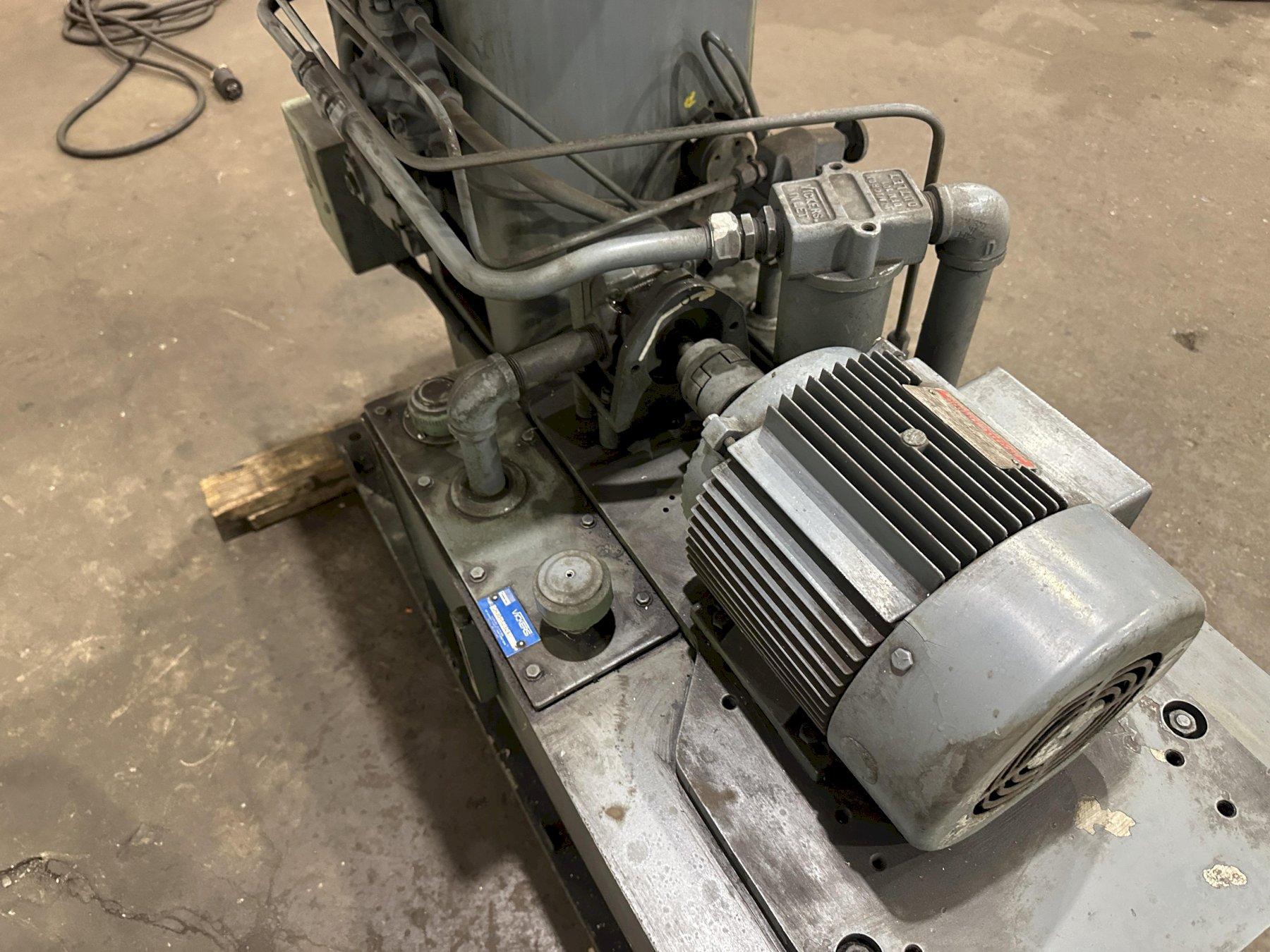

MAIN MOTOR ............................ 5 HORSEPOWER
