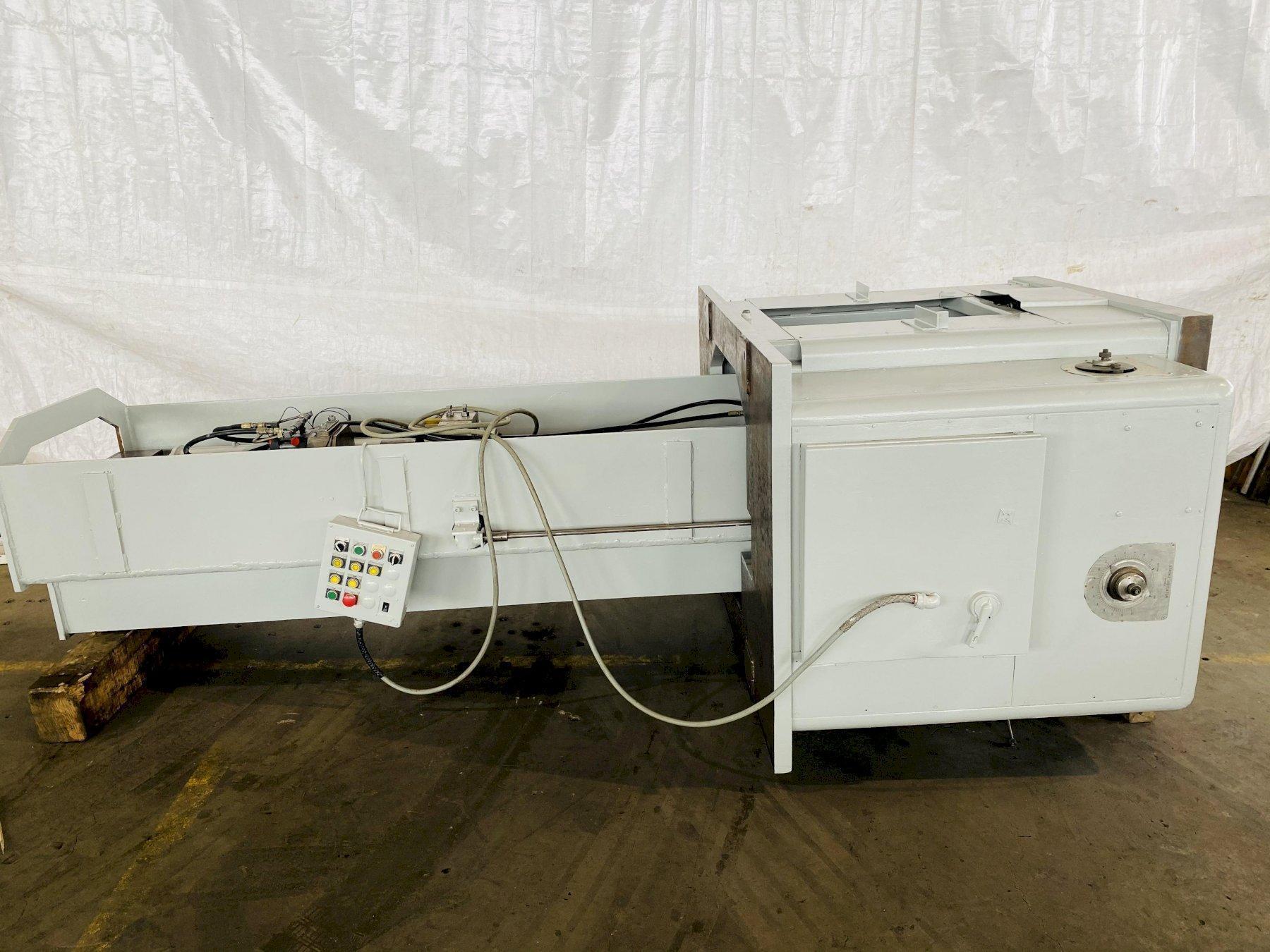

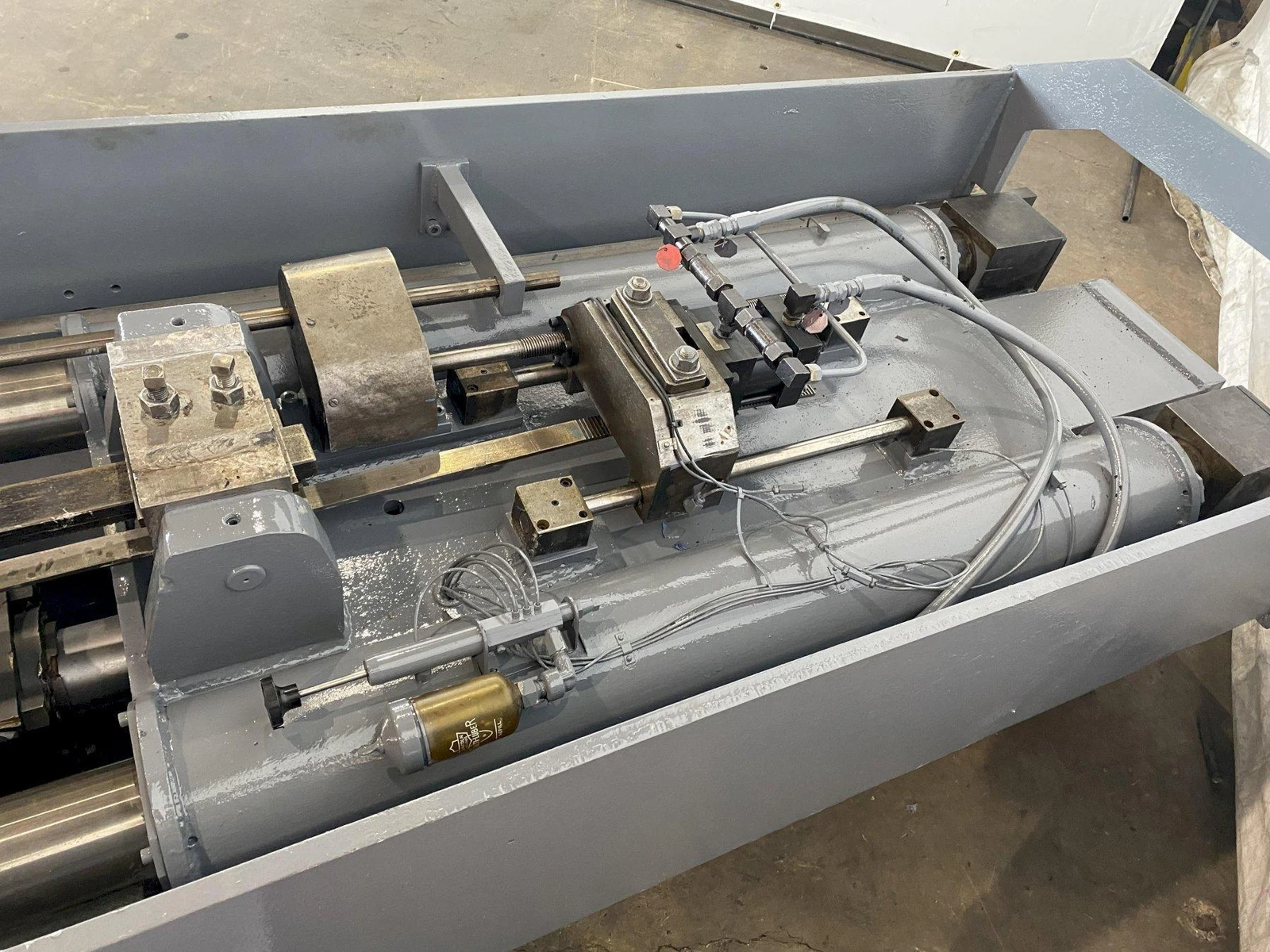

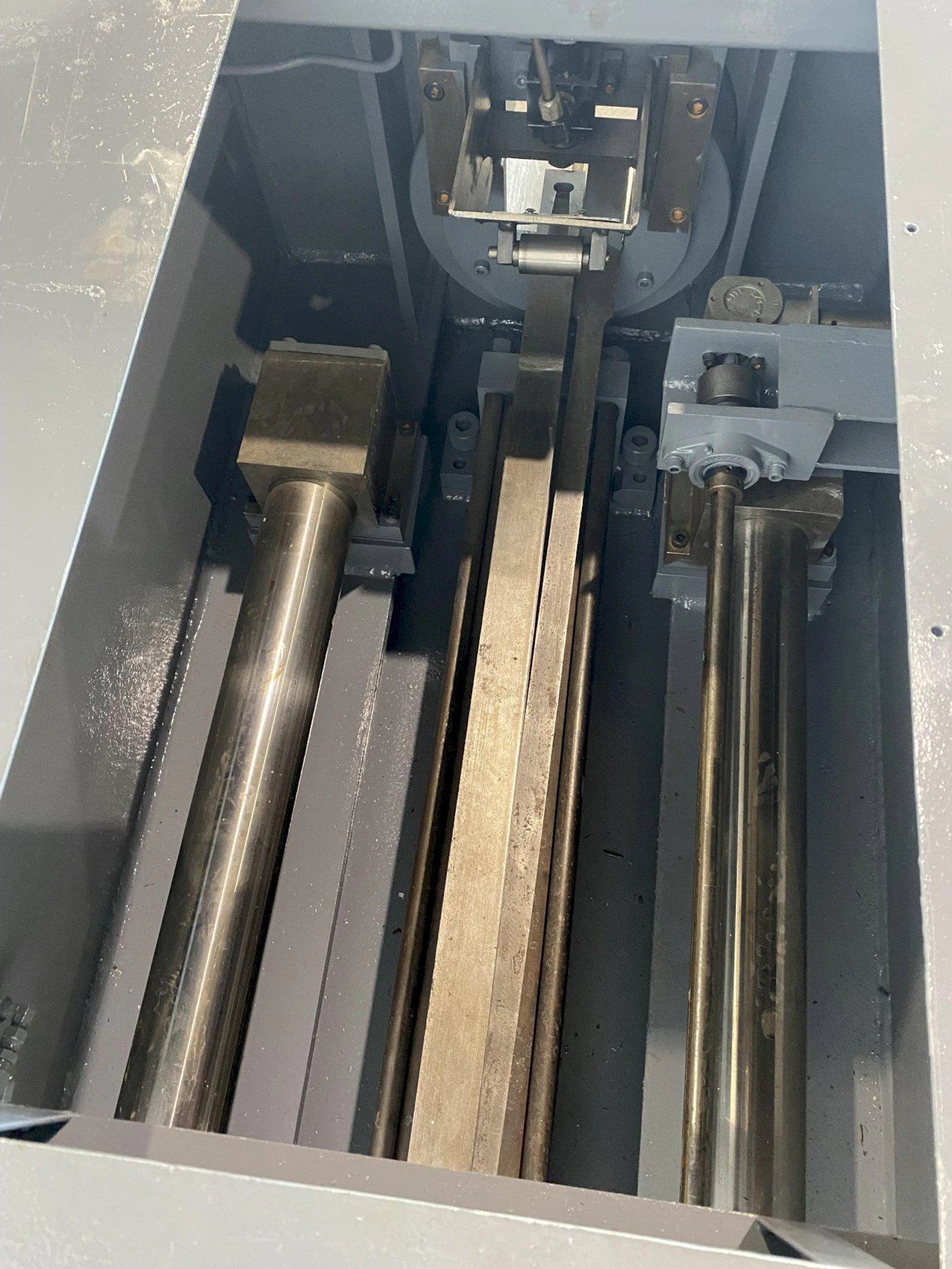

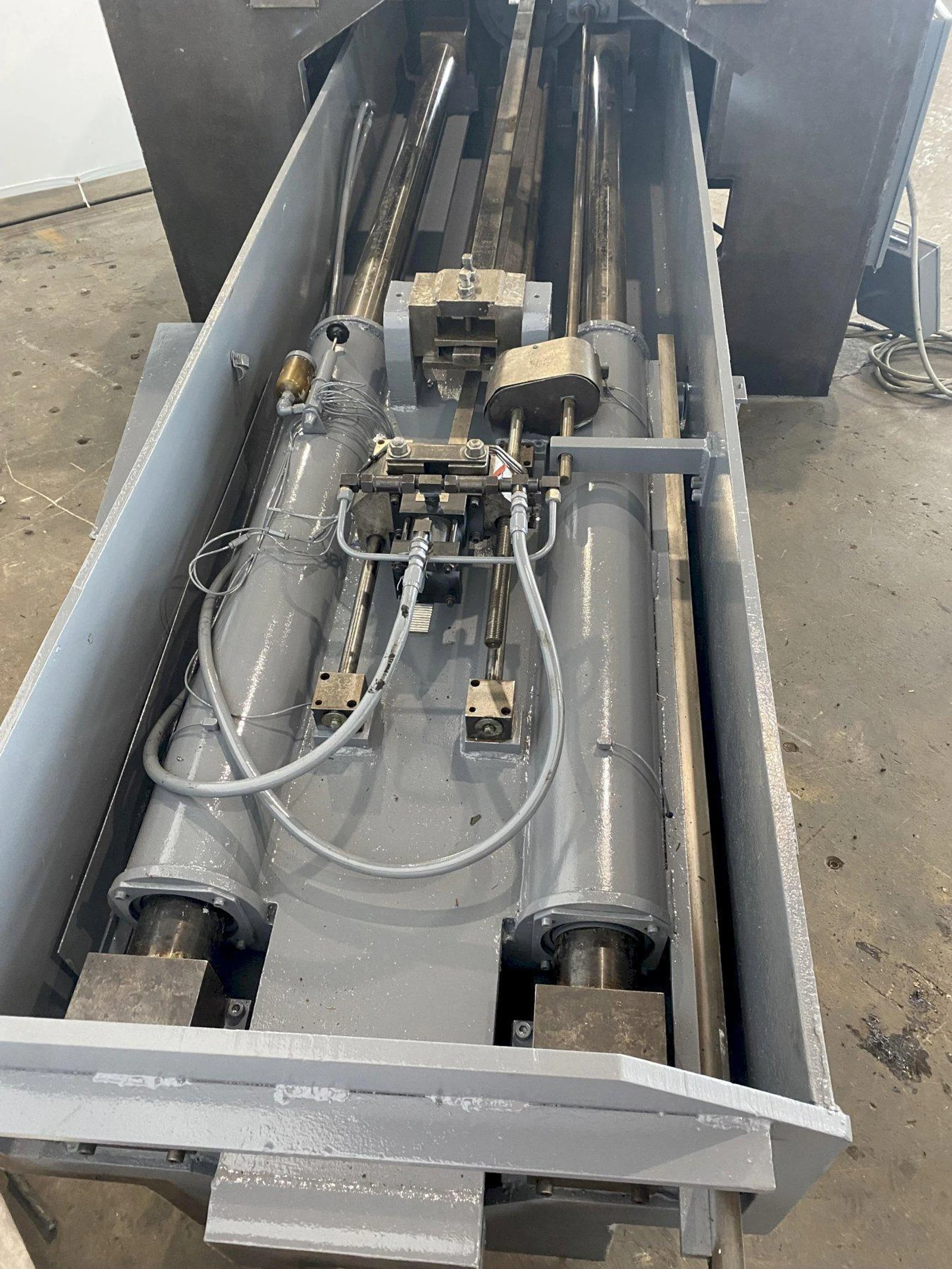

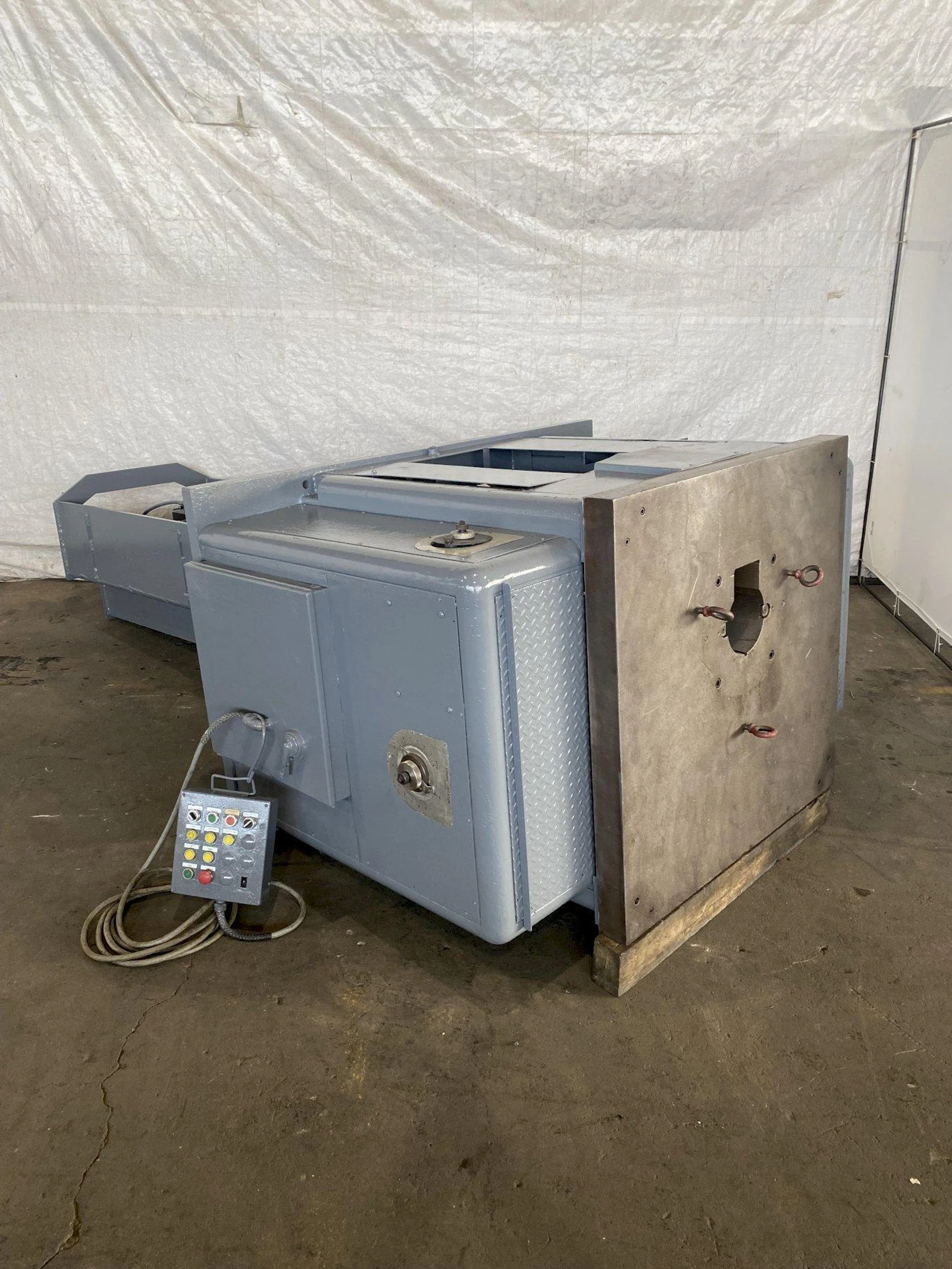

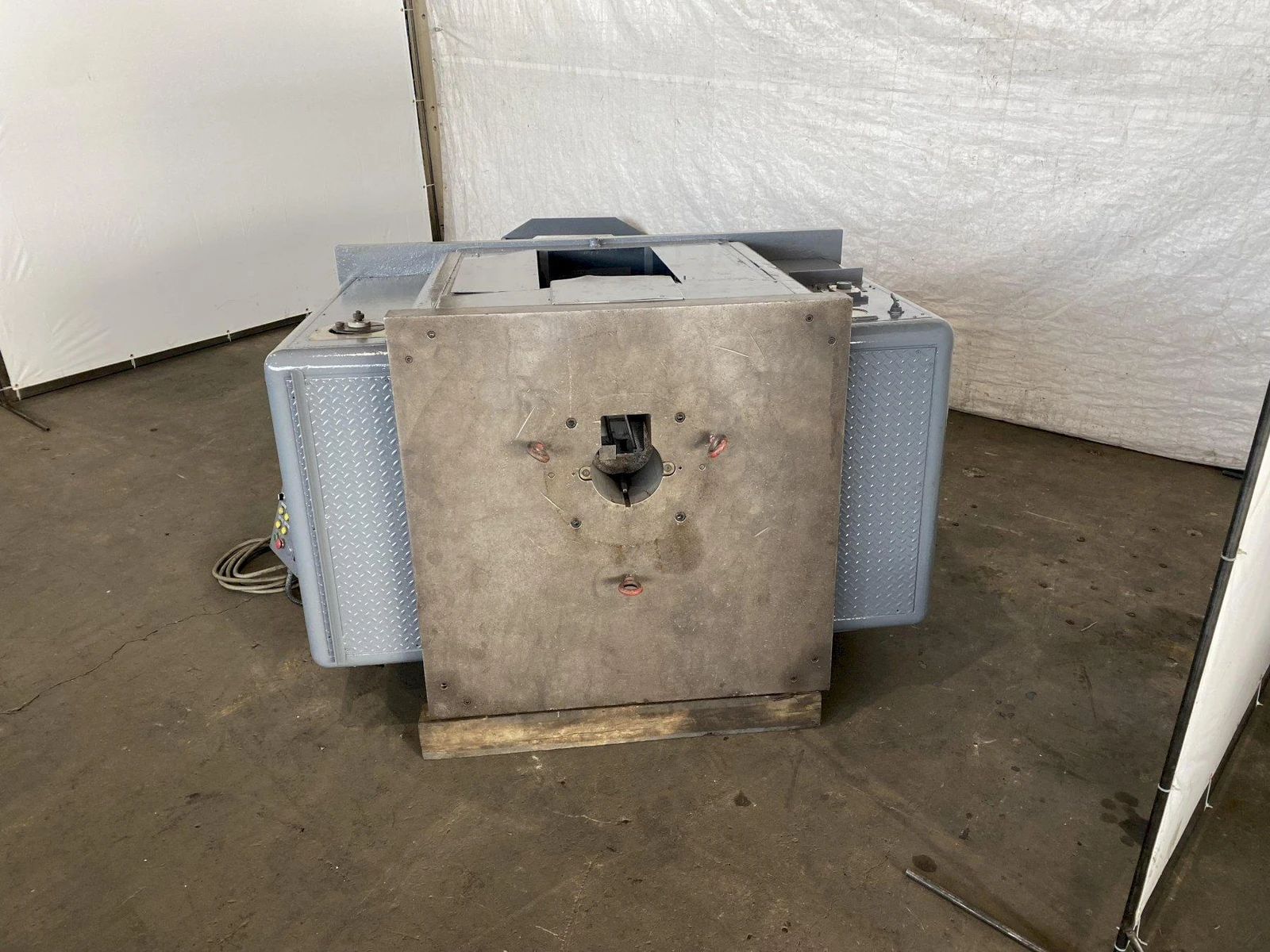

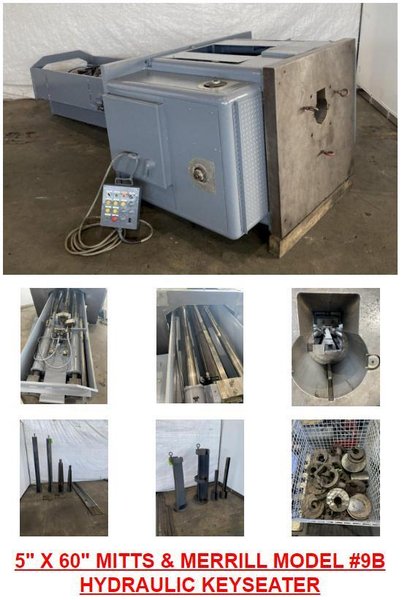

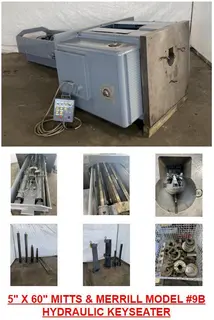

5" X 60" MITTS & MERRILL MODEL #9B HYDRAULIC KEYSEATER : STOCK #14144
Brand
Category
Type
Model
9B
Stock #
14144
Year
1975
Condition
Good
Location
Ohio
| Dimensions | 76" X 78" FLOOR SPACE |
|
SERIAL ........................ KM-7512

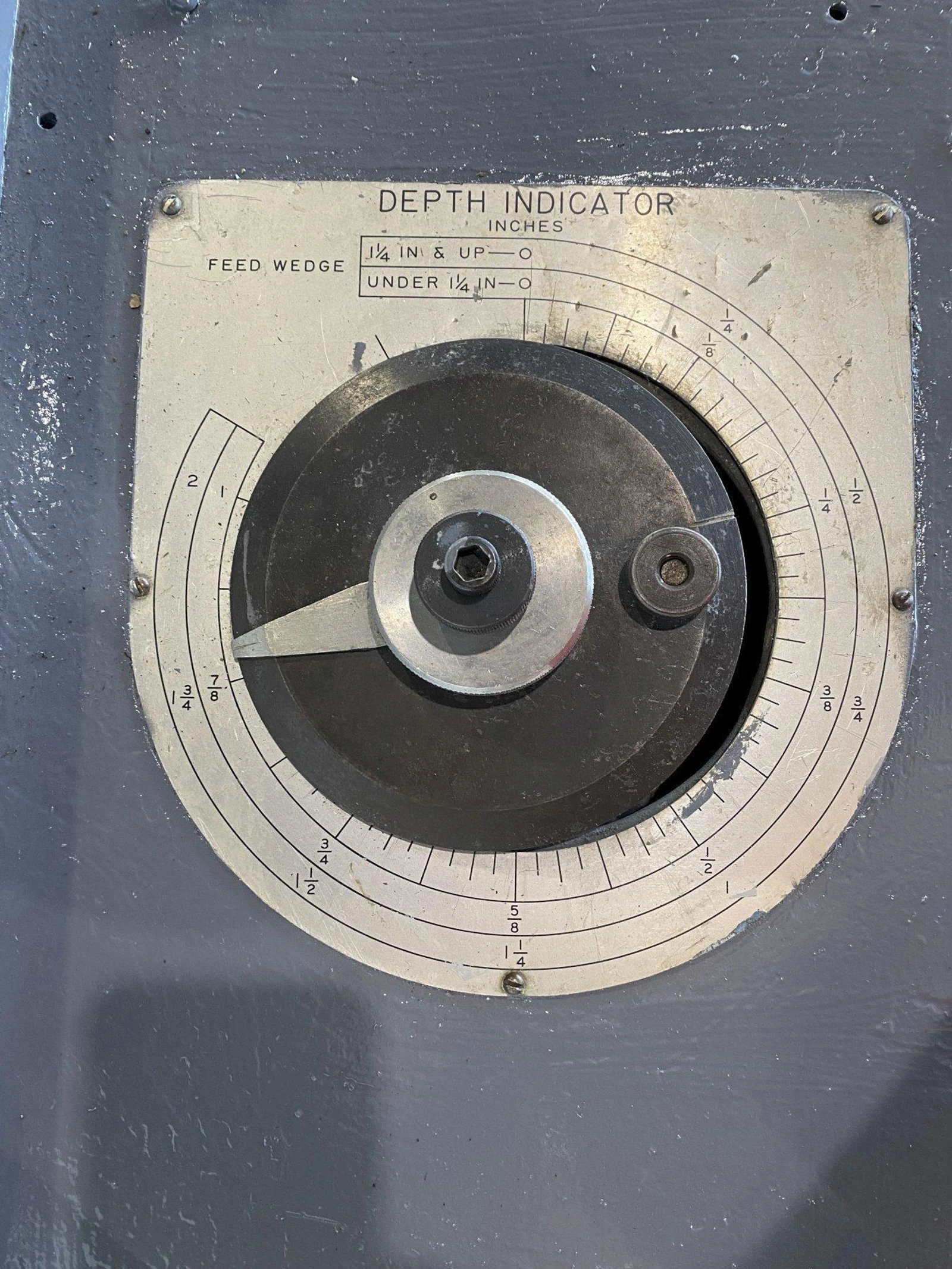

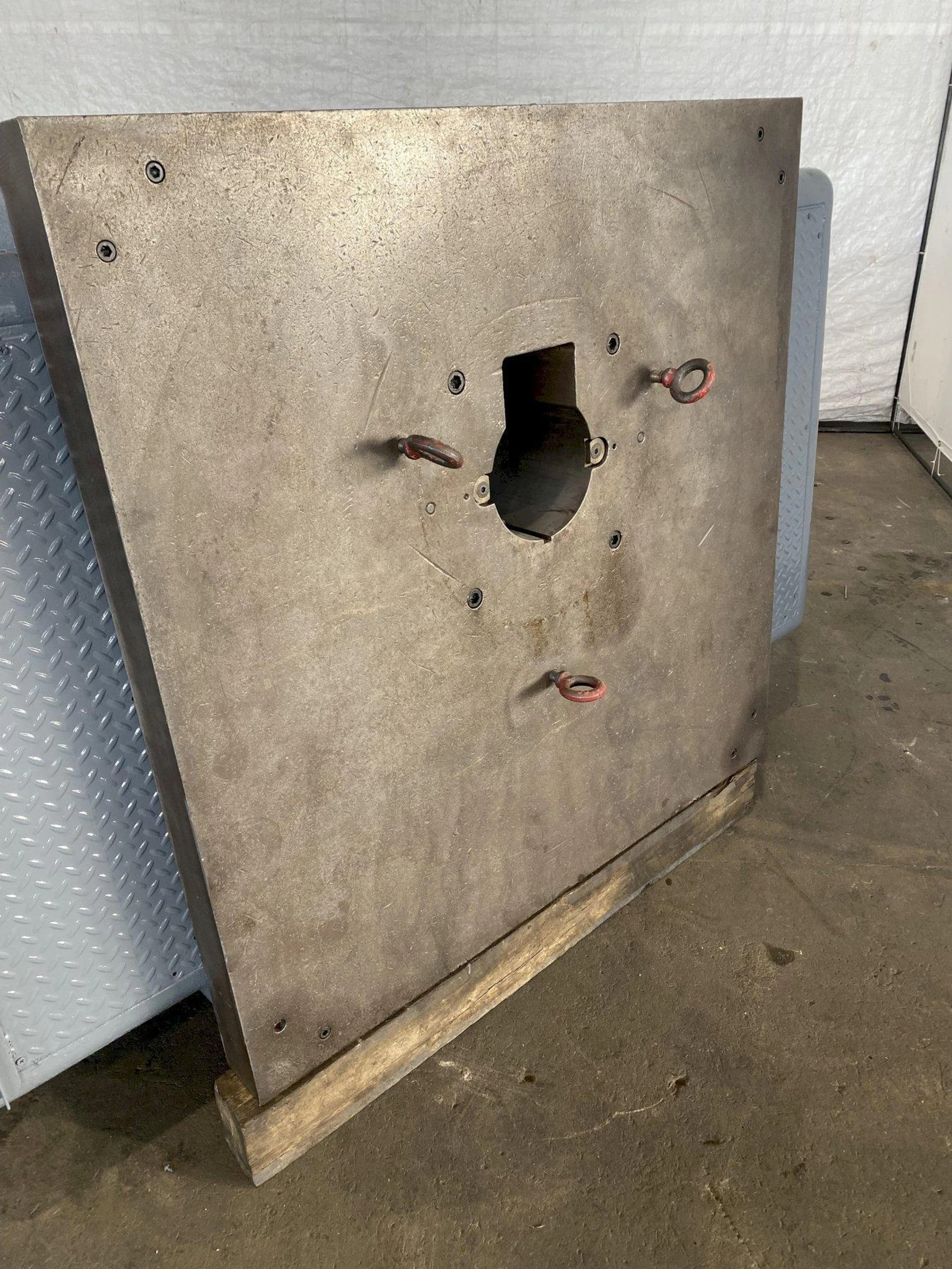

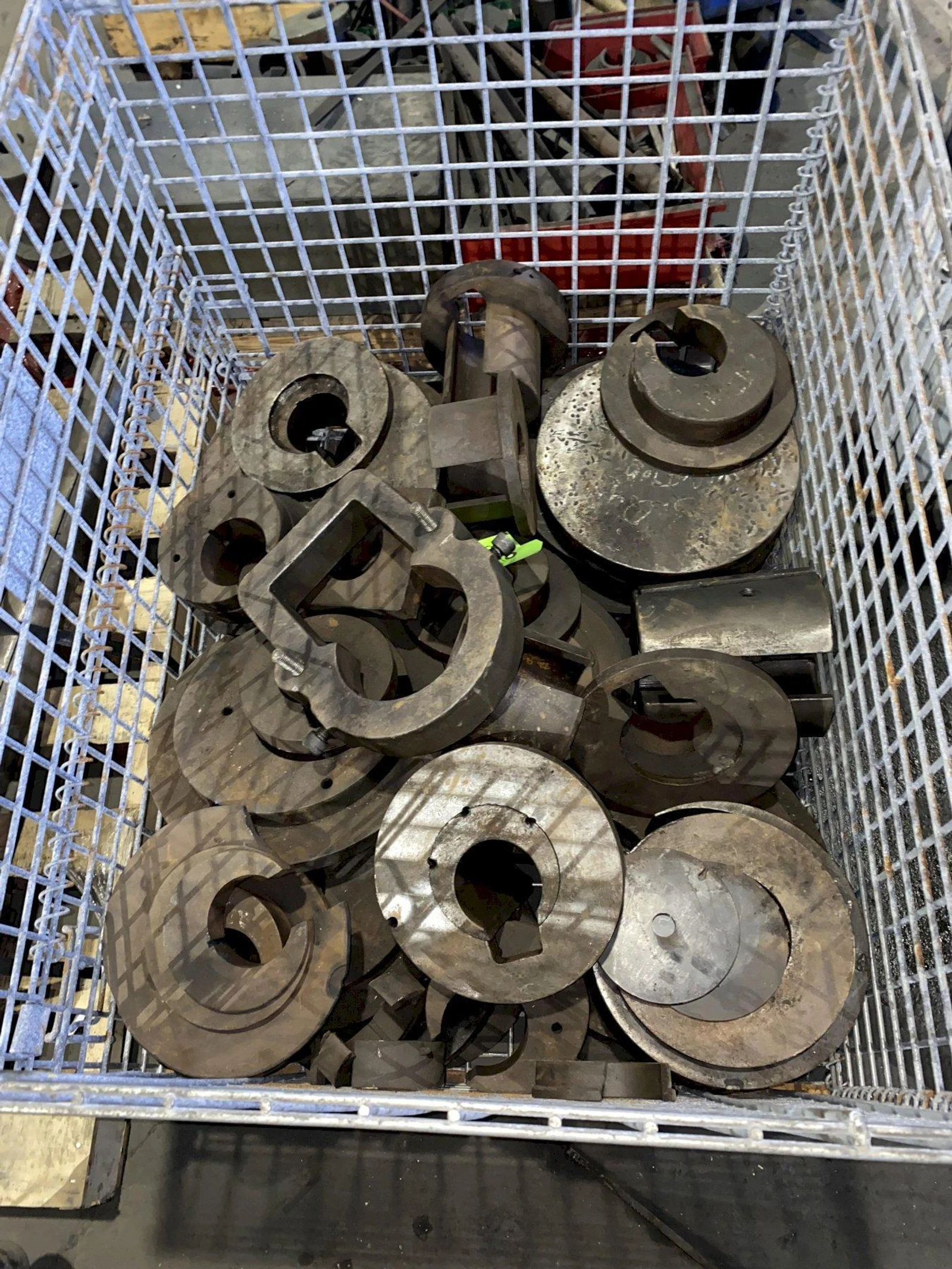

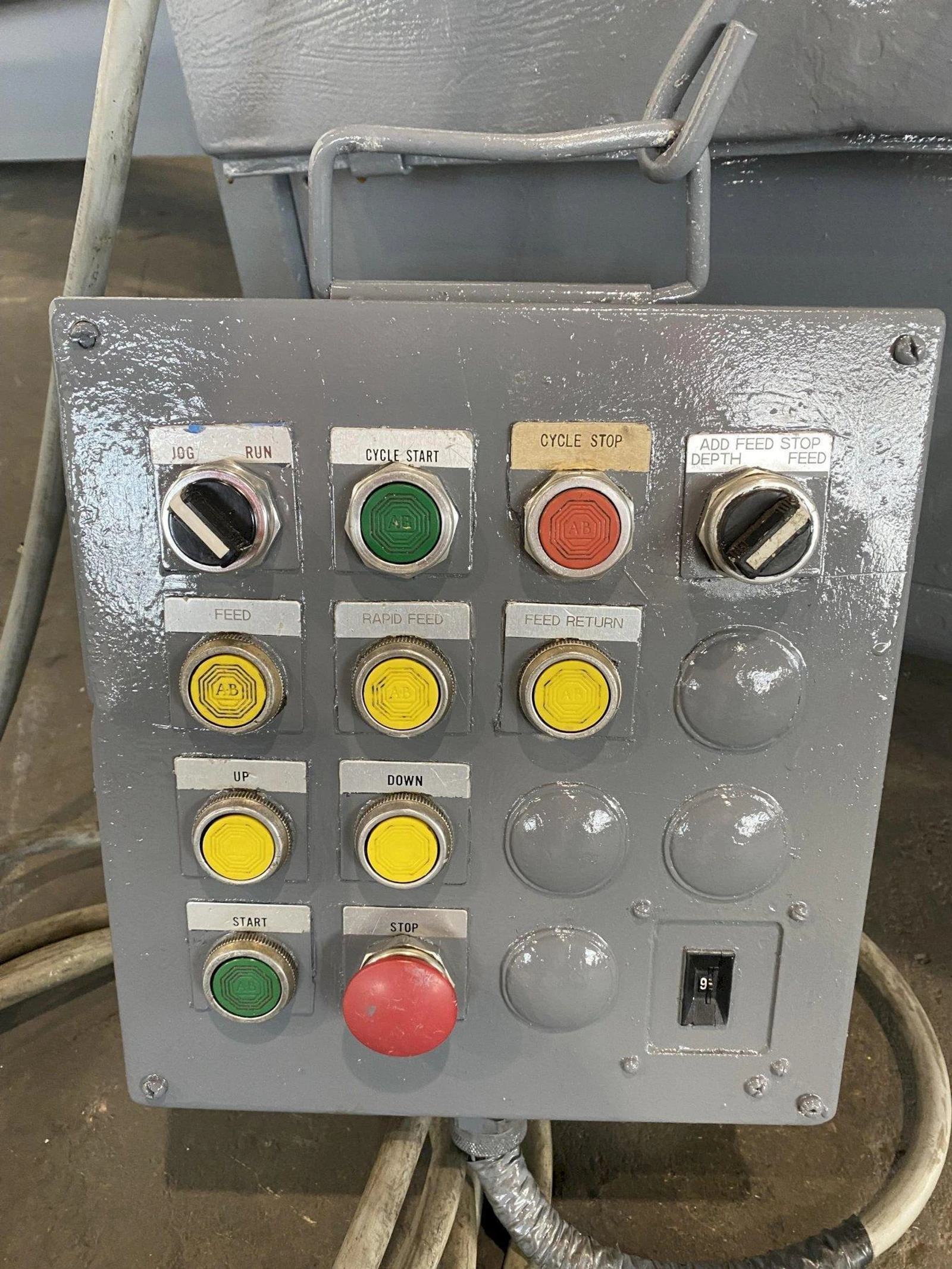

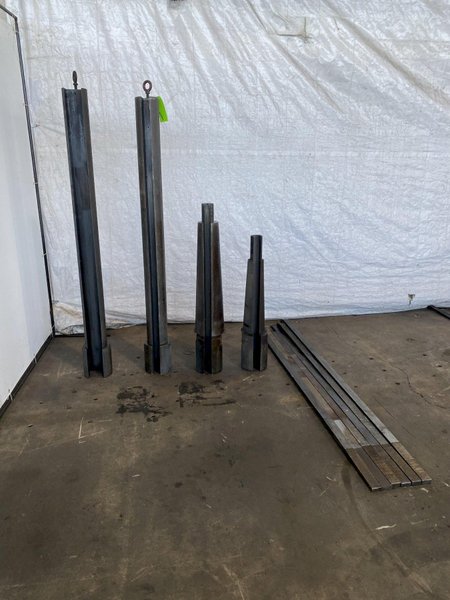

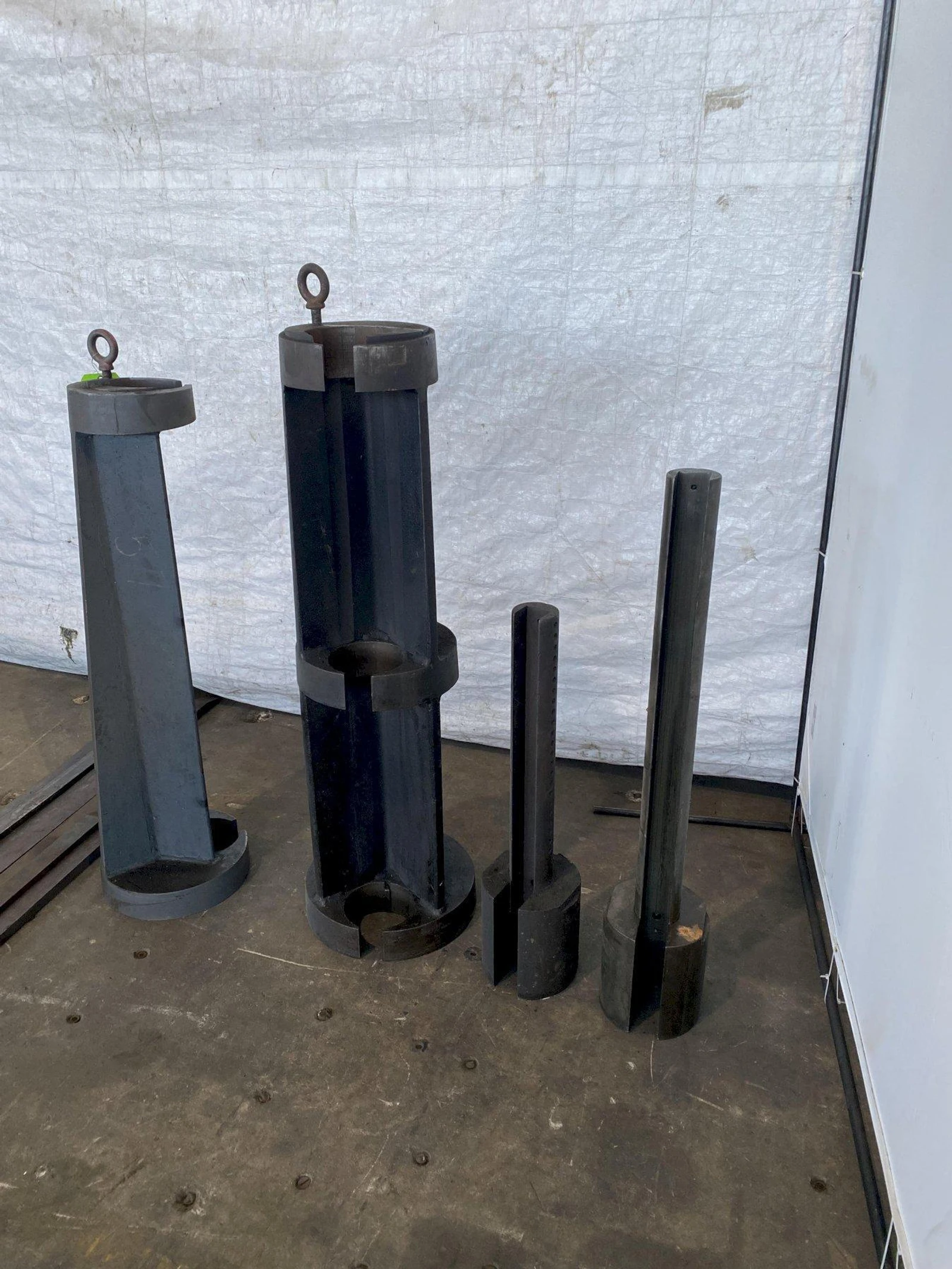

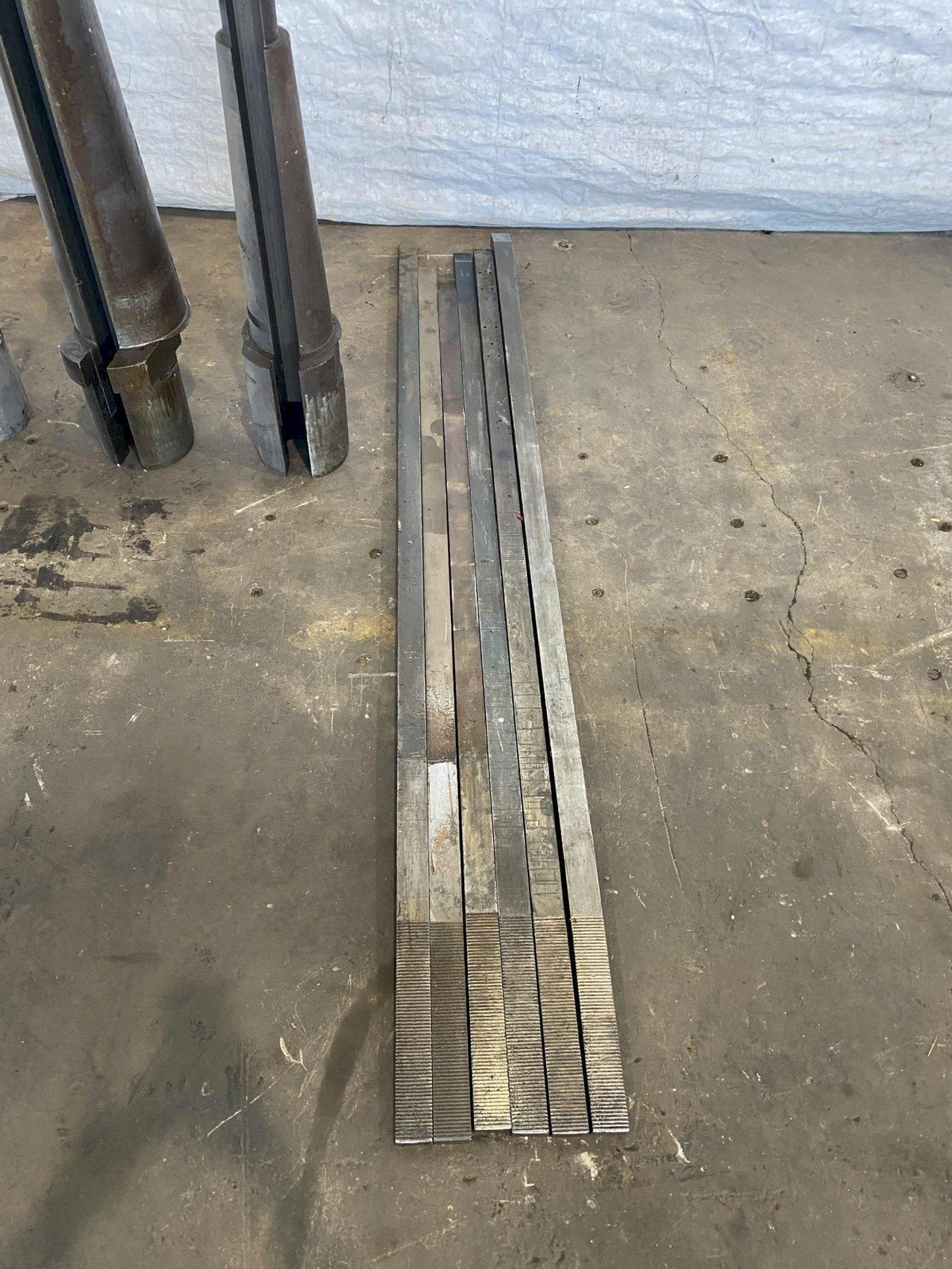

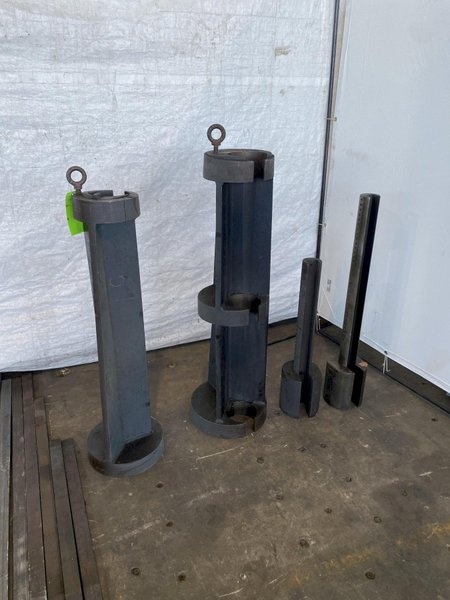

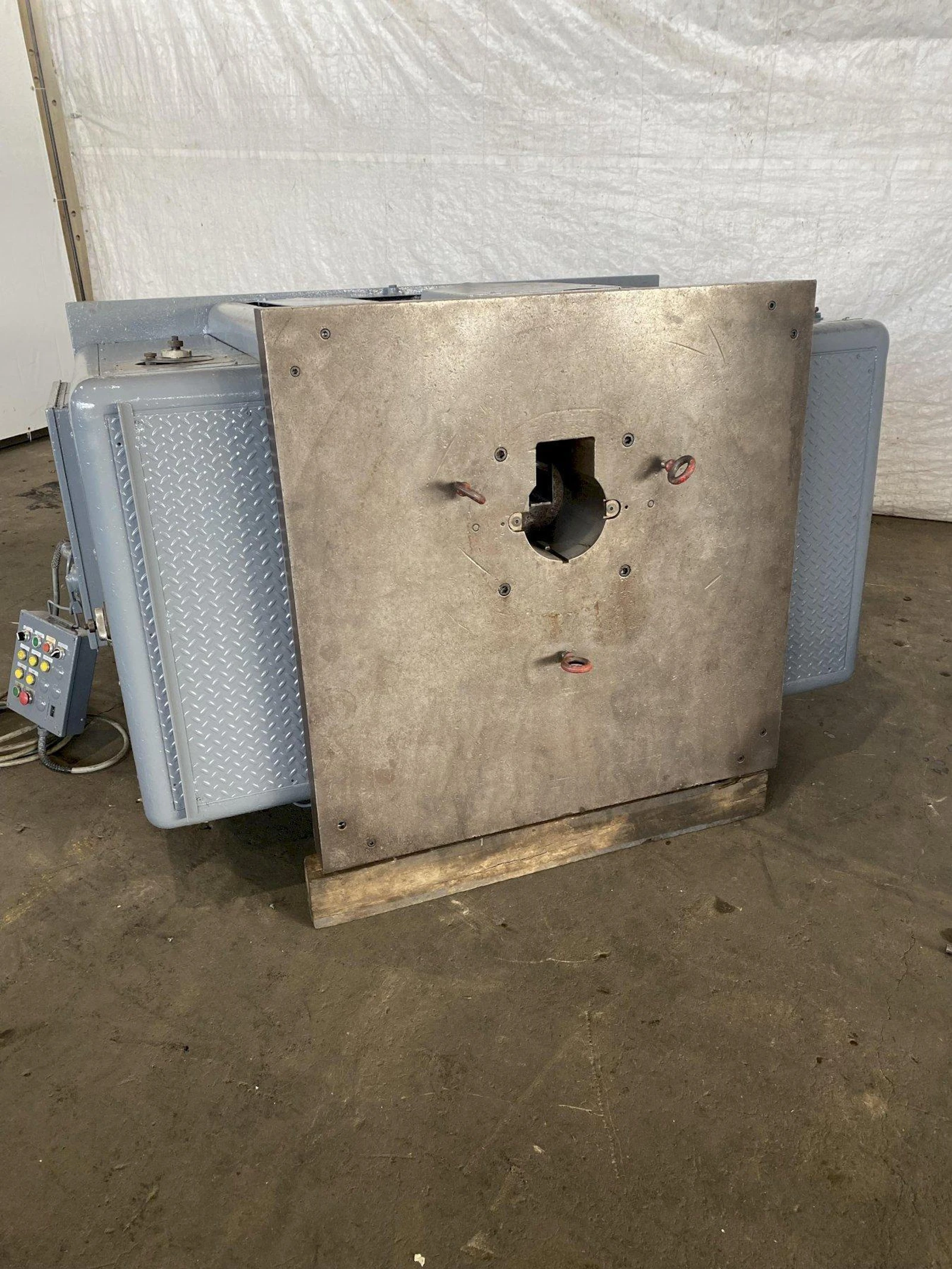

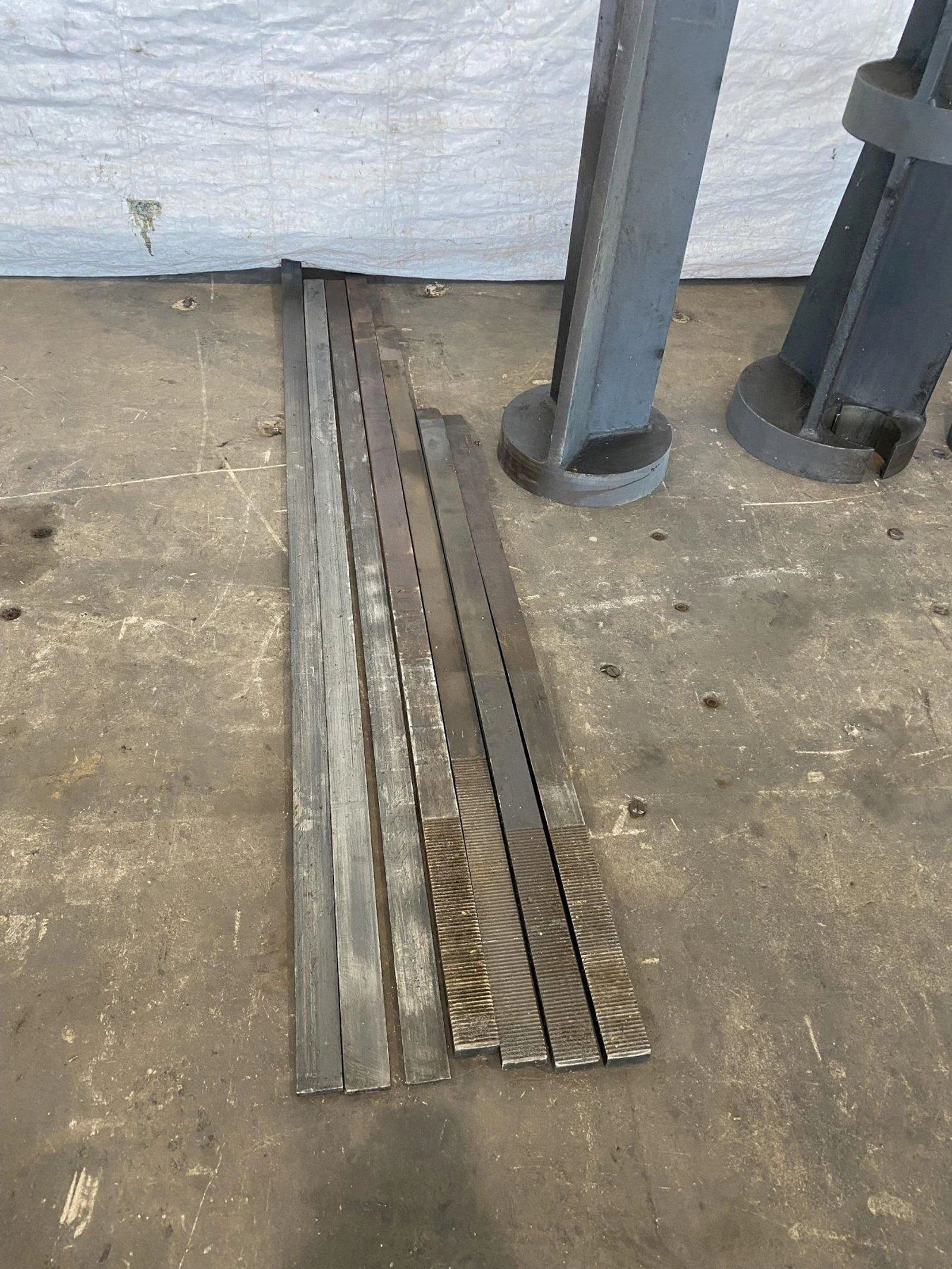

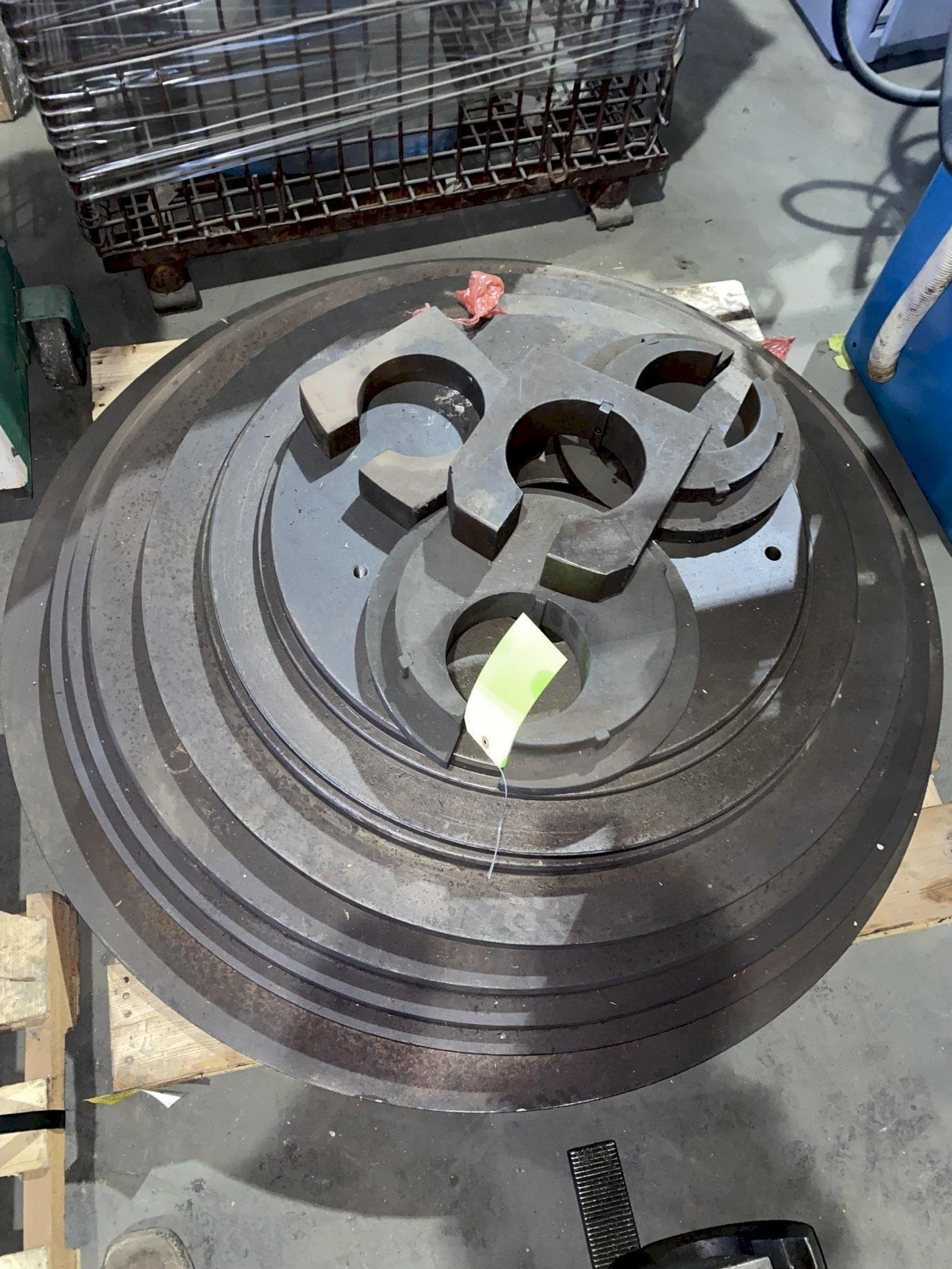

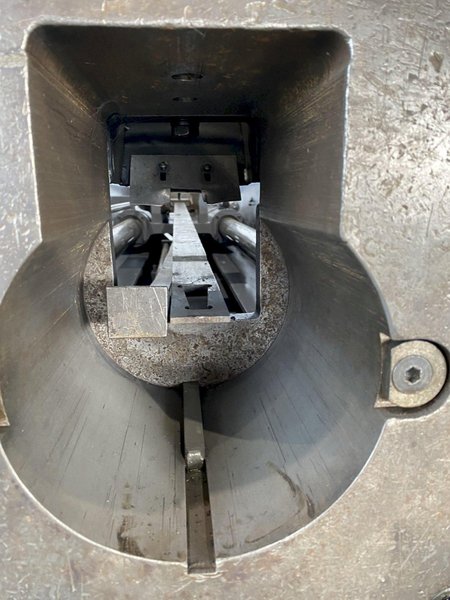

MODEL ......................... 9B YEAR .......................... 1975 MAXIMUM LENGTH OF KEYWAY ...... 60" MAXIMUM WIDTH OF KEYWAY ....... 5" AREA OF TABLE ................. 48" X 48" TABLE CAPACITY ................ 50,000 LBS CUTTING SPEEDS ................ 4.0 TO 23 FPM RETURN SPEED .................. 42 FPM FEED RATE PER STROKE .......... .001 TO .009 LOW CUTTING FORCE CONTROL ..... UP TO 1" MEDIUM CUTTING FORCE CONTROL .. MED 1-1/4" HIGH CUTTING FORCE CONTROL .... OVER 3" FLOOR TO TOP OF TABLE ......... 55" PIT REQUIRED .................. YES CONTROL PENDANT ............... YES DEPTH CONTROL ................. YES AUTOMATIC TOOL RELIEF ......... YES *** TOOLING INCLUDED *** |
|
