SPECIFICATIONS:

X-Axis Table Travel 206.69"
Y-Axis Head Travel 114.17"
Z-Axis Quill Travel 23.62"
W-Axis Vertical Rail Travel 55.11"
Width Between Columns 114.17"
Distance Table To Cross Rail 11.81" to 90.55"
Table Size 196.85" x 98.42"
Table Load Capacity 33,046 Lbs.
Quill Diameter 11.81"
Spindle Diameter 3.54"
Spindle Speeds 40-6000 RPM
Spindle Taper ISO 50 Taper
Spindle Drive Motor 33 HP / 25 HP
FEED RATES:

Rapid Feed X & Y Axes 787.40 IPM
Rapid Feed Z-Axis 314.96 IPM
Rapid Feed W-Axis 236.22 IPM
Feed Rates X & Y Axes 0.0393 To 393.70 IPM
Feed Rates Z-Axis 0.0393 To 314.96 IPM
Feed Rates W-Axis 0.0393 To 236.22 IPM

Equipped With:

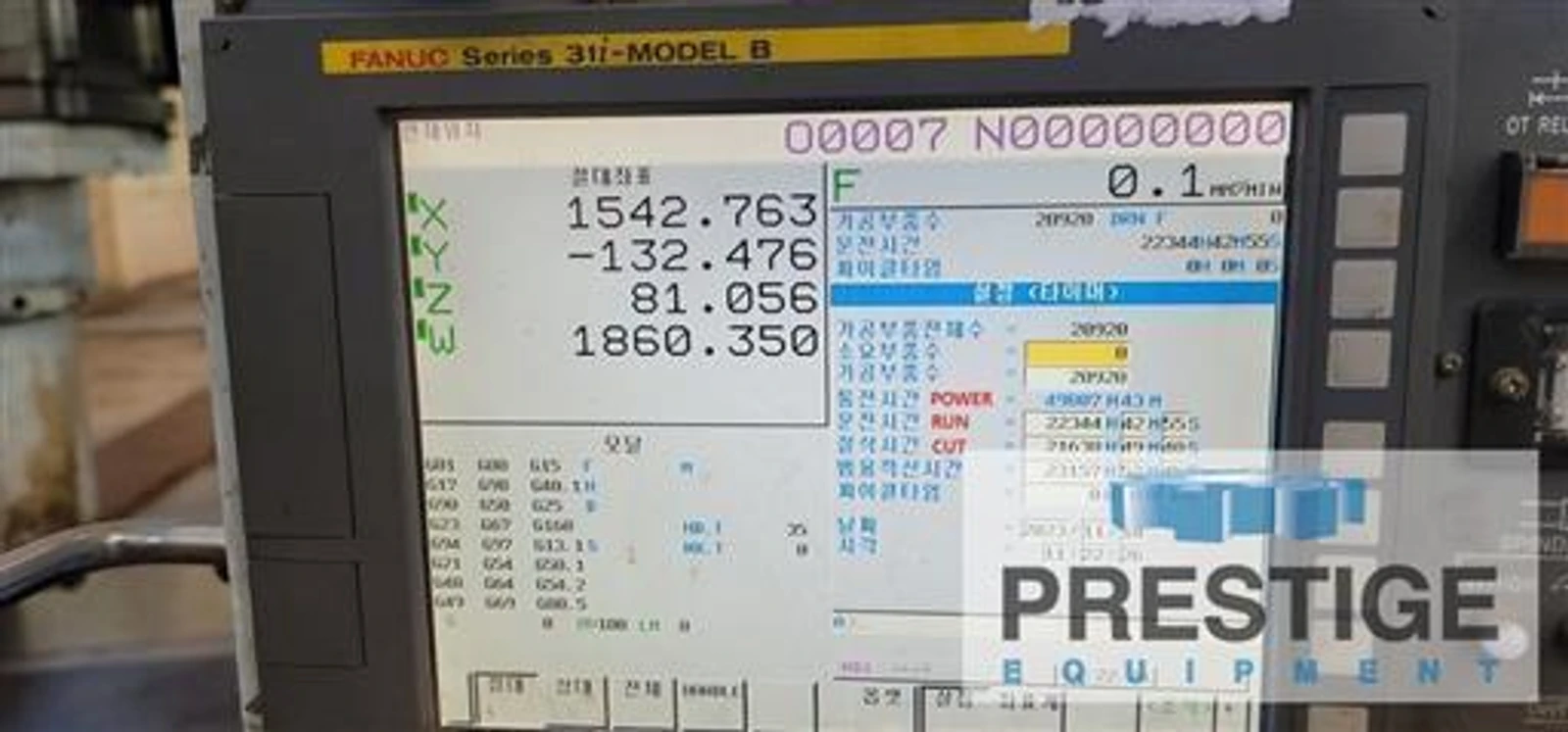

Fanuc 31-MB CNC Control
40-Position Automatic Tool Changer
3-Station Automatic Attachment Changer
Universal Head, Extension
Random Tool Selection
Full 5-Face Machining with Software (N5S-C5-001)
Automatic Tool Length Measuring
Broken Tool Detection (Touch Type)
Scale Feedback on X,Y & Z Axis
Telescoping Steel Way Covers on X & W Axis
Dual Chip Conveyors
