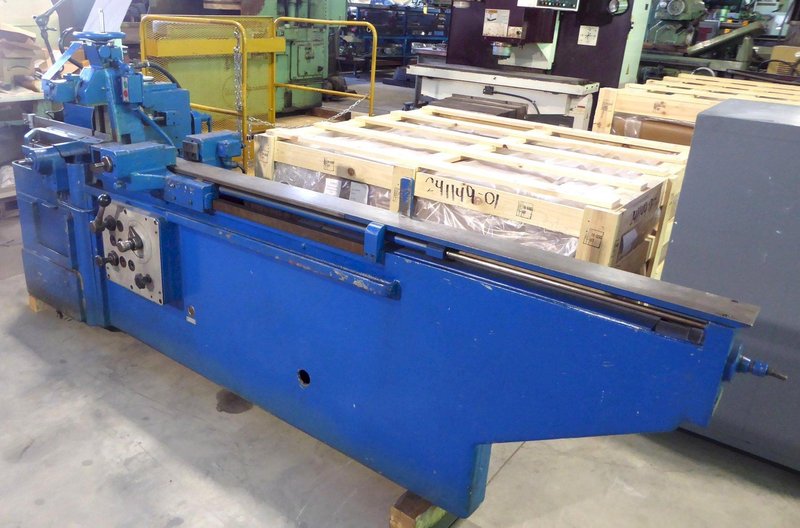

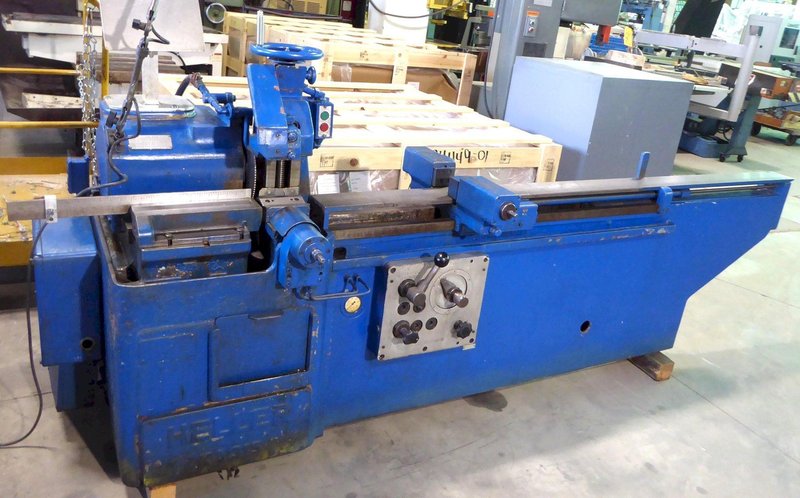

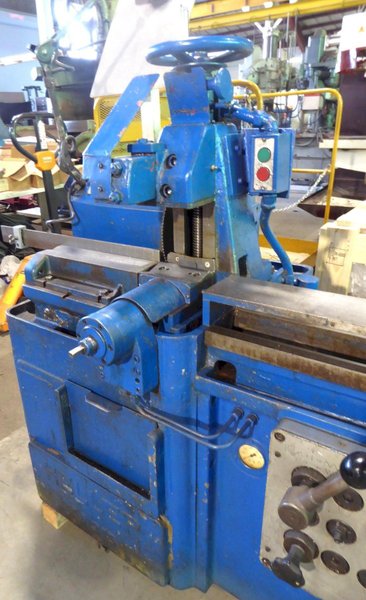

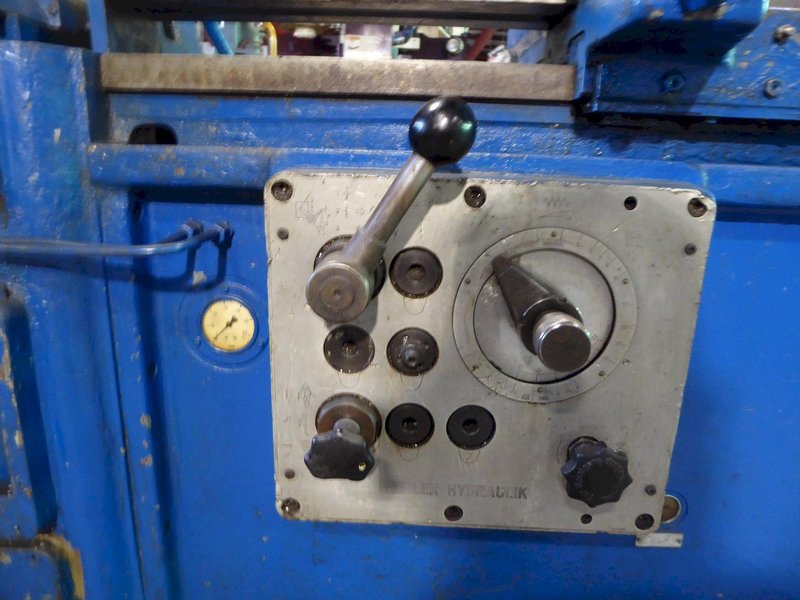

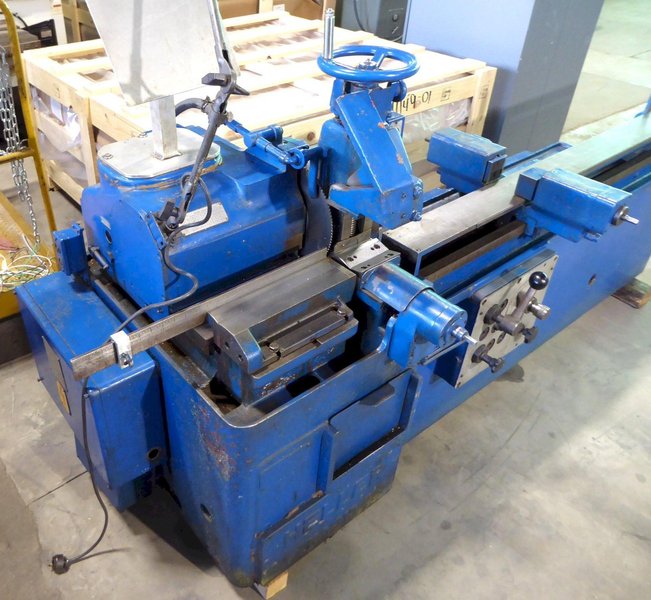

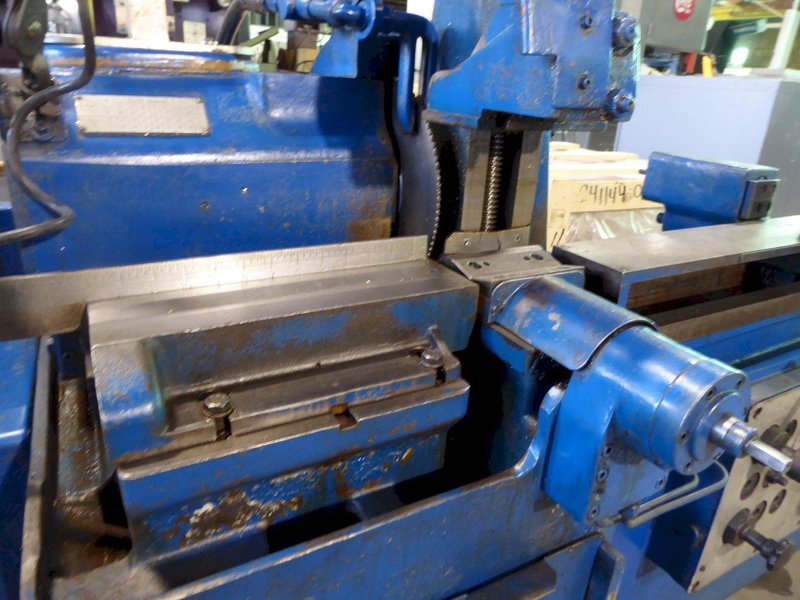

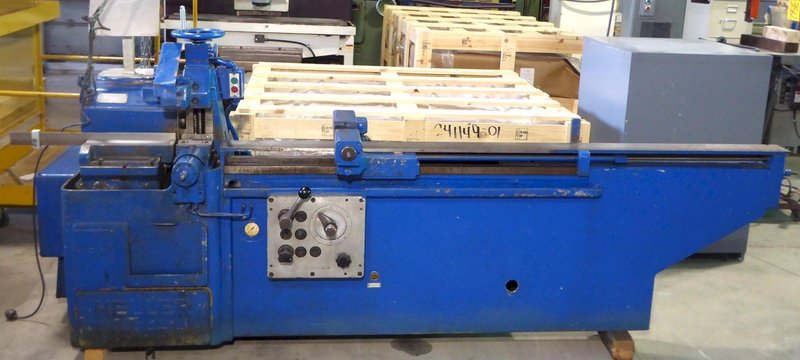

HELLER AUTOMATIC COLD SAW

MODEL: KA-315
SERIAL NUMBER: 33175

GENERAL SPECIFICATIONS

"The Full Automatic KA type circular metal sawing machine is ideally suited for continuous sawing on long runs and with a simple turn of a valve knob can be used as a manually operated machine for single cuts or very small lot sawing."

Saw Blade Diameter: 12"
Capacity, Round: 3-3/4"
Capacity, Square: 3-5/8"
Vertical Vie Opening: 7-7/8"
Hydraulic Feed: 1/8 - 20 IPM
Automatic Cut-Off: 1/4" - 39-1/2"

EQUIPPED WITH

5 HP Blade Drive Motor, 230/460/60/3
3 HP Hydraulic Motor
Coolant System
Hydraulic Clamping and Feeding

Overall Dimensions: 48" x 132" x 60"H
Approximate Weight: 3500 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
