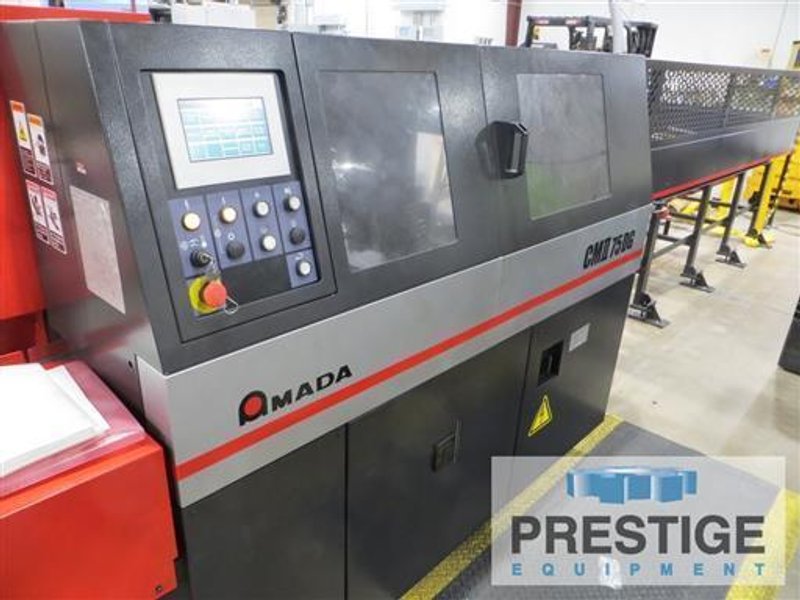

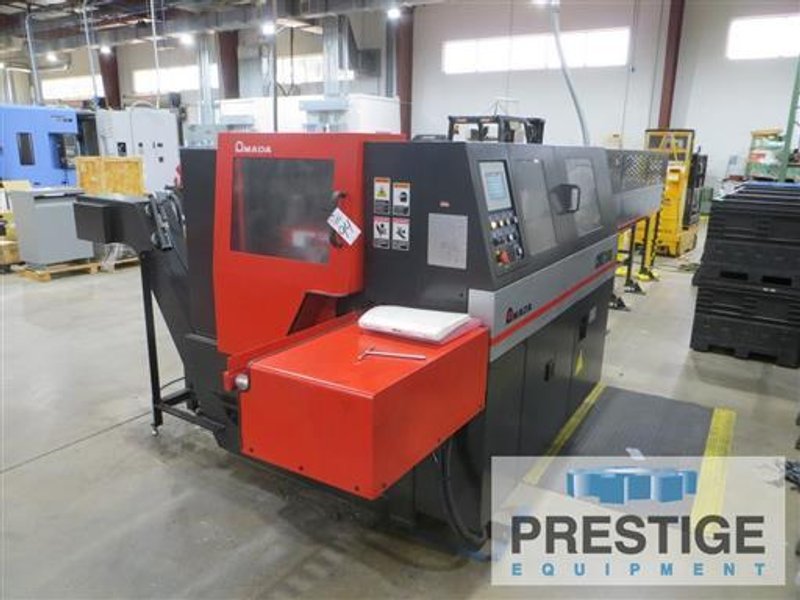

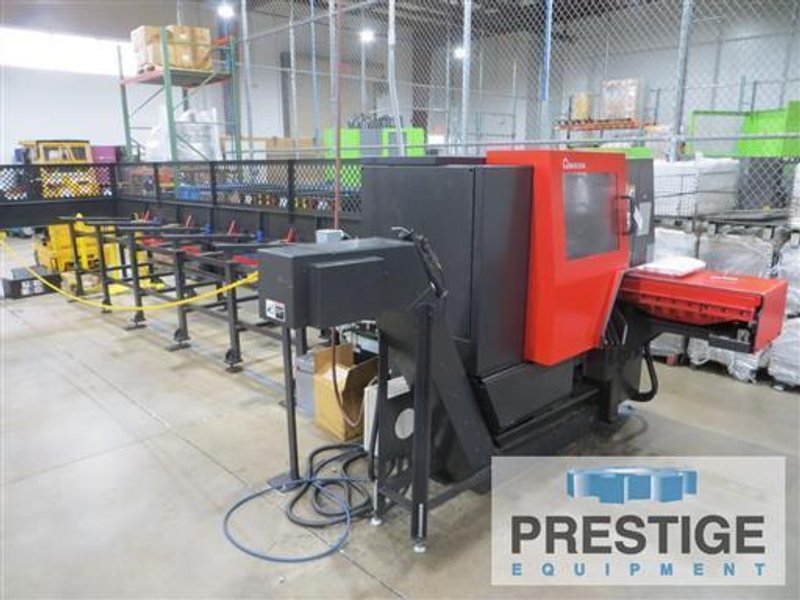

Amada Model CMII75DG Carbide High Speed Circular Saw

CUTTING CAPACITY:
Capacity Rounds 0.394" x 3"
Capacity Rectangle 2.55" x 2.55"
Maximum Stock Table Loading Capacity 19.6' x 3" x 10 Bars
SAW BLADE:
Blade, OD x Bore x T 11.2" x 1.57" x 0.08"
Number of Teeth 60,80,120 or 140 (4 Types)
Cutting Speeds, Range 50-180 RPM
Head Feeds, Range Infinitely Variable 0-180 IPM by Inverter
MATERIAL INDEX:
Stroke Length 28.1"
Index Length Range 0.394" - 393.7" Multiple Indexing
End Trimming Length 0.394" - 3.9"
Remnant Length 1.97" Plus Length of Parts
MOTORS:
Saw Blade Motor 10 HP
Saw Head Feed Motor 2.75 HP Servo Motor
Hydraulic Pump Motor 2 HP
Cut-to-Length Feed Motor 1 HP Servo Motor
Machine Dimensions 83" x 65" x 64" High
Machine Weight 4,409 Lbs.



Equipped With:

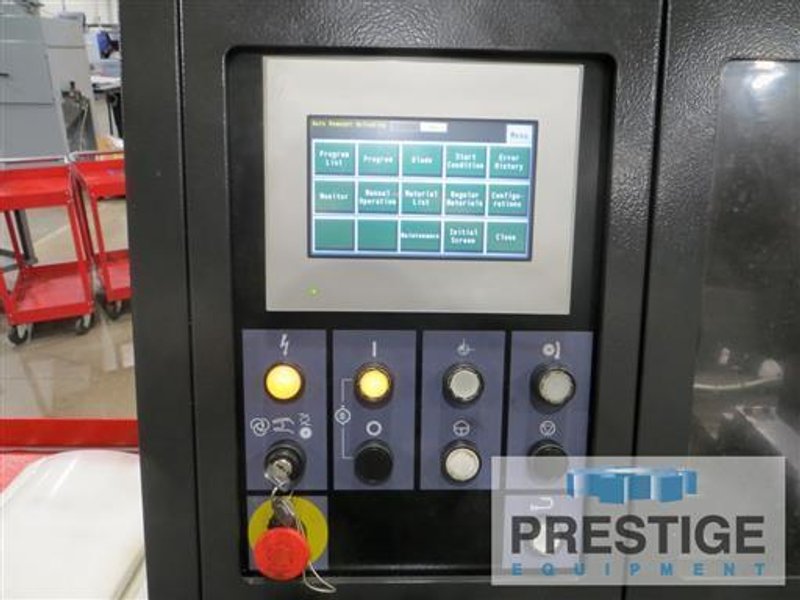

CNC Controlled

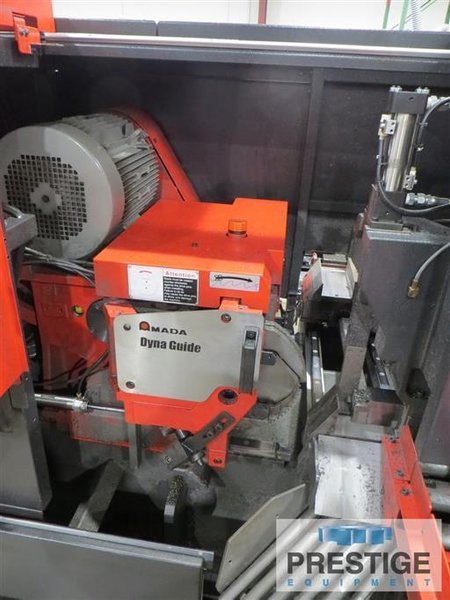

Dyna Guide Cutting Head

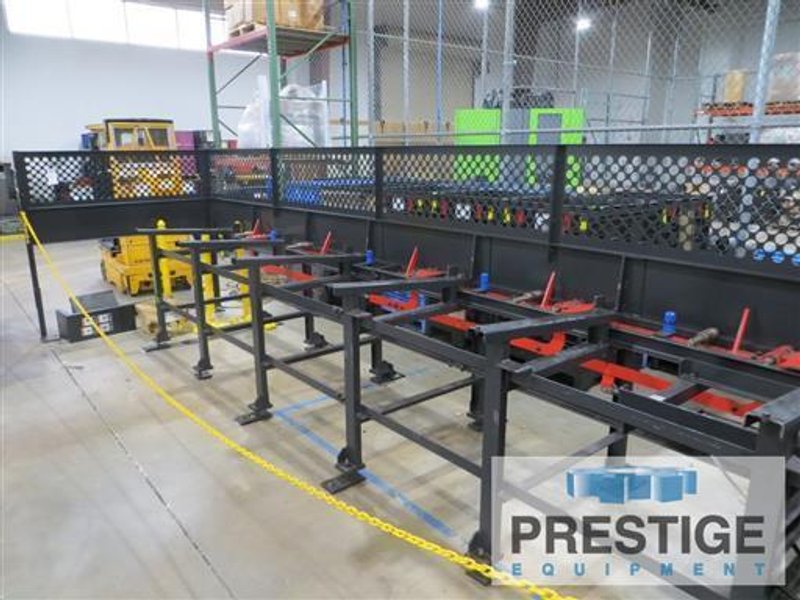

Shuttle Vise Material Indexer
Servo Motor, Ball Screw, Stock Grip Feed
Chip Conveyor
Coolant System
