CAPACITIES:

Maximum Turning Diameter 25.59"
Maximum Distance Between Centers 59.05"
Main Spindle Speed Range 4,200 RPM
Milling Speeds 12,000 RPM
Spindle Nose & Sub Spindle JIS A2-8
X-Axis (Upper) 27.36"
X-Axis (Lower) 9.25"
Y-Axis Travel +/- 11.8"
Z-Axis (Upper) 62.99"
Z-Axis (Lower) 60"
W-Axis (Sub Spindle) 60"
C-Axis Indexing 0.001 Degree
B-Axis Indexing 240 Deg.
Bar Capacity 5.5"
Main Motor 30 HP/ 20HP
Approximate Dimensions 252" x 117" x 119"
Approximate Weight 40,700 Lbs.

Equipped With:

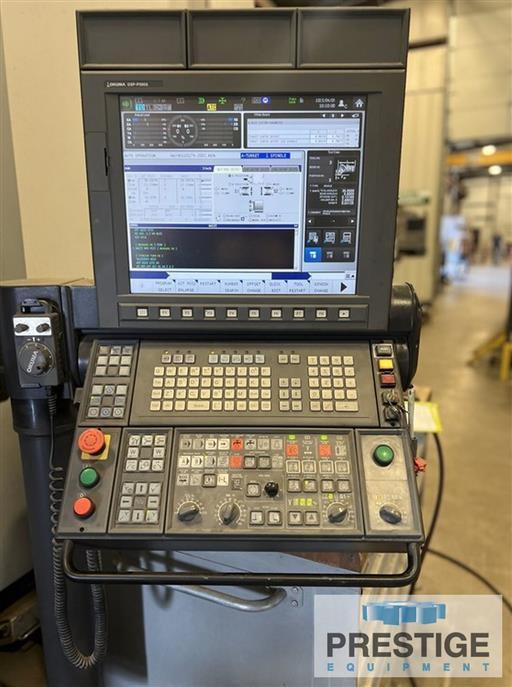

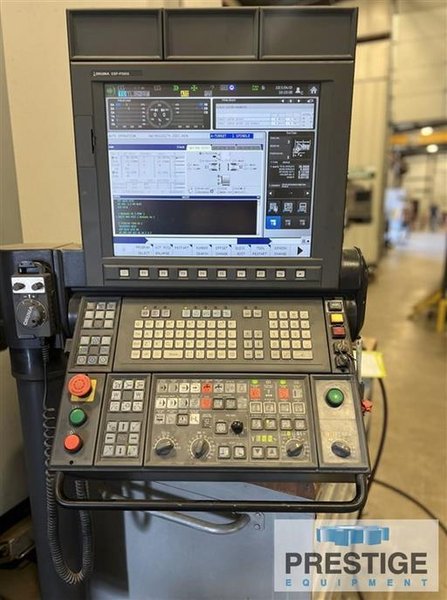

OSP-P200SA CNC Control

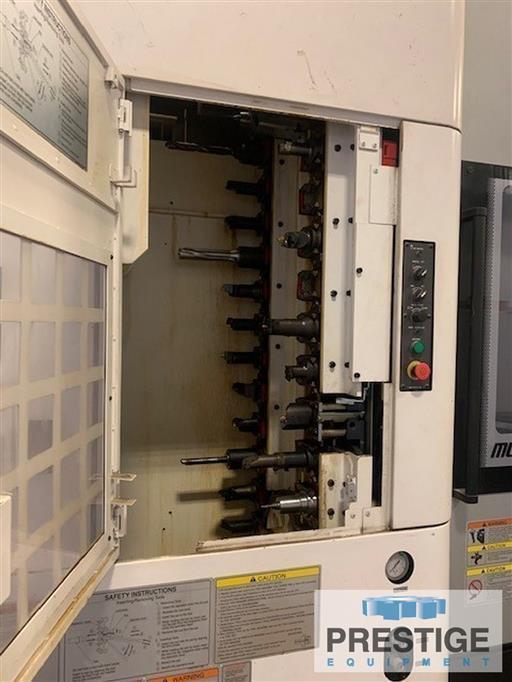

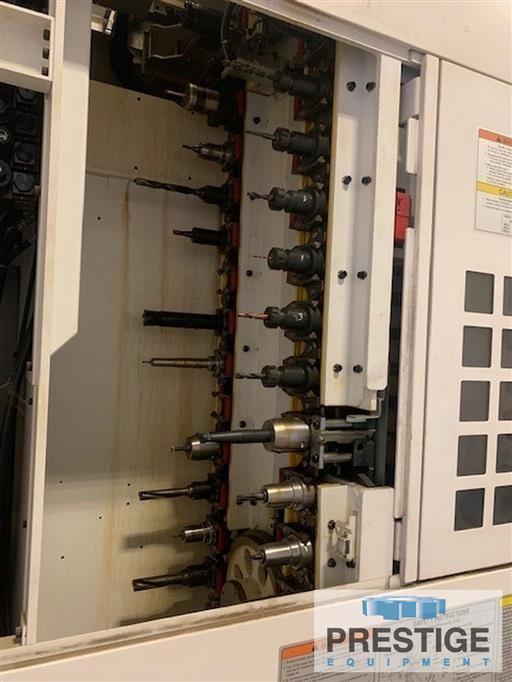

80-Station Tool Changer (CaptoC6)

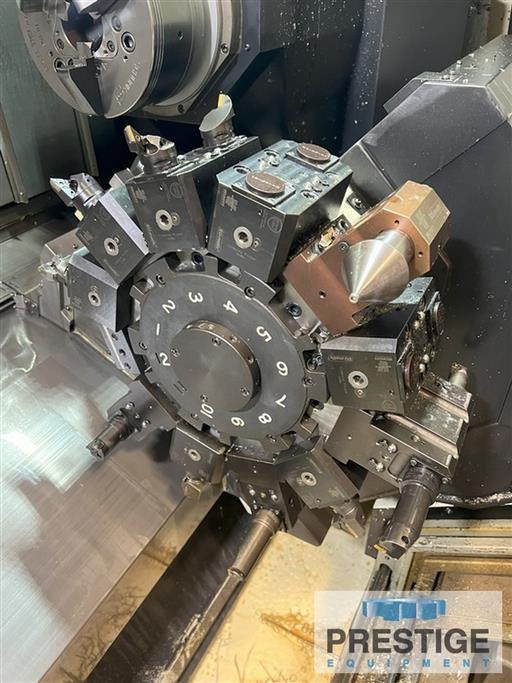

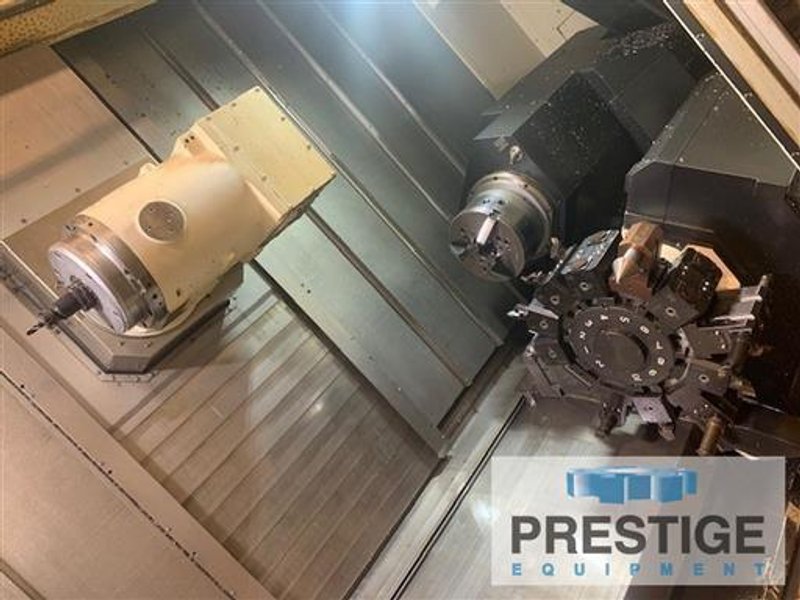

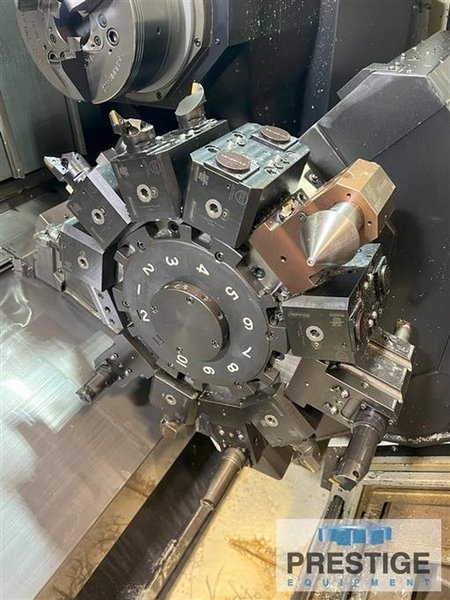

Lower Turret with Live Milling

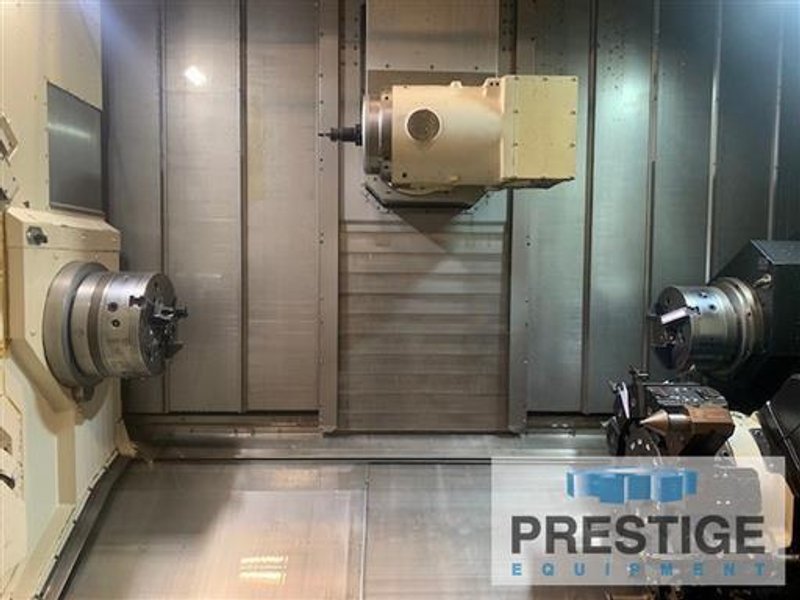

Universal Swiveling Live Workhead

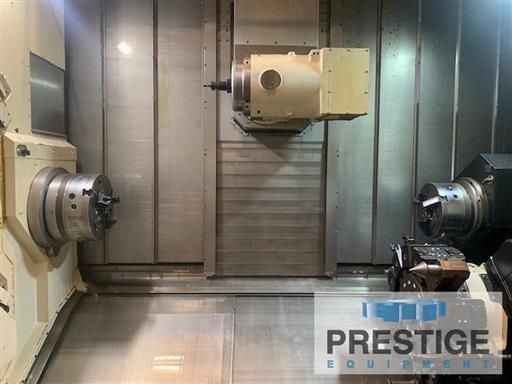

Dual Spindles (Main & Sub)
Turret Air Blow
Parts Catcher
Auto Door w/ Dual Cycle Start
Auto Gauging Renishaw RMP60 Capto C6

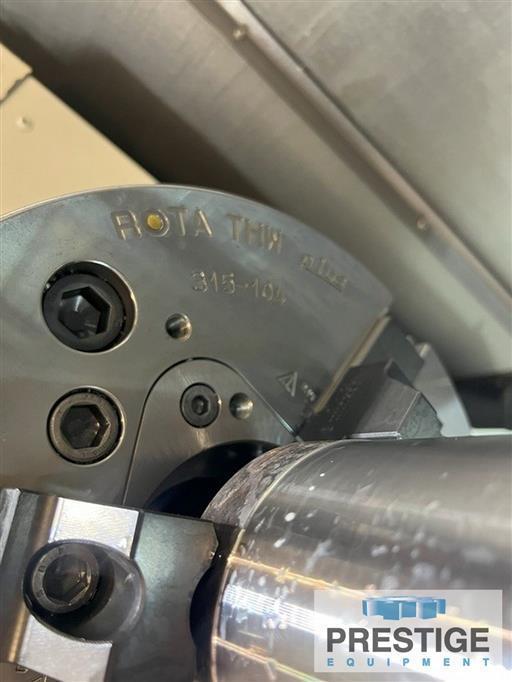

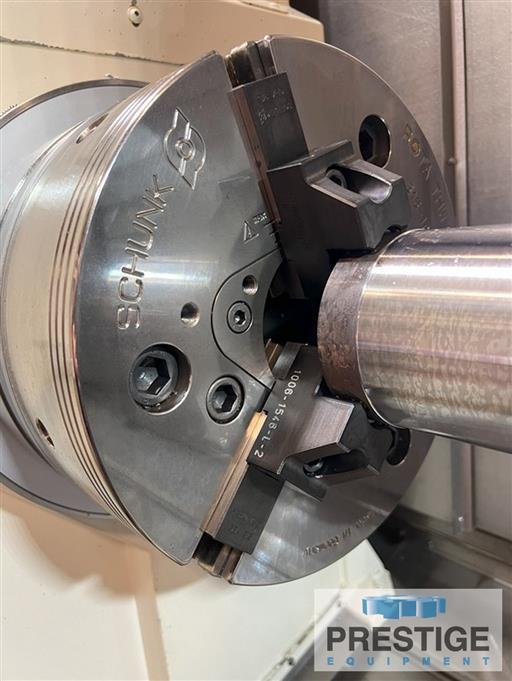

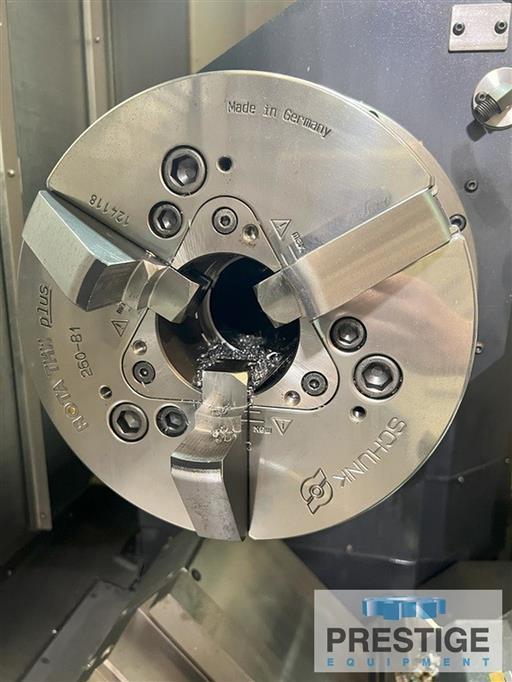

Chuck Hi/Lo Pressure
High Pressure Coolant Prep
C-Axis Auto Zero Off (L or R)Feed Hold During Threading
Touchsetter A for 2S Y-Axis Gauging
Inverse Time Function
Helical Cutting for X-C-Z
Off-Center Turning Function
Variable Spindle Spd Threading
Prep for Mist Collector
Shower Coolant Niagara B Type
MP Systems Mist Collection System
Chip Conveyor
Tooling Package
HOURS:

Power On:

2,981
Run Time:

572
Cutting Hours:

389

Note:


Inspect In Plant Under Power
