CAPACITIES:
Maximum Turning Diameter 25.59"
Maximum Distance Between Centers 59.05"
Main Spindle Speed Range 5,000 RPM
Milling Speeds 12,000 RPM
Spindle Nose A2-6
X-Axis Travel 25.39"
Y-Axis Travel 9.84"
Z-Axis Travel 62.99"
C-Axis Indexing 0.001 Degree
B-Axis Indexing -30 to +210/.001 Min Angle
Spindle Bore 3.15"
Main Motor 30 HP/ 20HP
Rapid Traverse (X-Axis) 1,968 IPM
Rapid Traverse (Y-Axis) 1,574 IPM
Rapid Traverse (Z-Axis) 1,968 IPM
Approximate Dimensions 194" x 117" x 118"
Approximate Weight 35,640 Lbs.



Equipped With:

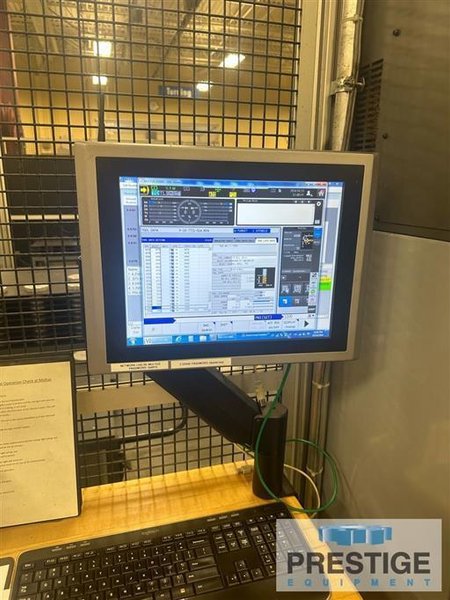

OSP-P300 CNC Control
8" 3-Jaw Chuck (Main)
8" 3-Jaw Chuck (Sub)
120-Station Tool Changer (CaptoC6)
Auto Door with Dual Start
Renishaw RMP600
Touchsetter A for 2S
Barfeeder I/F Universal Type
Y-Axis Gauging
Chuck Hi/Lo Pressure
Thru Sub Spindle Coolant
Absolute Scale XA
Turret Air Blow for Both L&M
Part Probe Calibration on Lower Turret
Chip Conveyor
MP Systems High Pressure Coolant (1000 PSI)
MP Systems Mist Collection System
MP BTU Coolant Chiller
Chip Conveyor


NOTE: Inspect In Plant Under Power
