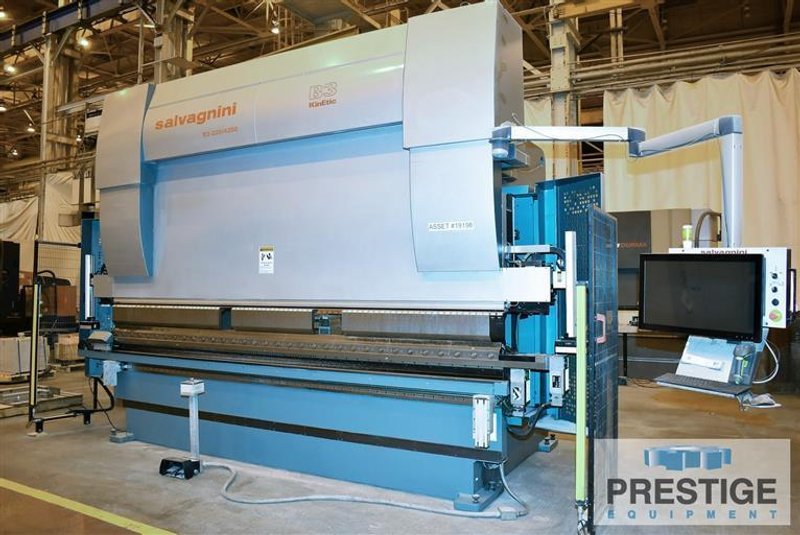

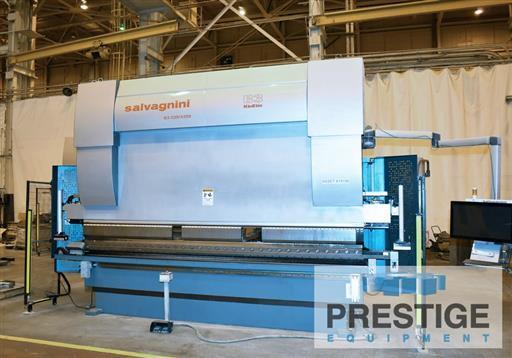

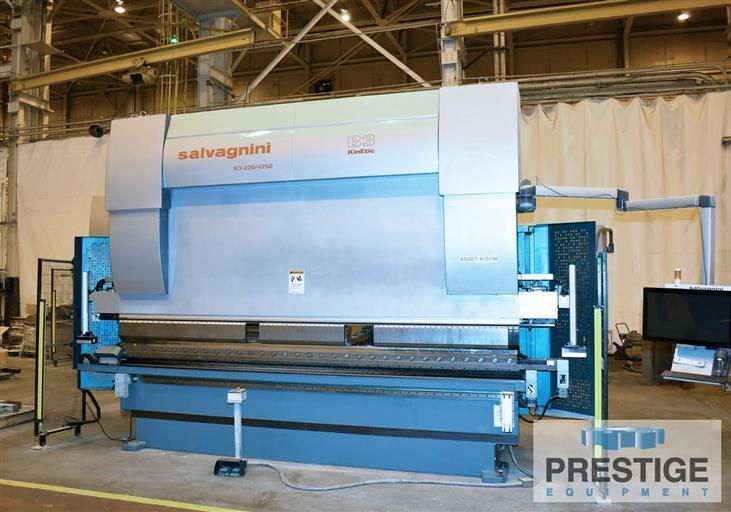

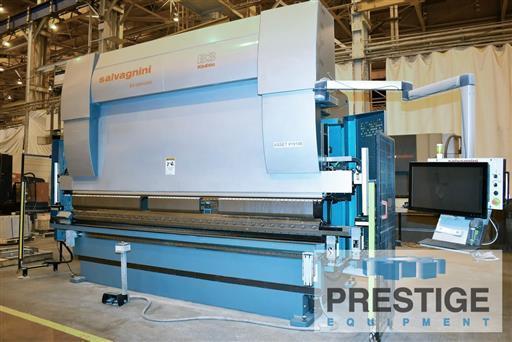

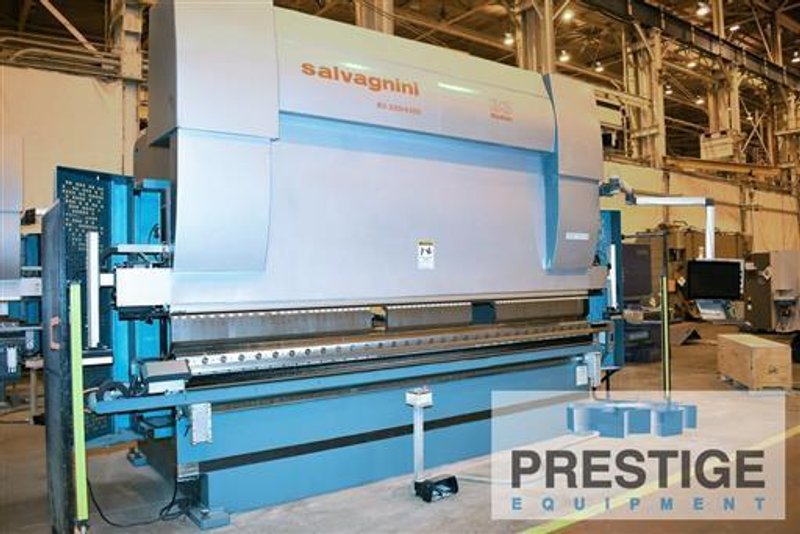

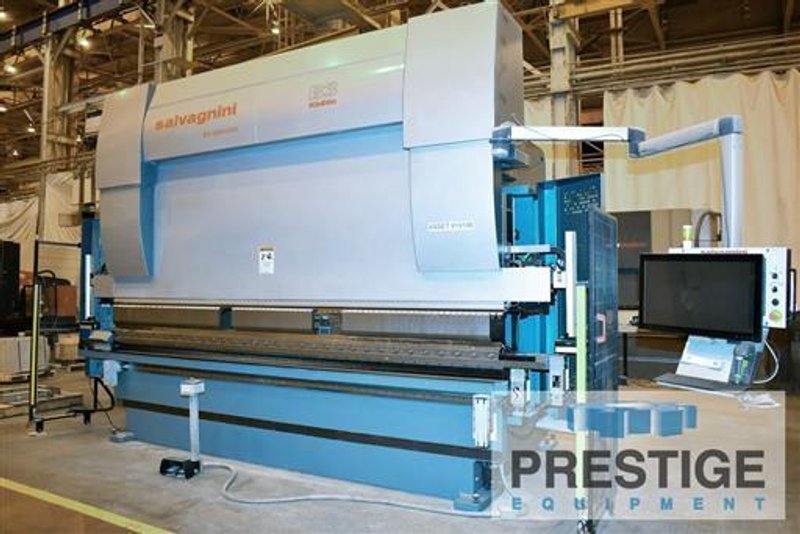

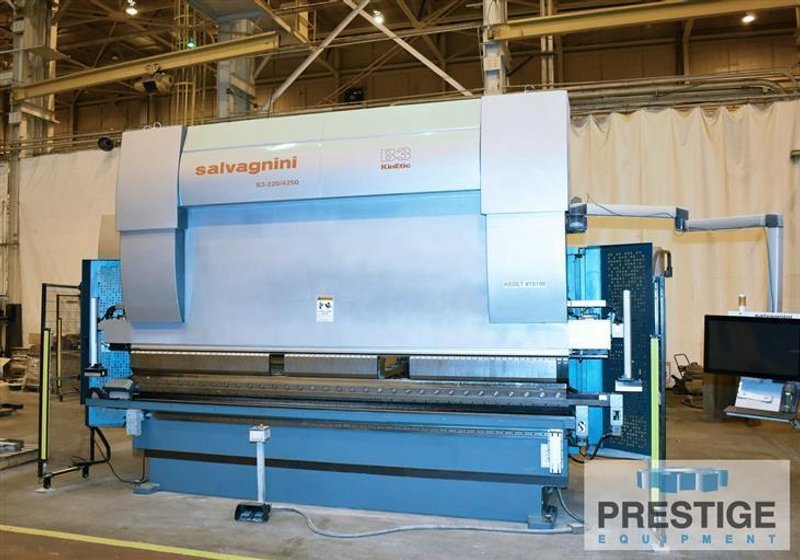

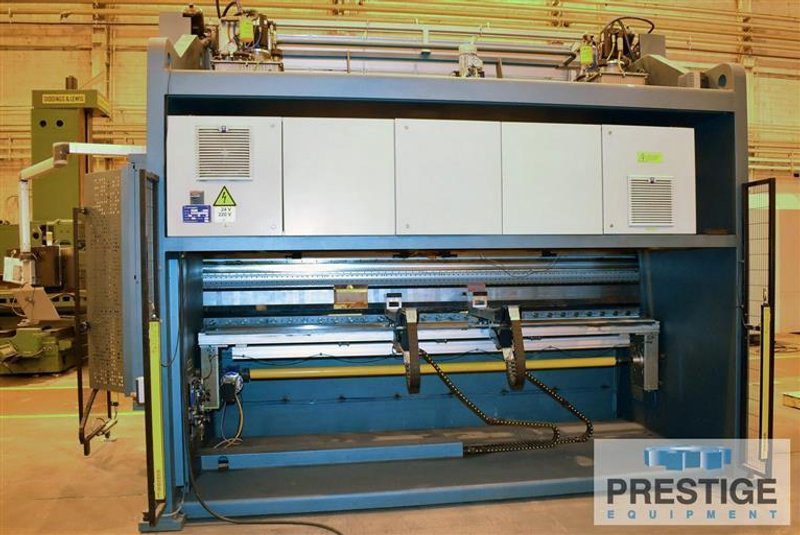

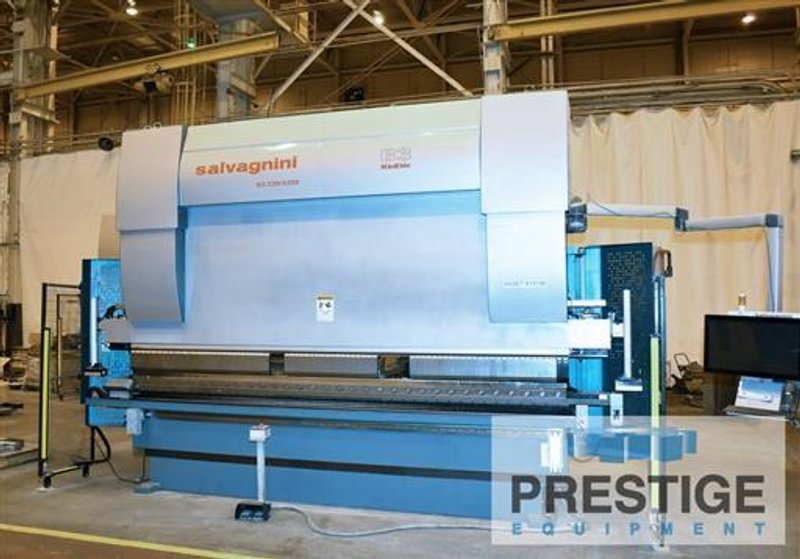

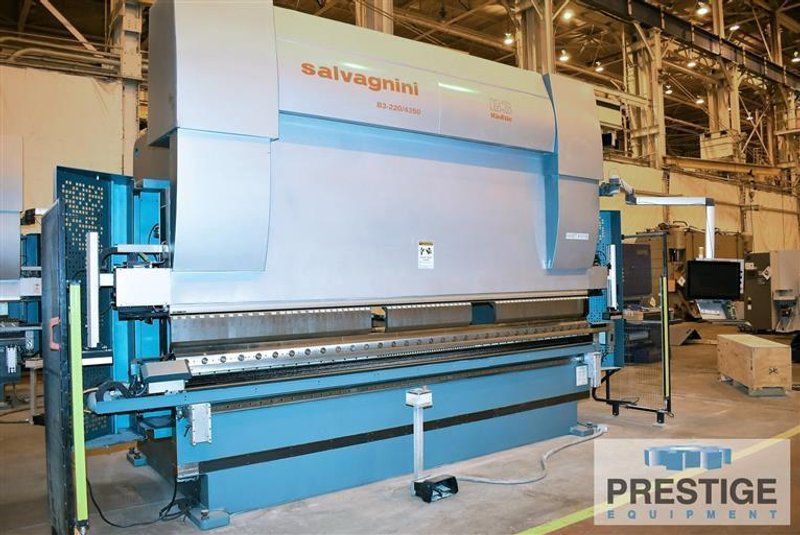

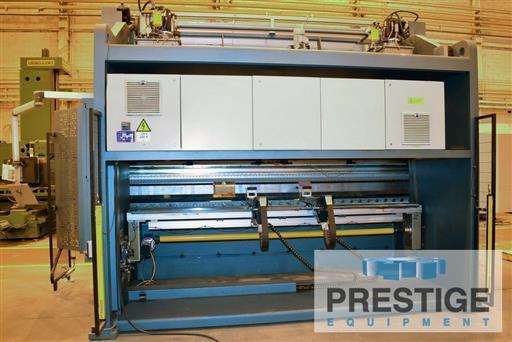

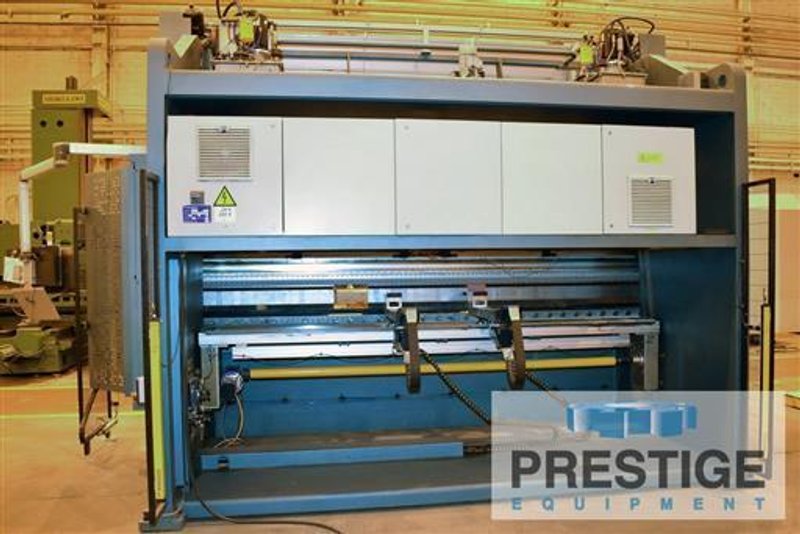

Salvagnini 242 Ton x 13' 7-Axis B3-220/4250 CNC Hydraulic Press Brake

Salvagnini 242 Ton x 13' 7-Axis B3-220/4250 CNC Hydraulic Press Brake

Name: Salvagnini 242 Ton x 13' 7-Axis B3-220/4250 CNC Hydraulic Press Brake
Brand: SALVAGNINI
SKU: 31787
Availability: PreOrder

Brand

SALVAGNINI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

CAPACITY:
Maximum Tonnage Capacity 242 Ton
Overall Length Of Bed & Ram 167.32"
Distance Between Housings 142.51"
Throat Depth 20.47"
Stroke Length 17.71"
Maximum Speed 519.7 IPM
Bending Speed 42.5 IPM
Main Motor 34.6 HP
Approximate Dimensions (LxWxH) 209.8" x 81.8" x 145.9"
Approximate Shipping Weight 52,600 Lbs.

Equipped With:

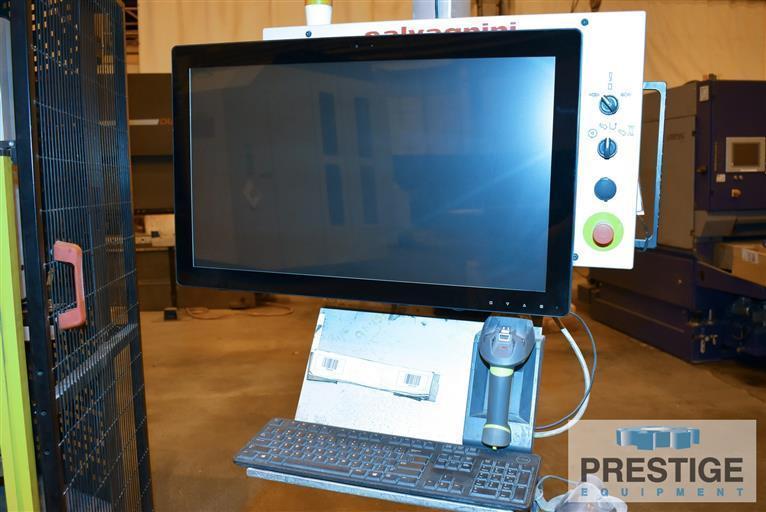

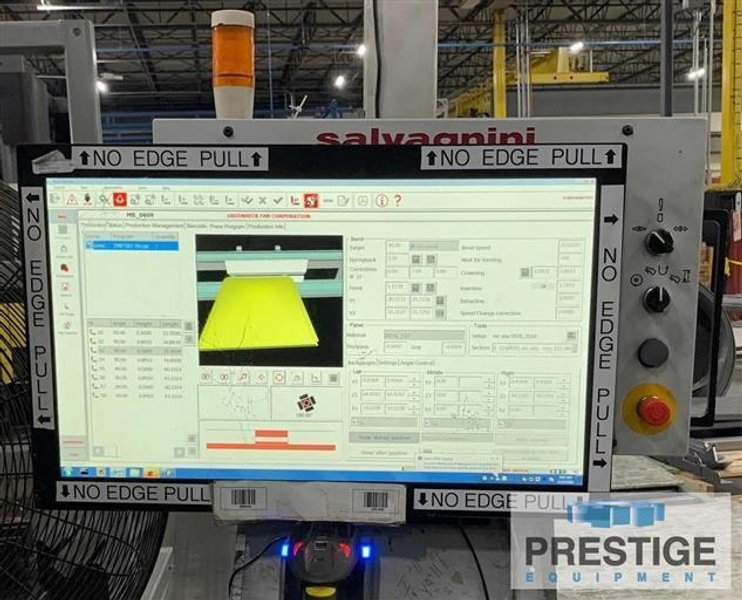

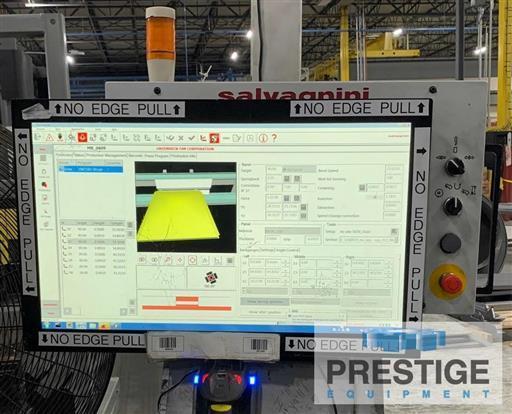

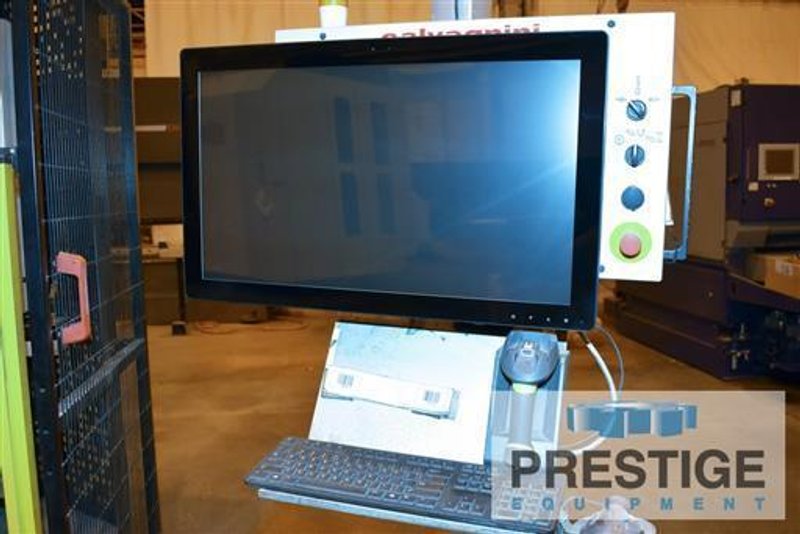

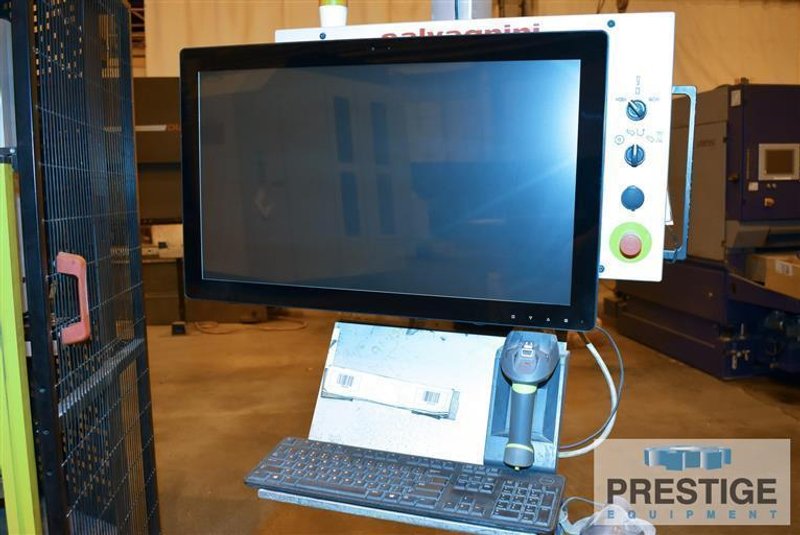

Salvagnini 7-Axis CNC Control With Graphic Display
5-Axis BG7 CNC Back Gauge (X1,X2,Z1,Z2,R)
Adaptive Crowning
Wila Hydraulic Power Upper & Lower Clamping
Automatic Tool Adjuster (ATA) for automatically adjusting upper bending tool length
Heat Exchanger Assembled On The Electric Cabinet
Angle Measurement System (AMS)
MVM Option (Programmable Lower Die Rail)

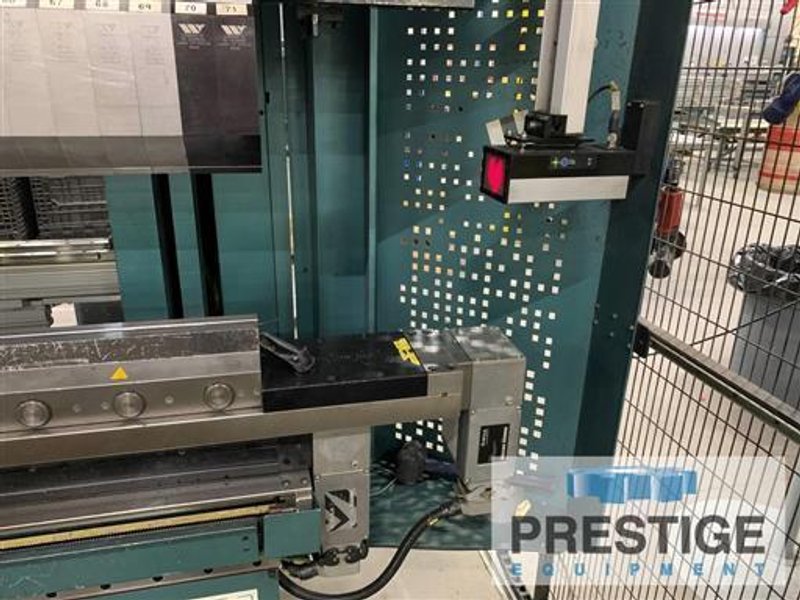

Fast Bend Safety System With Automatic Height
Oil Cooling Unit
Tool Opening Via Control Console With Foot Switch
Electric Foot Switch

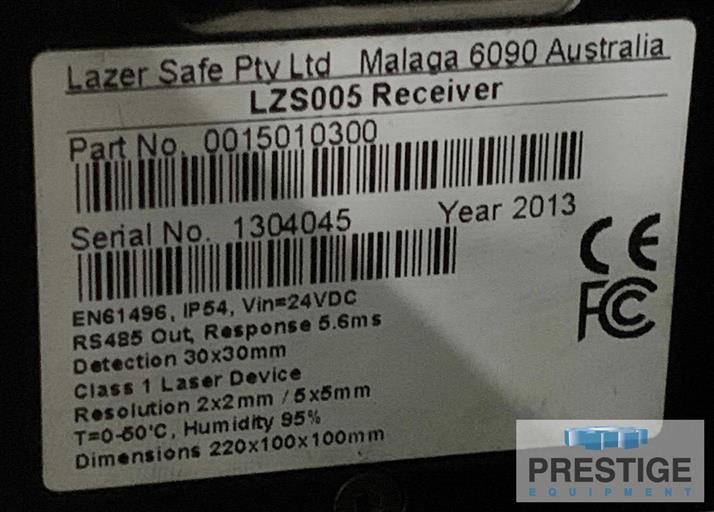

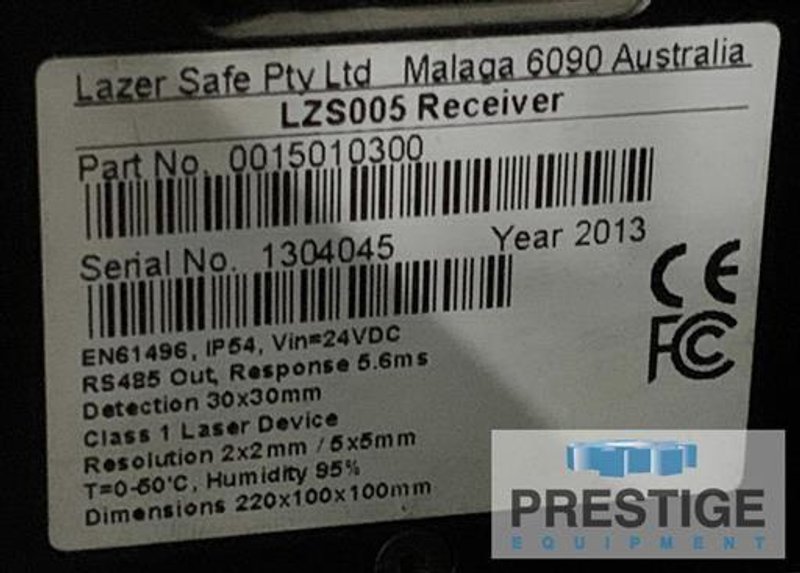

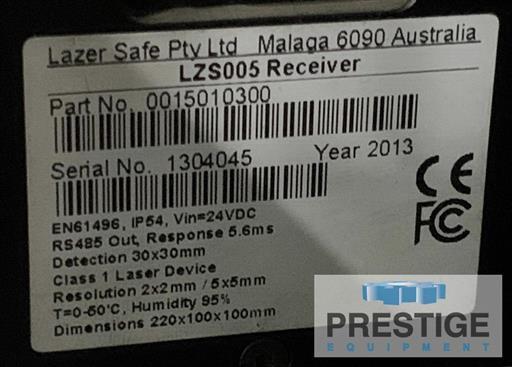

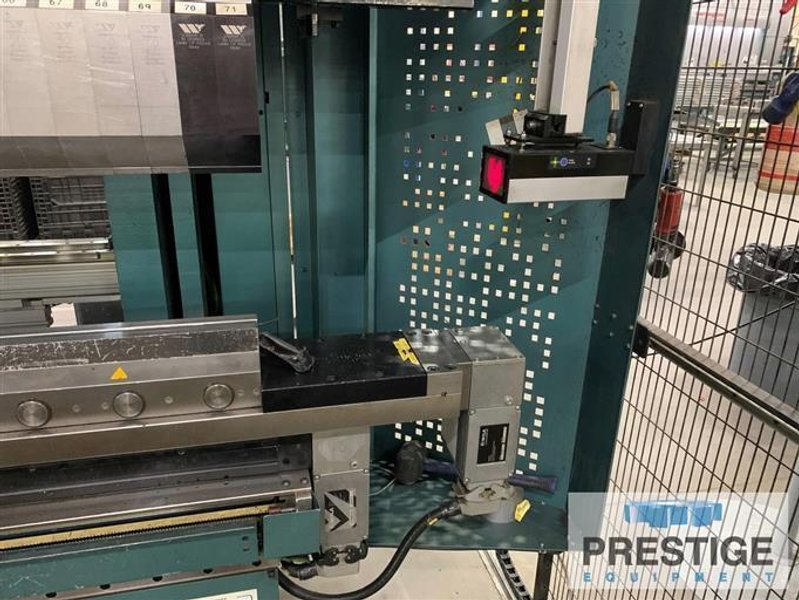

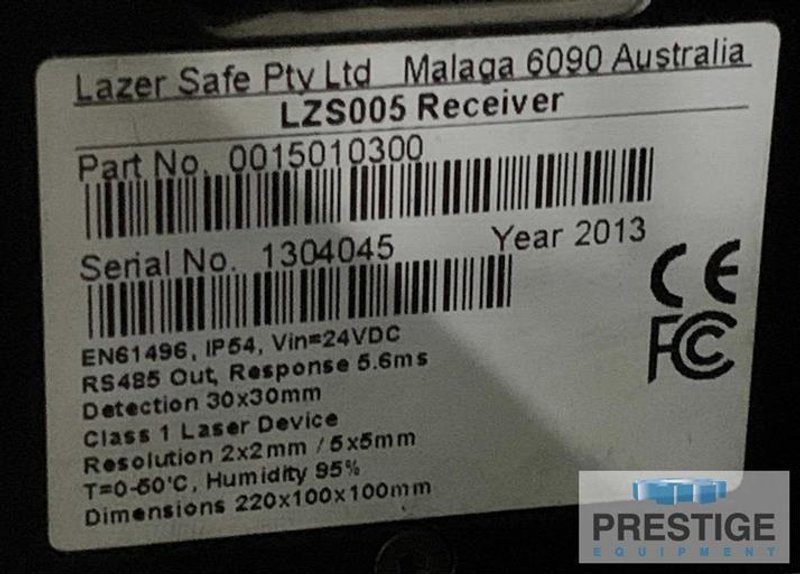

Lazer Safety Light Guarding

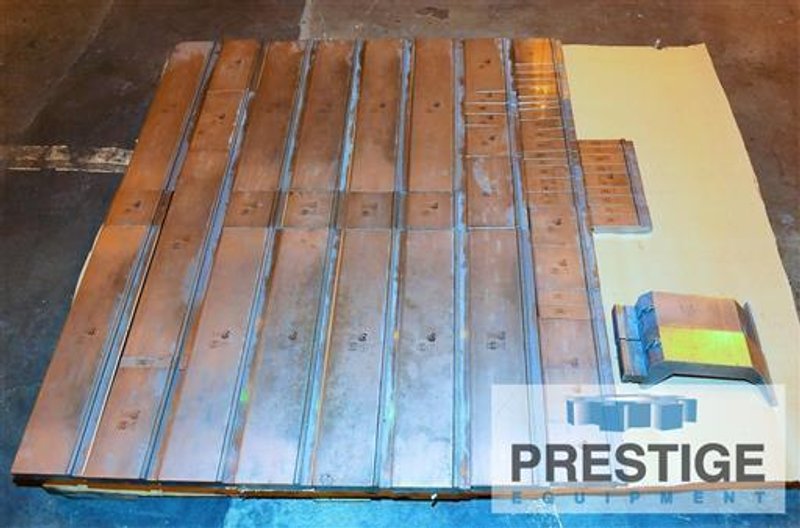

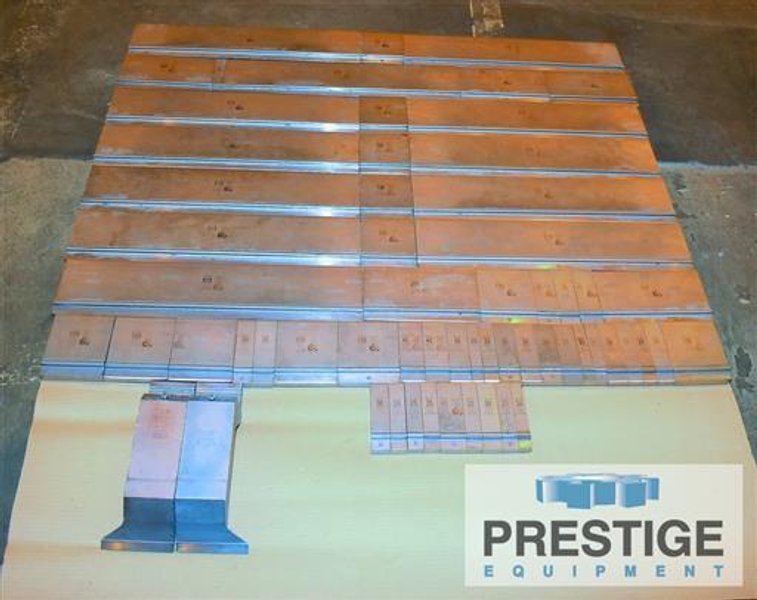

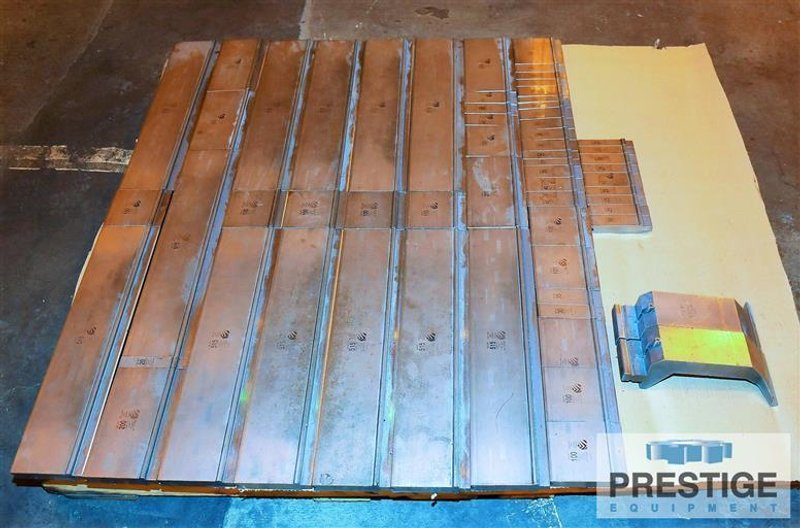

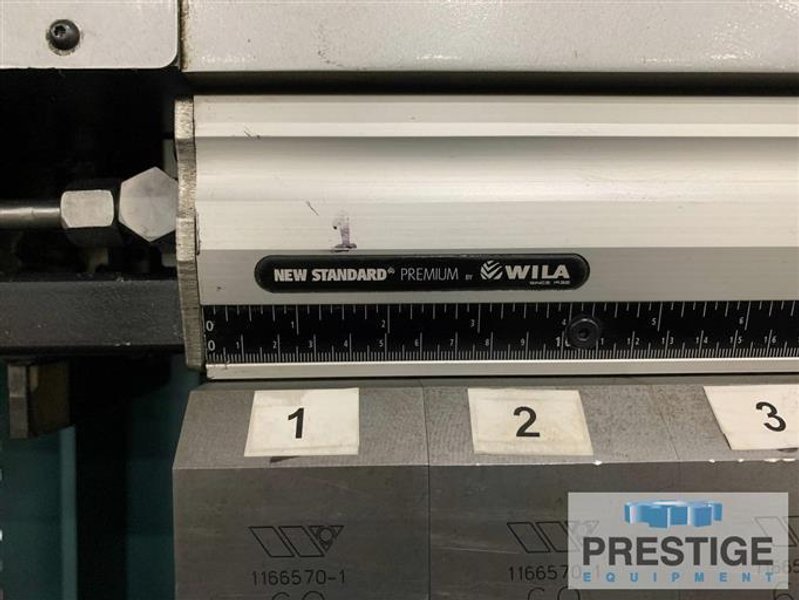

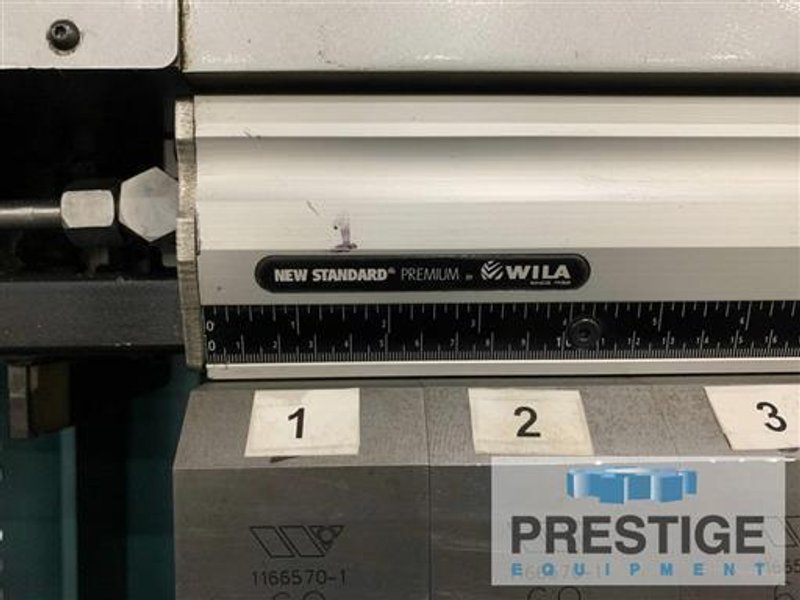

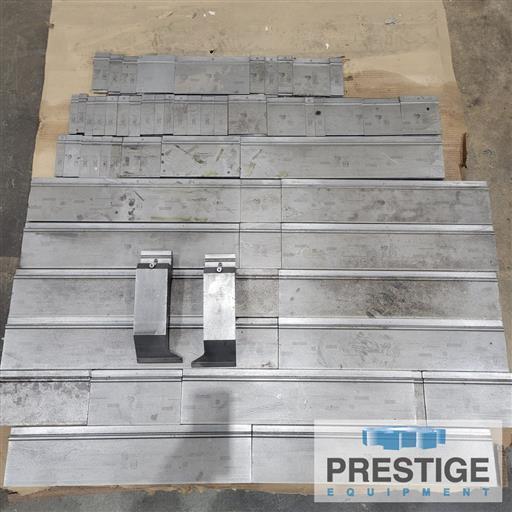

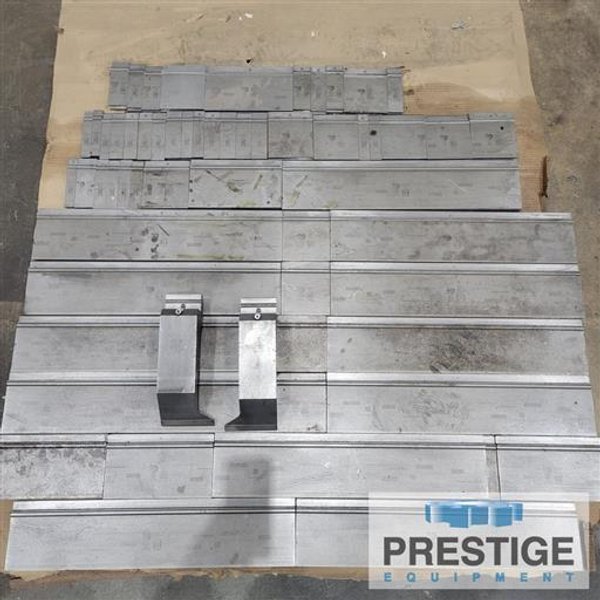

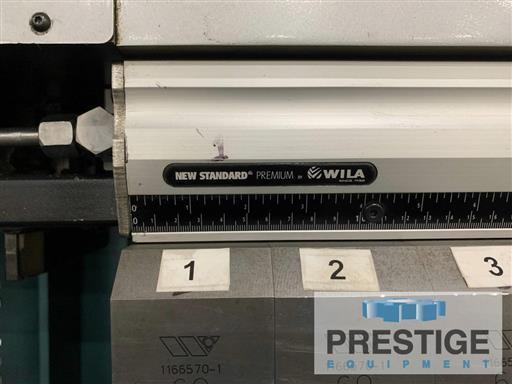

Wila New Standard Tooling System with Machine
Flush Floor

NOTE: This machine can be inspected under power in our Philadelphia Warehouse.
