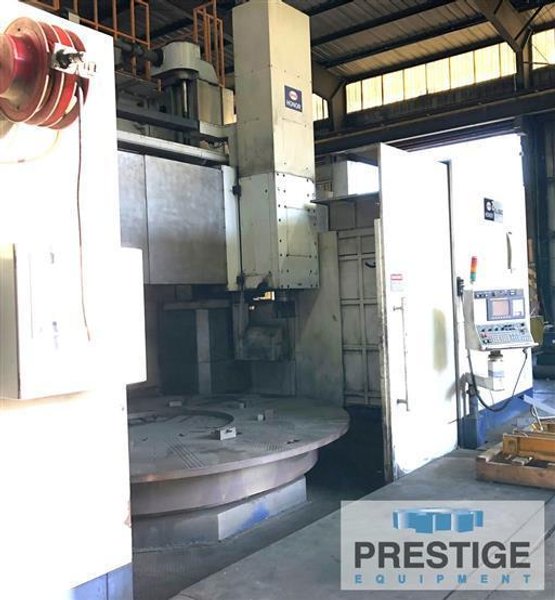

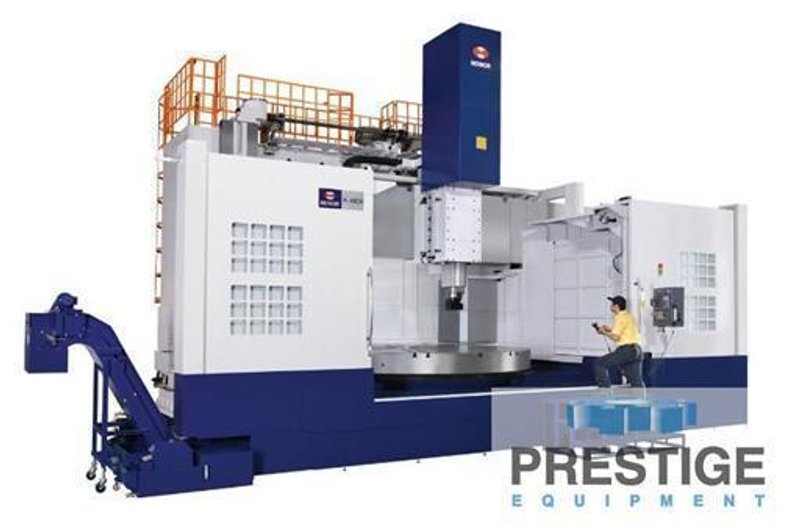

Boring Mills Vertical CNC

SPECIFICATIONS:
Table Diameter 118.11"
Maximum Turning Diameter 145.0"
Maximum Swing 145.0"
Maximum Turning Height 78.74"
Table Speeds 3-120 RPM
Table Speed Ranges 2
Table Weight Capacity 66,000 Lbs
X-Axis Horizontal Ram Travel -29.05",+71.85"
Ram Cross Section 11.02" x 11.02"
Z-Axis Vertical Ram Travel 58.05"
Cross Rail Elevation, Programable 59.1"
Cross Rail Elevation Increments........ 9.85" x 6-Steps 9.85" x 6-Steps
FEED RATES:
X-Axis Rapid Traverse 236.22" IPM
Z-Axis Rapid Traverse 393.37" IPM
Cutting Feed Rate 0.0393 IPM
Manual Feed Rate 0236.22 IPM
MACHINE DIMENSIONS:
Floor Space, F-B X R-L 256" x 345"
Machine Height ............... 291"
Weight 217,800 Lbs
ELECTRICAL REQUIREMENTS:
Voltage



Equipped With:

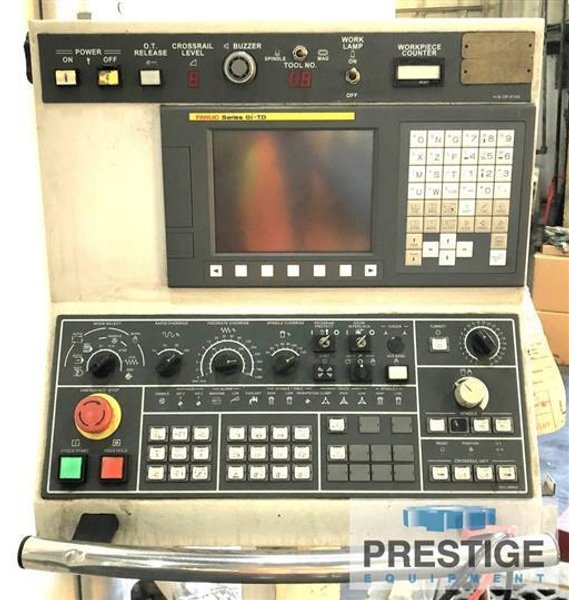

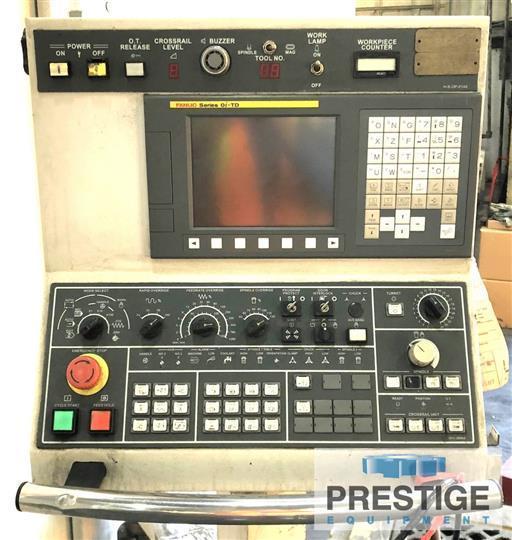

Fanuc 0i-TD CNC Control
16-Station Automatic Tool Changer

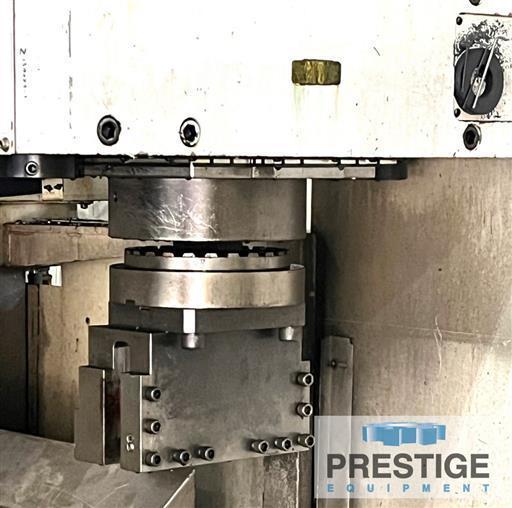

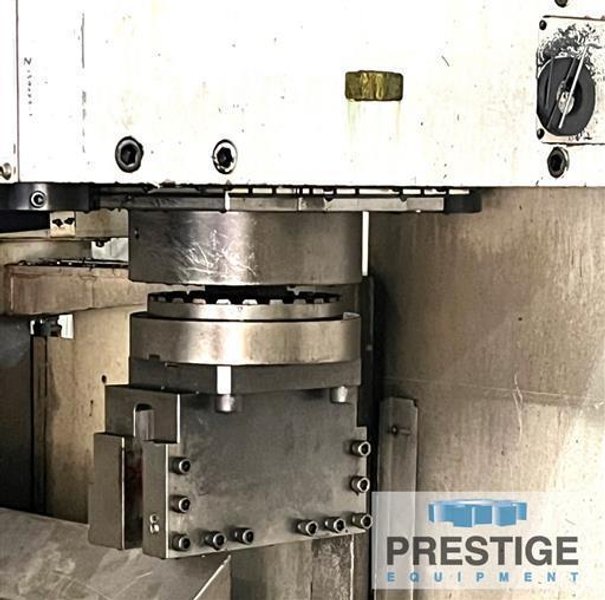

Ultra High Rigidity RG Tool Holder System

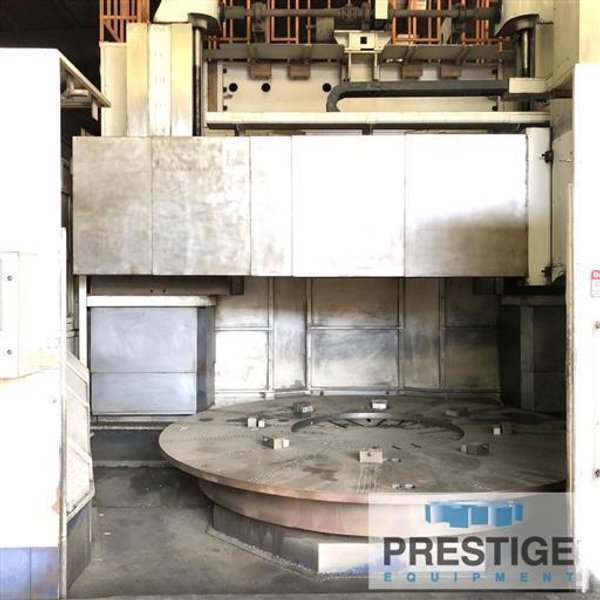

118.11" T-Slotted Table w/4-Top Jaws
Heavy Duty Column with Box Ways
Precision Crossed Table Roller Bearing
Telescoping Steel Way Covers on Cross Rail
Preparation For Coolant Through Ram
Coolant System with Tank
Lift Up Chip Conveyor,
Fully Enclosed Splash Guard
100 HP Table Motor
