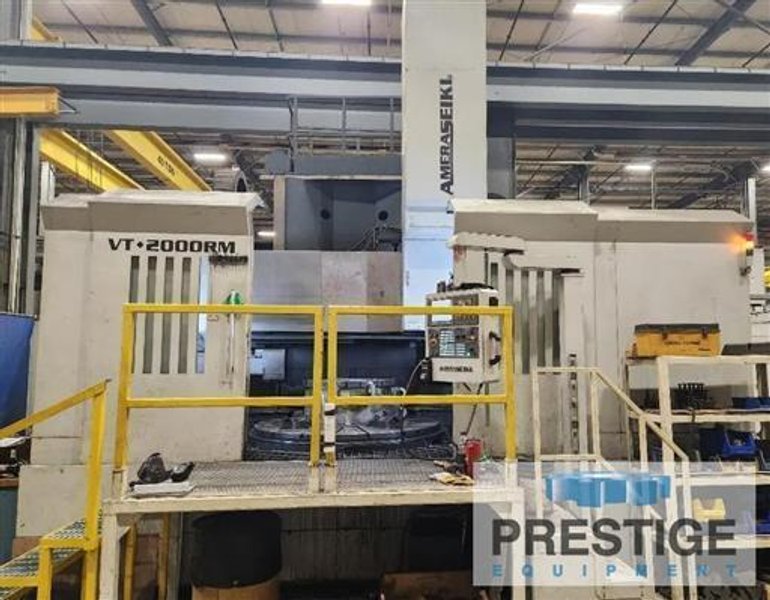

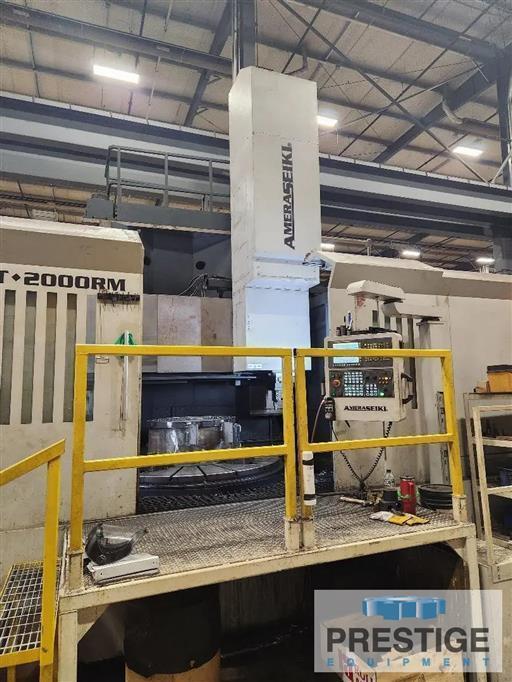

Boring Mills Vertical CNC

SPECIFICATIONS:

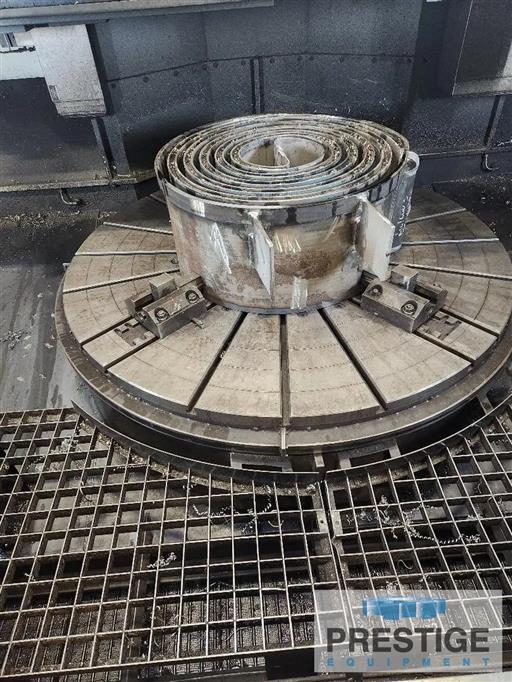

Table Diameter 78.74"
Maximum Swing 82.7"
Maximum Cutting Diameter 78.74"
Maximum Machining Height 62.99"
Cross Rail Travel 39.37"
Table Capacity 44,000 Lbs.

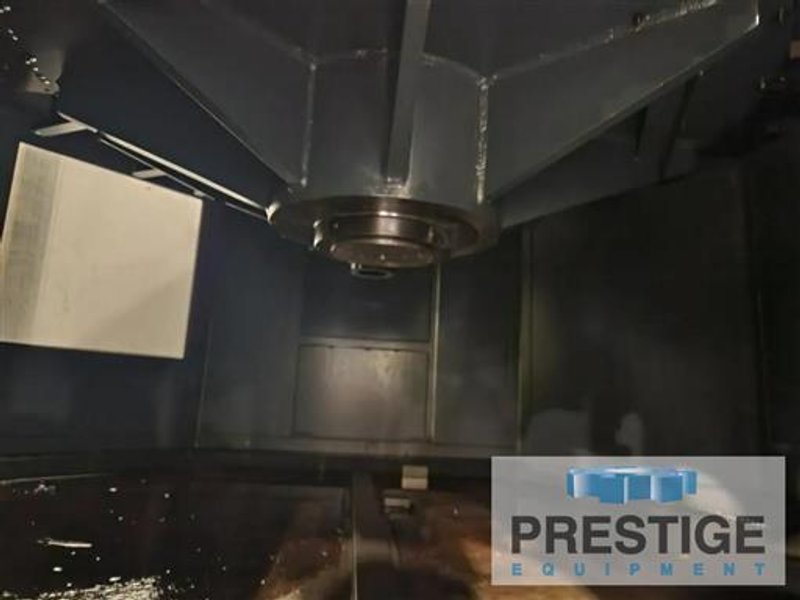

Ram Size 10" x 10"
Z-Ram Stroke 49.21"
Spindle Speed (3-Ranges) 10-450 RPM
Table Motor 100 HP
Live Spindle Speeds 3000 RPM
Live Spindle Motor 50 HP/40 HP
Spindle Taper CAT #50
Rapid Feed Rate (X/Z) 472.44 IPM
Approximate Weight 122,041 Lbs.



Equipped With:

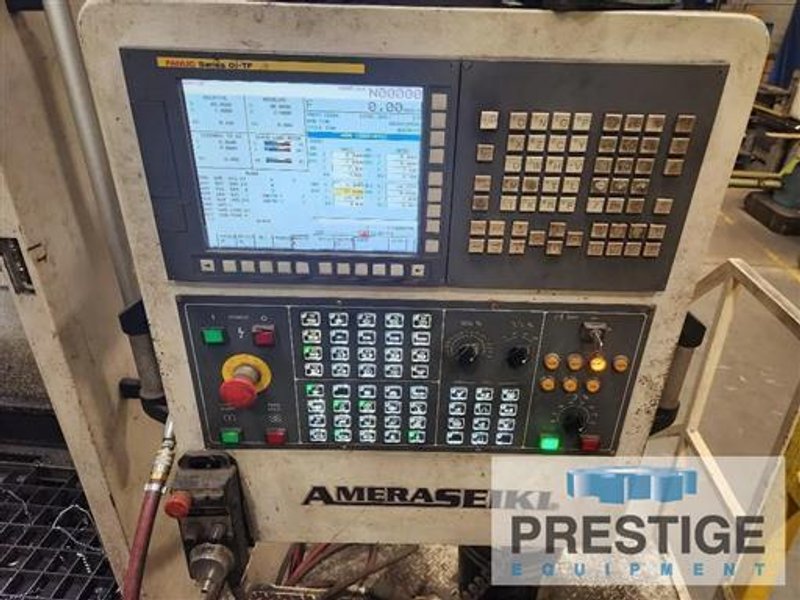

Fanuc Oi-TF CNC Control

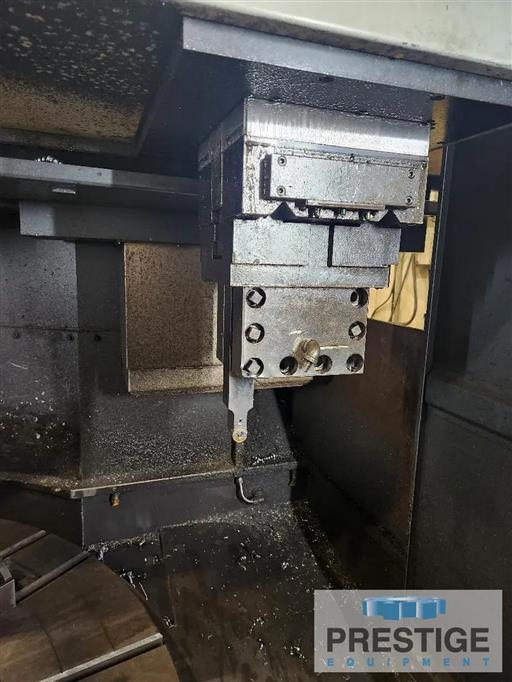

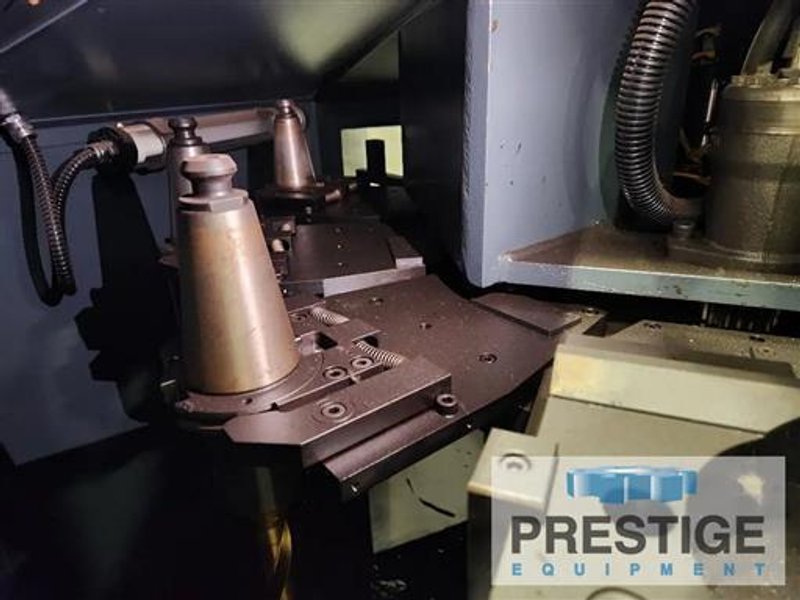

12-Station Automatic Tool Changer
78.74 Manual 4-Jaw Chuck
X/Z Axis HDH Optical Scales
Renishaw Part Probe RMP60
Renishaw Tool Probe TS20
1,000 PSI Thru Spindle Coolant

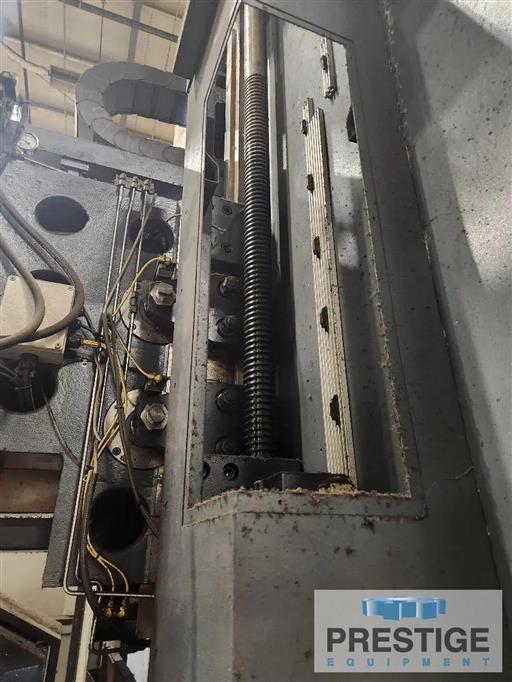

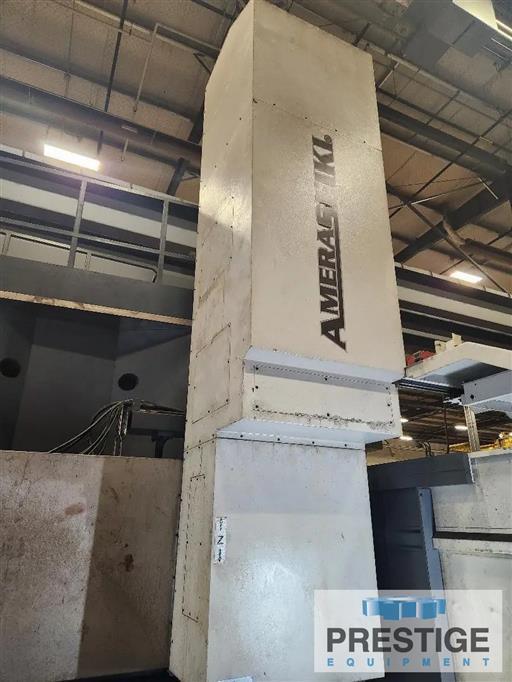

Extended Column Z-Axis (63")
Chip Conveyor with Cart
Main Motor upgraded to 100 HP
Standard Semi-Hood Enclosure

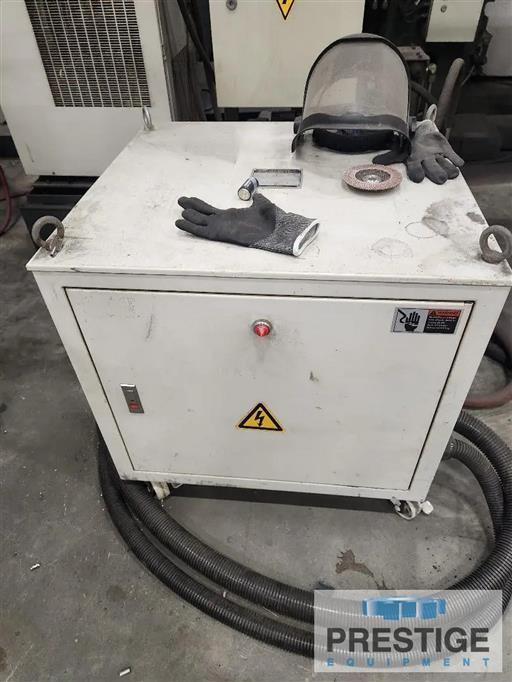

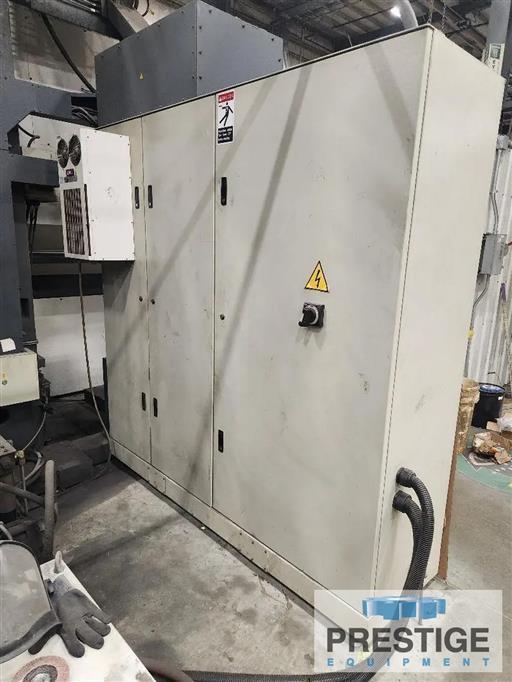

Heat Exchanger with Air Conditioner Cabinet
Automatic Lubrication System

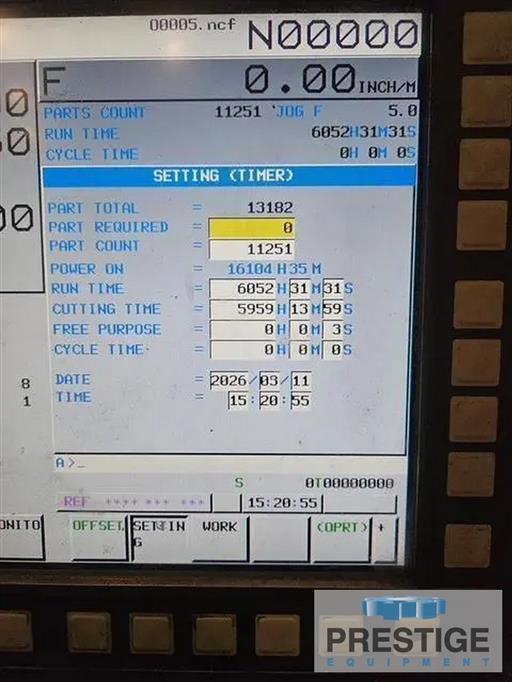

HOURS: 16,184 Power On Hours
5,959 Cutting Hours
