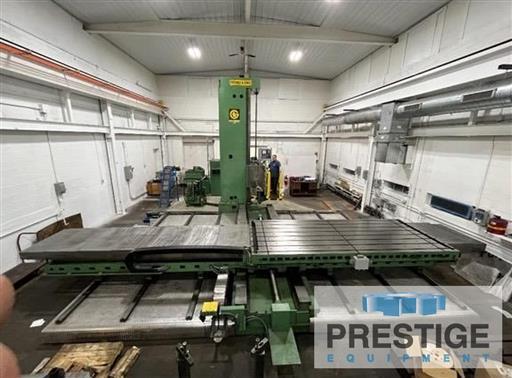

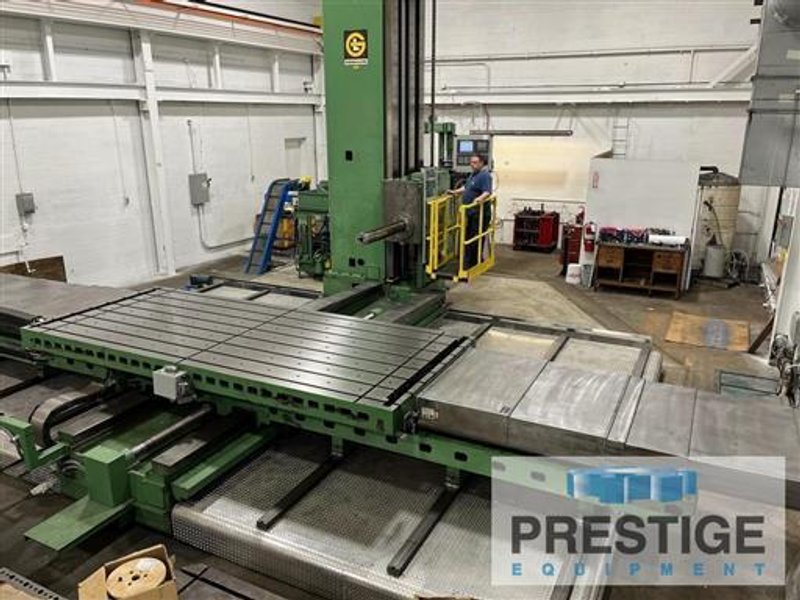

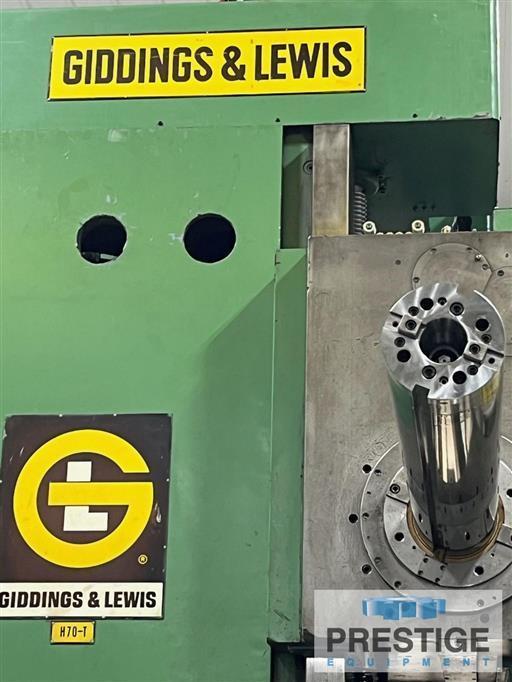

7" Giddings & Lewis H70-T CNC Table Type Horizontal Boring Mill, Retrofit 2022

SPECIFICATIONS:
Spindle Diameter 7"
Spindle Taper #50
Vertical Head Travel, Y-Axis 120"
Table Cross Travel, X-Axis 168"
Spindle Travel, Z-Axis 48"
Longitudinal Travel, W-Axis 99"
Spindle Speeds 5 to 1200 RPM
Table Size 72" x 170"
Table Weight Capacity 70,000 Lbs
Feeds, X,Y,Z,W Axes .1 to 180 IPM
Spindle Motor 75 HP/100 HP
Machine Footprint W x D 403" x 373"
Machine Height 239"



Equipped With:

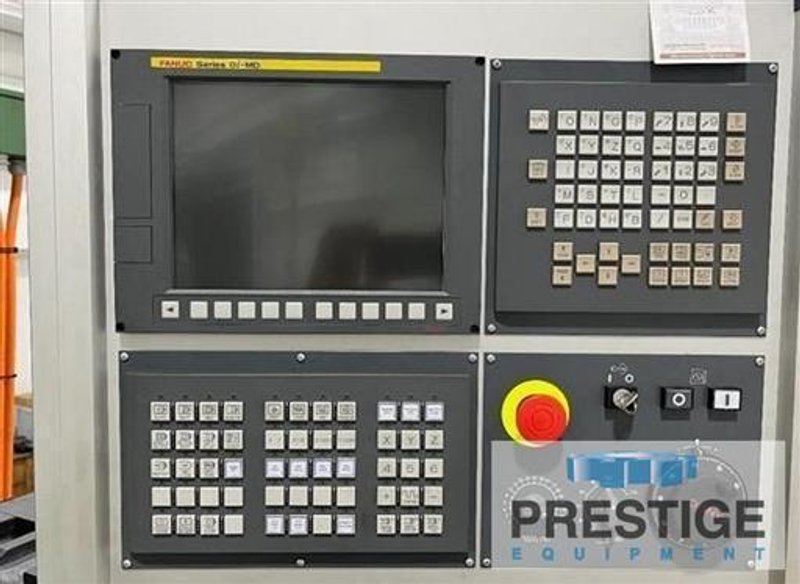

Fanuc 0i-MD CNC Control
Heavy Duty Hardened Box Ways on All Axis

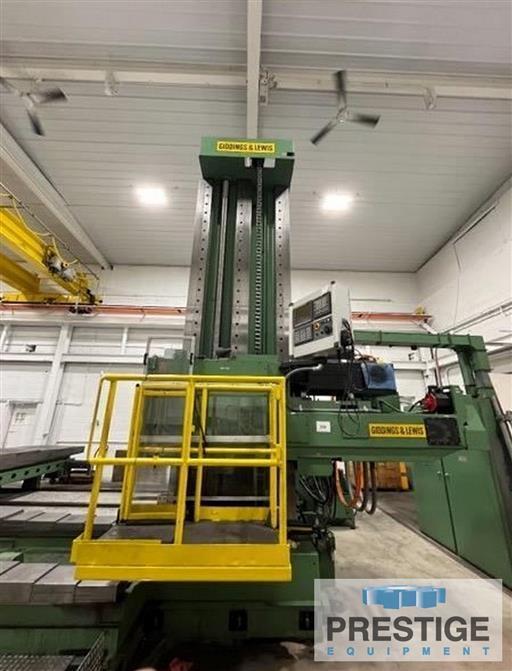

3-Way Vertical Column

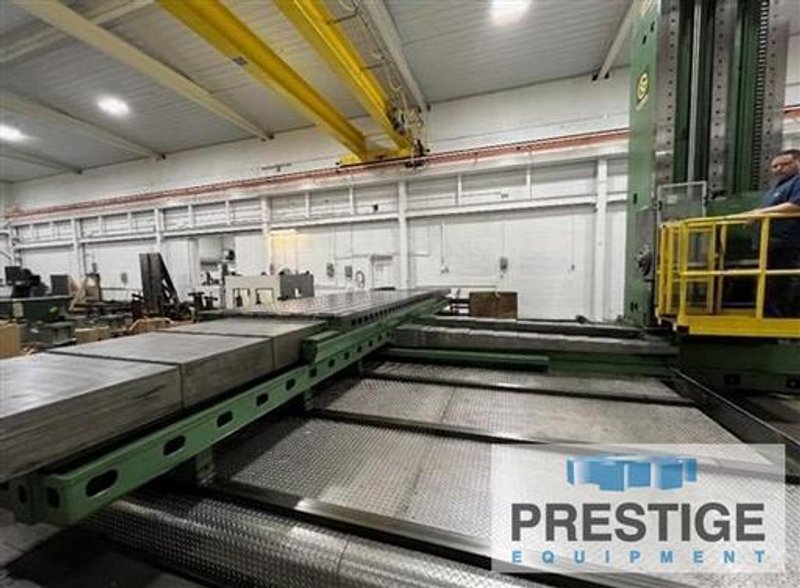

Triple Outrigger Table Supports
Ballscrews & Independent AC Servo Drives On All Axes
Steel Telescoping Way Covers

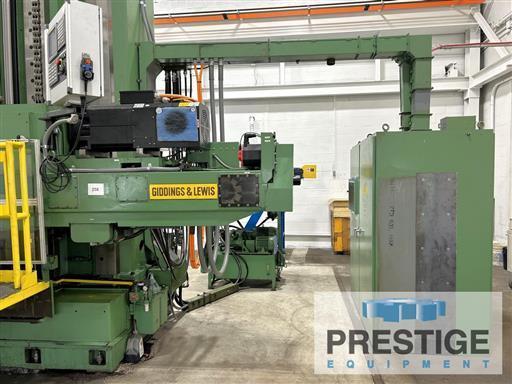

Giddings & Lewis Right Angle Head


NOTES: In 2022 Machine Was Retrofit with New Fanuc CNC Controls, Ball Screws Reconditioned, All Hardened Ways Were Examined And Qualified "As New Condition". New AC Drives, New Fagor Servo Motors and Scales, New Fagor 75/100 HP AC Spindle Drive Motor, New Wipers, Re-Conditioned Telescoping Way Covers, New CAT 50 Spindle Taper, Power Draw Bar,Spindle Tested and Qualified.
Inspect Under Power
