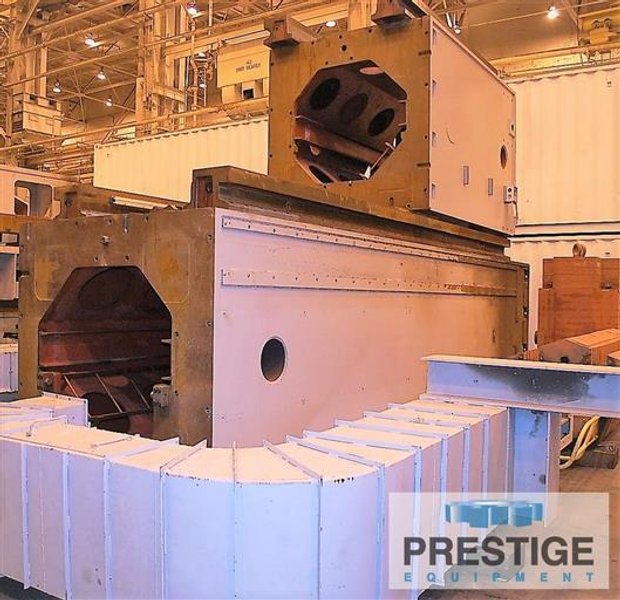

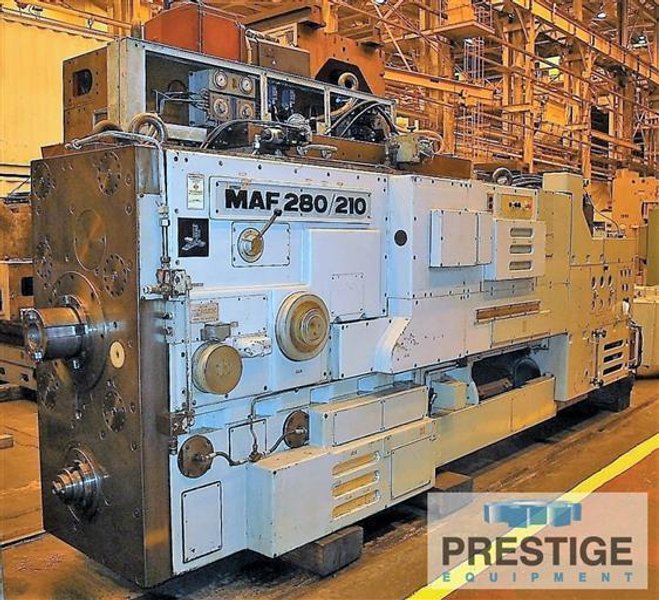

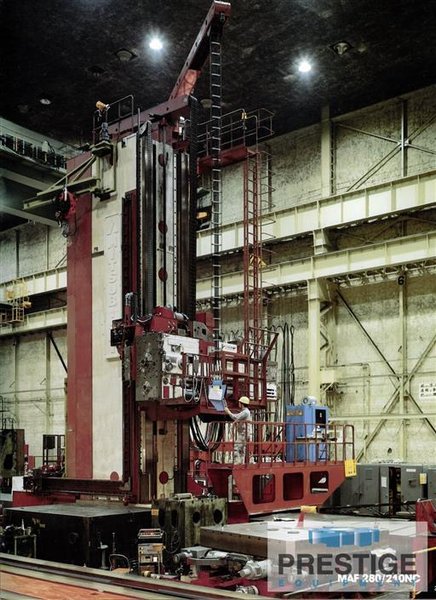

Mitsubishi MAF 280/210 8.26" Floor Type Horizontal Boring Mill

SPECIFICATIONS:
Spindle Diameter 8.27"
Column Travel, X-Axis 492.12"
Headstock Vertical Travel, Y-Axis 236.22"
Main Spindle Horiz Travel, Z-Axis 51.18"
Ramstock, Travel, W-Axis 39.37"
Combined Travel Z & W Axis 90.45"
Auxillary Spindle, C-Axis 19.68"
Ramstock, Travel, W-Axis 39.37"
Combined Travel C & W Axis 59.05"
Main Spindle Speeds, Z-Axis 3-600 RPM
Auxillary Spindle Speeds, C-Axis 75-2800 RPM
High Speed Shaft For Attachments 7-2500 RPM
Front Plate Dimensions 31.69" x 42.32"
Rapid Traverse X,Y,Z Axes 196.85 IPM
Feed Rate 0.04-157.48 IPM

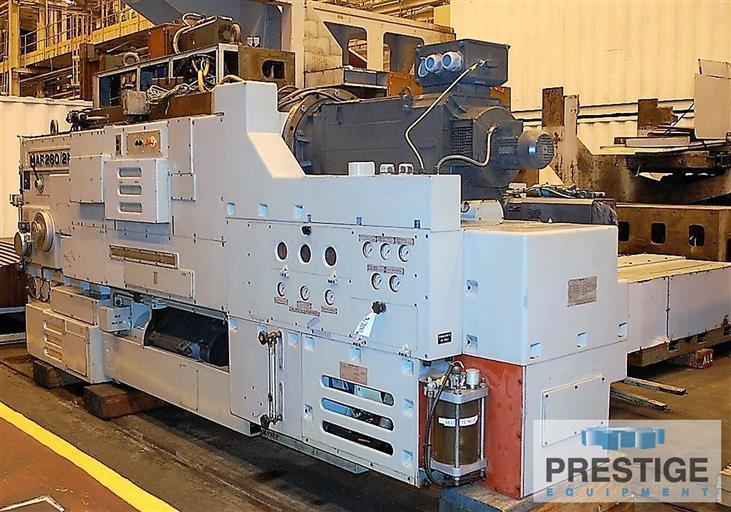

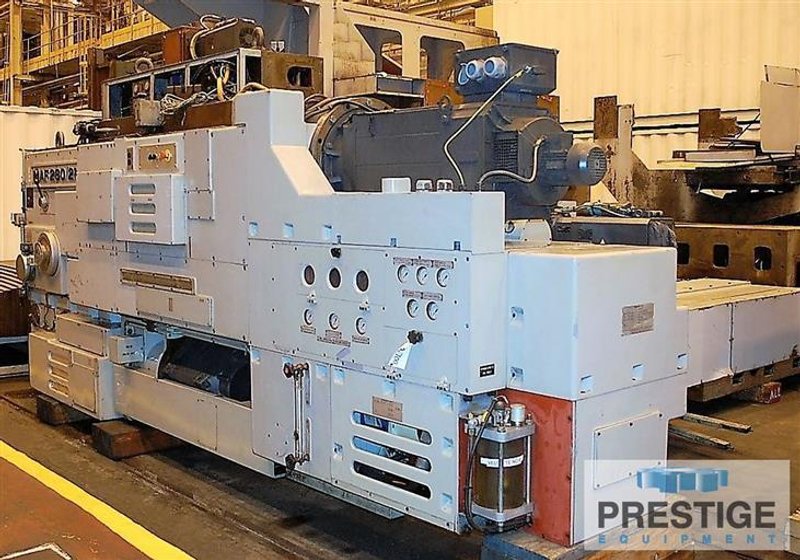

HEADSTOCK:Main Spindle, Z-Axis:
Boring Spindle Diameter 8.26"
Milling Spindle Diameter 12.20"
Spindle Taper #60 ANSI
Spindle Travel, Z-Axis 51.18"
Speeds 3-600 RPM
Spindle Motor 100 HP/ 120 HP
Auxillary Spindle, C-Axis:
Spindle Diameter 11.02"
Spindle Taper #60 ANSI
Spindle Travel 19.68"
Spindle Speeds 75-2800 RPM
Maximum Thrust 6,600 Lbs
Spindle Motor 20 HP
Coolant Thru Spindle Yes
DESCRIPTION OF AXES:
Column Travel X-Axis
Spindle Vertical Y-Axis
Main Spindle In & Out Z-Axis
Auxilliary Spindle In & Out C-Axis
Surfacing Slide U-Axis
Headstock In & Out W-Axis



Equipped With:
Siemens 840D Solution Line CNC Control (Retrofit 2010)
2800 RPM Auxillary Spindle
Through Spindle Coolant

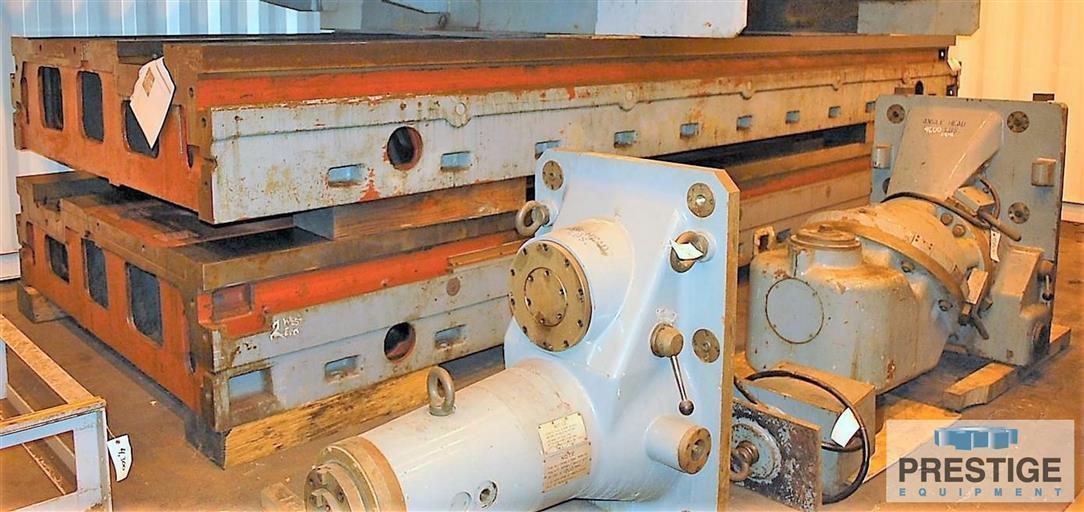

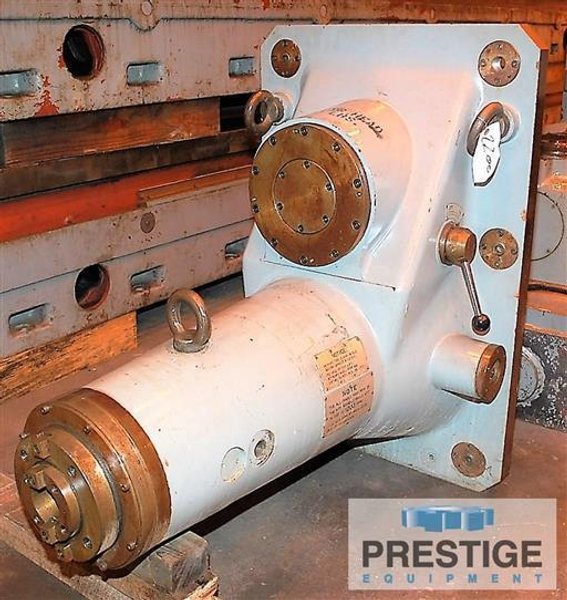

Long Reach Milling Attachment: #50 Taper, 1200 RPM

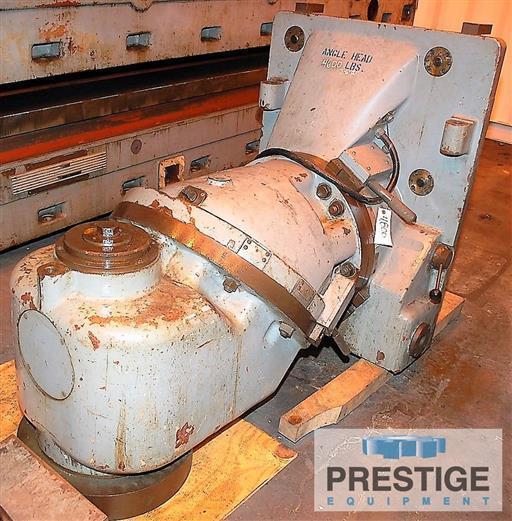

Universal Milling Head, Model UHM-40, 42" Reach

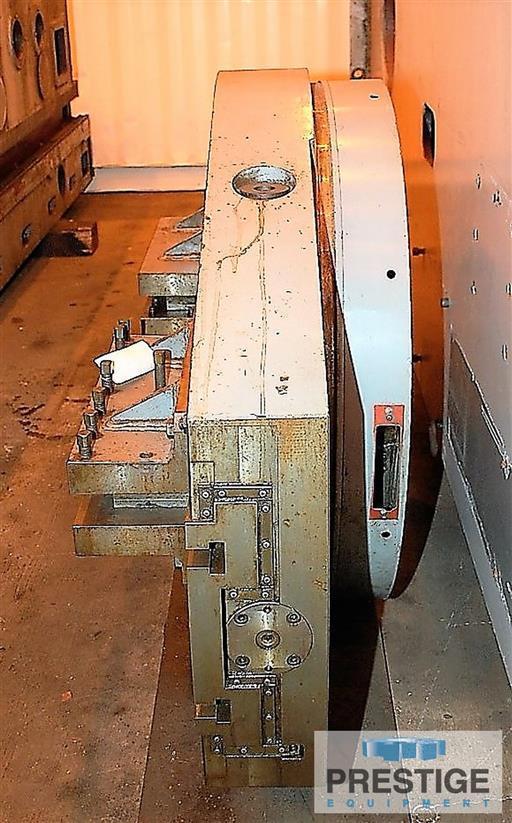

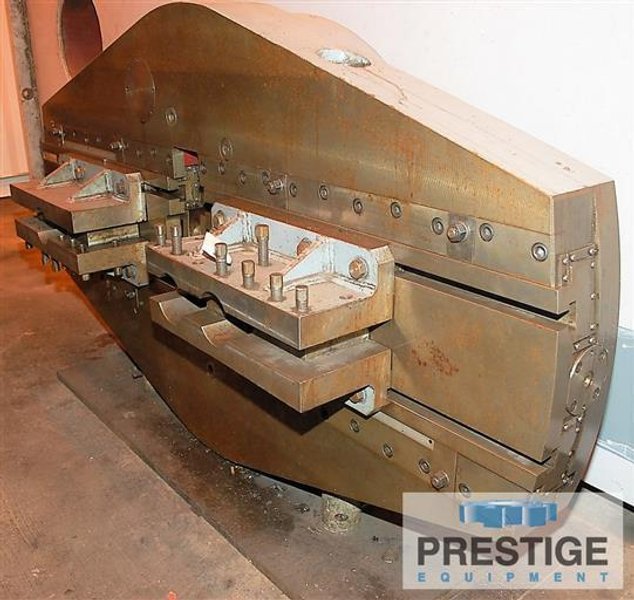

Facing Head, Surfacing Slide, Model SHM-2000 U-Axis
Full Length Chip Conveyor
New Spare Spindle & Bearings Available
2-Ton Jib Crane For Loading Attachments
100 HP / 120 HP Main Spindle Motor


NOTE: Machine Was Built New in 1980's and Installed In USA Government Facility. Partially Rebuilt and Retrofit with New Siemens 840D CNC Controls in 2010. Inspect In Our Philadelphia PA Warehouse
