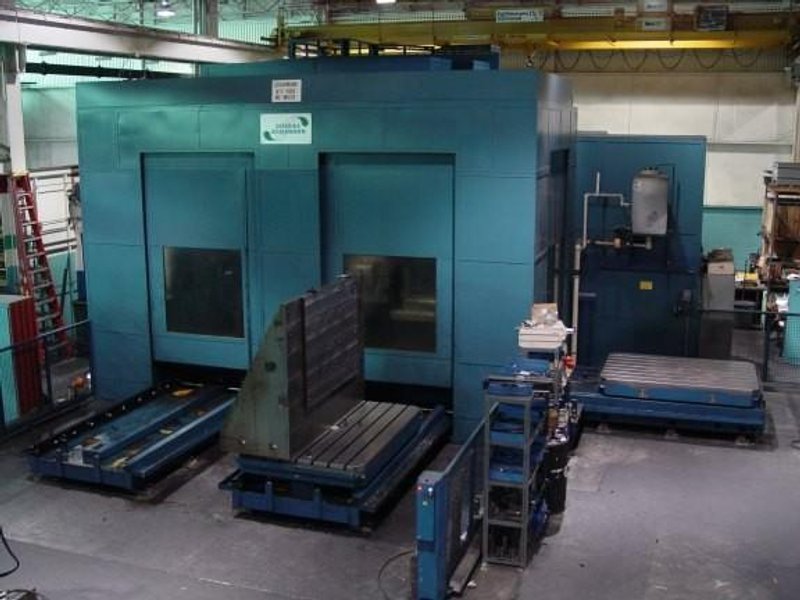

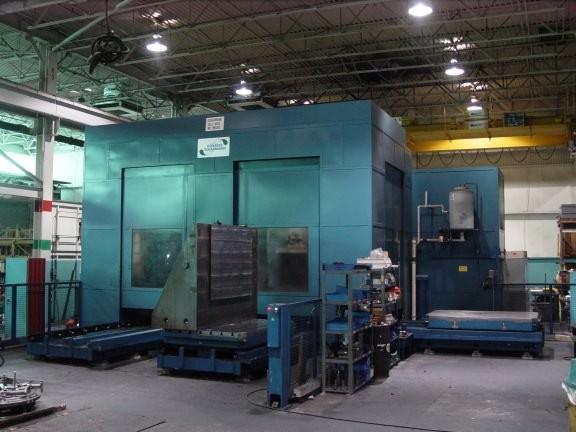

Scharmann Heavycut 1Z/TDV3 5.9" CNC Table Type Horizontal Boring Mill

CAPACITY:
Spindle Diameter 5.9"
Taper In Spindle #50
Vertical Head Travel, Y 118.11"
Table Cross Travel, X 118.11"
Column Infeed Travel, W 78.74"
Ram Travel, Z........................ 31.49" 31.49"
Spindle Travel, Z-1 27.55"
Ram Cross Section 12.79" x 12.79"
Facing Head Travel, U 5.9"
Right Angle Heads 5 Degrees
Rapids 393 IPM
Pallet Size (3) 63" x 90.55"
Spindle Speeds 12-2000 RPM
Pallet Capacity 26,400 lbs.



Equipped With:
Siemens 880M CNC Control
(3) 63" x 90.55" Pallets "B Axis" Shuttle System
165-Station Automatic Tool Changer
3-Station Automatic Head Changer
2-Right Angle Heads
1-Facing Head w/ 2 #50 Taper Offset Pockets
Thru Spindle Coolant, 435 PSI
Ball Screws With Independent Drives
Full Enclosure, Chip Conveyor & Coolant System
87 HP DC Spindle Drive
