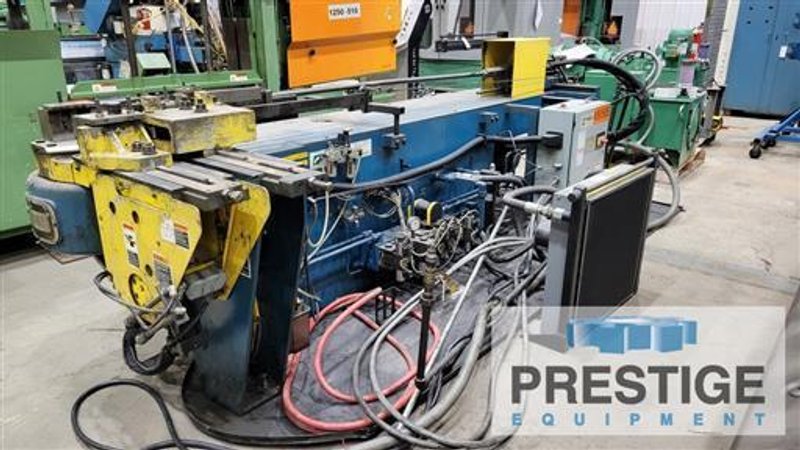

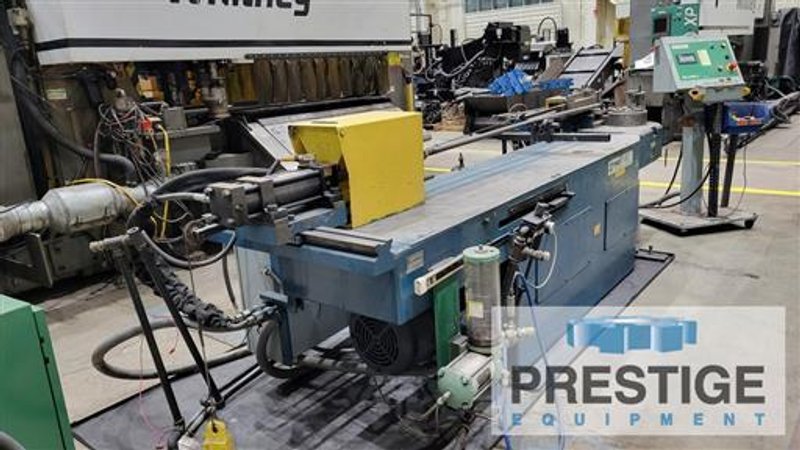

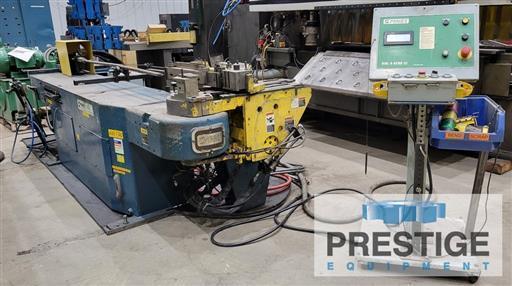

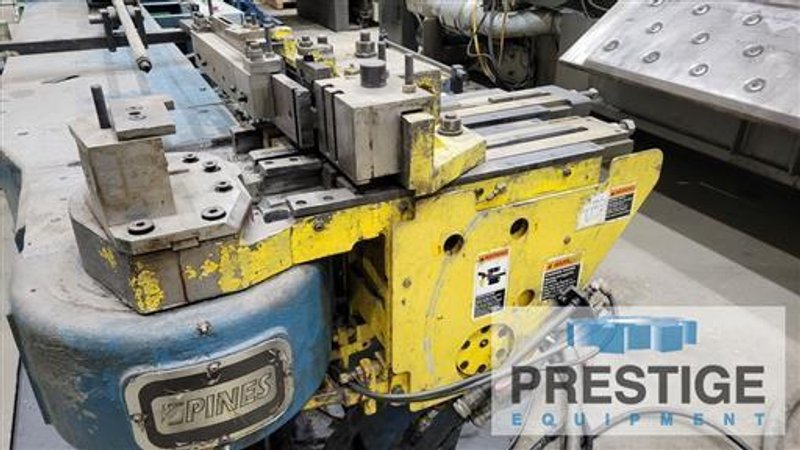

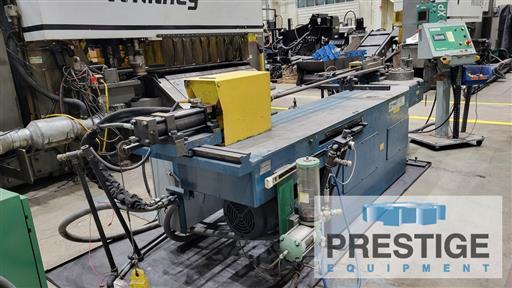

Pines #2 Hydraulic Rotary Tube & Pipe Draw Bender
Brand
Category
Model
#2
Stock #
28958
Year
2009
Condition
Not specified
Location
Not specified
|
CAPACITY:

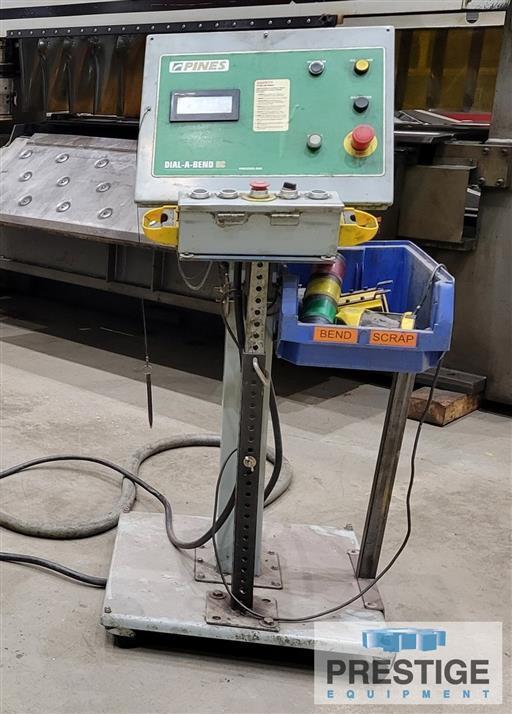

Maximum Bend Radius 12" Maximum Bend Angle 180 Degrees Maximum Tube Length Over Mandrel 7'5" Bend Arm Speed 6 RPM Operating Pressure 2000 PSI Motor 10 H.P. Round Tubing(Non Ferrous) 3" X .188 Wall Round Tubing(Mild Steel) 3" X .109 Wall Schedule 80 Pipe 2" Rectangular Tubing(Mild Steel) 1 1/2" X 3" X .148 Wall Equipped With: Dial-A-Bend-SC Control Right-Hand Machine (Clockwise Rotation) Hydraulic Mandrel Extractor NOTE: Inspect In Our Philadelphia PA Warehouse |
