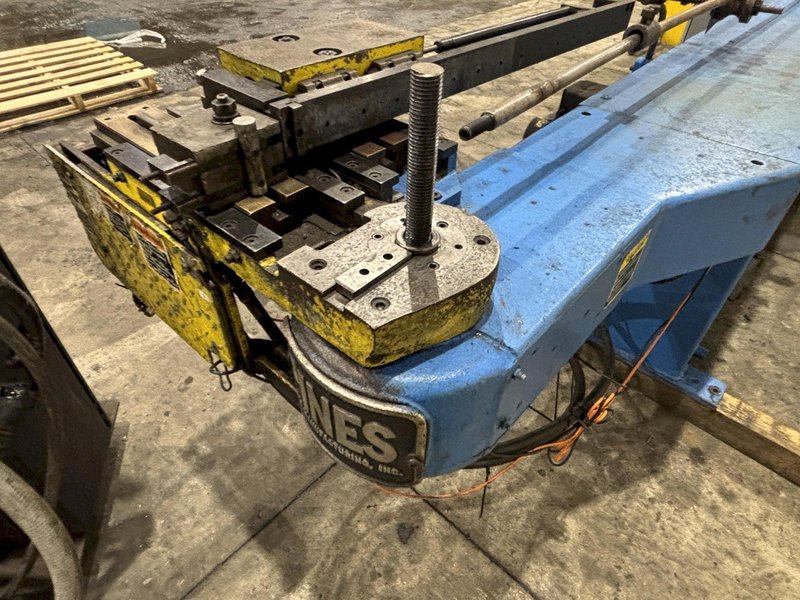

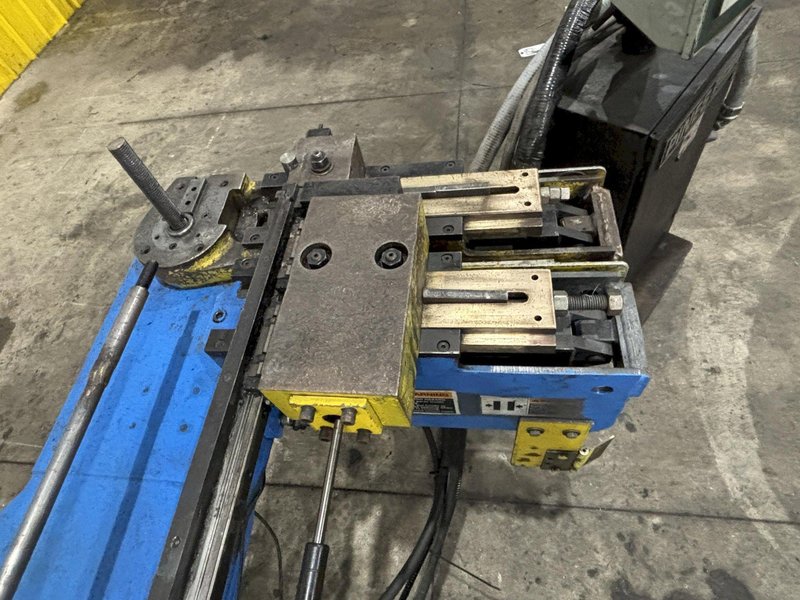

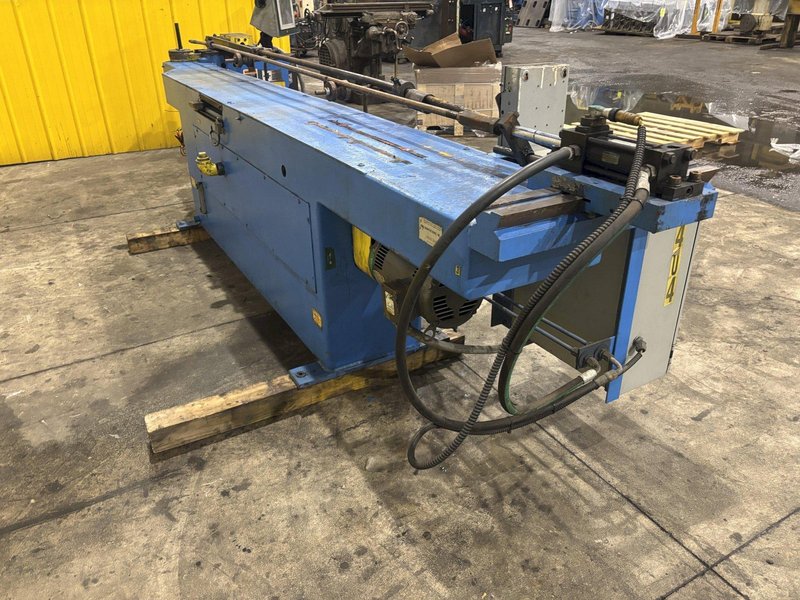

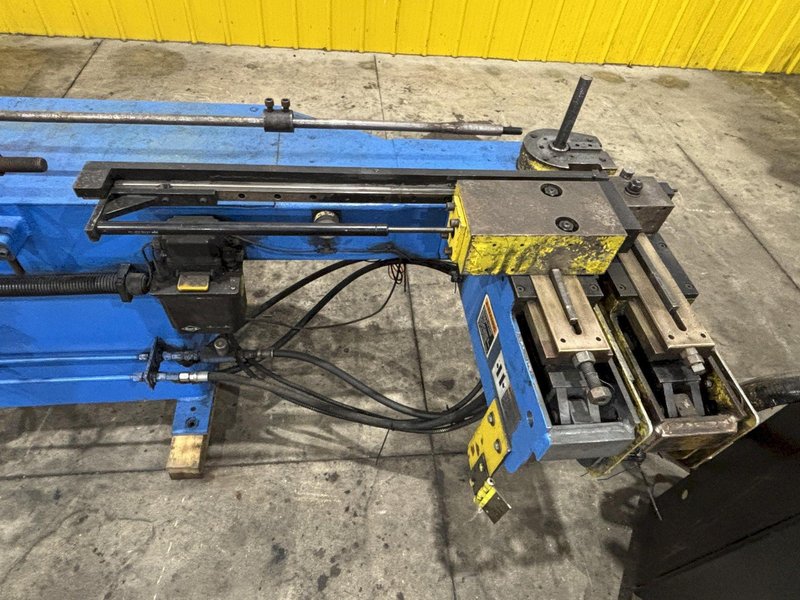

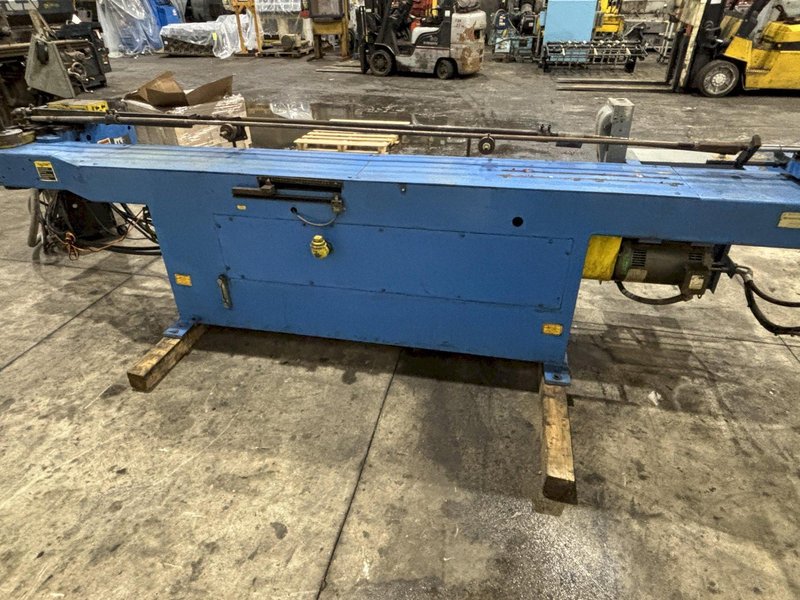

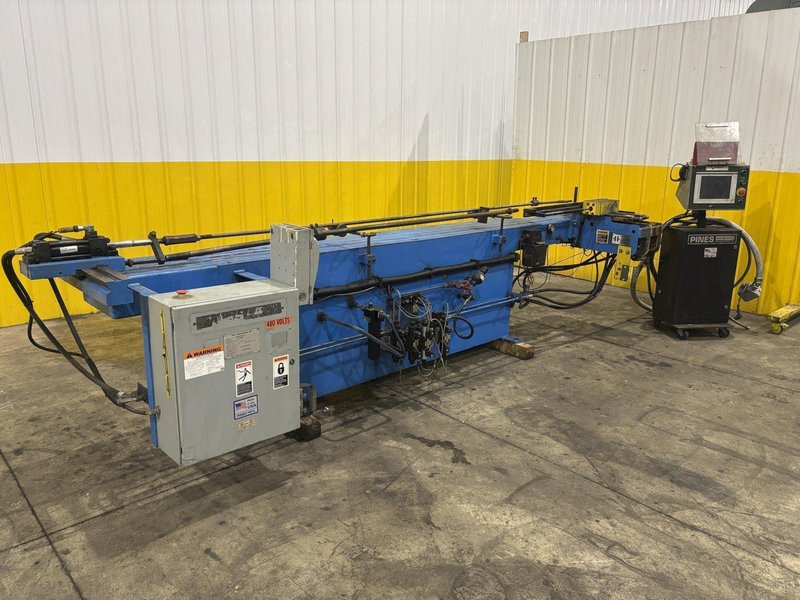

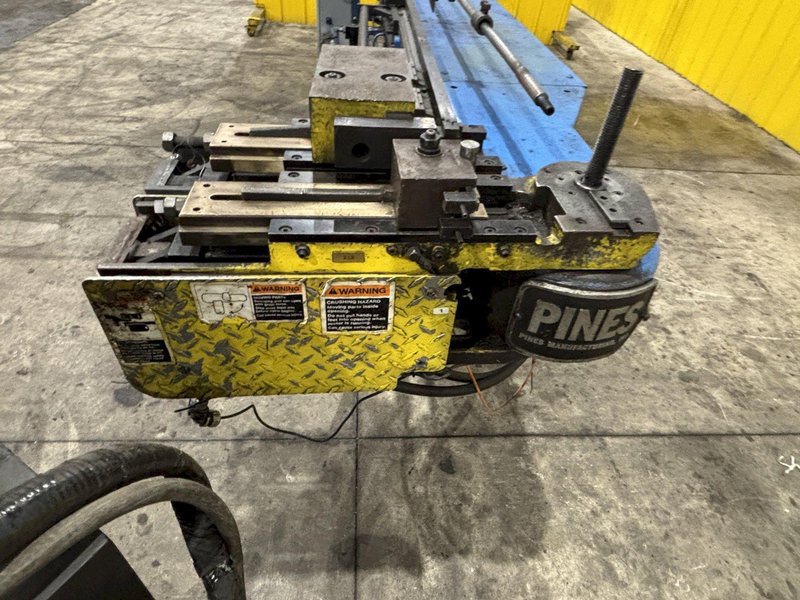

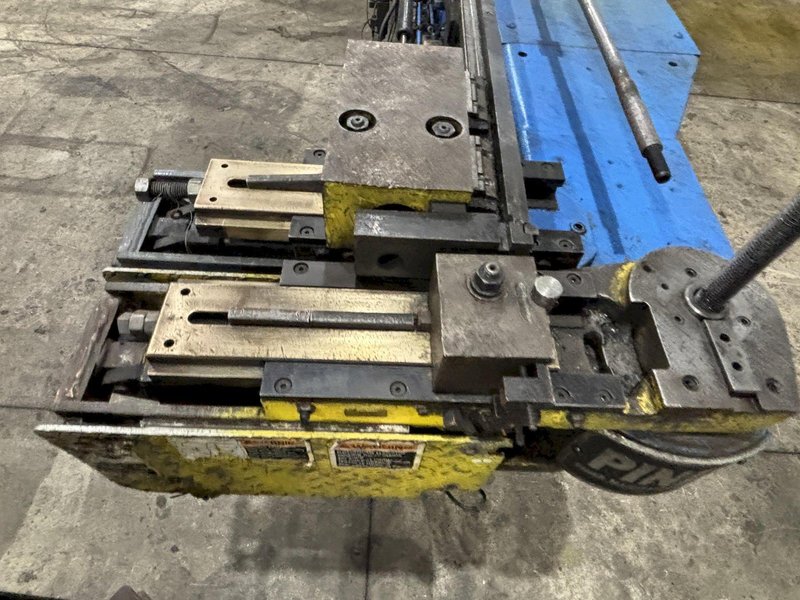

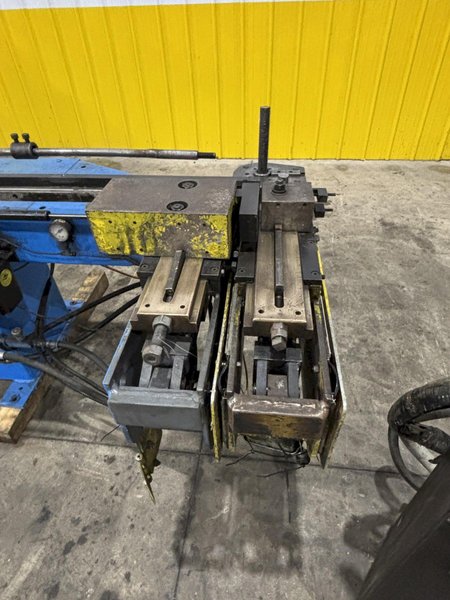

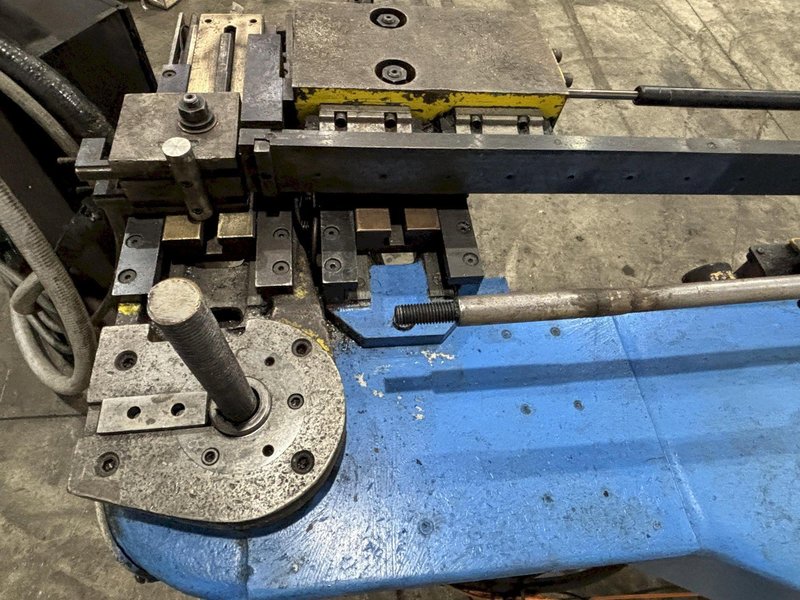

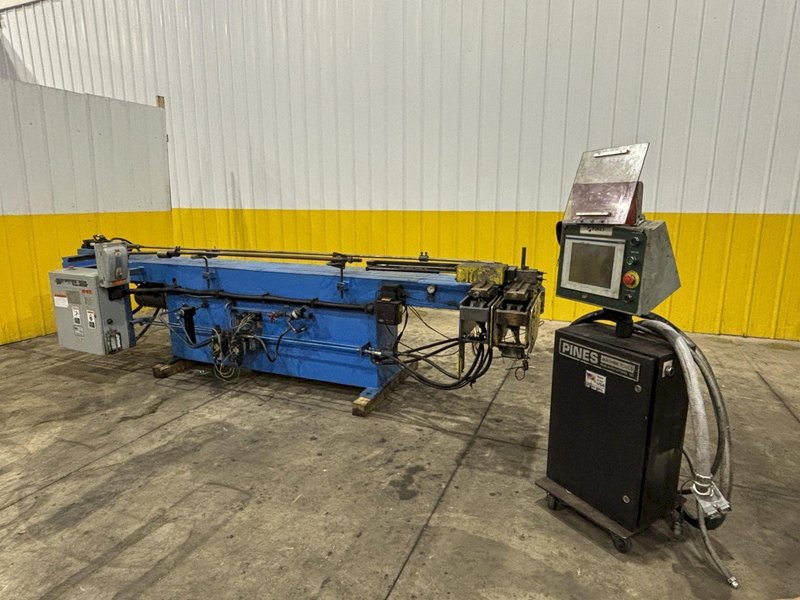

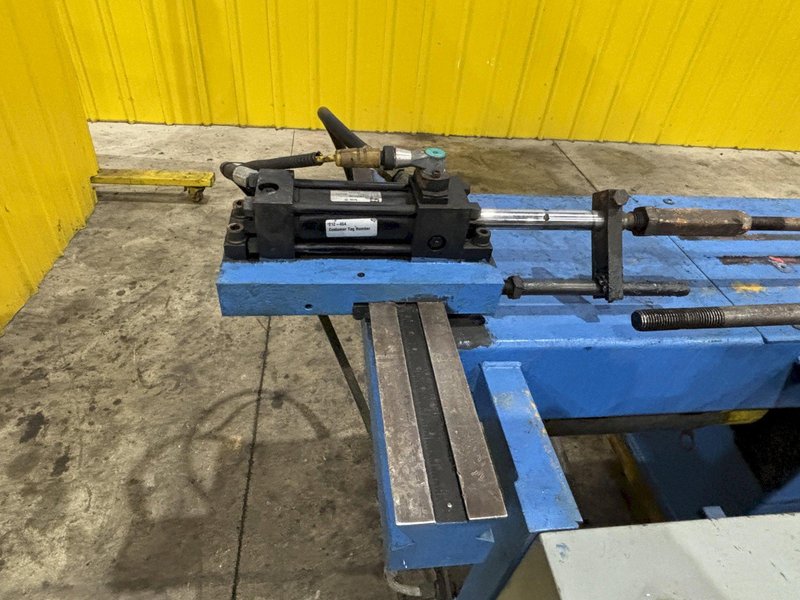

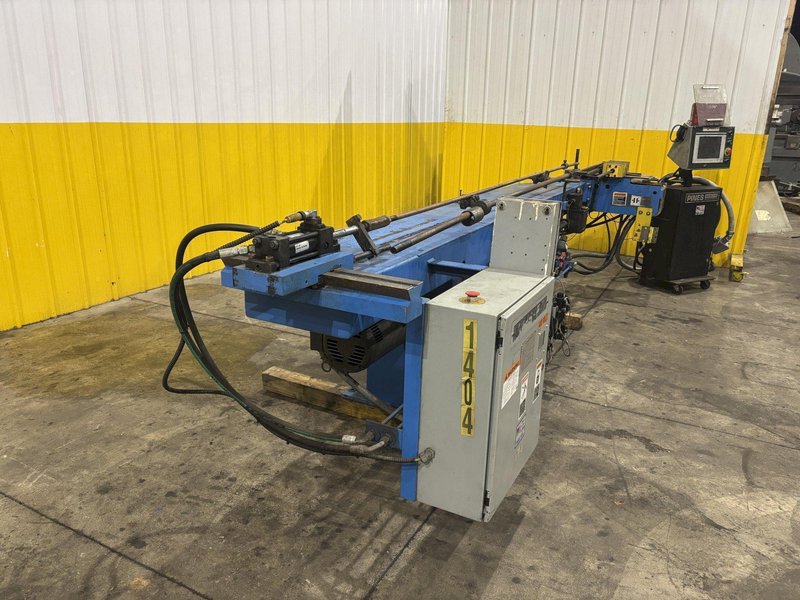

1″ PINES MODEL #1 ROTARY HYDRAULIC BAR, TUBE & PIPE BENDER

Name: Used PINES #1 For Sale IGAM1330002
Brand: PINES
SKU: IGAM1330002

Brand

PINES

Location

Michigan

REQUEST FINANCING

Specifications
Files & Videos

Overview

Pines Model #1 Rotary Hydraulic Bar, Tube & Pipe Bender with Dial-A-Bend VI CNC Control. Equipped with a 7-1/2 horsepower hydraulic motor, this machine offers precision bending for bars, tubes, and pipes with advanced CNC control for enhanced efficiency and accuracy.
LOCATION: OH

SPECIFICATIONS:
ROTATION:	LEFT HAND
VOLTS:	480
PHASE:	3
HZ:	60
MACH. FULL LOAD AMP:	17
MTR. FULL LOAD AMP:	11

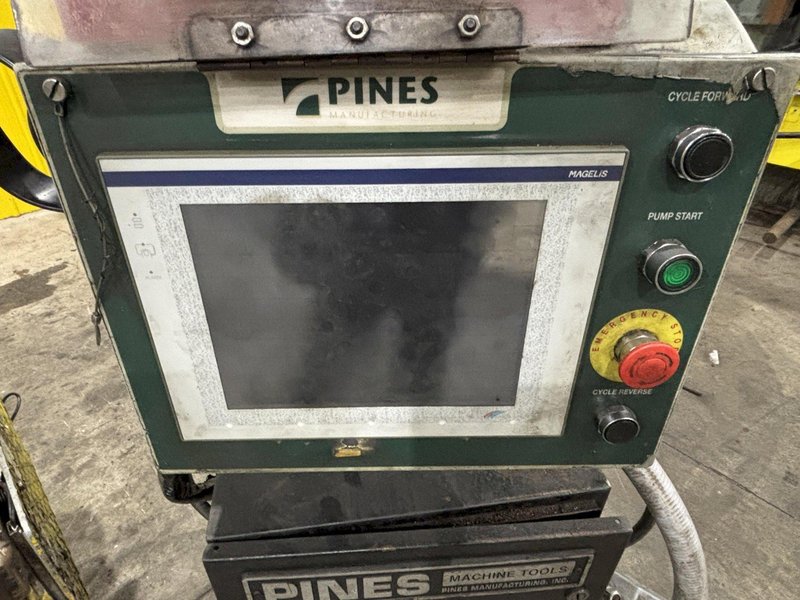

PEDESTAL CONTROL:	DIGITAL DIAL-A-BEND VI
STEEL PIPE< SCHEDULE 80:	1″
NON-FERROUS TUBE:	1-1/2″ X .188″
STEEL TUBE:	1-1/2″ X .109″
STAINLESS TUBE:	1-3/8″ X .065″
ROUND BAR, MILD STEEL:	1-1/8″
LENGTH OVER MANDREL:	9’11”
MAX. RADIUS:	8″
MANDREL EXTRACTOR:	YES
MAX. BEND ANGLE:	180 + OVERBEND
BENDING ARM SPEED:	17 RPM
OPERATING PRESSURE:	1000 PSI
HYDRUALIC MOTOR:	7-1/2 HP
