CAPACITY:

Width Capacity 44"
Beam Capacity 750 Lbs/Ft.
Flange 20"
Pass Line from Floor 40"
Spindles 3
Drill Capacity 1-9/16"
X-Axis Length Accuracy +/- .30
Maximum Spindle Speed 2,200 RPM
Taper #4 MT
Approximate Machine Weight 28,000 Lbs.

Equipped With:

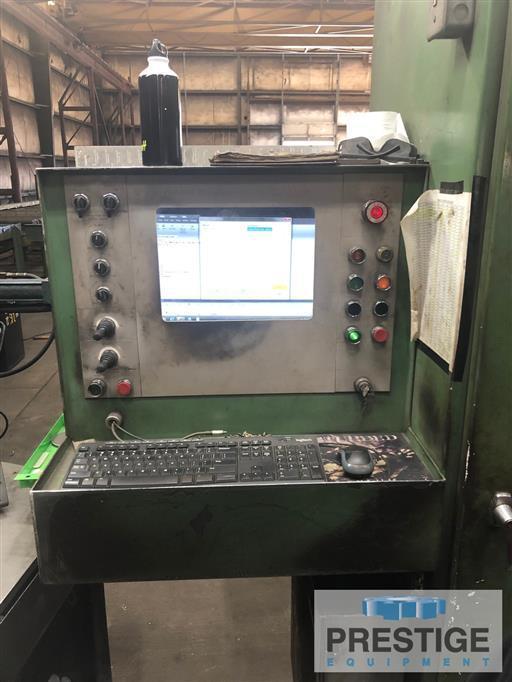

Franklin CNC Control (Upgraded 2016)

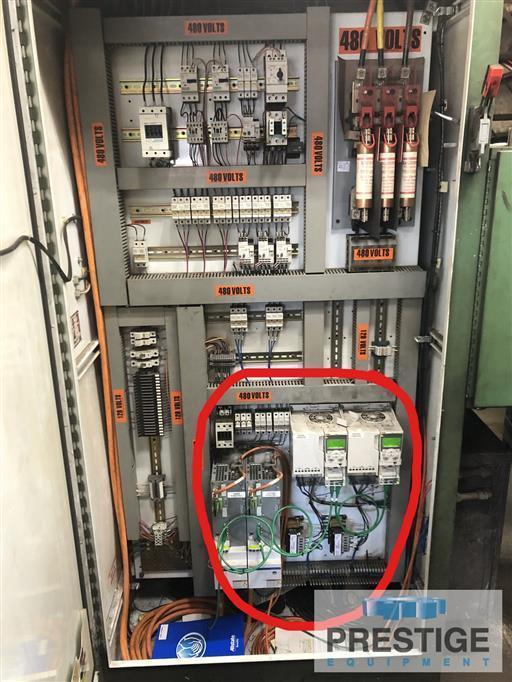

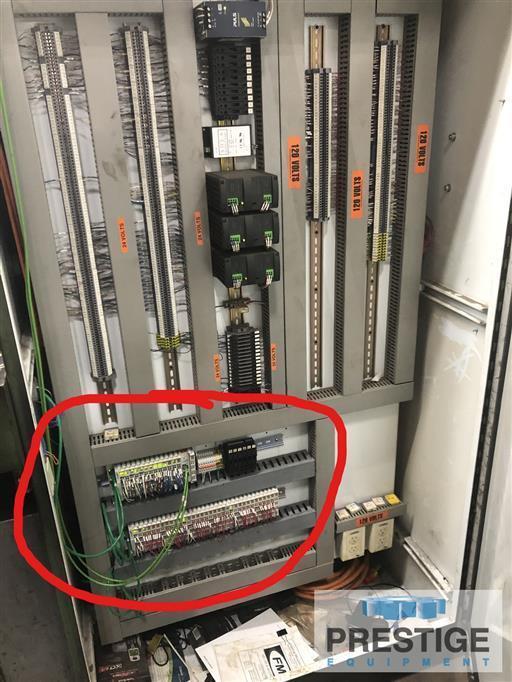

Drives and Electronics (Upgraded in 2016)
Infeed Hydraulic Pinch Roll Drive for Measuring & Driving Lead Section of Material
Pressure Switch Material Detection for Side Clamp
Vertical Hold Down Rolls on Both Sides
Precision Measuring Wheel for Overall X-Axis Length and Hole Location

Note:


Control/Drives/Electronics Upgraded in 2016

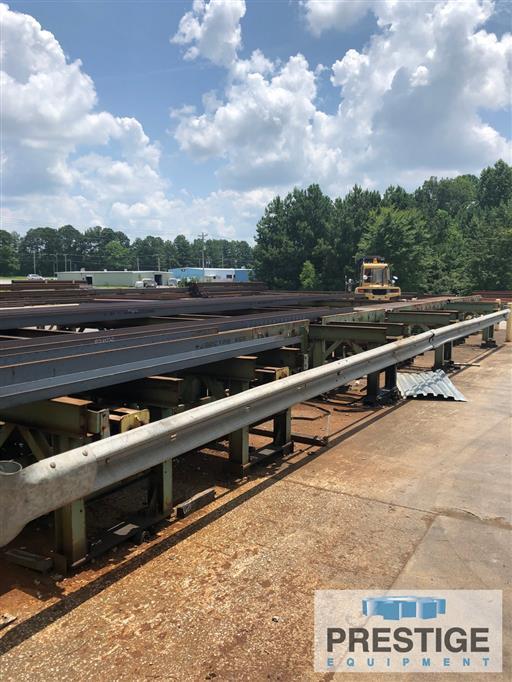

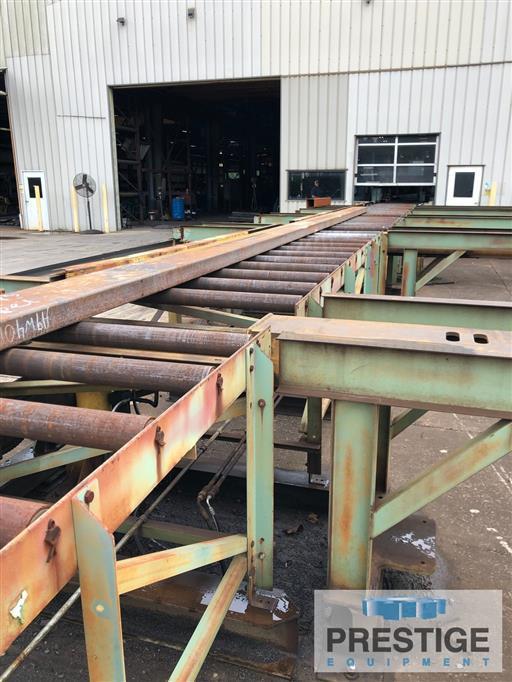

60' Powered Hydraulic Infeed Roller Conveyor and Transfer System (Transfer System Needs Repair)
