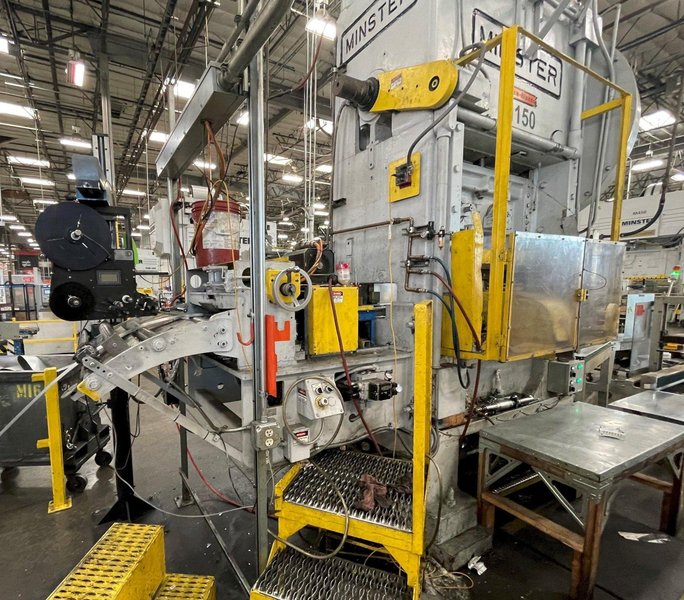

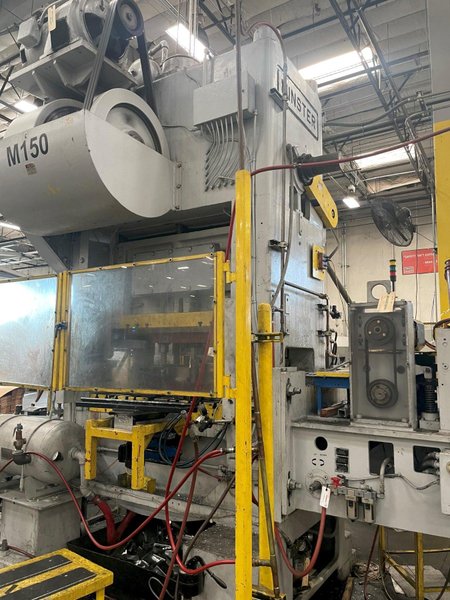

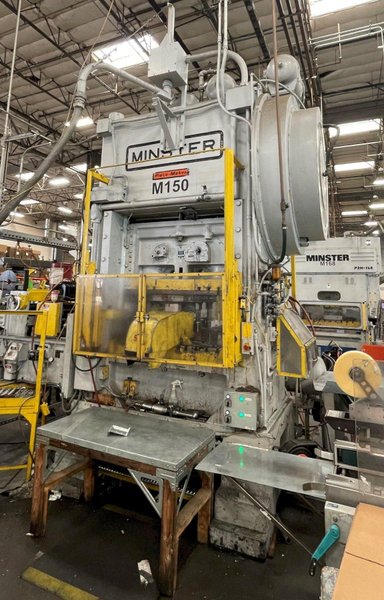

150-ton Minster P2-150-48 "Piece-Maker" Highspeed Mechanical Metal Stamping Press For Sale, Year 1980
Brand
Category
Model
P2-150-48 "Piece-Maker"
Stock #
2876
Year
1980
Condition
Used
Location
Michigan
| Tonnage | 150 |
| Stroke | 5 inches |
| Shut Height | 21 inches |
| Adjustment | 4 inches |
| Bed Size | 48" x 40" |
| Ram Area | 48" x 23" |
| SPM | 0-150 |
|
Standard Specifications

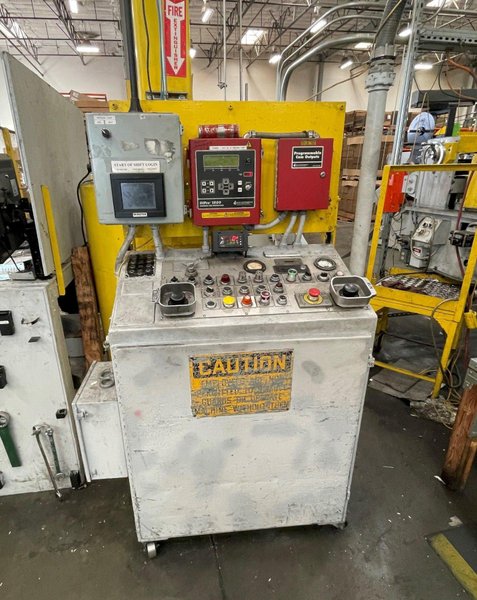

150-ton Highspeed Minster Press Model #P2-150-48 "Piece-Maker" Serial Number 24688 150-ton Capacity 5" Stroke 21" Shut Height 4" Motorized Adjustment 48" LR x 40" FB Bed Area 48" LR x 23" FB Slide Area 0-150 VSPM Equipment and Features Air Clutch and Brake Air Counterbalances Monitor Flow Recirculating Lube System T-Slotted Ram and Bolster Free Standing Console Control Wintriss Die Pro 1500 Die Protection Wintriss Programmable Cam Outputs Dual Palm Buttons 6" Thick Bolster Plate 50" Distance Between Gibs 42" Distance from Floor to Top of Bed 20" Wide Windows Vibro Dynamic Floor Mounts Floor Standing Overall Height: 13' 2" This used 150-ton Minster Press can be seen under power in the S&G Press Livonia Michigan Warehouse. Used Straight Side Highspeed Minster Mechanical Metal Stamping Press For Sale |
|
