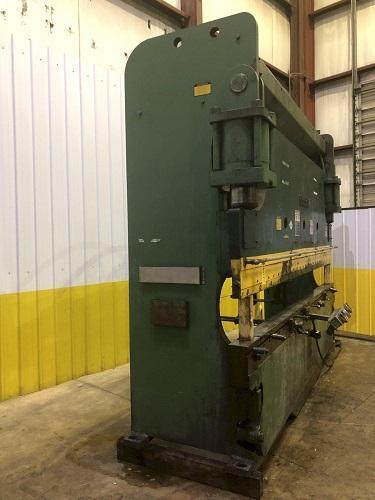

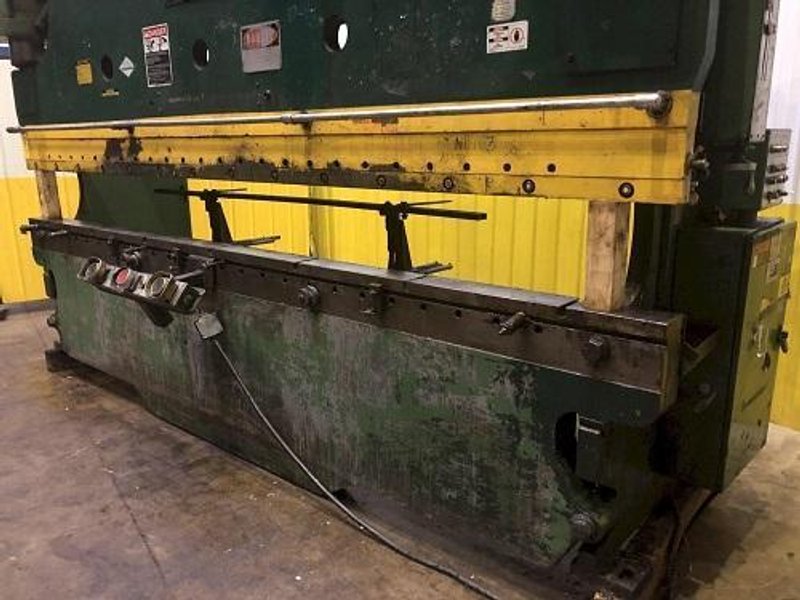

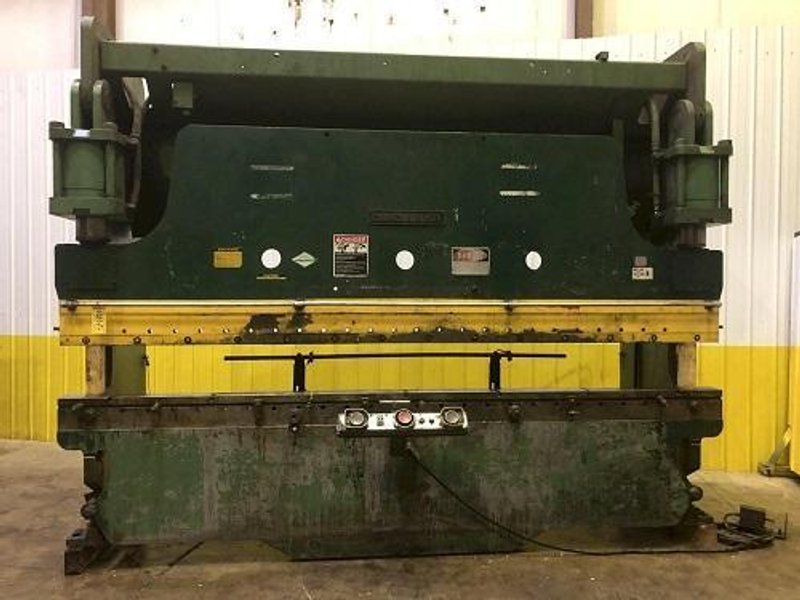

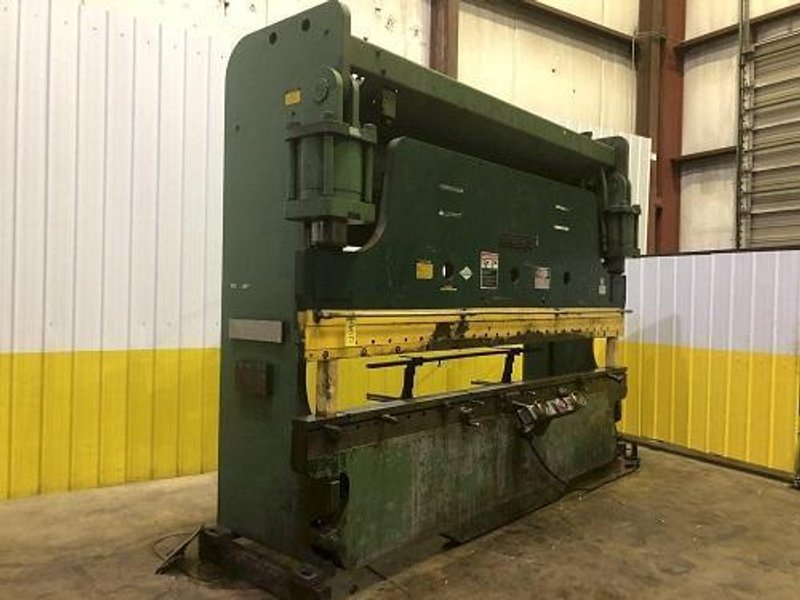

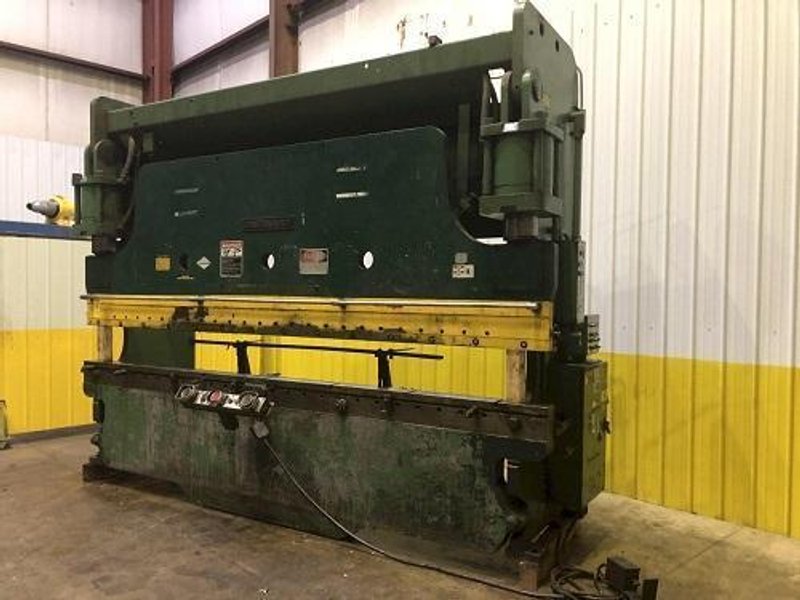

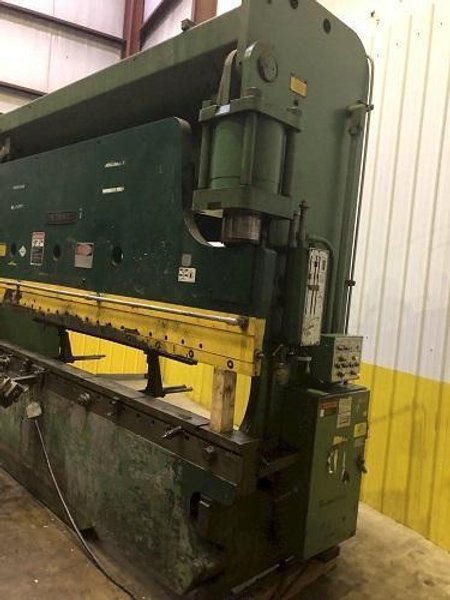

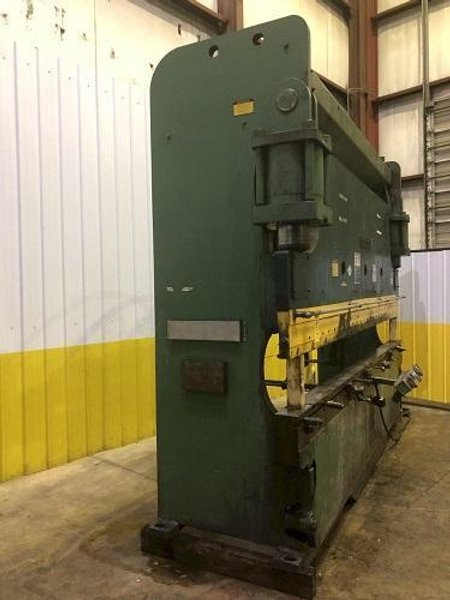

230 TON X 14' CINCINNATI MODEL #230CBX12 HYDRAULIC PRESS BRAKE
Brand
Category
Type
Model
Not specified
Stock #
116309
Year
Not specified
Condition
Used
Location
Not specified
|

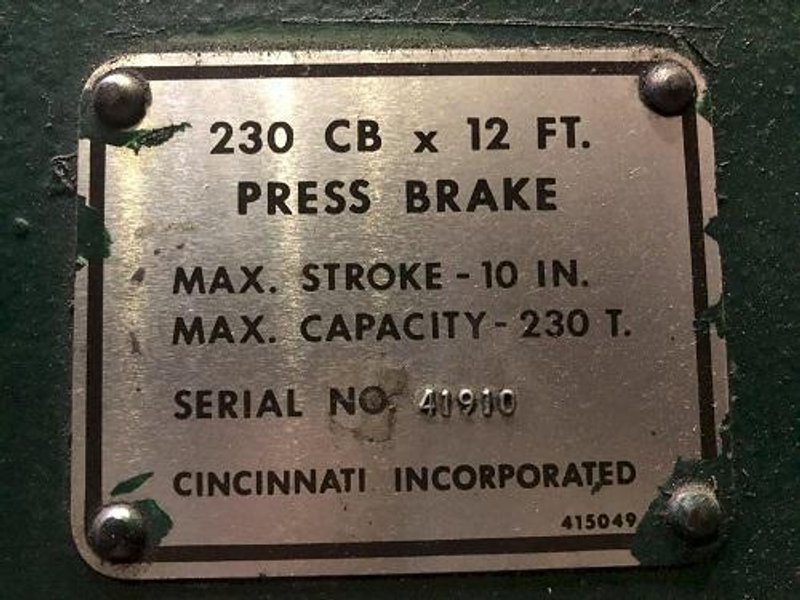

230 TON X 14' CINCINNATI MODEL #230CBX12 HYDRAULIC PRESS BRAKE
MODEL ............................ 230CB12
CAPACITY ......................... 230 TON
OVERALL LENGTH OF BED AND RAM .... 14'
DISTANCE BETWEEN HOUSING ......... 12'6"
STROKE OF RAM .................... 10"
OPEN HEIGHT ...................... 17"
CLOSED HEIGHT .................... 7"
DEPTH OF THROAT .................. 8"
RAM SPEED HIGH ................... 101 IPM
RAM SPEED MEDIUM ................. 49 IPM
RAM SPEEDS LOW ................... 14 IPM
RAM SPEEDS RETURN ................ 95 IPM
MILLED & DRILL FOR ANGLES......... YES

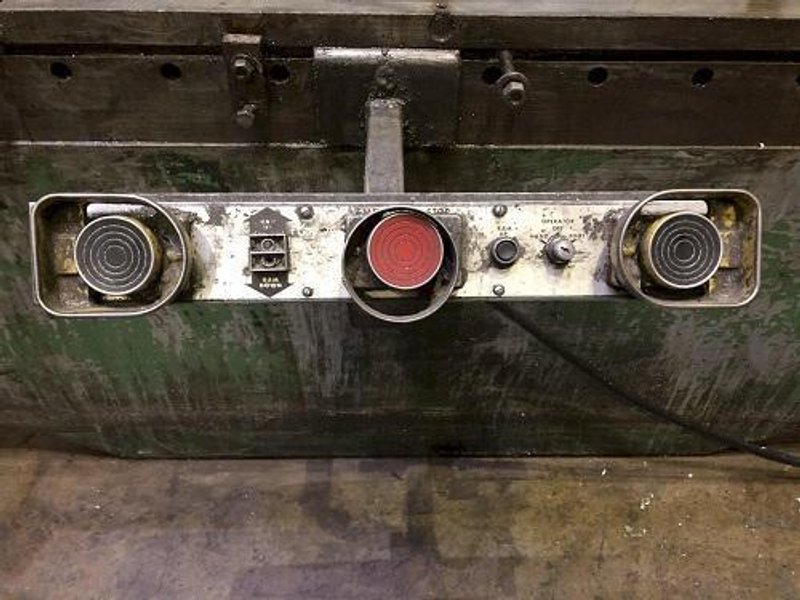

PALM BUTTTONS CONTROLS ........... YES
MOTOR ............................ 35 HP
|
