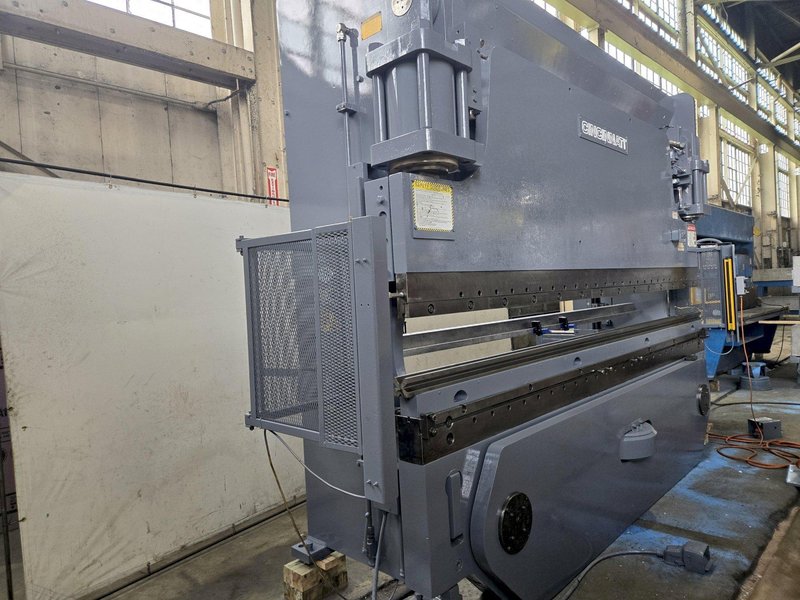

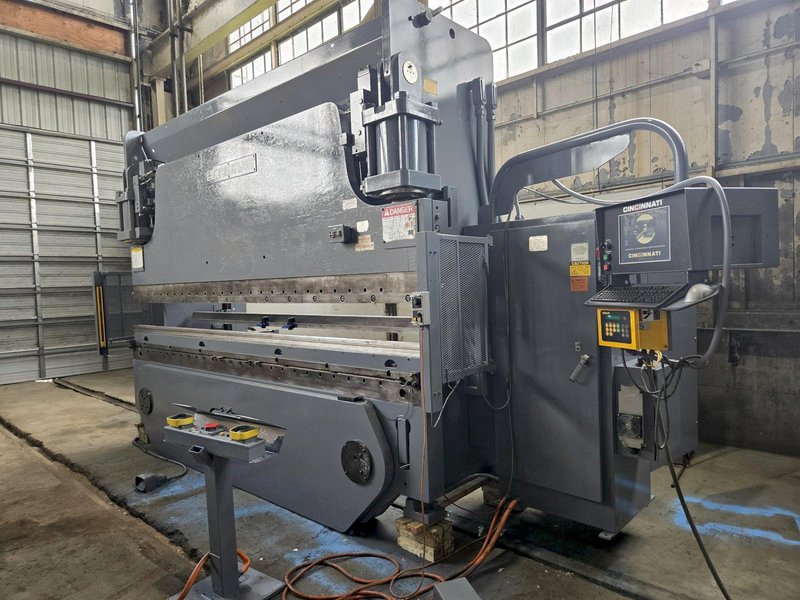

230 TON X 14' CINCINNATI 230AFX12 AUTOFORM HYDRAULIC PRESS BRAKE WITH UPGRADED CONTROL. STOCK # 0112226

230 TON X 14' CINCINNATI 230AFX12 AUTOFORM HYDRAULIC PRESS BRAKE WITH UPGRADED CONTROL. STOCK # 0112226

Name: 230 TON X 14' CINCINNATI 230AFX12 AUTOFORM HYDRAULIC PRESS BRAKE WITH UPGRADED CONTROL. STOCK # 0112226
Brand: CINCINNATI
SKU: 0112226
Availability: InStock

Brand

CINCINNATI

Location

Ohio

Specifications
Files & Videos

Tonnage	230 tons
Hyd/Mech	hydraulic
OA (Overall) Length	168 inches
Stroke	10 inches
Capacity	230 tons
Overall Bed Length	168 inches
Distance Between Housings	12.5 feet
Stroke	10 inches
Open Height	17 inches
Closed Height	7 inches
Throat Depth	8 inches
Ram Speeds - Approach	230
Ram Speeds - Working	1 TO 45
Ram Speeds - Return	1 to 250
Motor	25

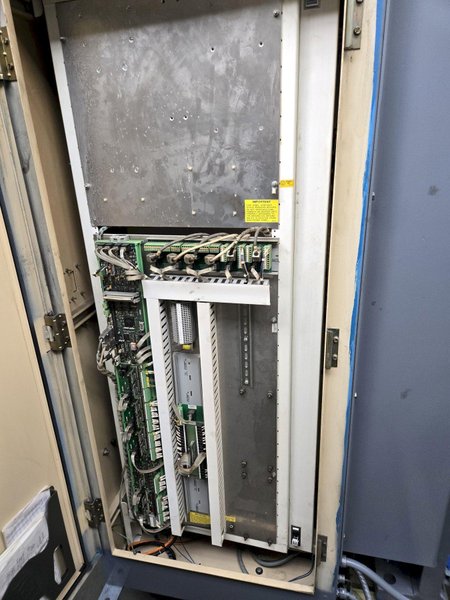

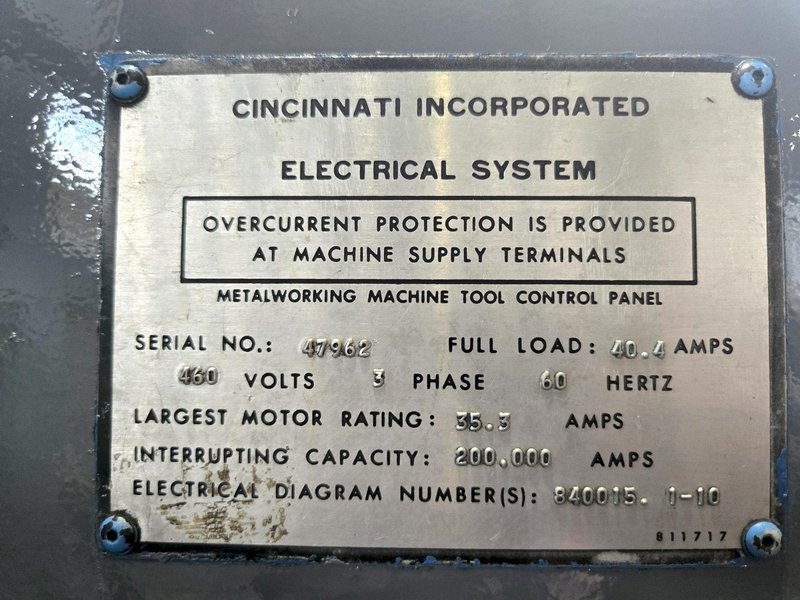

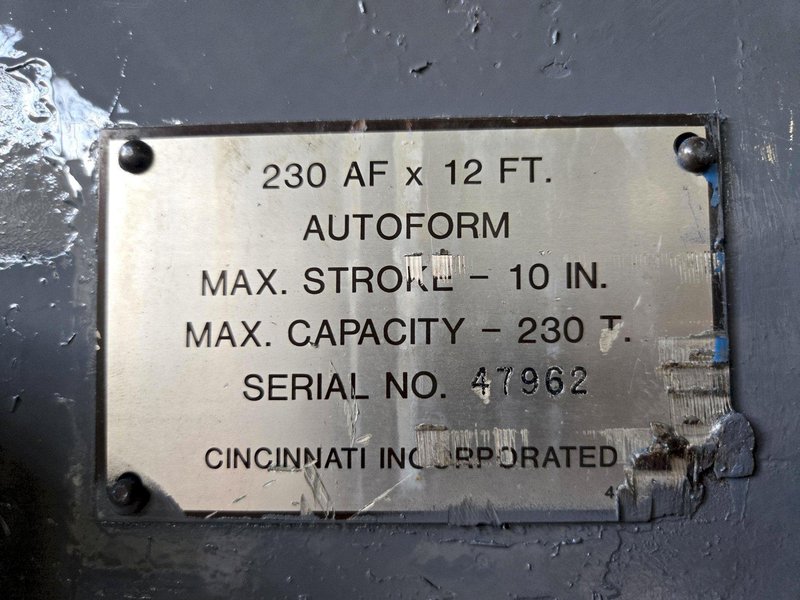

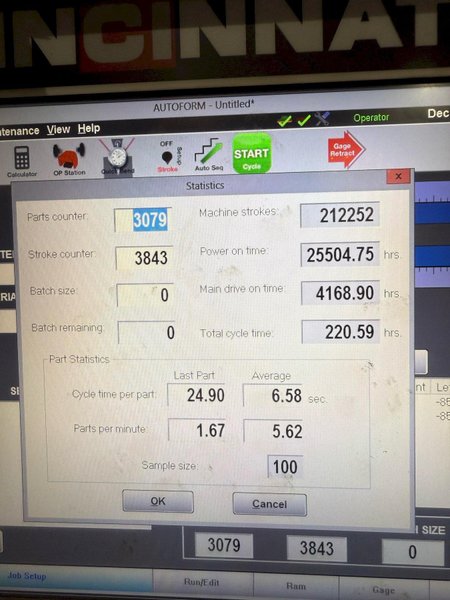

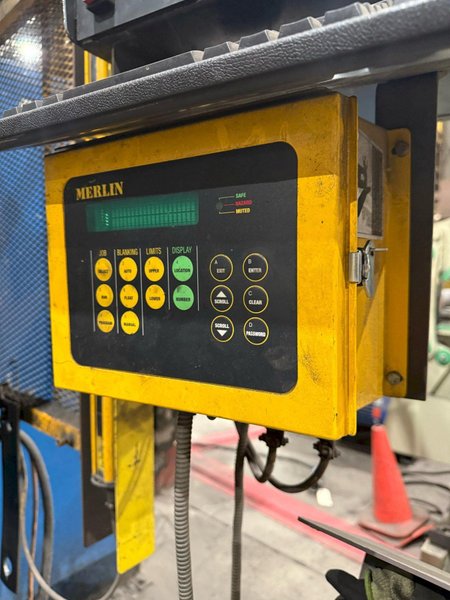

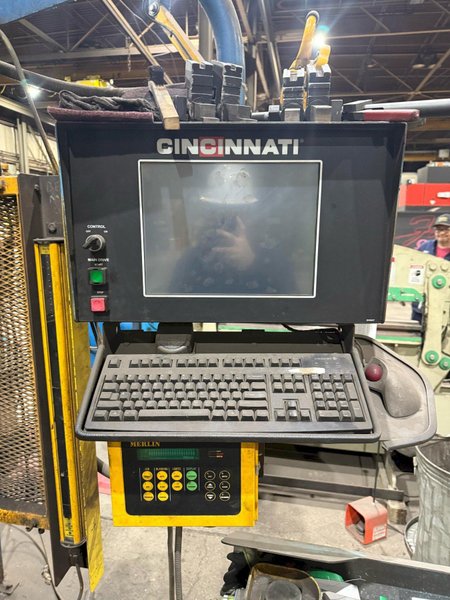

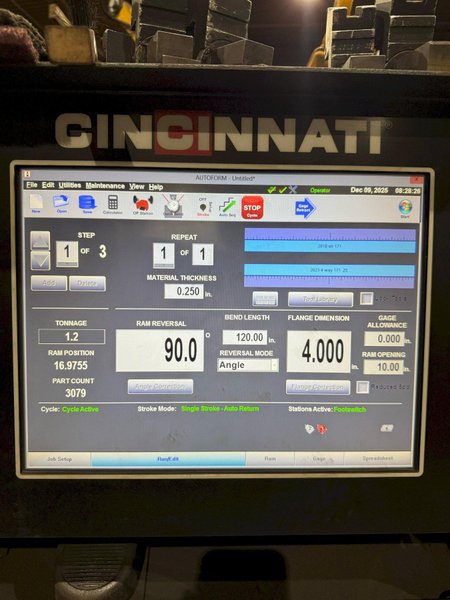

SERIAL..........................: 47962 MODEL...........................: 230AFX12 CAPACITY........................: 230 TON OVERALL LENGTH OF BED...........: 168" DISTANCE BETWEEN HOUSINGS.......: 12'6" STROKE..........................: 10" OPEN HEIGHT.....................: 17" CLOSED HEIGHT...................: 7" THROAT CLEARENCE................: 8" APPROACH........................: 230 IPM RAM SPEED FORMING...............: 1 TO 45 IPM RAM SPEED RETURN................: 1 TO 250 IPM HYDRAULIC MOTOR.................: 25 HP - CINCINATI CONTROL UPGRADE IN 2008 - MERLIN AUTO SAFETY SYSTEM. - FRONT MOUNTED LIGHT CURTAINS.
