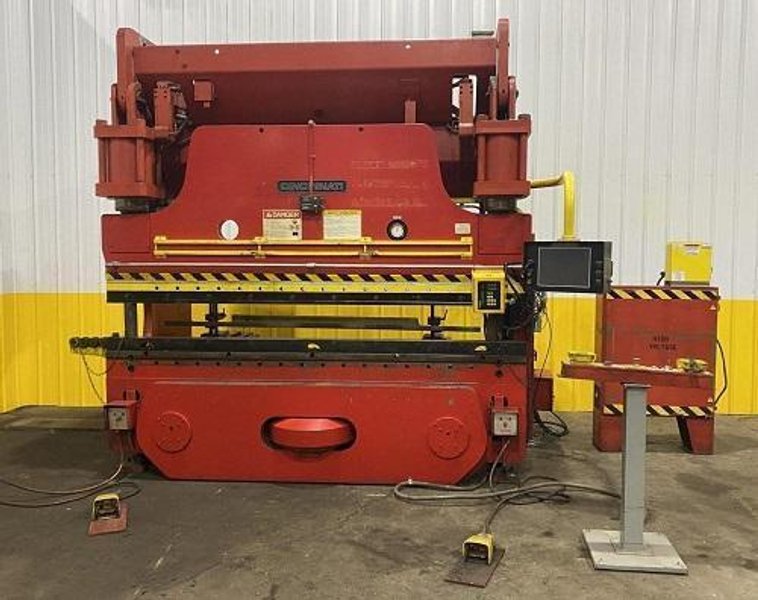

230 TON X 10' CINCINNATI M#230-8AS HYDRAULIC CNC PRESS BRAKE W/ CONTROLS
Brand
Category
Type
Model
Not specified
Stock #
116307
Year
Not specified
Condition
Used
Location
Not specified
|

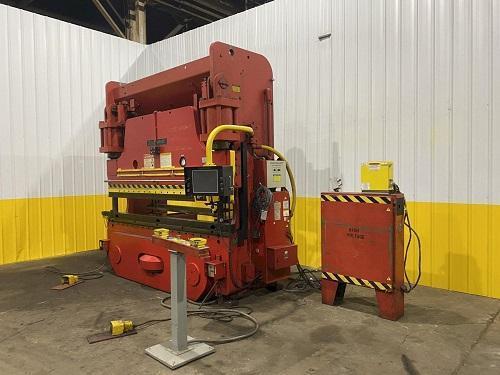

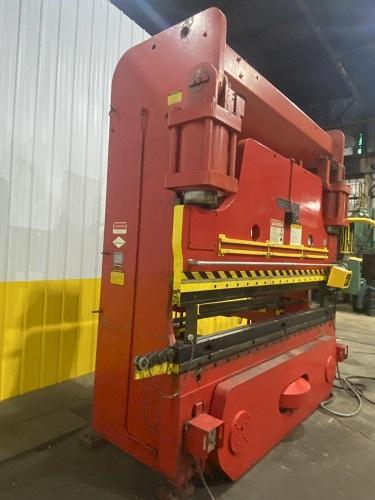

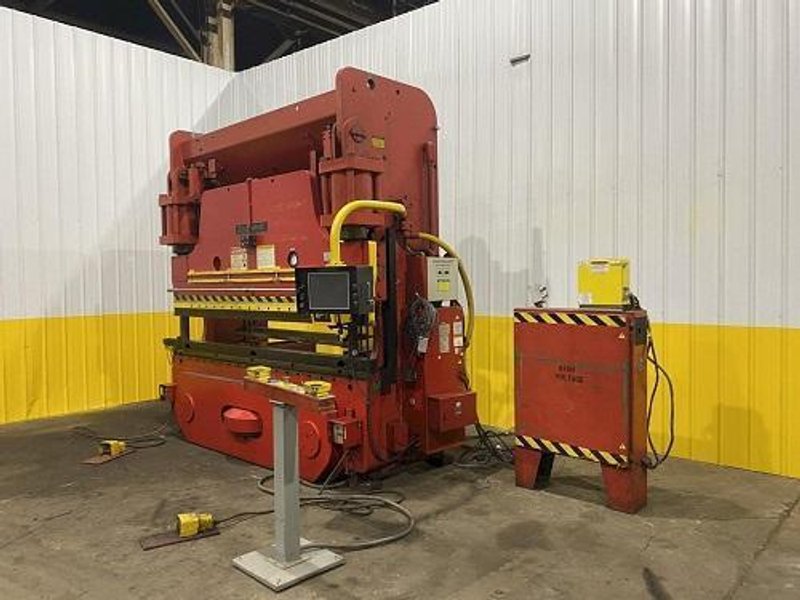

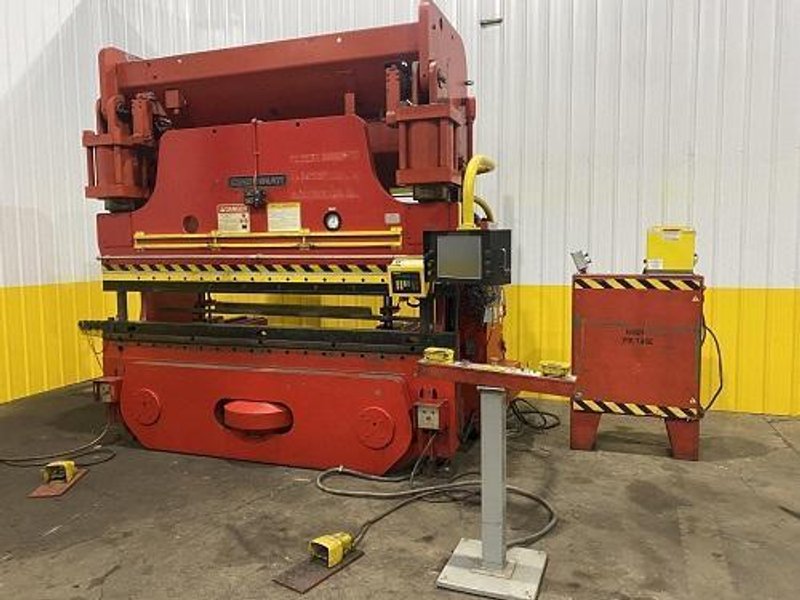

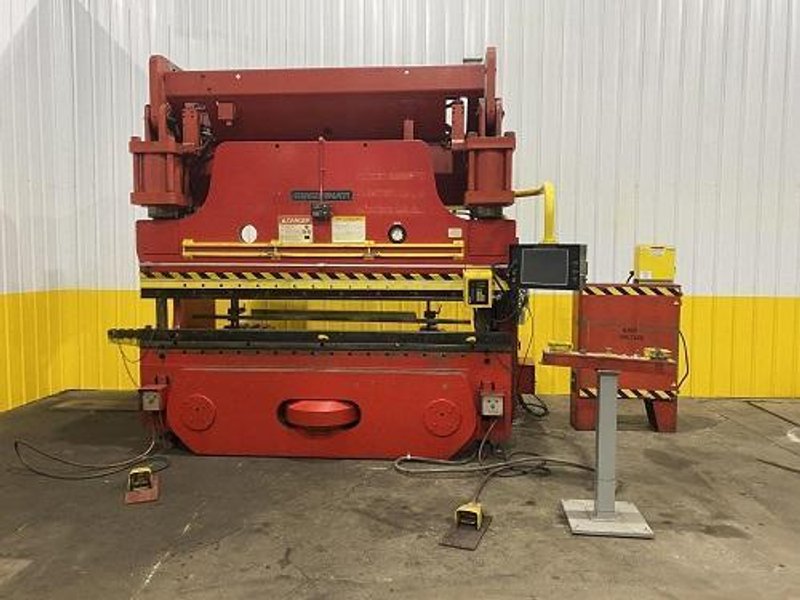

230 TON X 10' CINCINNATI MODEL #230-8AS HYDRAULIC CNC
PRESS BRAKE W/ UPGRADED CONTROLS

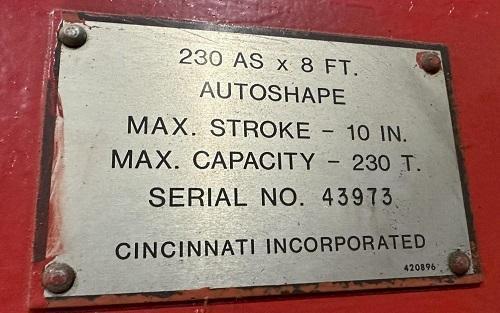

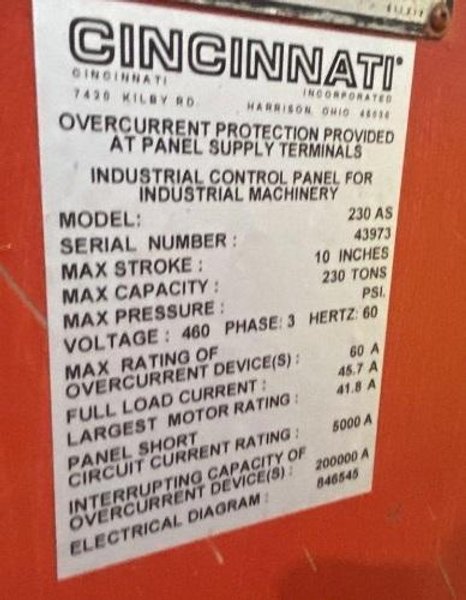

SERIAL ........................... 43973
MODEL............................. 230ASX8
YEAR NEW ......................... 1985

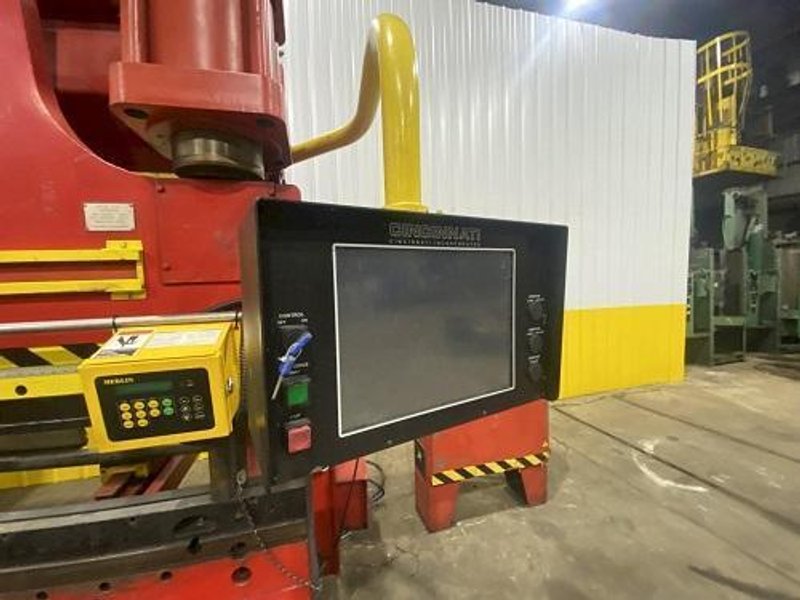

UPDATED TOUCHSCREEN CONTROLS ..... 2011
CAPACITY ......................... 230 TON
OVERALL LENGTH OF BED AND RAM .... 10'
DISTANCE BETWEEN HOUSING ......... 8'6"
STROKE OF RAM .................... 10"
OPEN HEIGHT ...................... 17"
CLOSED HEIGHT .................... 7"
RAM ADVANCE SPEED ................ 101 IPM
RAM PRESS SPEED .................. 14 IPM
RAM RETURN SPEED ................. 95 IPM
POWER BACKGUAGE .................. 48"
AUTO CROWNING .................... YES
FLOOR STANDING, NO PIT REQUIRED .. YES
ELECTRIC FOOT TRIP ............... YES
PEDESTAL STAND W/ PALM BUTTONS .. YES
MOTOR ............................ 30 HP
|
