MAZAK 6300 MULTI-PLEX MACHINING CENTER: STOCK #20399
Brand
Category
Model
MP-6300
Stock #
20399
Year
2009
Condition
Good
Location
Ohio
|

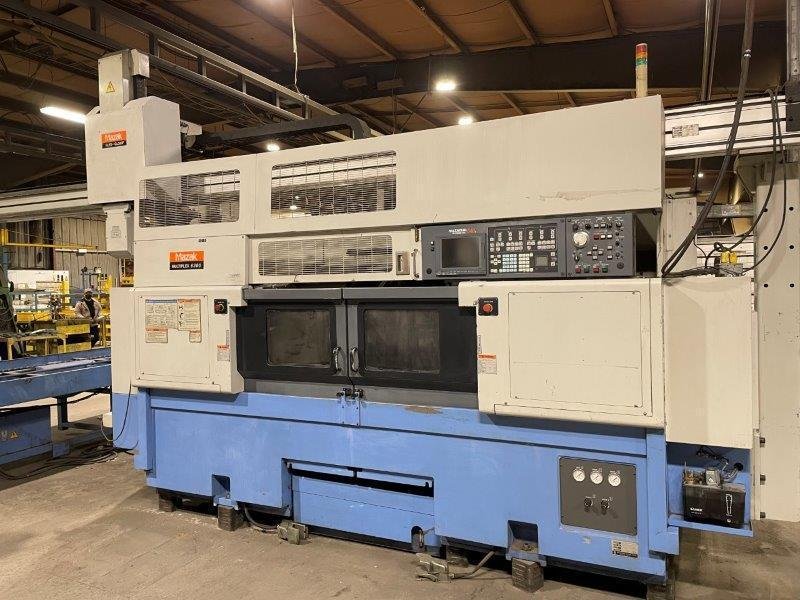

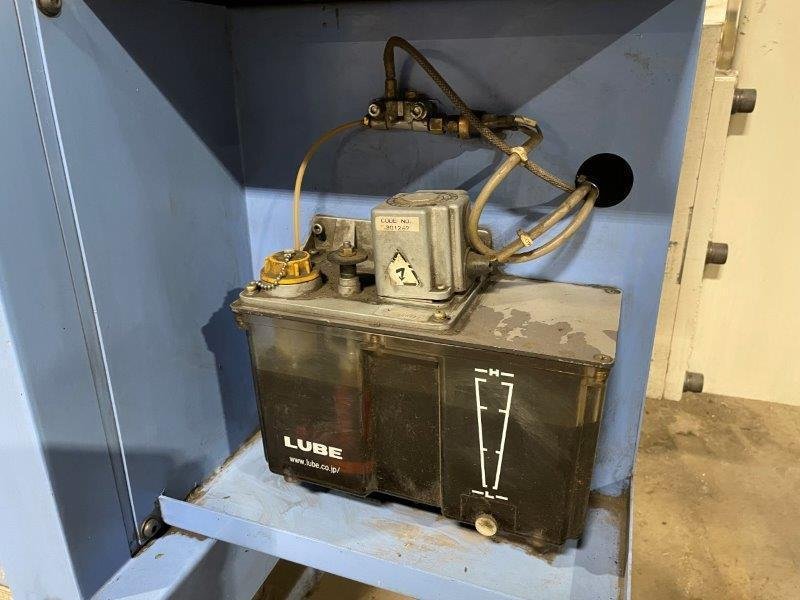

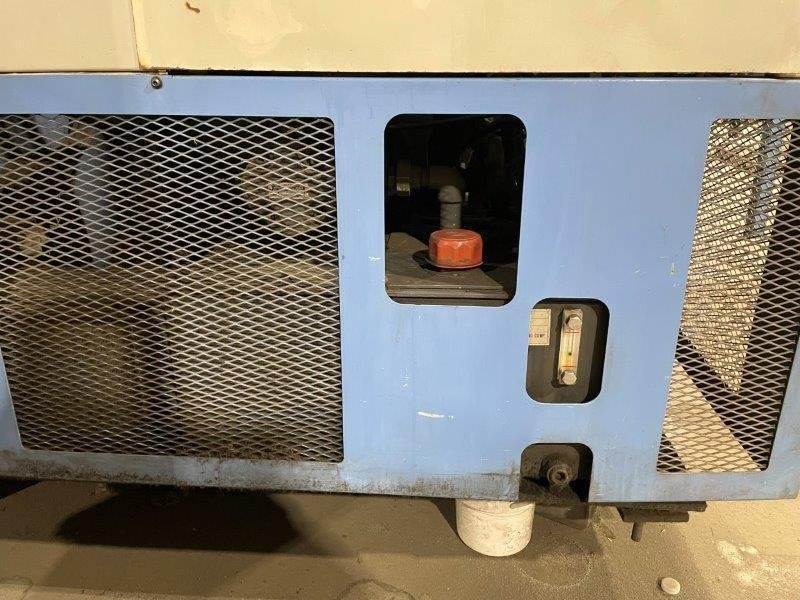

MAZAK 6300 Multi-Plex
Maximum Swing ........................................................ 16.93″
Standard Cutting Diameter ............................................ 13.0″
Maximum Cutting Diameter ............................................. 16.93″
Maximum Cutting Length Chuckwork ..................................... 8.86″
Maximum Cutting Length Shaftwork ..................................... 25.59″
MAIN SPINDLE (L&R) Distance Between Spindle Faces:
Max.(Both Heads @ Home Position) ..................................... 57.09″
Min .................................................................. 9.82″
Spindle Nose ......................................................... A2-8
Spindle Bore ......................................................... 3.46″
Maximum Bar Diameter ................................................. 3.0″
Spindle Speed/Ranges ................................................. 4,000 RPM/1
Spindle Indexing (C-Axis) ............................................ 001 deg./360,000 Positions
Spindle Horsepower (30 min.) ......................................... 30 HP (AC)
Spindle Torque ....................................................... 441.34 ft.-lbs.
TURRET (L&R) Type of Turrets ...................................................... Dodecagonal/Drum Non-Lift
Tool Holder Shanks ................................................... Modified VDI
Turret Index Time (1 Step) ........................................... 0.3 Sec.
Total Number of Tools:
(Rotary Avail./All Positions) ........................................ 24 (12×2)
Tool Size:
Turning & Facing ..................................................... 1″ x 1″
Boring Bar Maximum Diameter .......................................... 2″
MILL SPINDLE (L&R) Spindle Speed ........................................................ 4,000 RPM
Spindle Horsepower (10 Min) .......................................... 10 HP (A.C.)
Spindle Torque (4000 RPM) ............................................ 57.88 ft.-lbs.
Maximum Drill ........................................................ 7/8″
Maximum End Mill ..................................................... 13/16″
Maximum Tap .......................................................... 8- 5/8 UNC
AXIS Travel:
X-Axis (L&R) ......................................................... 12.2″
Z-Axis (L&R) ......................................................... 23.82″
Rapid Traverse:
X-Axis ............................................................... 945 IPM
Z-Axis ............................................................... 945 IPM
C-Axis ............................................................... 400 RPM
MACHINE Machine Floor Space (W x L):
W/O Automation or Bar Feeder, etc .................................... 95.3″ x 167.7″
Machine Height ....................................................... 82.68″

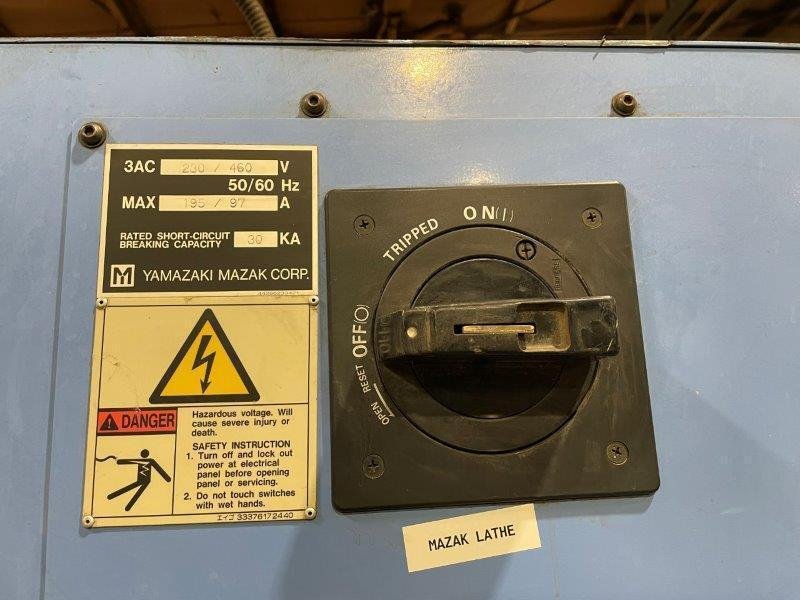

Total Power Required (Machine Only) .................................. 68 KVA
NOTE: Actual Machine Main Transformer KVA Rating Will be Greater
Air Requirements ..................................................... 71 psi / 14 CFM
Total Weight (For Machine Only) ...................................... 25,740 lbs.

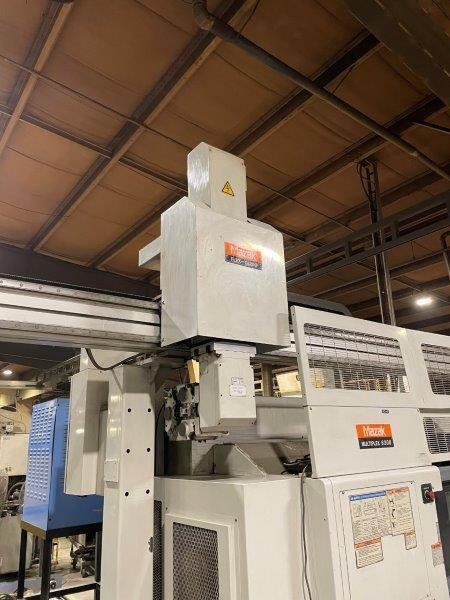

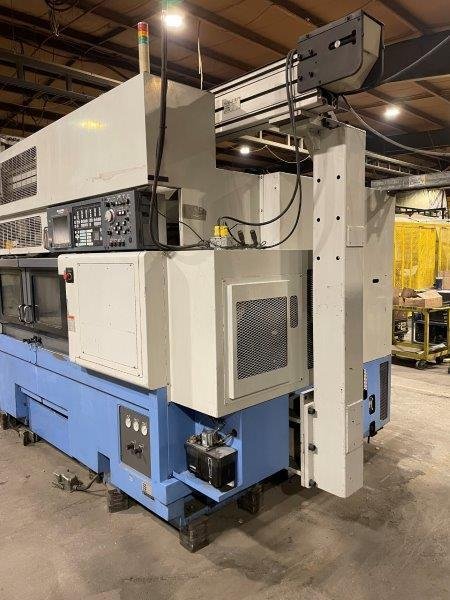

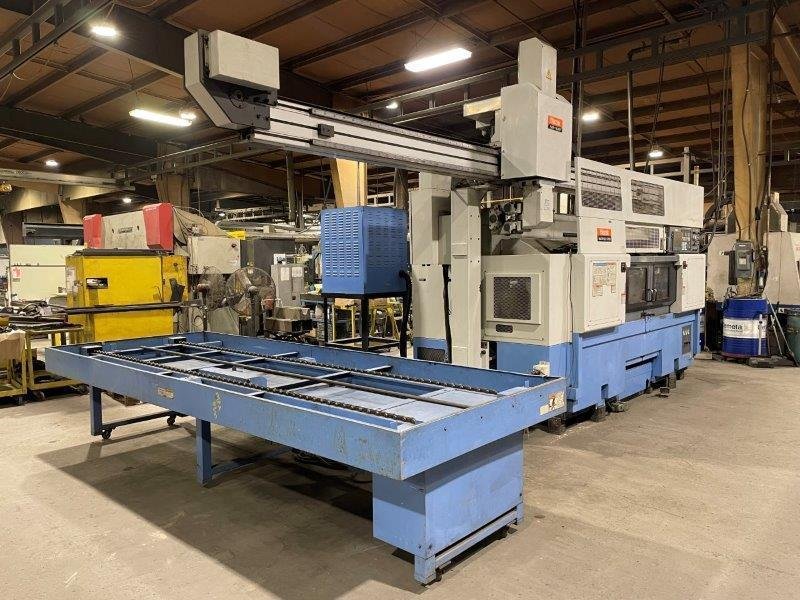

GL200F GANTRY ROBOT SPECIFICATIONS: ROBOT
Maximum Workpiece Weight ............................................. 44 Lbs. x 2
Body Traverse Speed .................................................. 4728 IPM
Arm Up/Down Speed .................................................... 2364 IPM

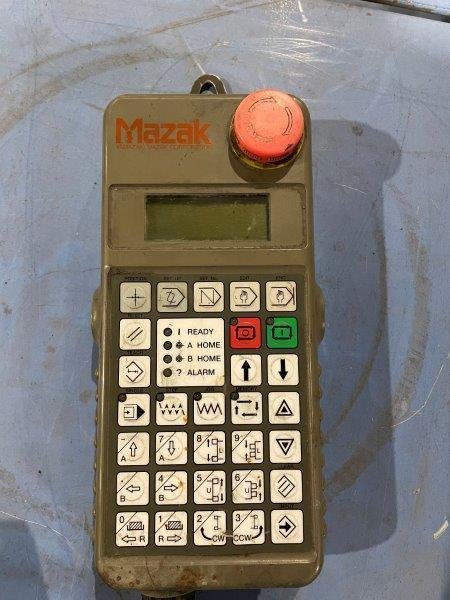

CONTROLLER Type ................................................................. Mazatrol Fusion 640
Teaching Method ...................................................... Teaching-less, Fixed pattern
Memory Capacity ...................................................... No limit on number of programs (About200 Programs in now).
HAND TYPE ............................................................ “D3” (STD)
Type of Workpiece .................................................... Round Chuck Work
Construction ......................................................... Double Hand
Gripping ............................................................. 3-Jaw Centripetal
Workpiece ............................................................ 11.81″Dia. x 5.91″L/44 lbs.x 2

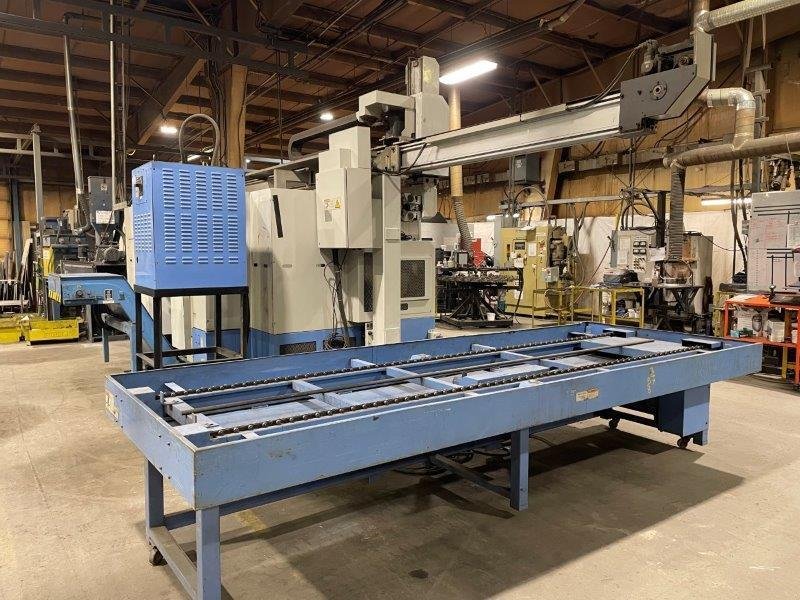

TYPE III PITCH FEED CONVEYOR Number of Pallets .................................................... 6
Type of Workpiece .................................................... Chuckwork
Equipped Specifications; Mazatrol PC-Fusion 640T CNC Control
N-EIA/ISO Option Package
PCMCIA Interface (1-Slot)
Network Interface (For LAN & Modem) yes.
Main Spindle Motor 30 HP L&R
Spindle Speed 4000 RPM L&R
C-Axis 0.001 Degree Incr. L&R
12 Position Drum Turret (VDI Strt. Shank)
Rotary-Tool Spindle Speed 4000 RPM L&R / 57.88 ft-lbs
Automatic Tool eye L&R
Milling Spindle Synchronous Tapping L&R
Relocation Device
Windows 2000 Operating System for Mazak Machine Control
Overload Detector L&R
Auto Power On/Off + Warm-up

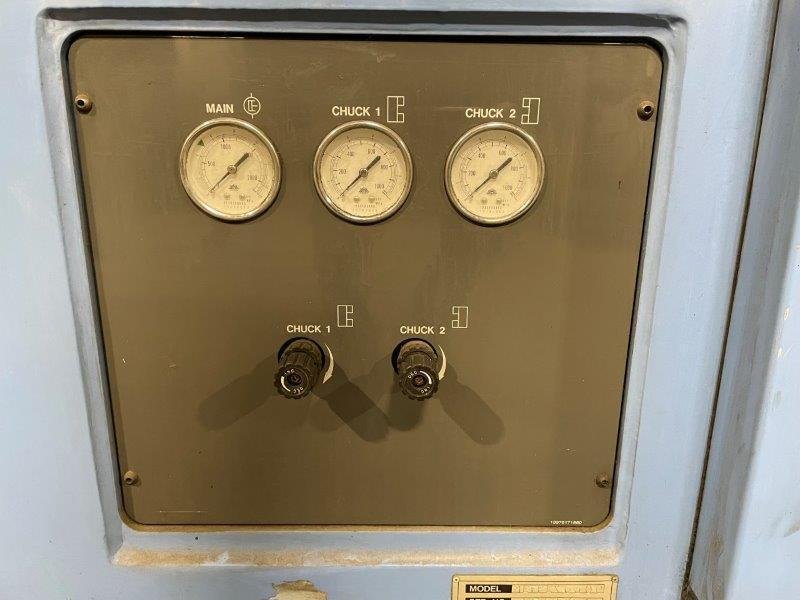

Chuck Air Blast L&R
Turret Air Blast L&R
Air Blow for Work Transfer

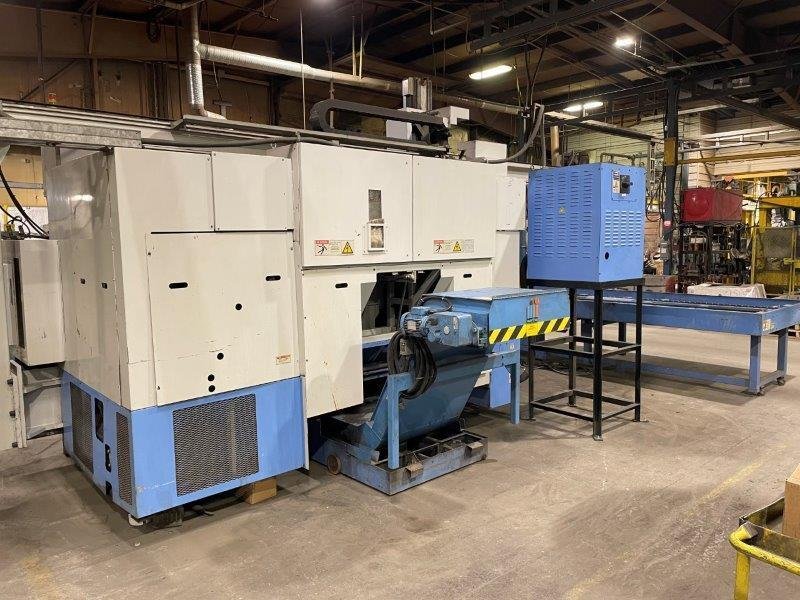

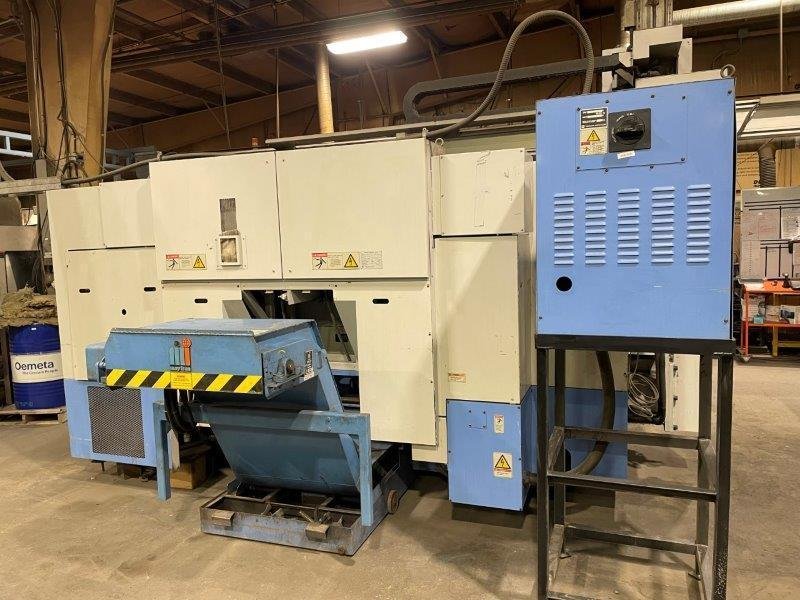

Chip Conveyor Rear Disposal (Hinge Type)
Auto Pecking Cycle with Load Detection
GL200F/Pitch-Feed Type 3/D2-Hand |
