AIDA 165 TON OBI PUNCH PRESS, STOCK# 13928T

Brand
THERMAL SOLUTIONS
Category
Material Handling Items
Type
Lifters, Scissor
Model
165 TON
Stock #
13928T
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

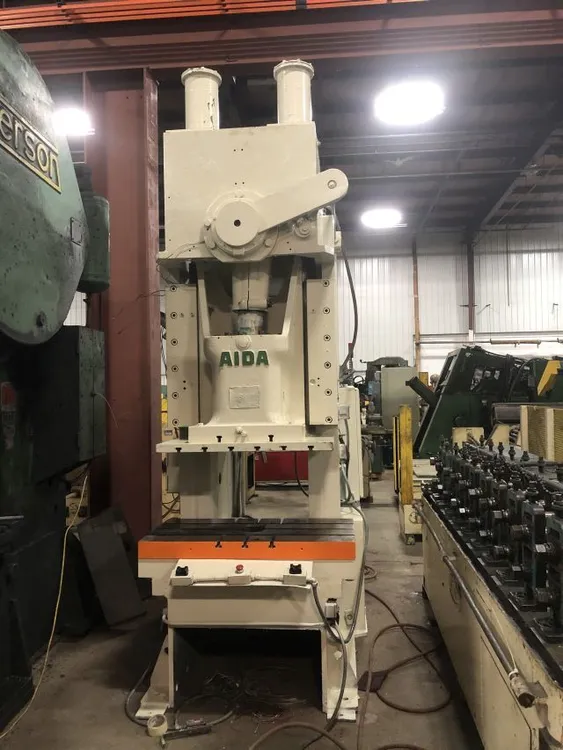

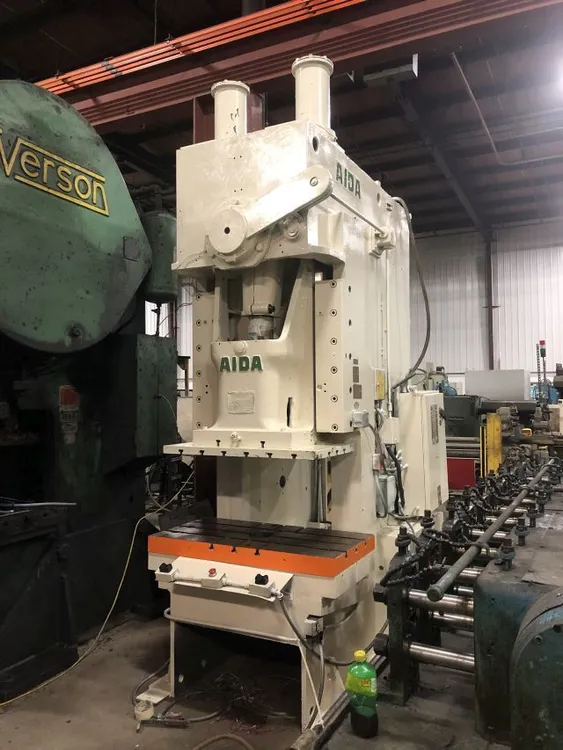

AIDA 165 TON OBI PUNCH PRESS, STOCK# 13928T,MODEL C1-15(2)
STROKE 7.8
SLIDE ADJ 3.3
SHUT HEIGHT 15.7"
AREA OF BED 48.8"LR X 24.8"FB
BOLSTER THICKNESS 3.5
AREA OF SLIDE 26.3"LR X 19.6"FB
OPENING THRU BACK 26.5"
FLOOR TO TOP OF BED 35.5"
SPM APPROX 45,EQUIPPED WITH:
AIR CLUTCH & BRAKE
AIR COUNTERBALANCES
BACK GEARED TYPE
ONE SHOT LUBE
KNOCKOUT SLOT IN SLIDE
RAM PLATE 40"LR X 23.5"FB X 2"T
APPROX WEIGHT 34,000 LBS
NEW PRESS CONTOL LEAD TIME 2
No files or videos to display

Want to request a quote from the owner of this listing?

Similar Listings to - AIDA 165 TON OBI PUNCH PRESS, STOCK# 13928T

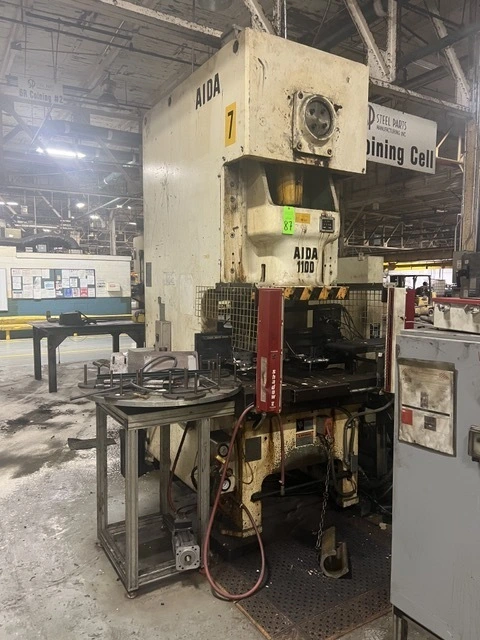

AIDA 121 TON SINGLE CRANK GAP FRAME PRESS, S/N CO411-0199, STOCK# 14220J
