AIDA 121 TON SINGLE CRANK GAP FRAME PRESS, S/N CO411-0199, STOCK# 14220J

Brand
THERMAL SOLUTIONS
Category
Material Handling Items
Type
Lifters, Scissor
Model
121 TON SINGLE CRANK GAP FRAME PRESS
Stock #
14220J
Year
2005
Condition
Not specified

Location

Not specified
REQUEST FINANCING

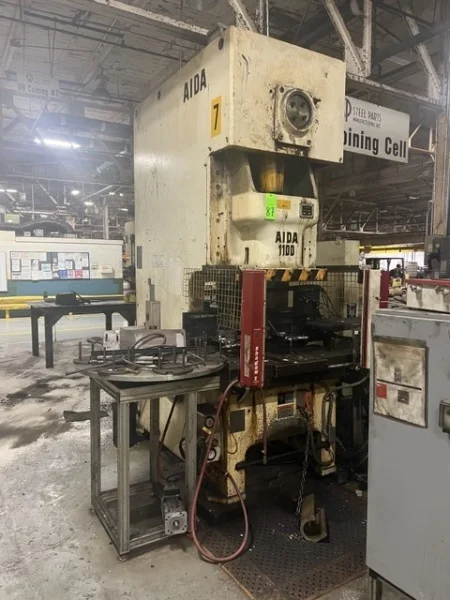

AIDA 121 TON SINGLE CRANK GAP FRAME PRESS, S/N CO411-0199, STOCK# 14220J
MODEL: NCA-1100(2)
YEAR: 2005

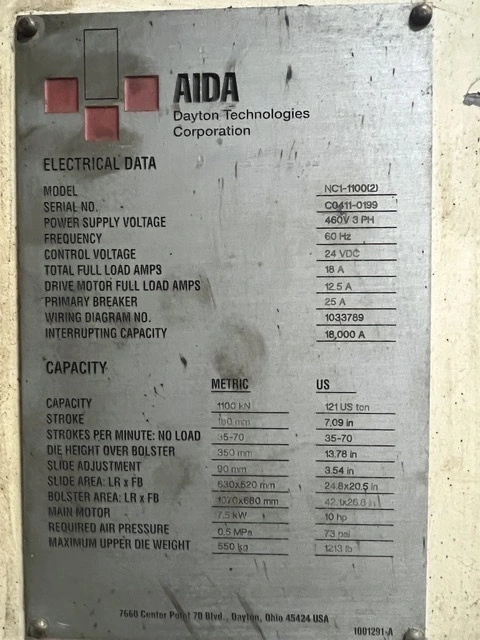

SPECIFICATIONS:
Serial# CO411-0199,Capacity: 121 US Tons
Stroke: 7.09”
Spped: 35 - 70 SPM
Shut Height: 13.78” over bolster (slide down adjustment up)
Adjustment: 3.54”
Bed Area: 42.1” lr x 26.8” fb
Slide Area: 24.8” lr x 20.05: fb
Max Upper Die Weight: 1213#
Main Motor: 10 HP
Total Full Load Amps: 18 amps
Air Pressure Required: 73 psi,460v/3ph/60cy
Control Voltage: 24v,Equipped with:

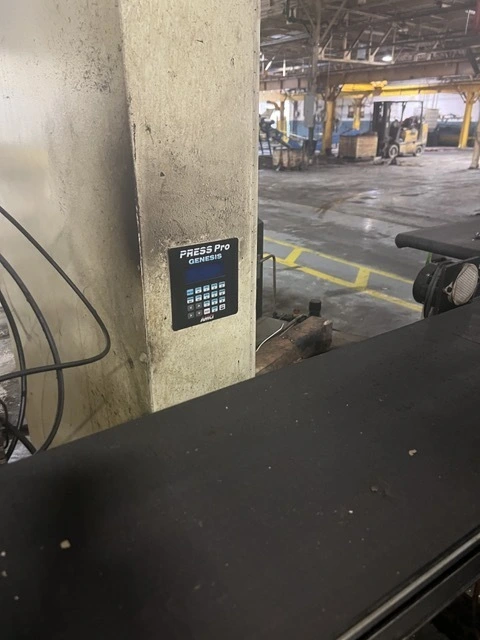

AMCI Press Pro Genesis Control
