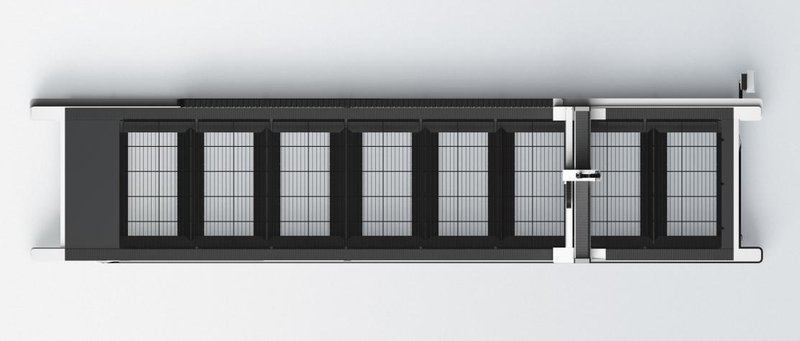

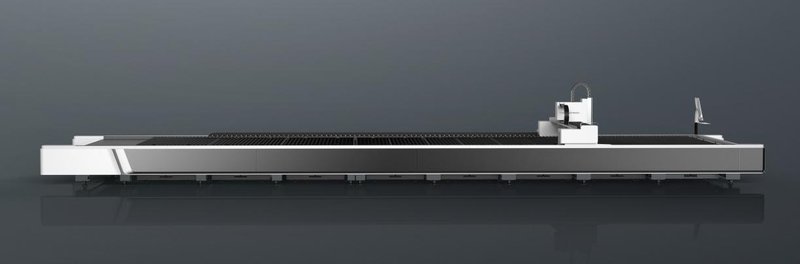

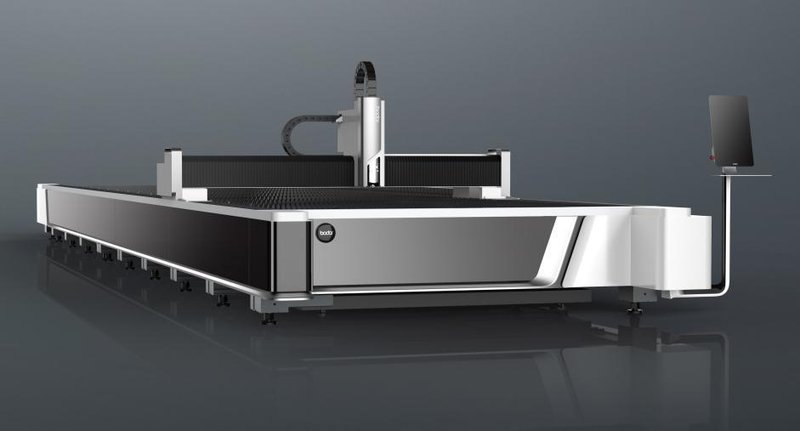

| FIBER LASER CUTTING MACHINE: |
| |
Laser Power |
|
| |
30kw |
|
| Centrifugal Fan |
Included |
| Freight & Tariff |
Included |
| Installation & Training Cost |
Included |
| Transportation |
By Sea |
| Loading Container |
1*40'FR+1*40'HQ |
| Payment Terms |
30% down payment, 70% before shipment. |
| Warranty |
Five years limited warranty for main parts. One-year free labor. |
| Optional: |
| Fume Filter |
|
| Air Compressor |
12KW, 22KW, 24KW |
|
| 30KW |
|
| Basic Parameter: |
| Working area |
12200mm*2500mm (≈40'x8.2') |
| Max. linkage speed |
100m/min (328ft/min） |
| Intelligent Function: |
| Bodor Lightning perforation technology |
Yes |
| High Speed Cutting Expert Database |
Yes |
| Remnant Typesetting |
Yes |
| Air pressure intelligent control |
Yes |
| Automatic adjustment of cutting gas pressure |
O2, N2, air |
| Gas filtration alarm device |
Yes |
| Auto-focus of laser head |
Yes |
| Laser cutting technology expert database |
Yes |
| Ergonomic Remote Control (Bodor Mango®) |
Yes |
| Active anti-collision function |
Yes |
| Intelligent anti-shake of sheet edge |
Yes |
| High quality Cutting Expert Database |
Yes |
| Anti-slag Protection |
Yes |
| Mineral casting anti burning |
Yes |
| Gas-saving steady flow nozzle |
Yes |
| Automatic lubrication |
Yes |
| Intelligent maintenance reminder |
Yes |
| WIFI internet connection |
Yes |
| Bodor Cloud service |
Yes |
| Performance: |
| Requirements for sheet |
Plate thickness≥0.8mm |
| Max. acceleration |
1.5G |
| Table load bearing |
5993KG(1-6KW)
7182kg(12KW)
9589KG(22-30KW) |
| Machine overall dimensions |
15077mm*3950mm*1830mm (≈49.5'x13'x6') |
| Overall weight |
10193kg |
| Z axis travel |
100mm (≈3.9'') |
| Positioning accuracy |
±0.05mm/m |
| Repositioning accuracy |
±0.03mm |
| Φ30mm roundness |
≤0.15mm |
| □30mm adjacent side dimension difference |
≤0.06mm |
| □190mm adjacent side dimension difference |
≤0.15mm |
| □190mm diagonal size difference |
≤0.20mm |
| Configuration: |
| Laser source |
Bodor Power |
| Laser head |
BodorGenius |
| Machine bed |
Mortise-and-tenon structure bed |
| Gantry structure |
Stretched Aluminum gantry |
| Linear Rails |
Bodor |
| Rack |
Bodor |
X-axis, Y-axis, Z-axis, A-axis
Servo motor and driver |
Bodor |
| Integral aluminum cantilever for high pressure steel mold casting |
Yes |
| Control system |
Bodor Thinker |
| Display size |
21.5 inches |
| System identification file format |
DXF, DWG, PLT, NC, G file |
| Intelligent alarm |
Yes |
| Water Chiller |
Yes |
| Power Requirements |
220V/440V/480V 60HZ 3PHASE (Up to Clients Power Requirement) |
| Total power capacity/current with 60KW source (380V) |
325.0kVA/493.8A |
| Total power capacity/current with 40KW source (380V) |
245.5kVA/373.0A |
| Total power capacity/current with 30KW source (380V) |
190.5kVA/289.4A |
| Total power capacity/current with 24KW source (380V) |
155.5kVA/236.3A |
| Total power capacity/current with 22KW source (380V) |
148.0kVA/224.9A |
| Total power capacity/current with 20KW source (380V) |
146.8kVA/223.0A |
| Total power capacity/current with 12KW source (380V) |
100.5kVA/152.7A |
| Total power capacity/current with 6KW source (380V) |
61.8KVA/94.0A |
