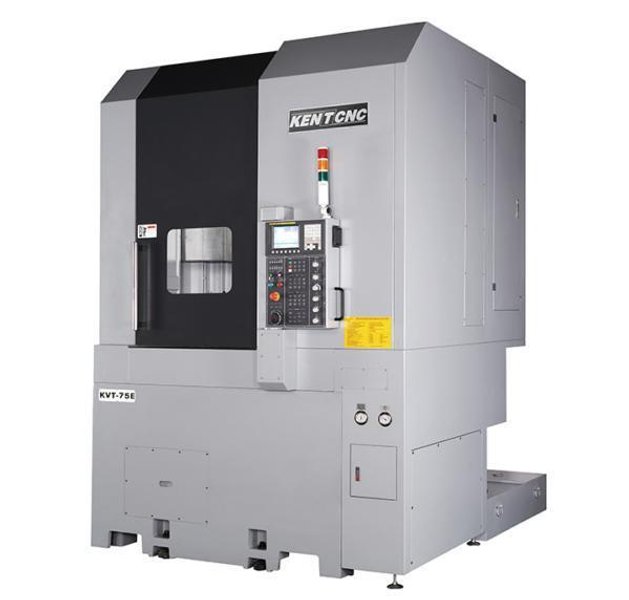

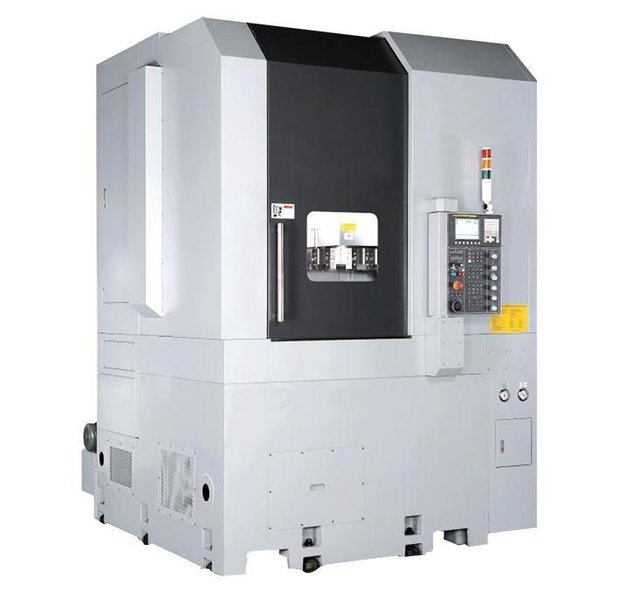

NEW KENT USA KVT-75E CNC COMPACT VERTICAL TURNING CENTER
he Kent CNC Vertical Turning Centers combine proven machine design with advance technology in control and manufacturing. A full range of vertical turning lathes, from the small KVT-55E to 100E compact vertical turning centers, is geared for the auto industry and the larger sizes are targeted for the windmill and power industries. The Kent CNC product line covers the 8”, 10”, 12”, 15”, 20” and 24” vertical chucker turning applications. Reliability and performance make this series a favorite among demanding job shops and in-house productions alike. The heavy cutting spindle and rigid machine structure enable higher machining efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around. Upgrade your global competitiveness today.
SPECIFICATIONS Max Swing 33.5" Max Turning Diameter 29.5" Max Turning Length 27.5" Spindle Speed 20-1,400 RPM Spindle Nose A2-11 Chuck Diameter 24" (Opt 32") Turret Type Bolt On Tool / VDI No Tools 12 Travels X Axis -1.7" - 14.7" Z Axis 31.5" Rapid Traverse X Axis .8 IPM Z Axis .9 IPM Motor Spindle 20 / 24 HP X & Z Axis Motor 5 HP Coolant Pump Motor .7 + 1.3 HP Approx. Dimensions 93" x 137" x 158" Approx. Weight 33,069 Lbs |
