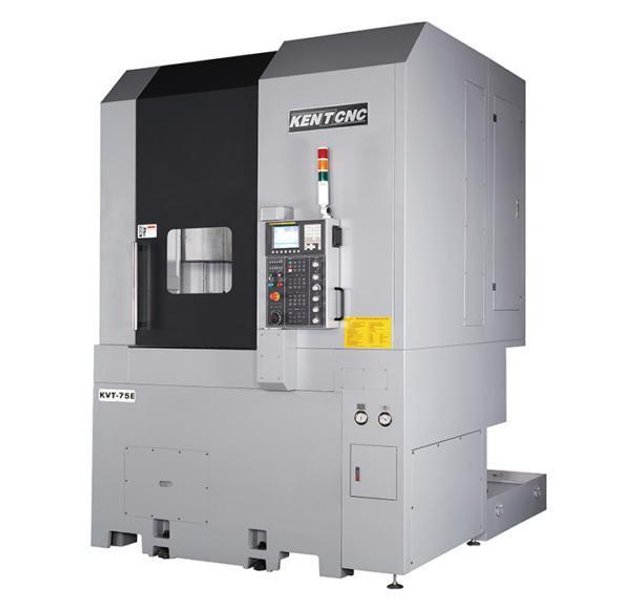

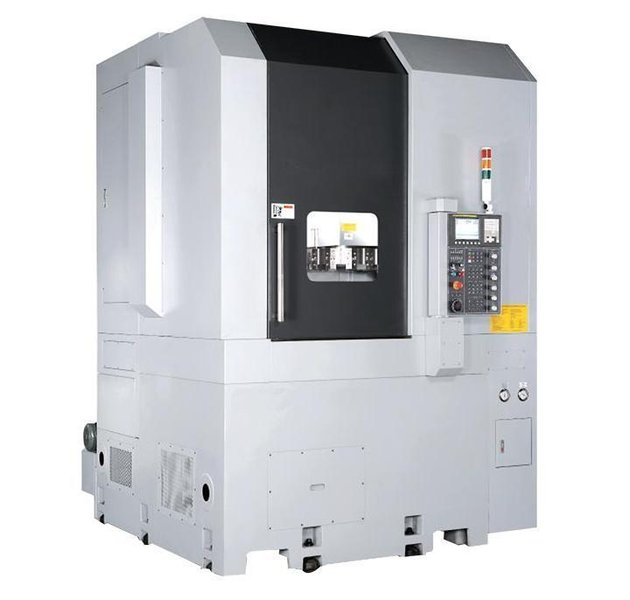

NEW KENT USA KVT-55E CNC COMPACT VERTICAL TURNING CENTER
he Kent CNC Vertical Turning Centers combine proven machine design with advance technology in control and manufacturing. A full range of vertical turning lathes, from the small KVT-55E to 100E compact vertical turning centers, is geared for the auto industry and the larger sizes are targeted for the windmill and power industries. The Kent CNC product line covers the 8”, 10”, 12”, 15”, 20” and 24” vertical chucker turning applications. Reliability and performance make this series a favorite among demanding job shops and in-house productions alike. The heavy cutting spindle and rigid machine structure enable higher machining efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around. Upgrade your global competitiveness today.
SPECIFICATIONS Max Swing 30" Max Turning Diameter 21" Max Turning Length 21" Spindle Speed 50-2,500 RPM Spindle Nose A2-8 Chuck Diameter 12" (Opt 15") Turret Type Bolt On Tool No Tools 12 Travels X Axis -.8" - 10.8" Z Axis 21.6" Rapid Traverse X Axis .8 IPM Z Axis .9 IPM Motor Spindle 20 / 24 HP X & Z Axis Motor 4 HP Coolant Pump Motor .7 + 1.3 HP Approx. Dimensions 73" x 118" x 120" Approx. Weight 11,684 Lbs |
