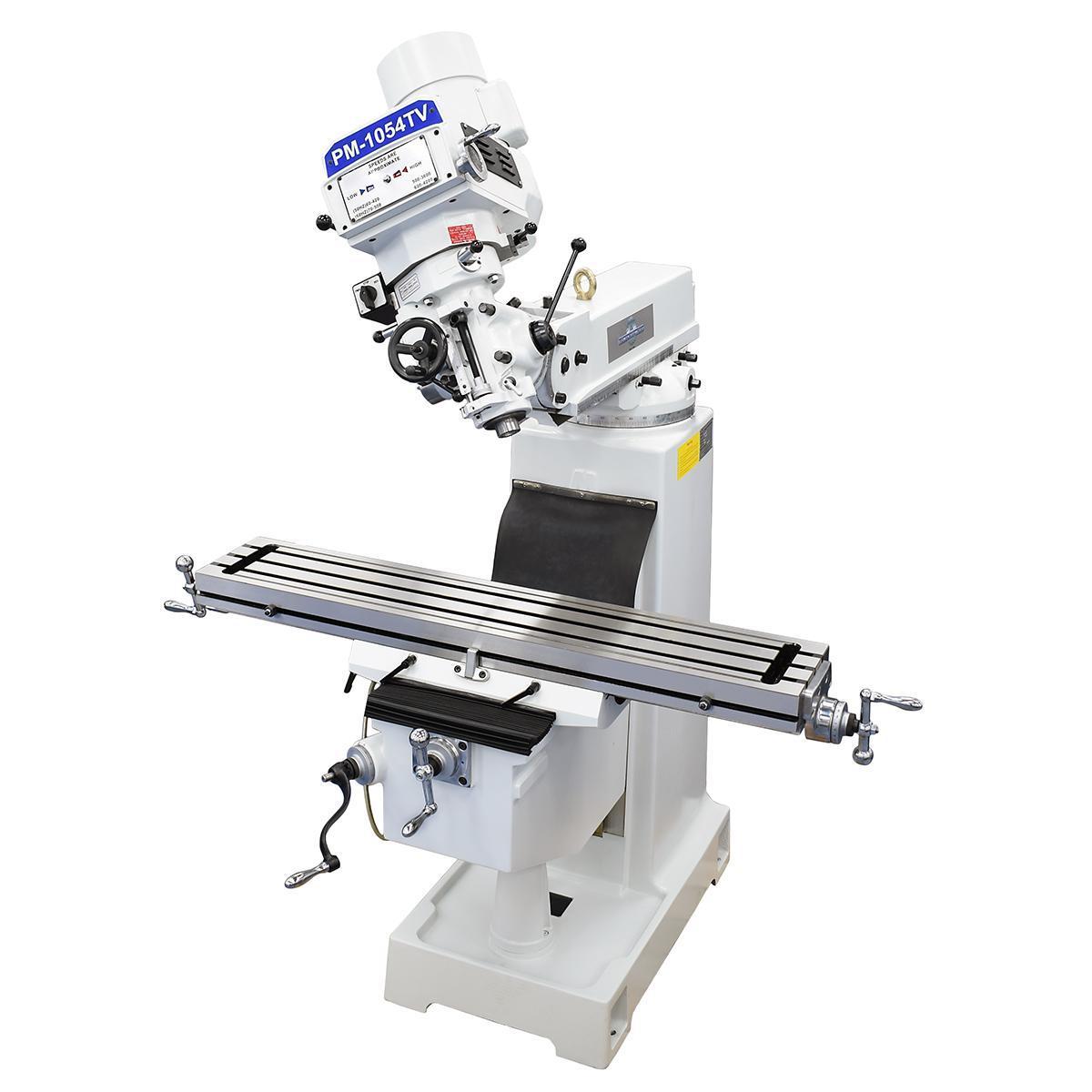

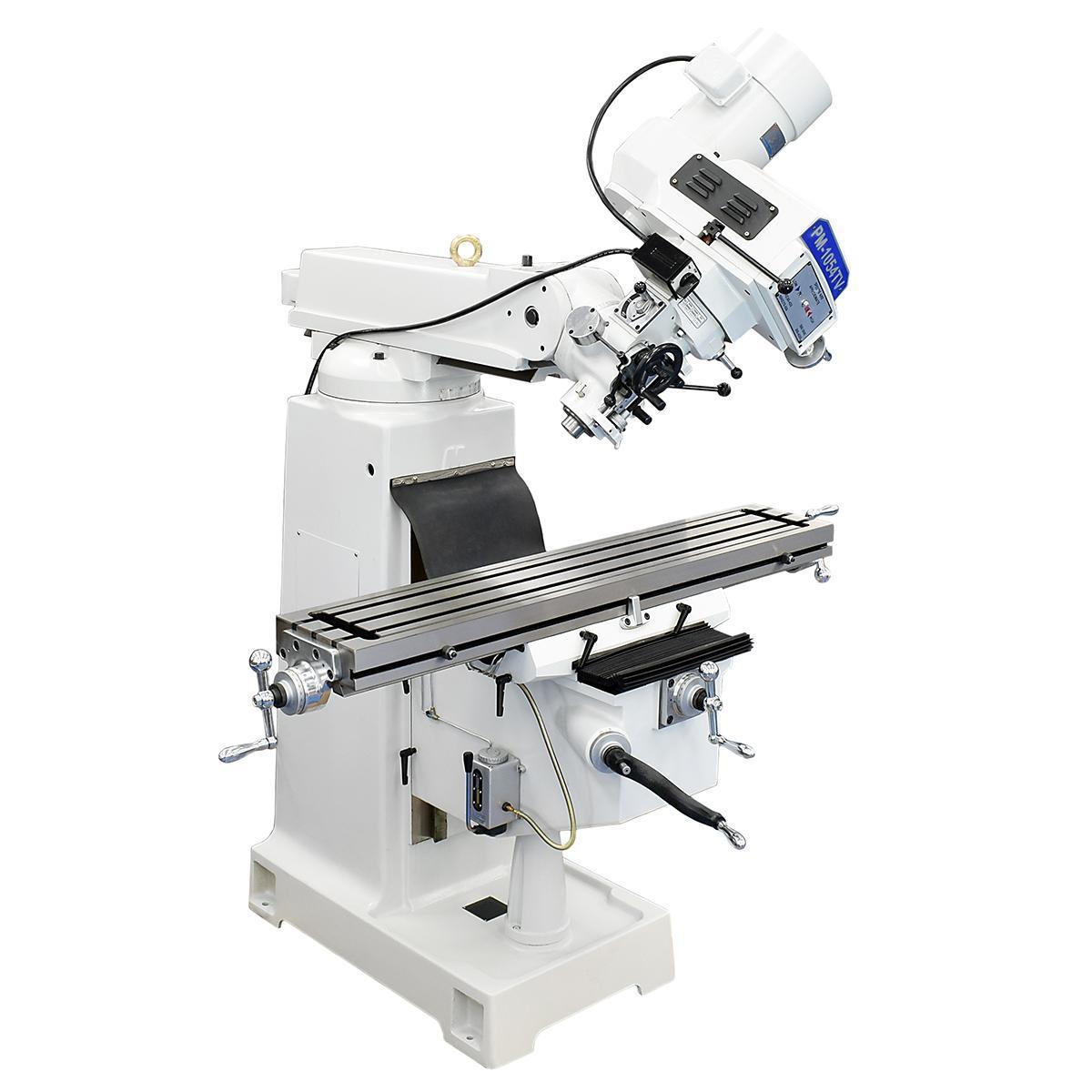

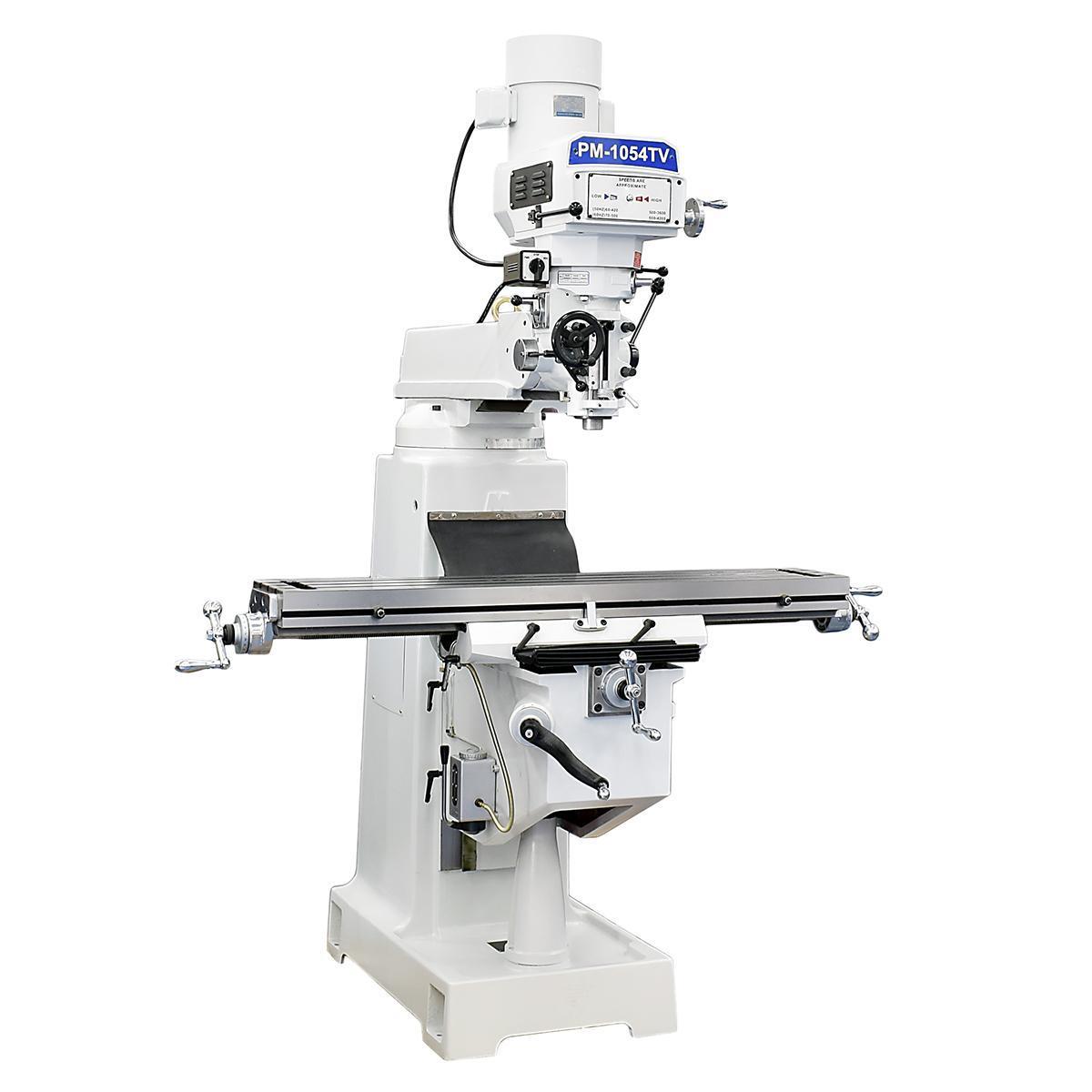

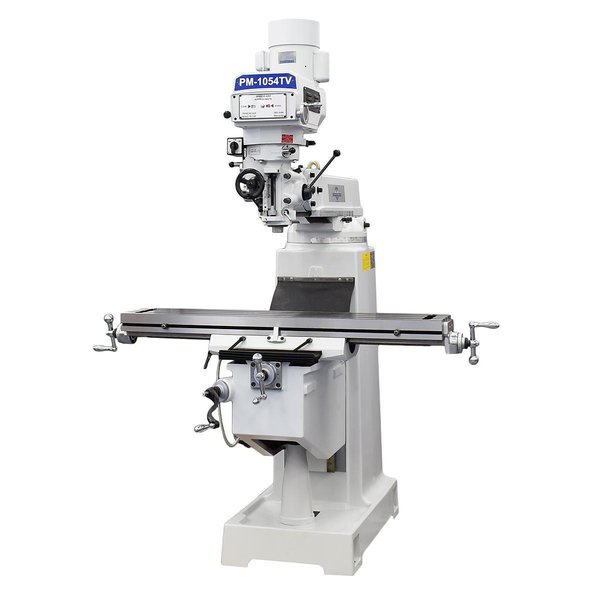

PRECISION MATTHEWS PM-1054 ULTRA PRECISION KNEE MILL

Brand
PRECISION MATTHEWS
Category
Milling Machines
Type
Millers, Vertical
Model
PM-1054TV
Stock #
Not specified
Year
2024
Condition
New
Location
Pennsylvania
Table-W 10 inches
Table-L 54 inches
Travel-Long 36 inches
Travel-Cross 16 inches
Power 3 horsepower
RPM 4600
Taper R8
CNC Control no
Weight 3000 pounds
PM-1054TV ULTRA PRECISION KNEE MILL HIGHLIGHTS:

  • Ultra High Quality Milling Machine, 100% Made in Taiwan. Top Of The Line Machine Without Question
  • Built For Those Users Who Do Not Want To Sacrifice Quality
  • Full Featured Head, With Power Feed On Quill For Boring Operations, Etc.
  • Turcite B Way Coating, Provides Very Smooth Movements In Table, and Longer Life
  • High Grade Meehanite Castings Used Throughout Machine

TYPICAL USERS:

  • Industrial users looking for a top quality, full featured vertical knee type milling machine, built for industrial use
  • High end gunsmiths looking for the quality and features of a full sized, high quality knee mill
  • Users who appreciate a high end, full featured knee type milling machine with the space saving characteristics this offers, built for every day, professional use
  • Any other users who can appreciate a top quality machine with full features and no shortcuts, at a very reasonable price for the level of quality that you are purchasing

MAIN HIGH QUALITY FEATURES:

  • High Grade Meehanite Castings
  • Head Swivels Left and Right, AND Tilts Front To Back
  • Turcite B way material for smoother table movements
  • Hardened and Ground table and way surfaces greatly reduces wear, which maintains accuracy, and greatly extends machine life
  • One Shot Lubrication system is standard equipment, which also extends machine life, and reduces oiling times of all way surfaces and lead screws to seconds, it is accomplished by simply pumping a lever
  • High precision Inch Pitch lead screws, for ease of use and greater accuracy (5TPI Screws)
  • High Precision Spindle with +/- .0001” or less runout for greater tool life and accuracy
  • Balanced pulleys in head for smooth and quiet operation
  • Full featured head with automatic quill feeds in 3 steps for boring operations
  • Precision Honed Quill Bore for tighter tolerance fit, which leads to improved accuracy when drilling and precision boring
  • The Quill is Precision Ground, then Hard Chrome Plated for longer life
  • Available with either step pulley speed changes, or variable speeds to suit the user’s preferences
  • Built in coolant sump in machine base
  • Tolerance Test Certificate included, each machine is checked for accuracy through a careful inspection process before shipment, the customer can always be sure they will receive a top quality machine that exceeds their expectations
  • Longest in class 5 YEAR WARRANTY against defective parts, including electrical (excludes normal wear items such as belts, bushings, etc)

MAIN SPECIFICATIONS:

Model: PM-1054TS or PM-1054TV
Table SizeT: 10”x54”
Table T Slot Size / Spacing Between: 5/8″ / 2-3/4″
X Axis Travel: 36” (Shortened approx.. 2” with X Power Feed Installed)
Y Axis Travel: 15”
Z Axis Travel: (Knee) 17”
Min/Max. Distance, Spindle to Table: 2”/18.9”
Spindle Height: Floor to Bottom of Spindle: 54”
Table Height: Fully Raised 53.9”, Lowered 35”
Quill Travel: 5”
Leadscrew Type: Precision Ground ACME Leadscrew W/ Double Nut Backlash Adjustments on X and Y Axis
Leadscrew Pitch: .200” (5 Threads Per Inch)
Table Dial Graduations: .001”
Spindle Taper: R8
Spindle Speed Range: TS Model 80-2720 RPM, 8 steps (40-5000 if you install your own VFD)
Spindle Speed Range: TV Model 60-4200 RPM (Variable)
Spindle Bearing Type: High Precision Angular Contact Bearings, Fully Adjustable
Spindle Bearing: Class C7
Main Motor: H.P. 3 HP (Both S and V Models)
Overall Height: Head Up, 3PHASE/1PHASE – S Model 85.5”/89″ – V Model 87.5″/91”
Height with head down: (For moving and shipping) 70”
Depth Front to back: rear of machine to front of knee casting 50”
Rear of machine to tip of Y axis handle: 59”
Width X Axis Table Handles: Tip to Tip 67”
Net Weight: S Model 2900 LBS V Model 3000 LBS
Voltage / Phase 220 Volt: Single Phase and Three Phase Available – Requires 220 Volt, 20 Amp Circuit for both single or 3 phase
Warranty: 5 Years
Country of Origin: Taiwan
Shipping Dimensions: LxWxH 60”Wx60”Lx72” H, 3250 LBS
Cord Connection/Type: Cord approx. 5′ length, User to supply plug needed for your outlet
Thread Pitch of holes in leveling pad pockets: 3/4″-10
