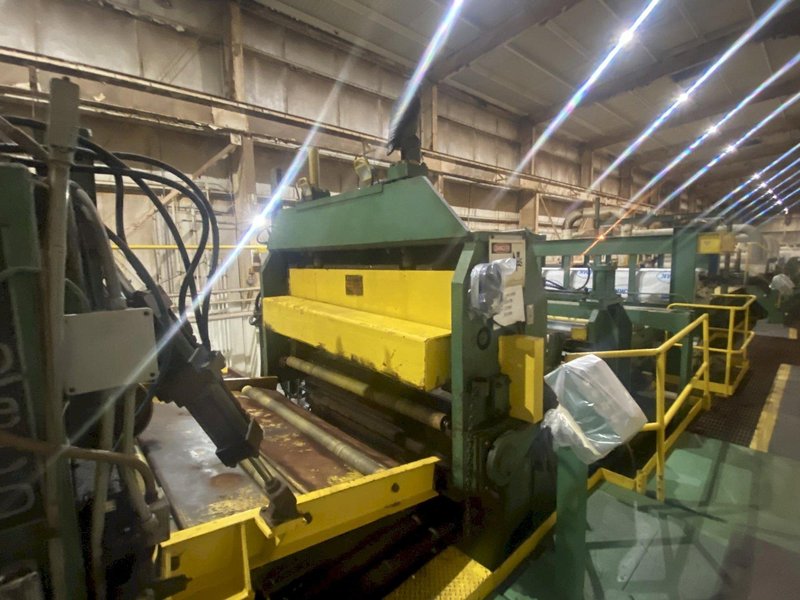

72” x .500” BUTECH HIGH-SPEED HYDRAULIC SHEAR WITH SELF-CONTAINED PUMP
Brand
Not specified
Category
Type
Model
Not specified
Stock #
116218
Year
Not specified
Condition
Used
Location
Not specified
|
Manufacturer: Butech
Line Direction: Right to Left
Materials: Cold Rolled & Hot Rolled Steel (Pickled or Black)
Coil Width: 72” (1829 mm) Max.
Strip Thickness: .500" (12.70 mm) Max., .054" (1.37 mm) Min.
Shear Blade Configuration: Single Rake Design
The high-speed hydraulic shear can be utilized as a cut-to-length line main shear or as a crop shear
Single rake upper ram is positioned by hydraulic cylinders and is equalized by rack and pinion
“Auto Gap Control” mechanism automatically sets knife clearance each time a cut is made
Hydraulic power is supplied to the shear by a dedicated, self-contained pumping unit
|
