SERIAL .......................... 54044

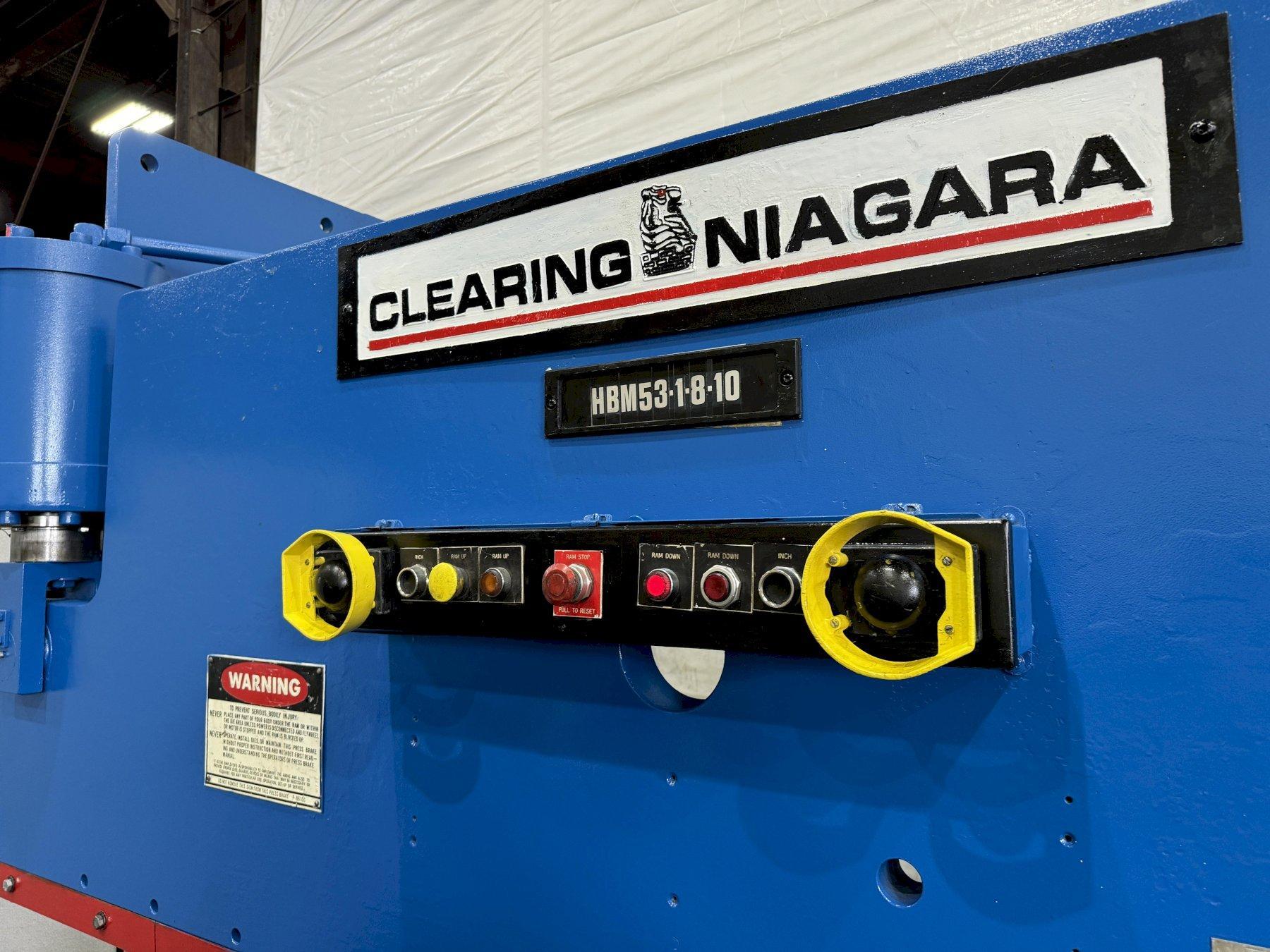

MODEL # ......................... HBM-135-8-10

CAPACITY ........................ 135 TONS

LENGTH OF BED & RAM ............. 10'

DISTANCE BETWEEN HOUSING ........ 8'6

STROKE .......................... 8"

OPEN HEIGHT ..................... 15"

CLOSED HEIGHT ................... 7"

DEPTH OF THROAT ................. 7"

RAM SPEED - RAPID ADVANCE ....... 127 IPM

RAM SPEED - NORMAL PRESS ........ 64 IPM

RAM SPEED - ANTO BACK BAND ...... 20 IPM

RAM SPEED - RAPID RETURN ....... 127"

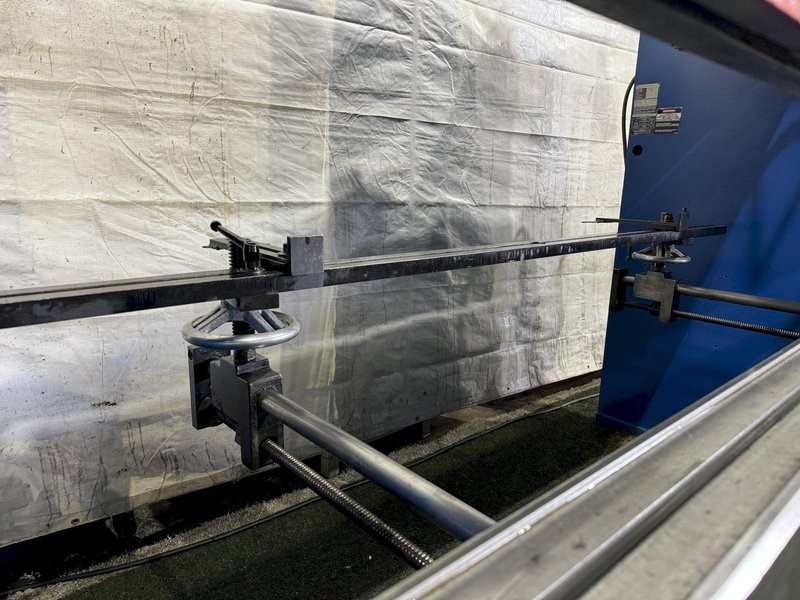

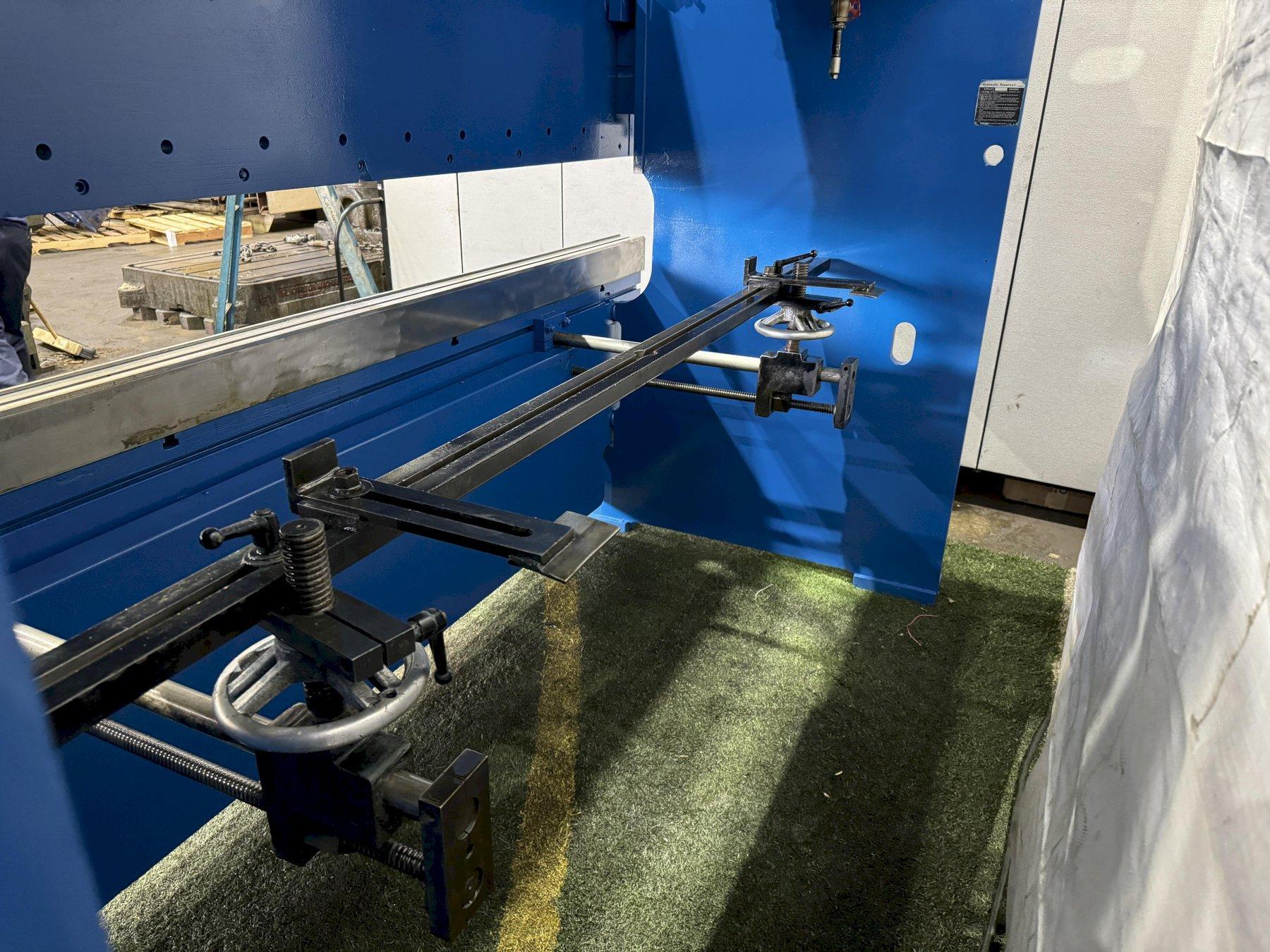

BACK GAUGE FRONT OPERATED ...... MANUAL

FLOOR TO BED .................... 33-1/2"

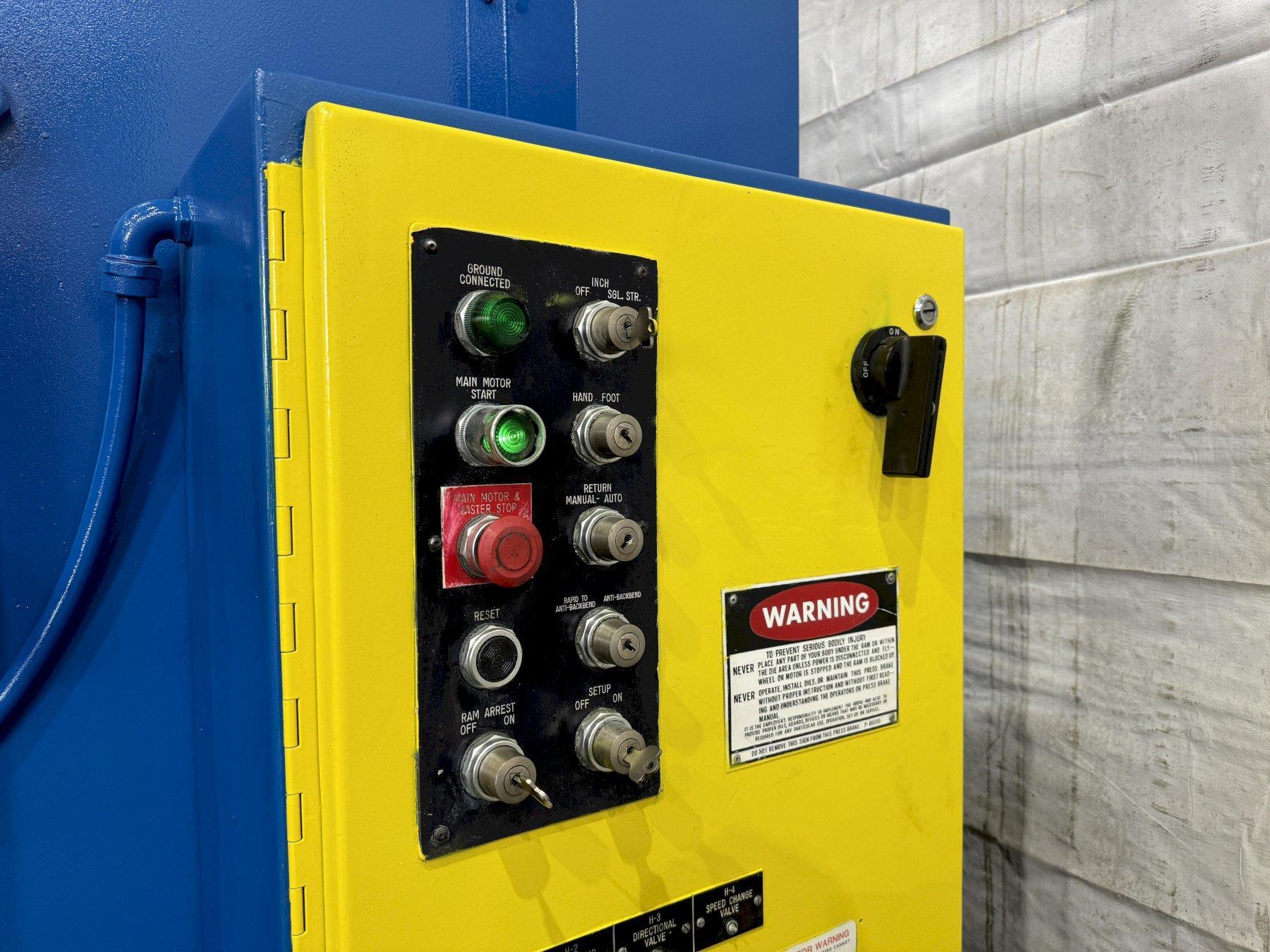

PRESS BRAKE CONTROLS ............ INCH-SINGLE-HAND-FOOT

BED & RAM MACHINED FOR ANGLES ... YES

ELECTRIC FOOT TRIP/ PALM BUTTON . YES

FLOOR STANDING .................. YES

HYDRAULIC MOTOR ................. 20 HORSEPOWER
