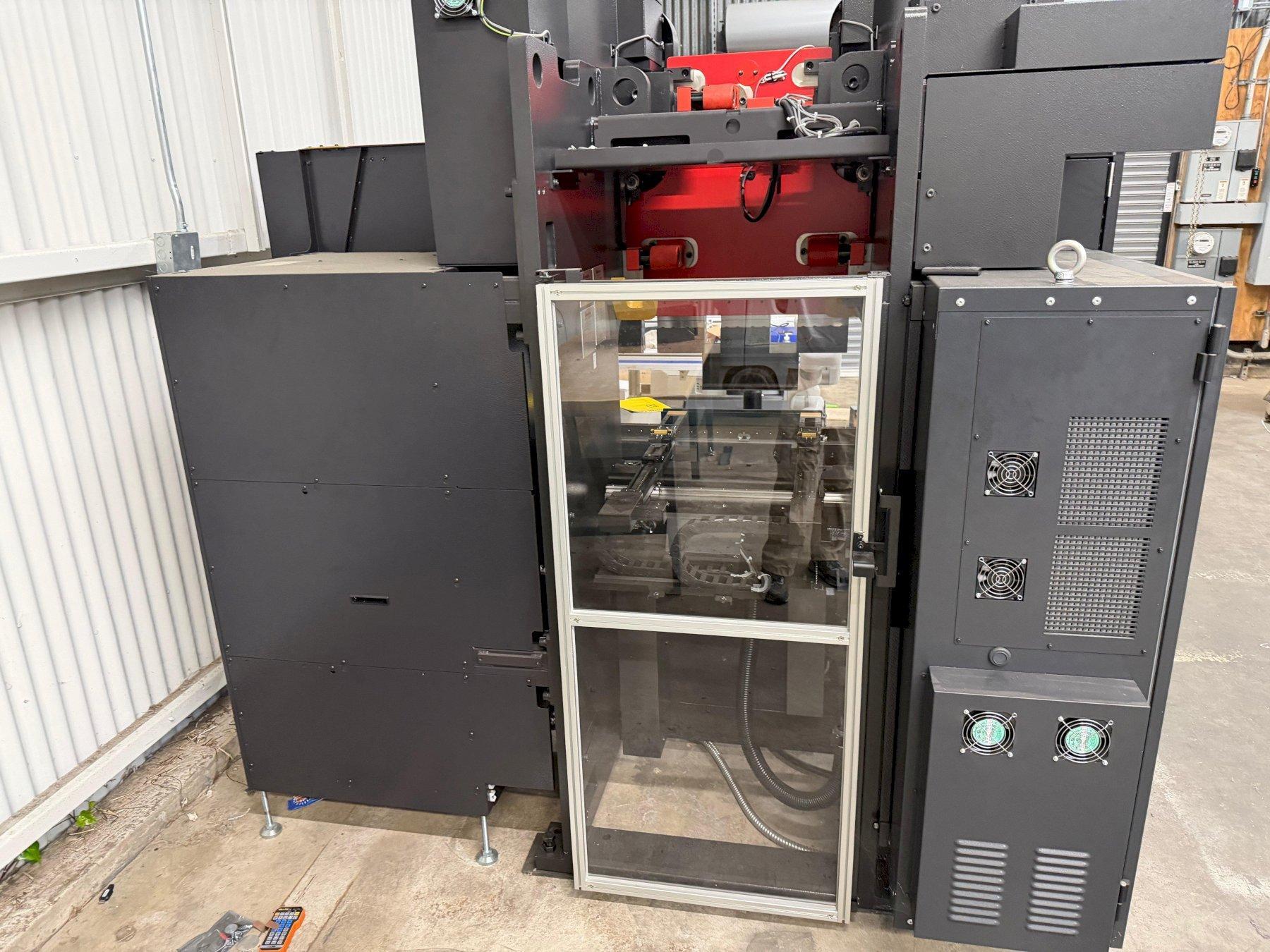

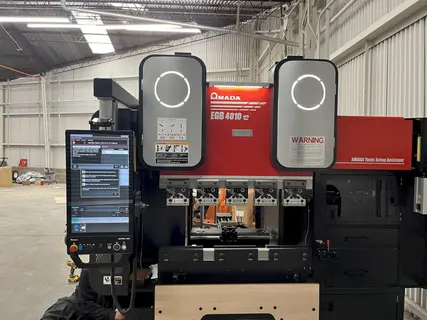

44 Ton X 41” Press Brake with Amada AMNC 4ie Control, Thickness Detection System, Force Control and Electric Drive System

GENERAL SPECIFICATIONS
Capacity:                        44 US Tons
Table Length:                        41.3”
Max. Bending Length:                41.3”
Distance Between Uprights:            27.9”
Throat Depth:                    9.1”
Length of Stroke:                    5.9”
Open Height:                        16.5”
Rapid Closing Speed:                9.84 IPS
Bend Speed:                        0.984 IPS
Opening Speed:                    9.84 IPS
Backgauge Length Measurement:            11.84”
Backgauge Height Range:                5.9”
Overall Length:                    69.7”
Overall Width:                    78”
Overall Height:                    89.6”
Net Weight:                        5,960 Lbs


INCLUDES: Amada AMNC 4ie Control, Thickness Detection System, Force Control and Electric Drive System

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
