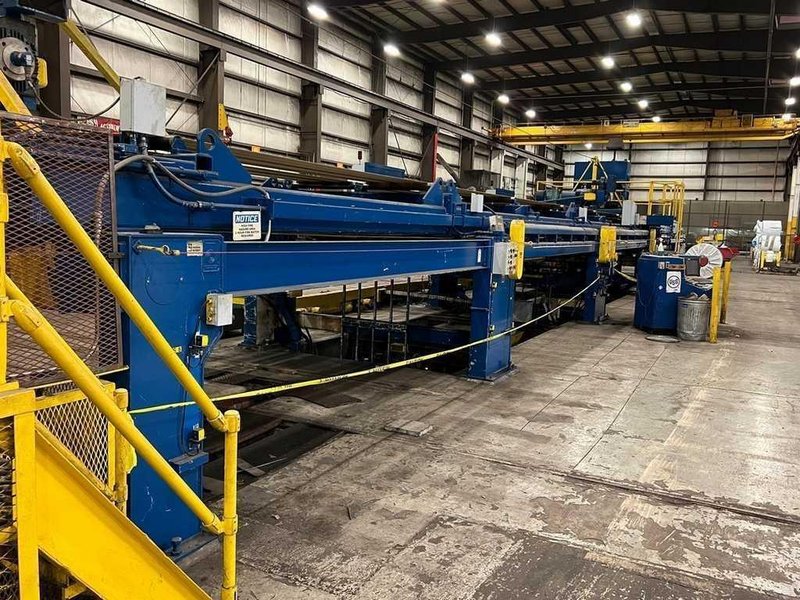

400 Ton Fukui Press Blanking Line

Coil Capacity: 72" x 0.090" x 70,000#

Material Thickness: 0.090" @ 72" Wide

                    0.125" @ 51" Wide

Consisting of the following:

-Pit Coil Car:

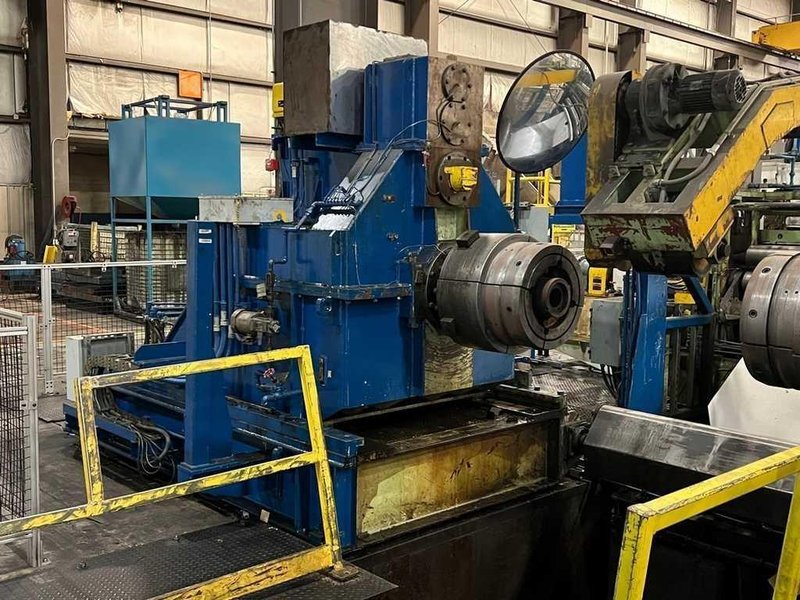

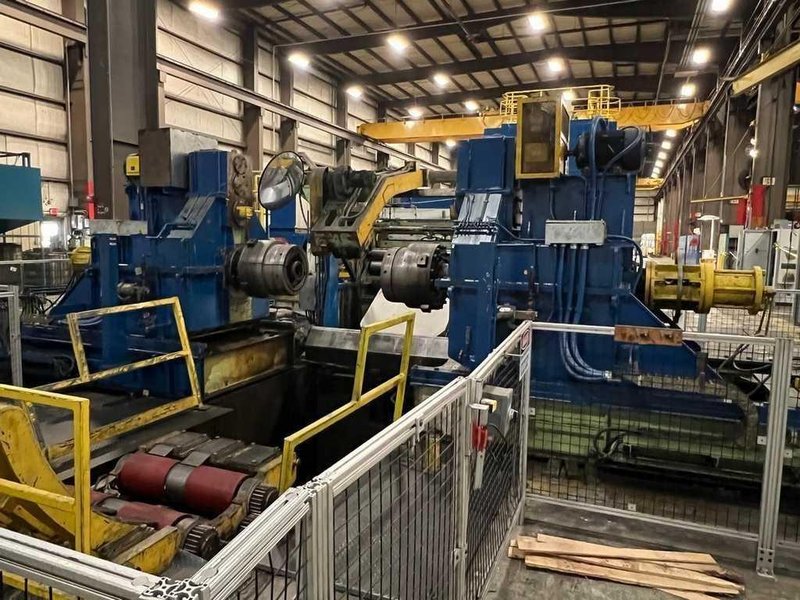

-Double Stub Uncoiler:

  Weight Capacity: 70,000 Lbs.

  Hydraulic Expansion

  Expansion Range: 17.6" - 21.2"

  Coil O.D. Capacity: 86"

  Holddown Roll

  15 HP DC Drive Motor

  Sliding Base on Each Head

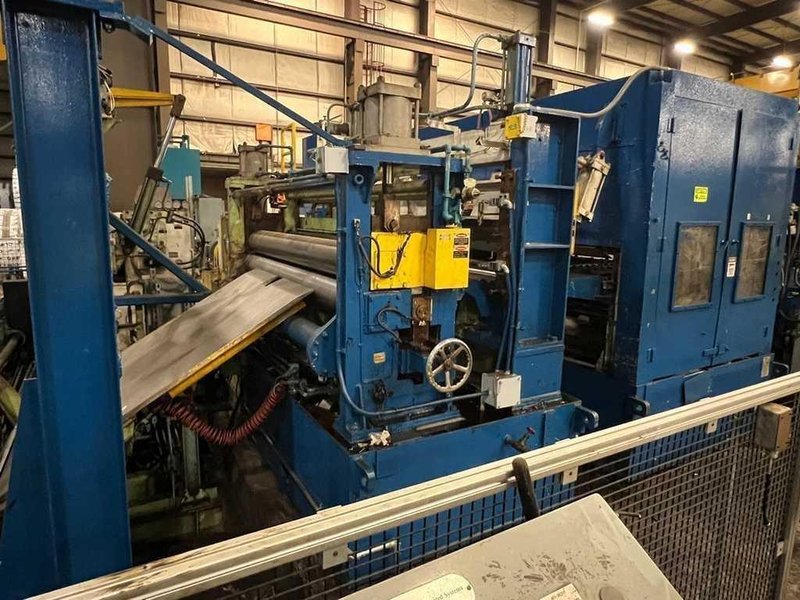

-Peeler/Pinch Roll Unit:

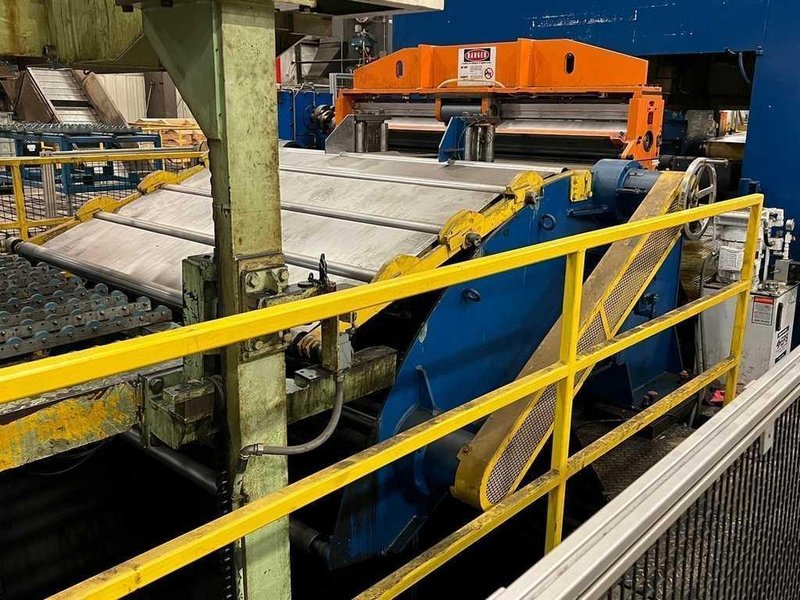

-Crop Shear:

  Hydraulic Downcut Type

-Mashing Unit:

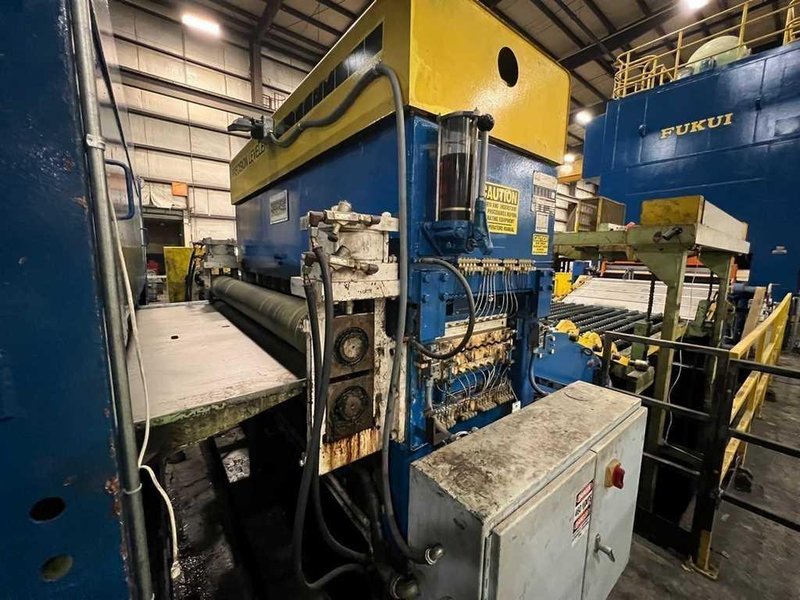

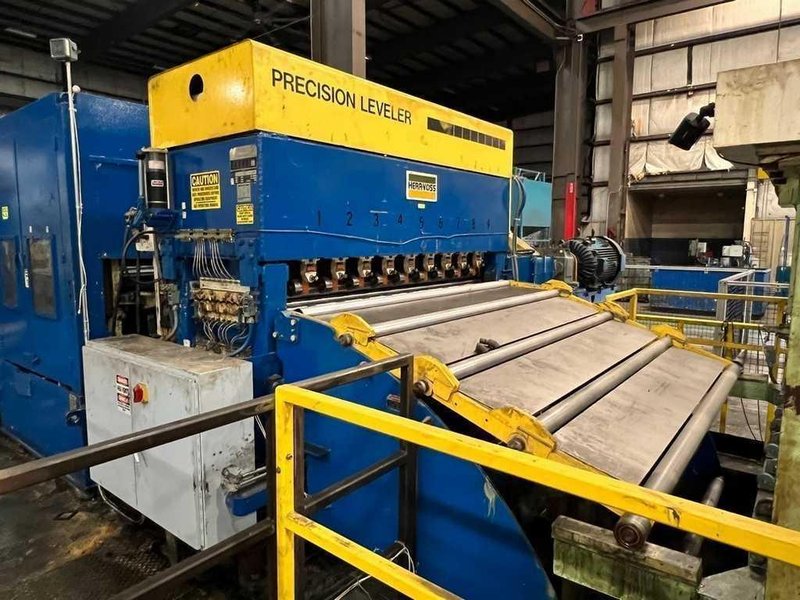

-Herr Voss Leveler - 6 HI

  Model VKL 84/1.750-19/9 6-HI, LH

  Capacity: 72" x 0.023" - 0.128" @ 60,000 PSI Yield

  84" Face x 1.75" Dia. Work Rolls

  19 Work Rolls

  9 Flights of Motorized Backups

  200 HP DC Motor, 1750 RPM

  Total weight: Approx. 26,000 lbs.

-Looping Pit:

-Roll Feed Unit:

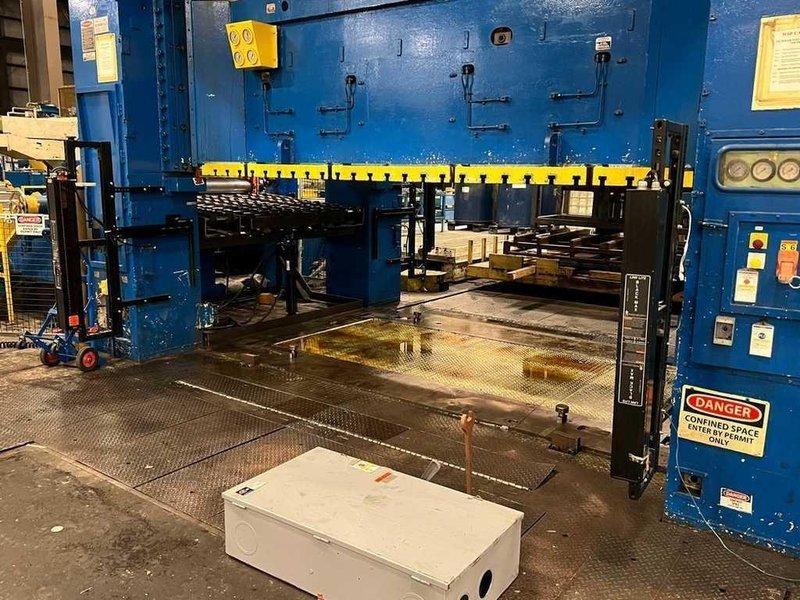

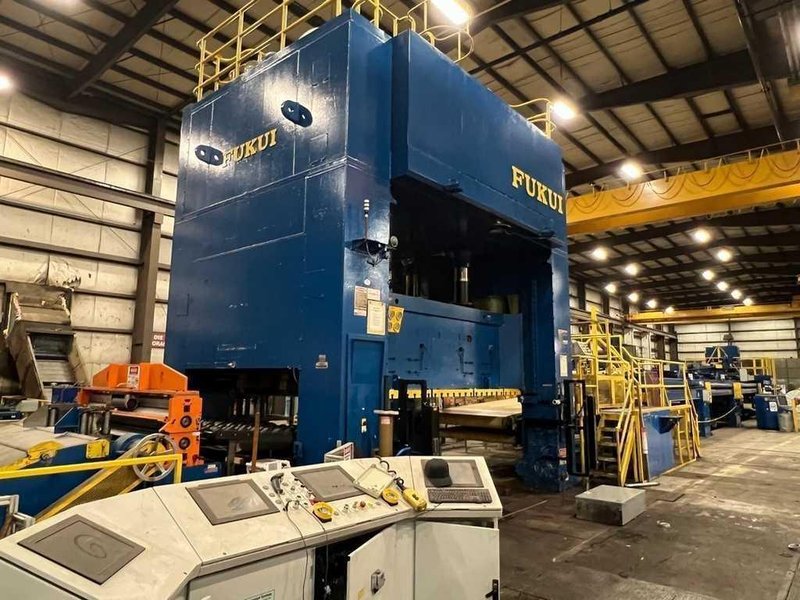

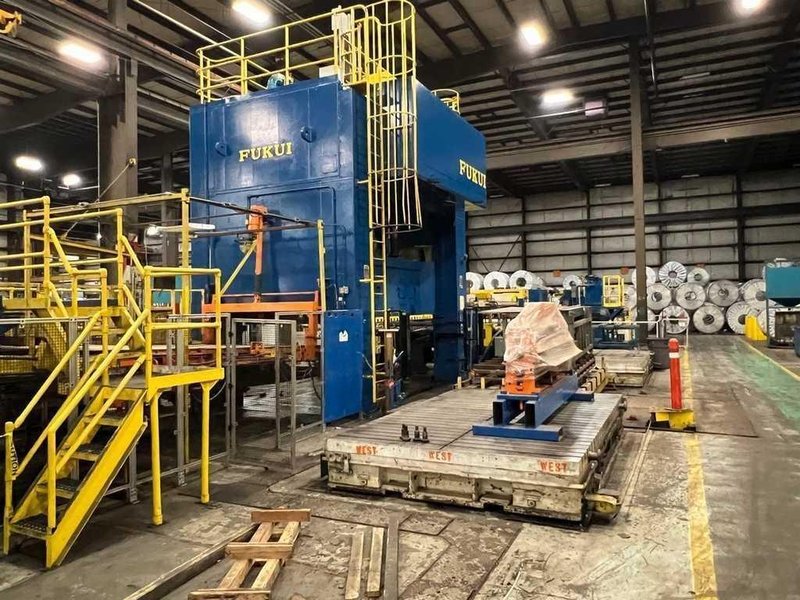

-Fukui SSDC Press:

  400 Ton Capacity

  15 - 60 SPM

  9.8" Stroke

  13.8" Slide Adjustment

  Slide Area: 157" L-R, 98" F-B

-Moving Bolster:

-Inspection Conveyor:

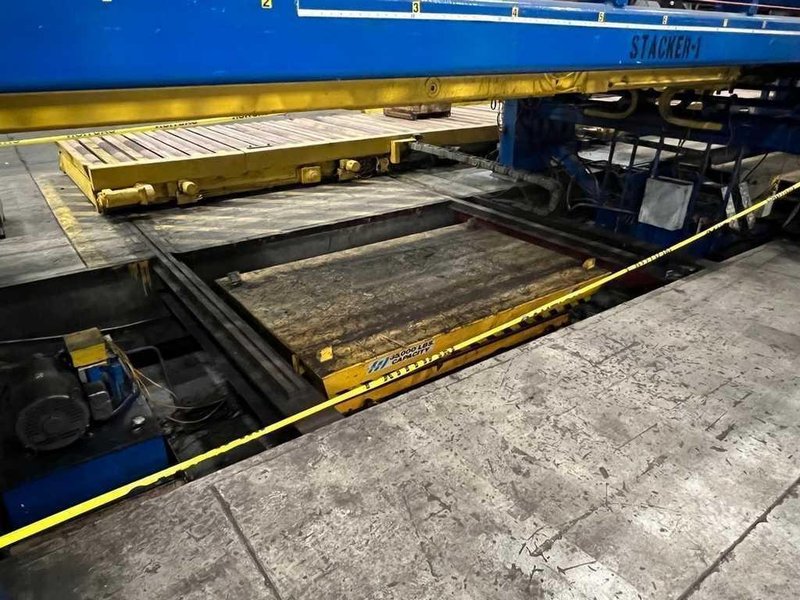

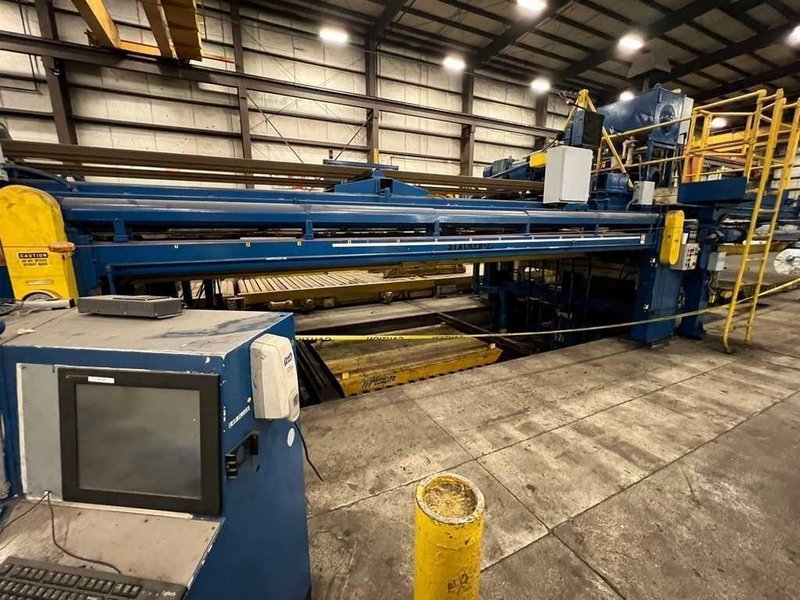

-Automatic Feed Co. Stackers:

  Magnetic Bridge Conveyor

  (2) - 35,000 lb. Stackers

  Reject Stacker

  Runout Conveyor

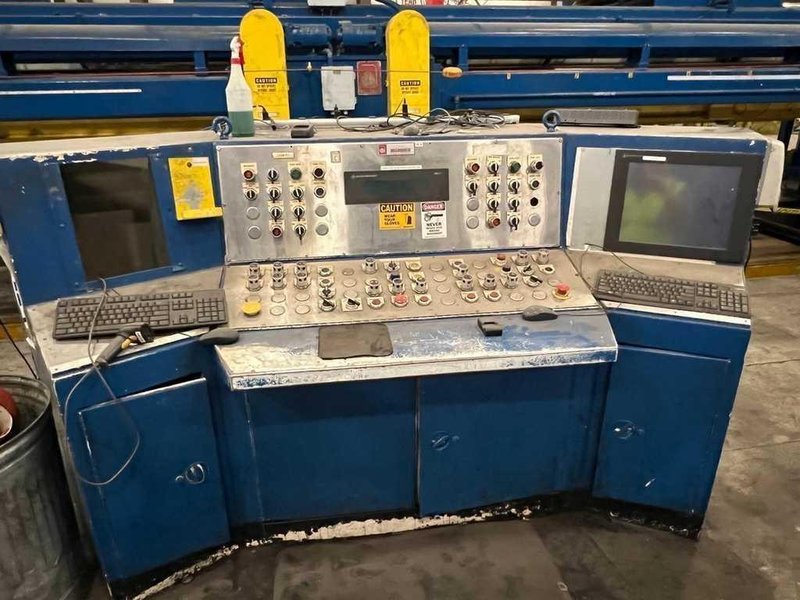

-Operators Control Panel:

-Line Direction: Left to Right
