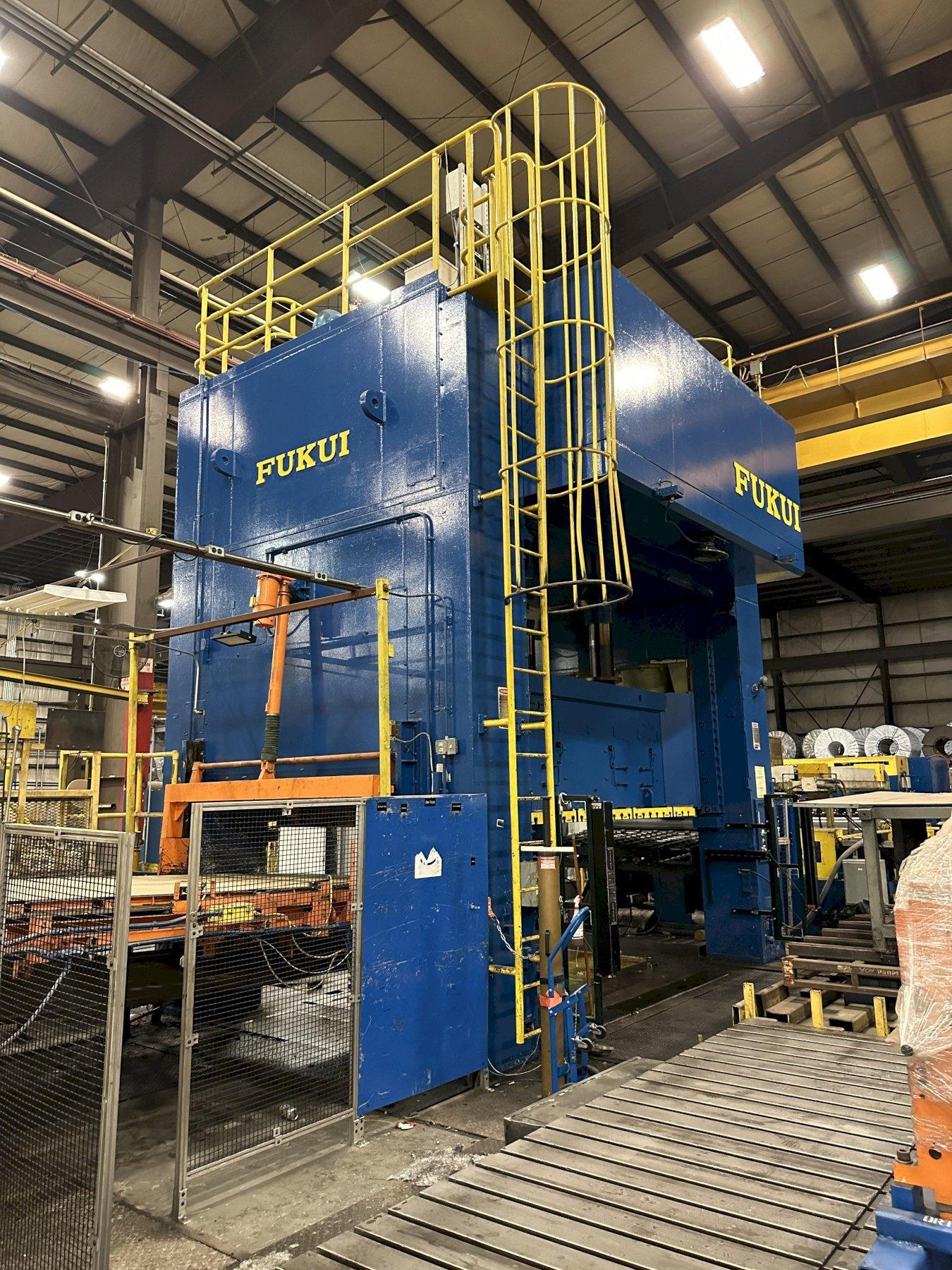

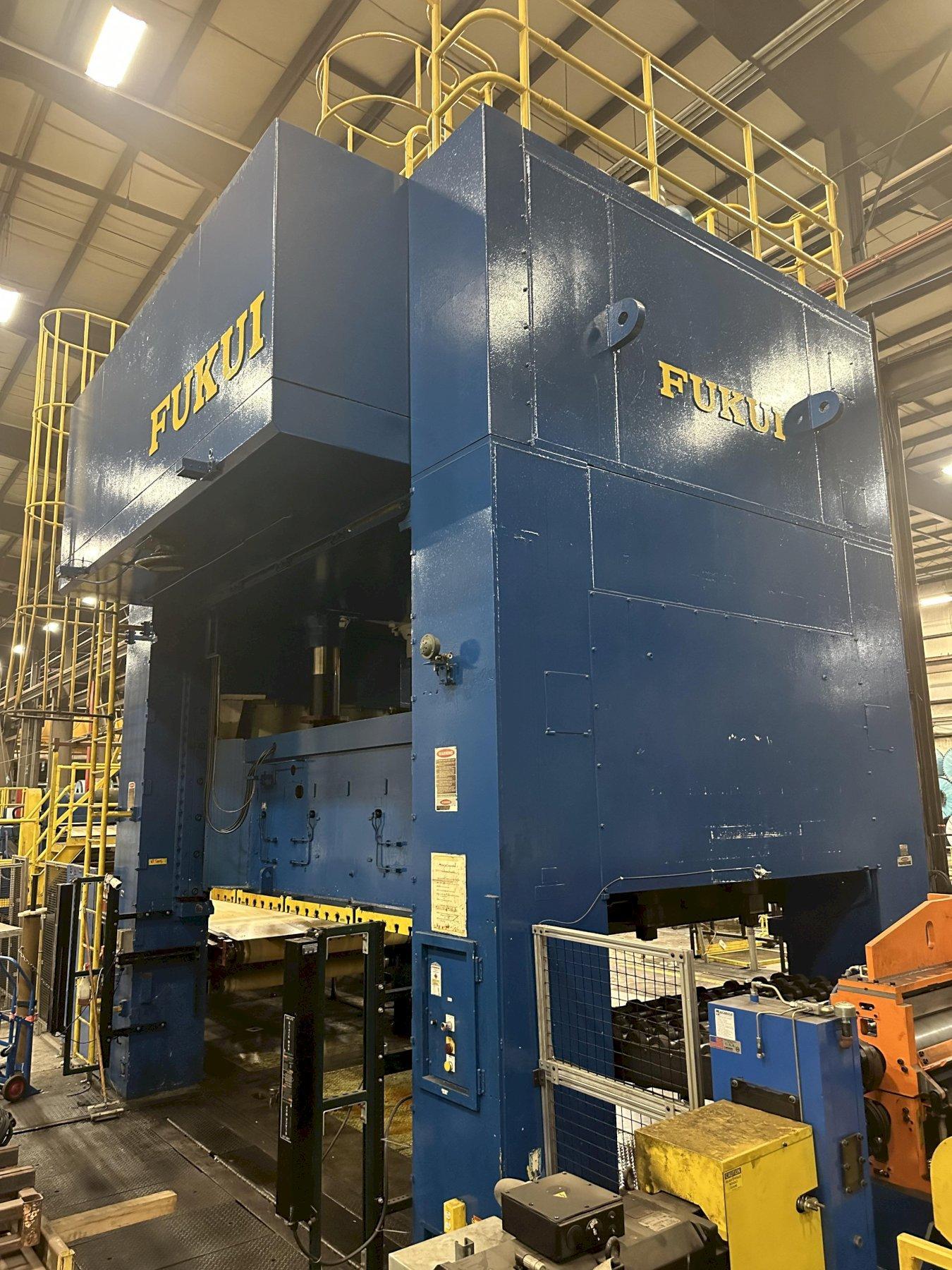

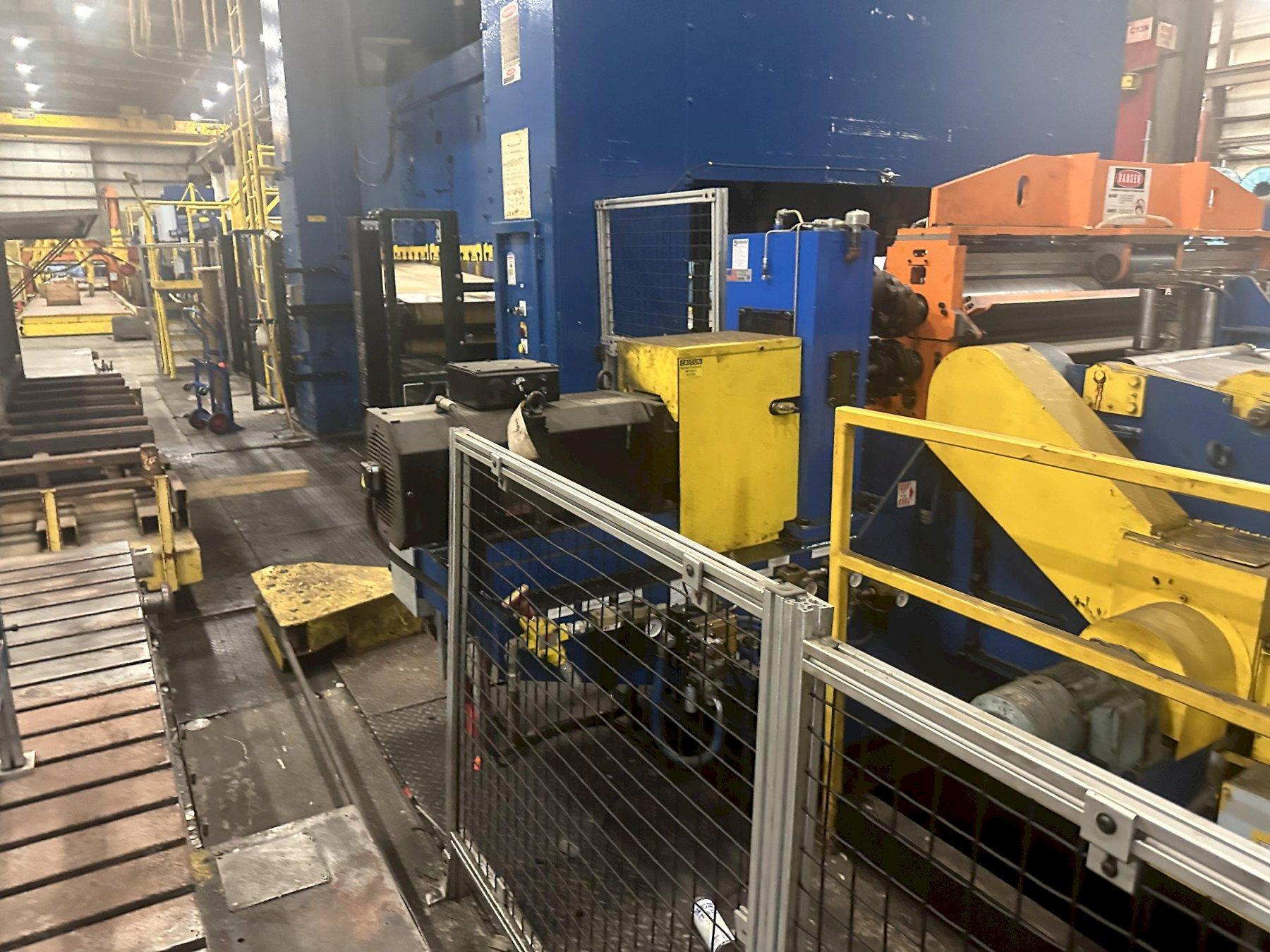

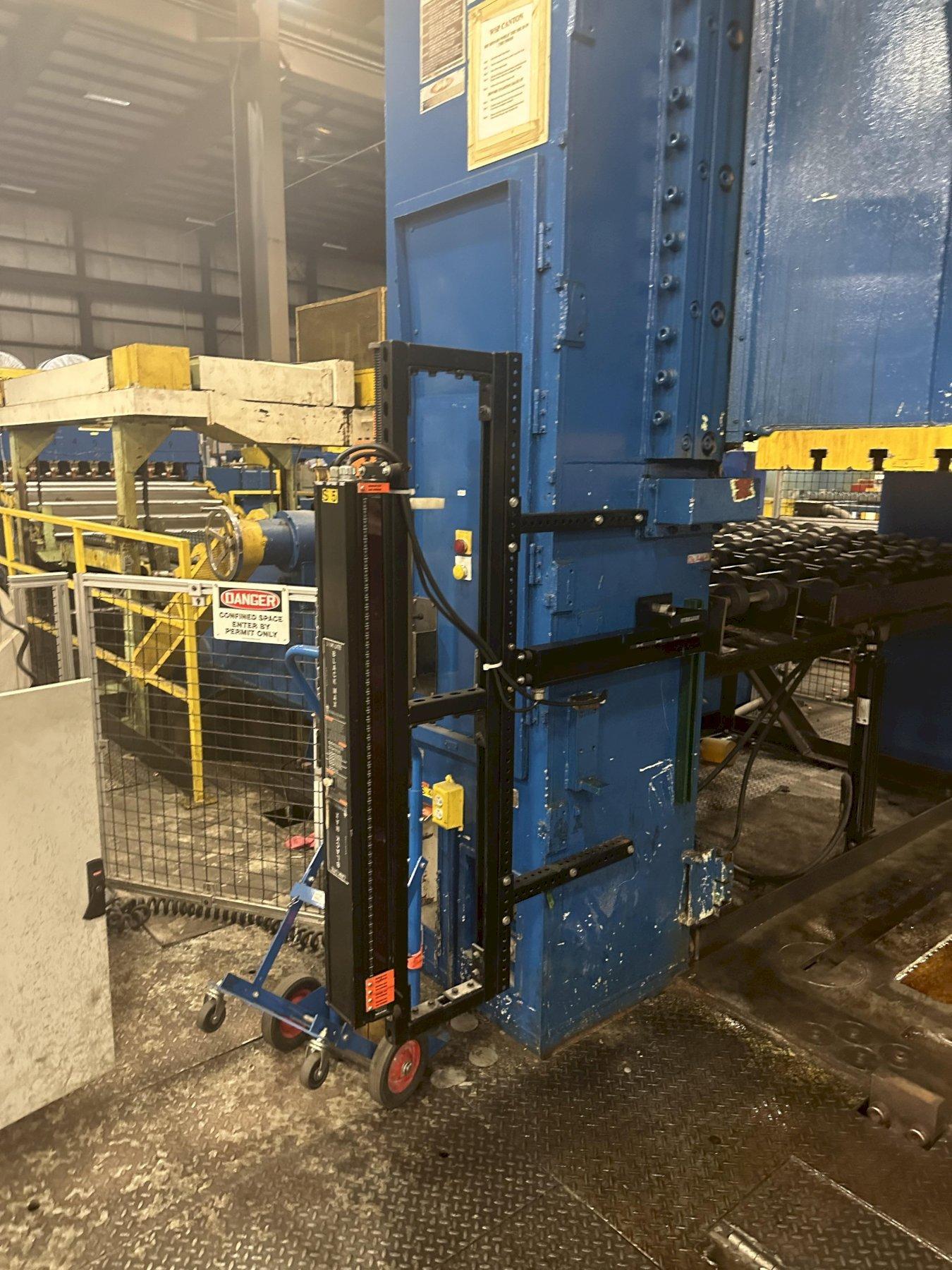

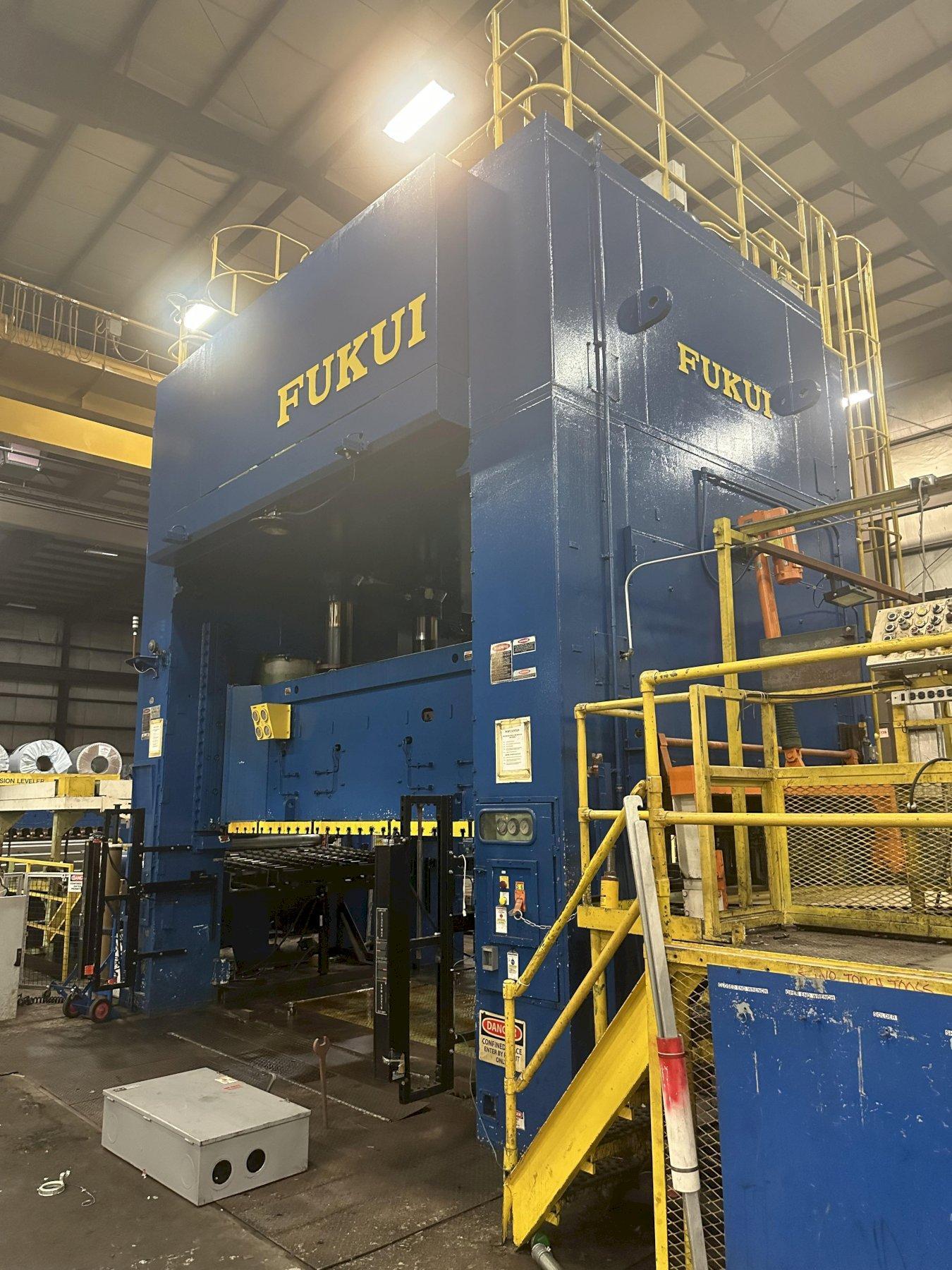

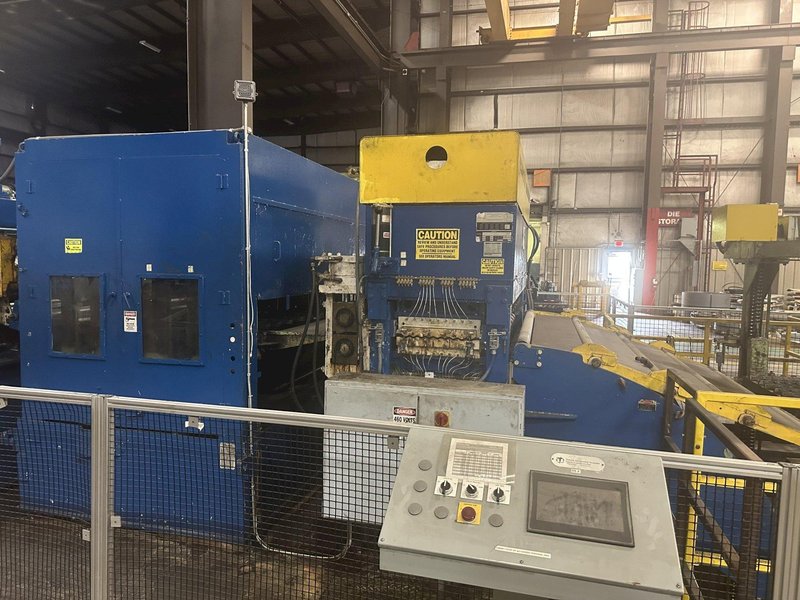

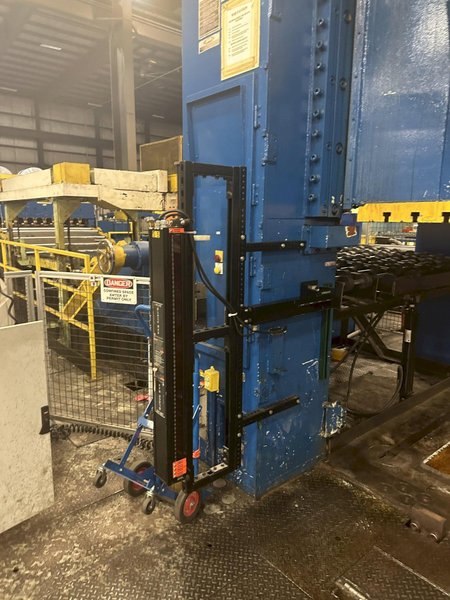

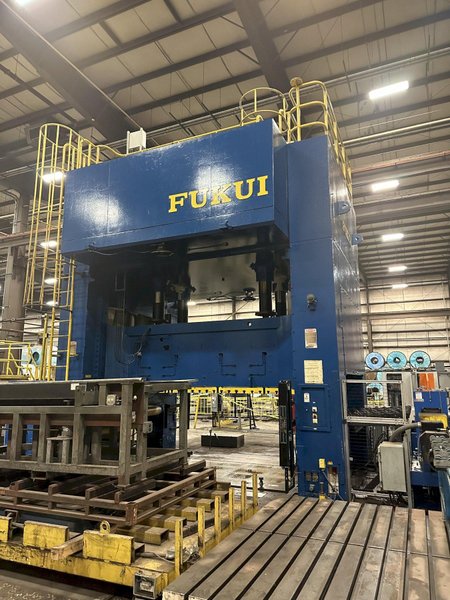

400 TON FUKUI BLANKING PRESS. 72" X .128" X 70,000 LB SERVO FEEDLINE STOCK # 0956723
Brand
Category
Type
Model
Not specified
Stock #
0956723
Year
Not specified
Condition
Used
Location
Ohio
|

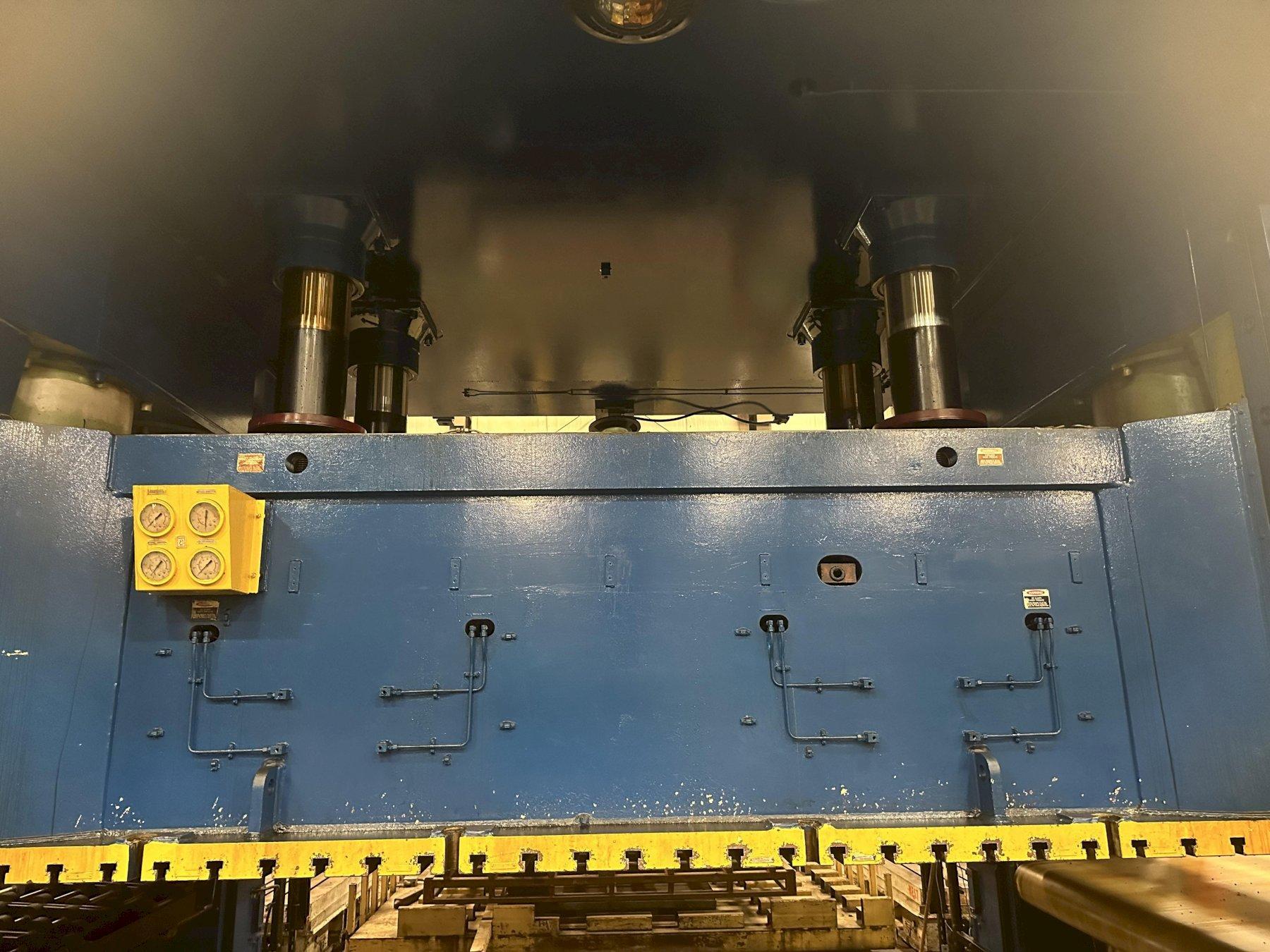

PRESS:

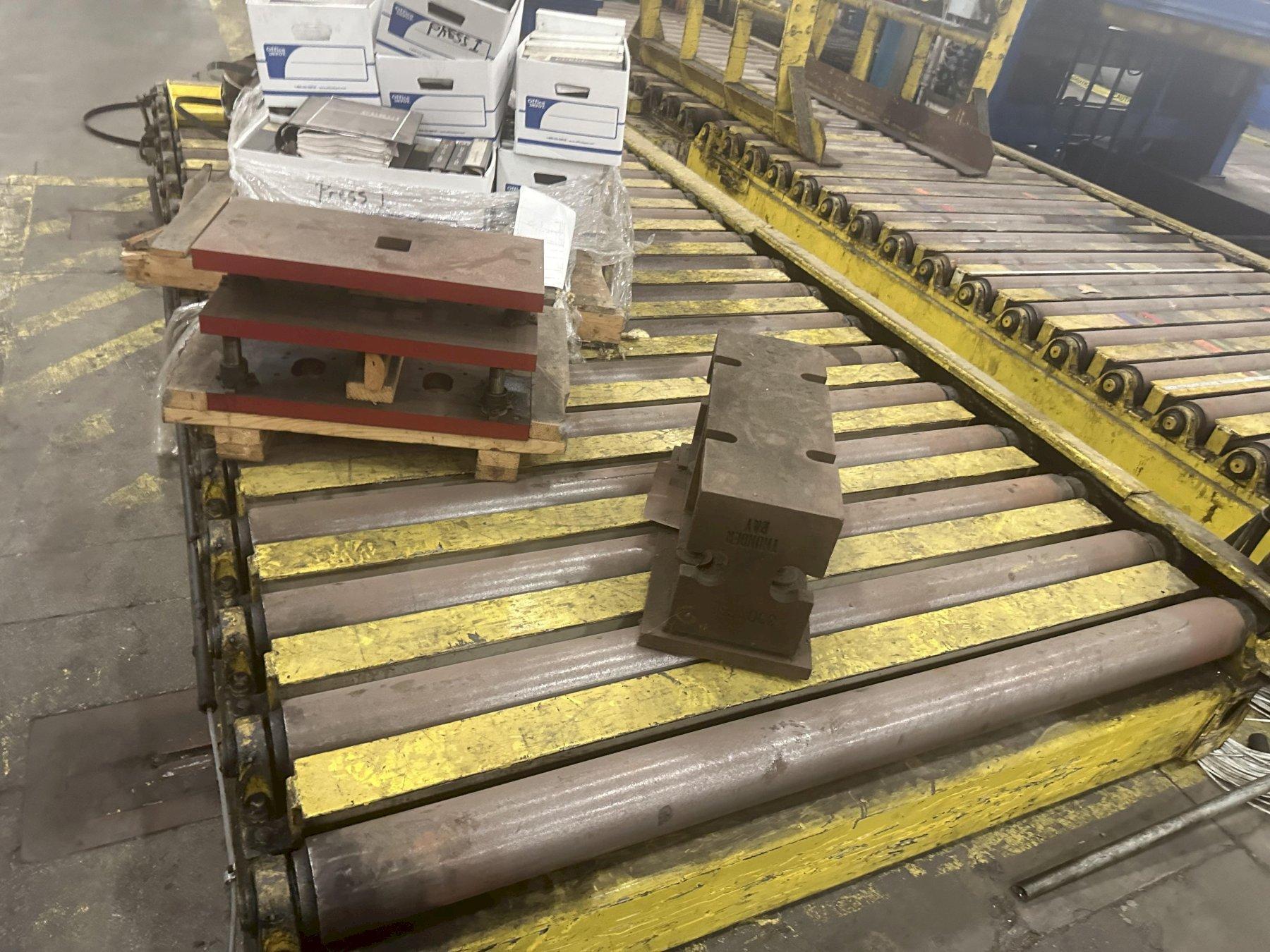

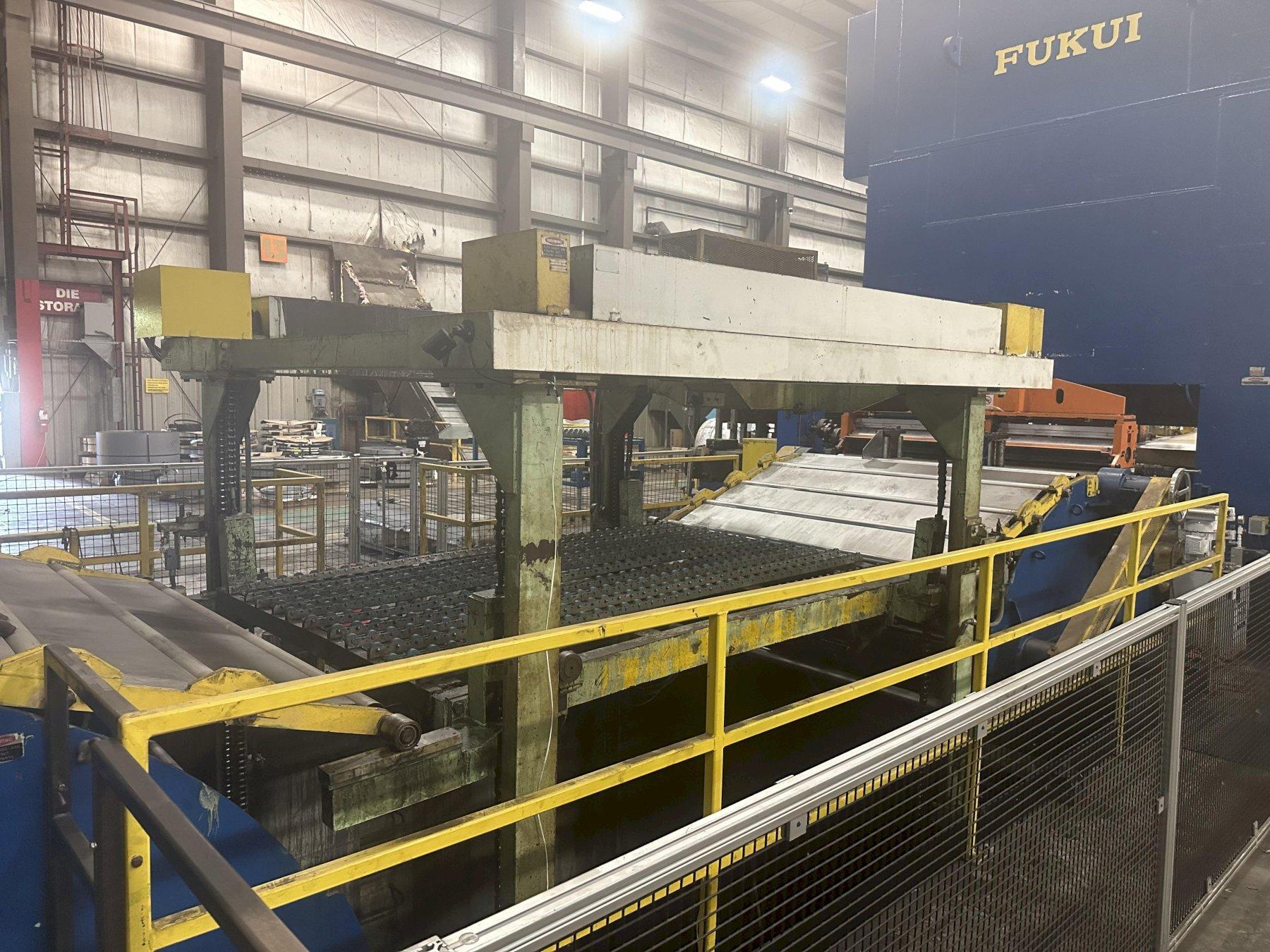

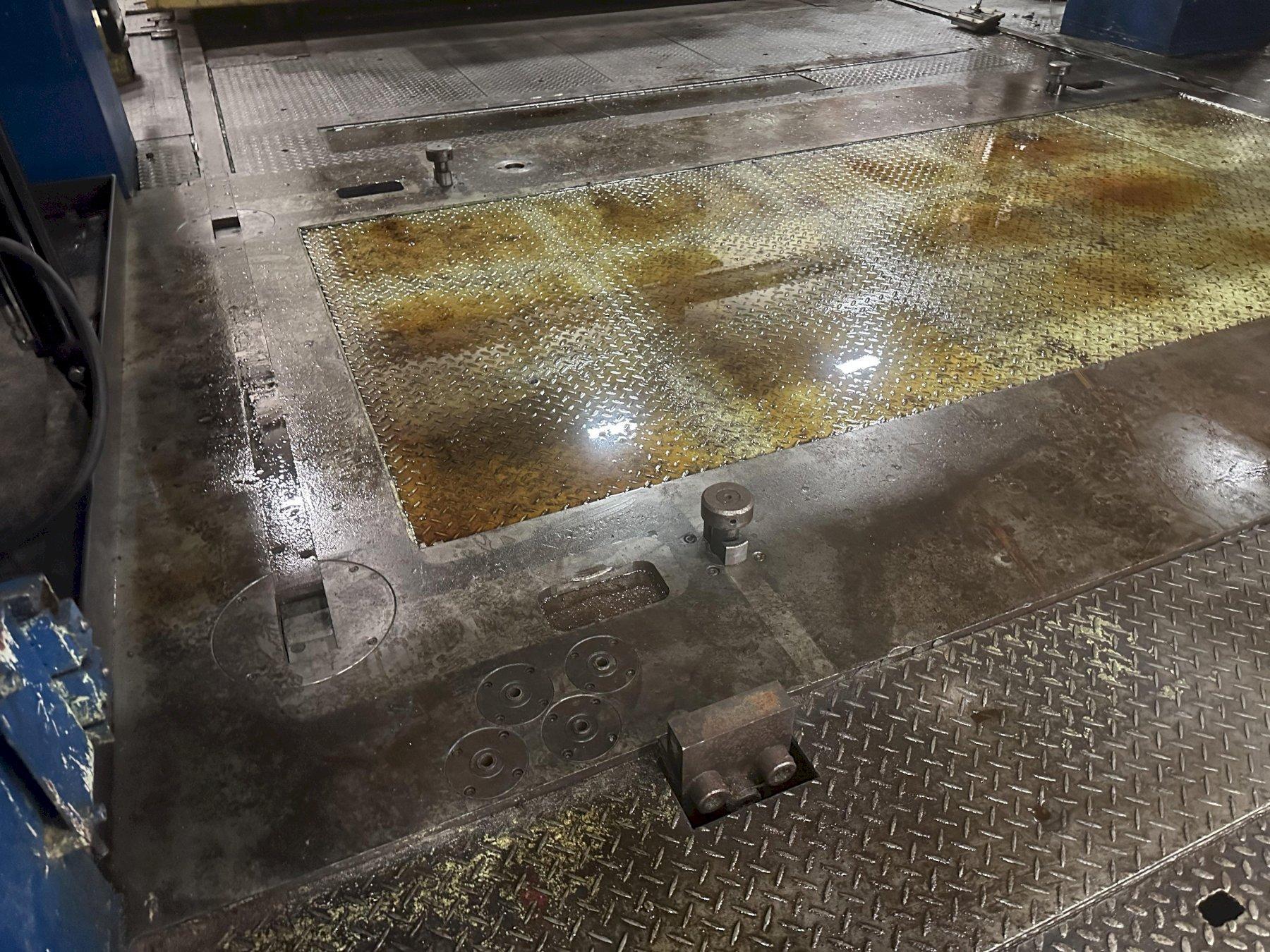

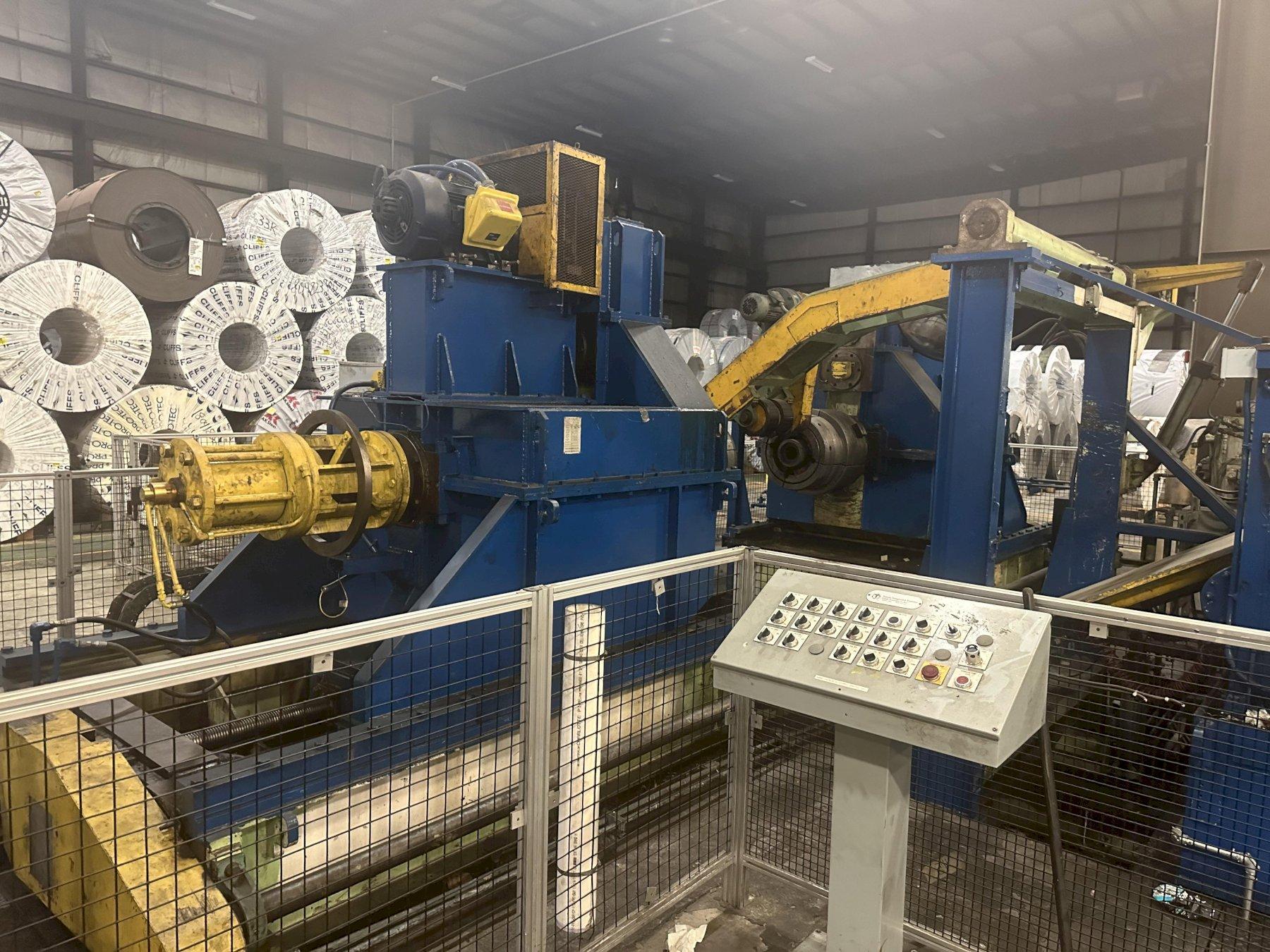

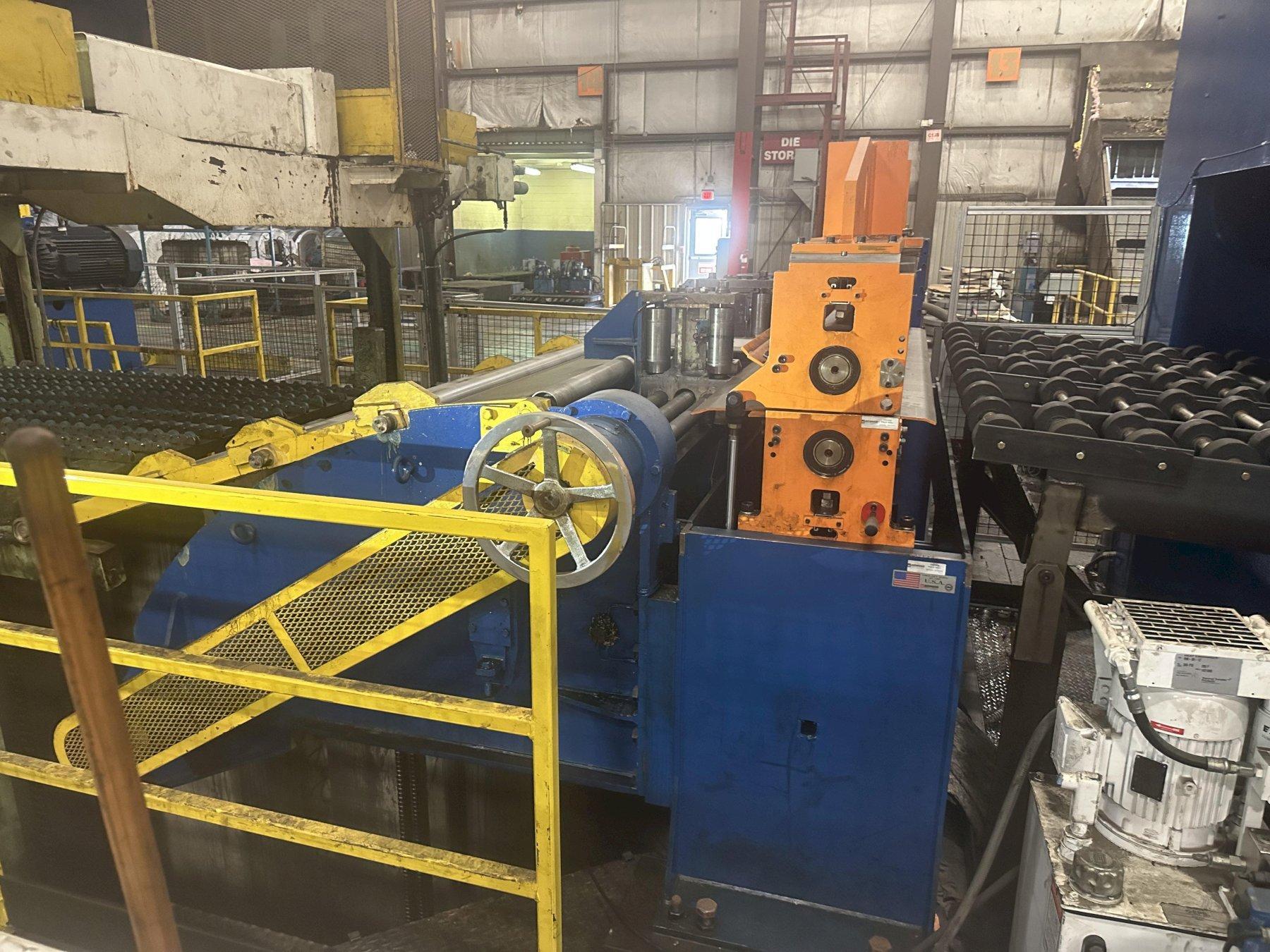

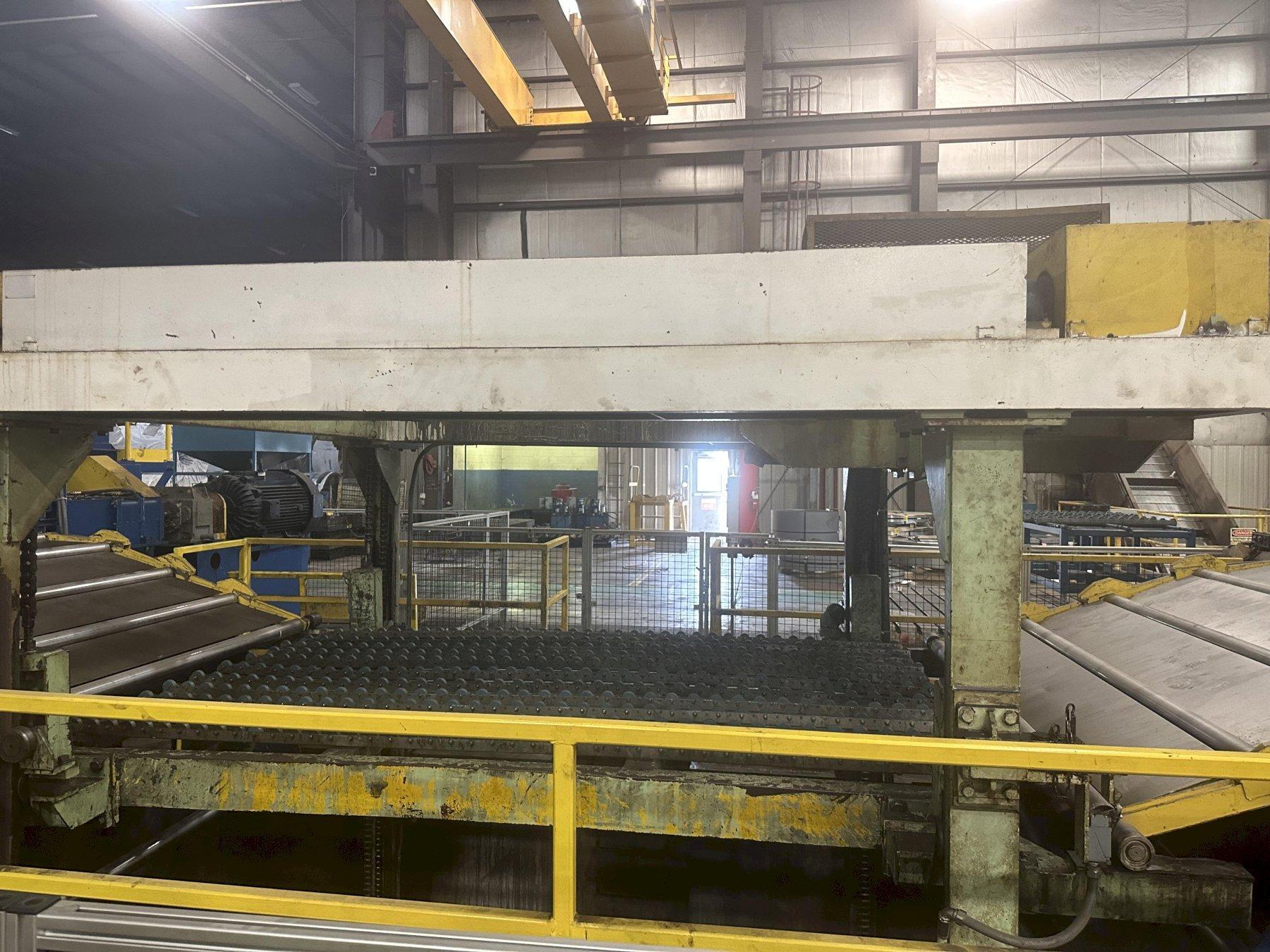

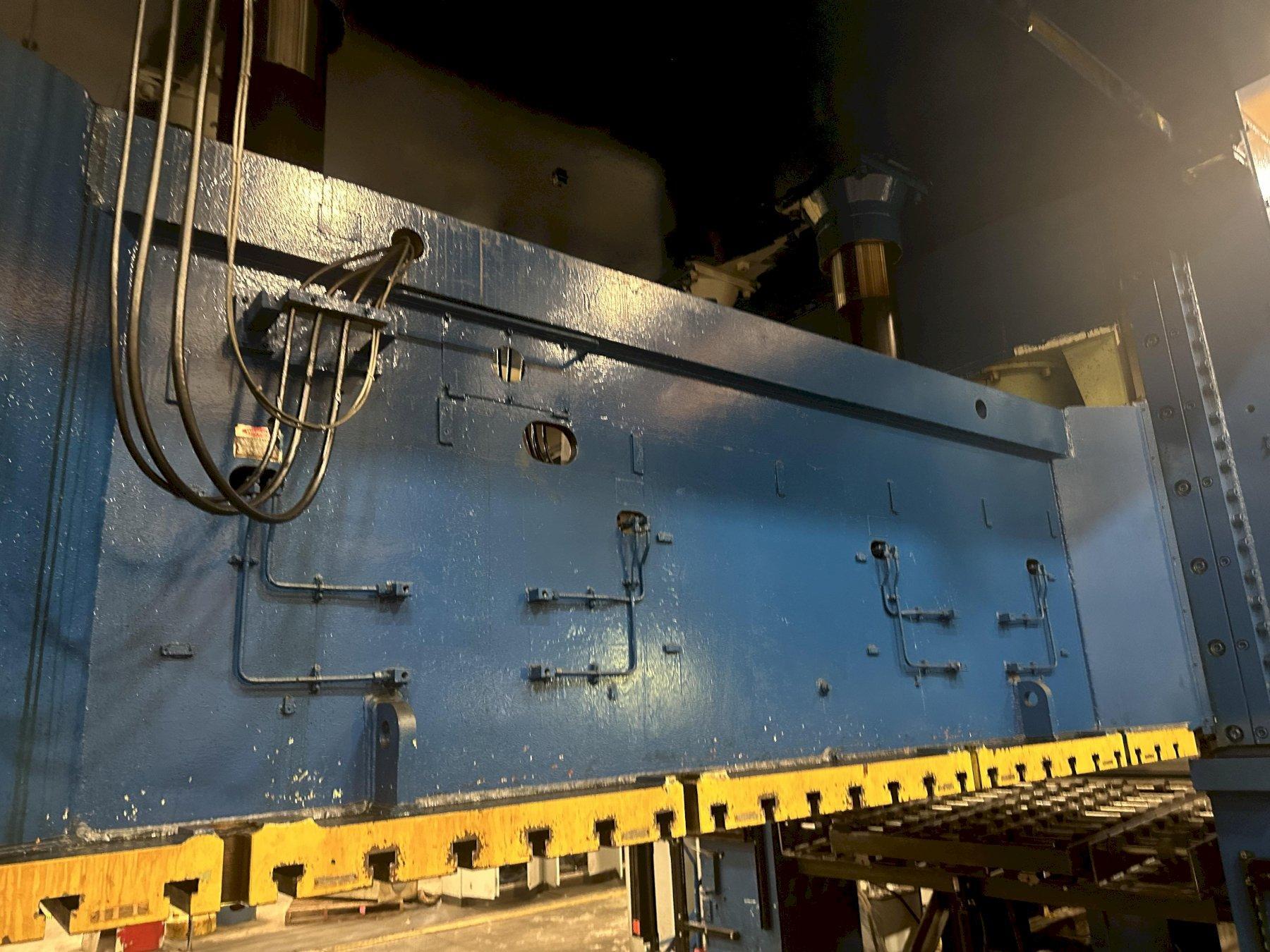

YEAR..............................: 1987 CAPACITY..........................: 400 TON STROKE............................: 10" SHUT-HEIGHT.......................: 53" ADJUSTMENT........................: 13.8" STROKES PER MINUTE................: 15-60 VARIABLE BED SIZE..........................: 157"(L-R) X 98"(F-B) RAM SIZE..........................: 157"(L-R) X 98"(F-B) WINDOW OPENING....................: 94" MOTOR HP..........................: MOVING BOLSTER....................: YES,QTY(2) FEED SYSTEM: PIT COIL CAR......................: YES DOUBLE STUB UNCOILER..............: YES CAPACITY..........................: 70,000 LBS HYDRAULIC EXPANSION...............: YES EXPANSION RANGE...................: 20" - 24" COIL O.D. CAPACITY................: 86" HOLD DOWN ROLL....................: YES DRIVE MOTOR.......................: 15 HP DC SLIDING BASE ON EACH HEAD.........: YES PEELER/PINCH ROLL UNIT............: YES CROP SHEAR........................: YES HYDRAULIC DOWNCUT TYPE............: YES LOOPING PIT ROLL FEED UNIT FEEDING LENGTH....................: 2" MIN TO 120" MAX LINE SPEED........................: APPROX 80 IN/MIN AUTOMATIC FEED CO STACKERS MAGNETIC BRIDGE CONVEYOR..........: YES # OF STACKING STATIONS............: 2 BLANK STACKER STATION 1: WIDTH OF BLANKS...................: 16" MIN TO 72" MAX LENGTH OF BLANKS..................: 8" MIN TO 126" MAX BLANK STACKER STATION 2: WIDTH OF BLANKS...................: 16" MIN TO 72" MAX LENGTH OF BLANKS..................: 8" MIN TO 157" MAX MAX BLANK STACK WEIGHT............: 15,000 LBS REJECT STACKER....................: YES RUNOUT CONVEYOR...................: YES LINE EQUIPPED WITH UPGRADED TOLEDO INTEGRATED TECHNOLOGIES CONTROL IN 2015 NOTE* FEED LINE, PRESS, AND STACKER UNITS HAVE INDEPENDENT CONTROLS. |
Watch https://youtu.be/aTWe4JNInRs
