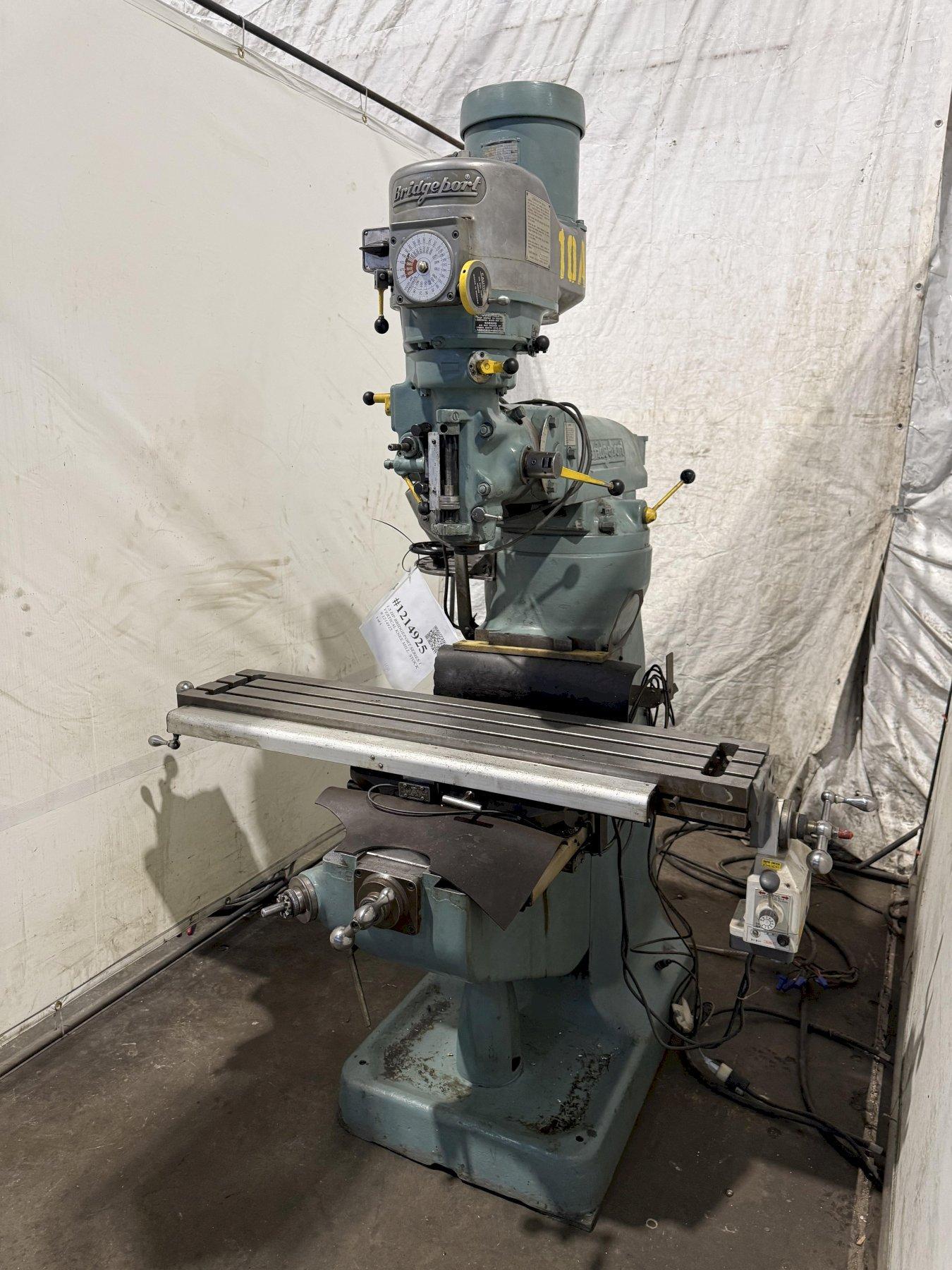

2 HP BRIDGEPORT SERIES II "SPECIAL" RAM TYPE VERTICAL MILL: STOCK #19945
Brand
Category
Type
Model
Not specified
Stock #
19945
Year
Not specified
Condition
Not specified
Location
Ohio
|
MODEL ................................. SERIES II SPECIAL
TABLE AREA (T-SLOTTED) ................ 58" X 11"
LONGITUDINAL TABLE TRAVEL ............. 33"
CROSS TRAVEL .......................... 15"
VERTICAL KNEE TRAVEL .................. 16"
RAM TRAVEL ............................ 17"
QUILL TRAVEL .......................... 5"
QUILL DIAMETER ........................ 3-3/8"
SPINDLE SPEEDS (VARIABLE) ............. 60 TO 4200 RPM
SPINDLE FEEDS ......................... .0015, .003, .006 IPR
MAXIMUM TABLE CAPACITY ................ 1500 LBS
DEPTH OF THROAT ....................... 6" MIN, 23" MAX
CHROME TABLE WAYS ..................... YES
DIGITAL READOUTS ...................... YES
1 SHOT LUBE ........................... YES
MOTOR ................................. 2 HORSEPOWER |
